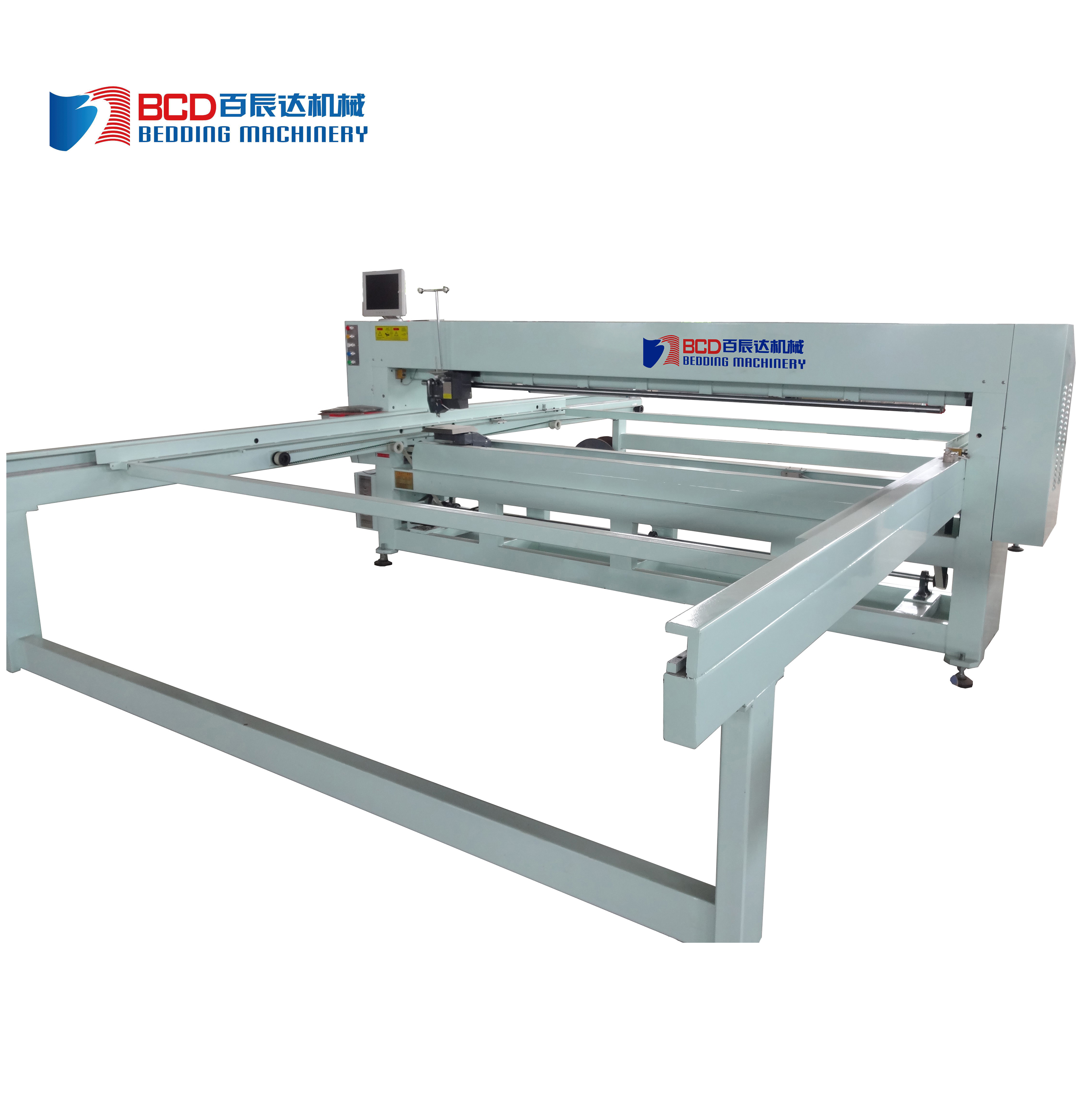

BDZH-2 COMPUTERIZED LONG ARM MOVABLE QUILTER MACHINE

SINGLE NEEDLE QUILTING MACHINE

Quantity:
  • BDZH-2
  • NANJING BCD

This machine is mainly used for quilt making .Its characteristics as: all servo transmission structure on the head, maximum speed at 3500 RPM, WONDOWS operation system. Display of working speed, reasons for stop, stitch, coordinates and design file directory, etc. Edit embroidery design, edit design online. The machine has the function of thread break detection with high sensitivity. Automatic adjust design size and the position of sewing bed. X/Y use servomotors to start with the high precision and flexible credible characteristics. The machine-head is controlled by double servomotors; the running noisy of machine is low.

Work speed: 500~2600rpm(adjustalbe)
Stitch length 1~6mm
Max. thickness 40mm s(no compress)
Max sewing area: 2200X2540mm(standard)
Adjustable frame size: (1500~2400)X(2000~2740mm)(standard)
Machine external size 6800X4300X1950mm(standard)

Product advantages:

1. The quilting speed up to 3500 r / min and Production efficiency more than doubled.

2. The handpiece using imported linear guide rail to move and the plane accuracy is within 7 silk low noise.

3. Different sizes can be customized according to customer needs.

4. The computer system has stored more than 300 kinds of patterns and can also support USB inventory reading with a pattern browsing function and the patterns can be rotated and mirrored.

5. Automatic refueling system using the ultra-high-speed handpiece and using the AC servo synchronization system.

6. Delivery after 24 hours of continuous trial run and delivery with no fault.

7. The computer program is independently researched and developed which is more closer to the usage habits of customer.

BDZH-2BDZH-2修图 (3)


 Work speed: 500~2600rpm( adjustalbe)
 Stitch length 1~6mm
 Max. thickness 40mm s( no compress)
 Max sewing area: 2200X2540mm( standard)
 Adjustable frame size: (1500~2400)X(2000~2740mm)( standard)
 Machine external size 6800X4300X1950mm( standard)
