| Quantity: | |
|---|---|
1.PLC & CNC control systems for precise adjustment of spring diameter, height and coil count via parameter setting. 2.Proactively detects faults, triggers timely shutdowns and issues alarms, effectively reducing production losses and ensuring consistency in product manufacturing standards. 3.Mitigates operational risks, prevents accidents from occurring, and safeguards the operational safety of operators. 4.Equipped with a servo motor for fast response and high positioning accuracy, enabling precise spring forming control, enhanced product consistency and processing efficiency. 5.Only 1 operator needed for large-scale production 6.Equipped with CE certificate |

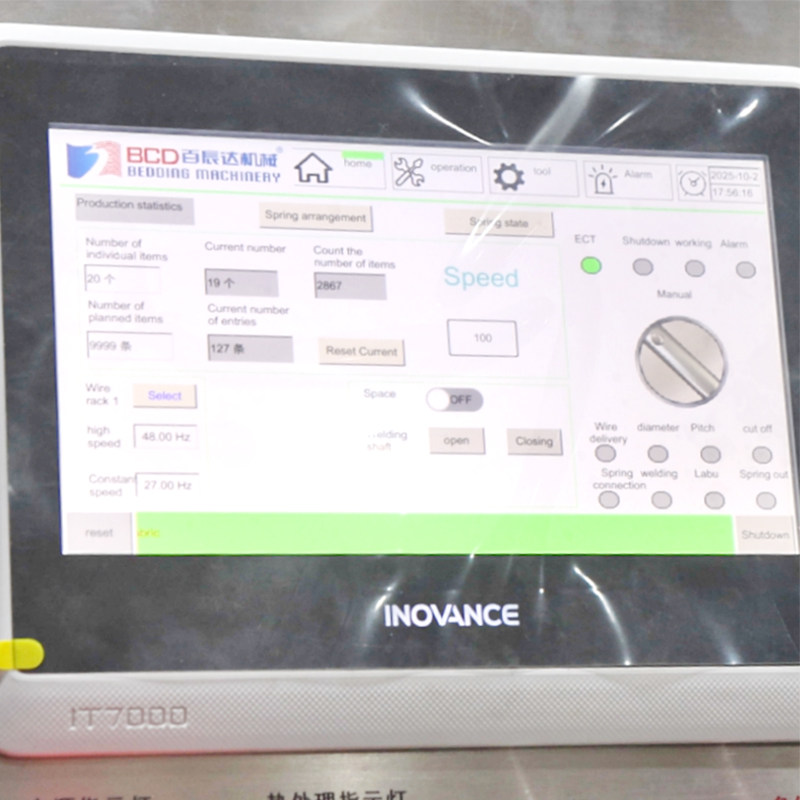

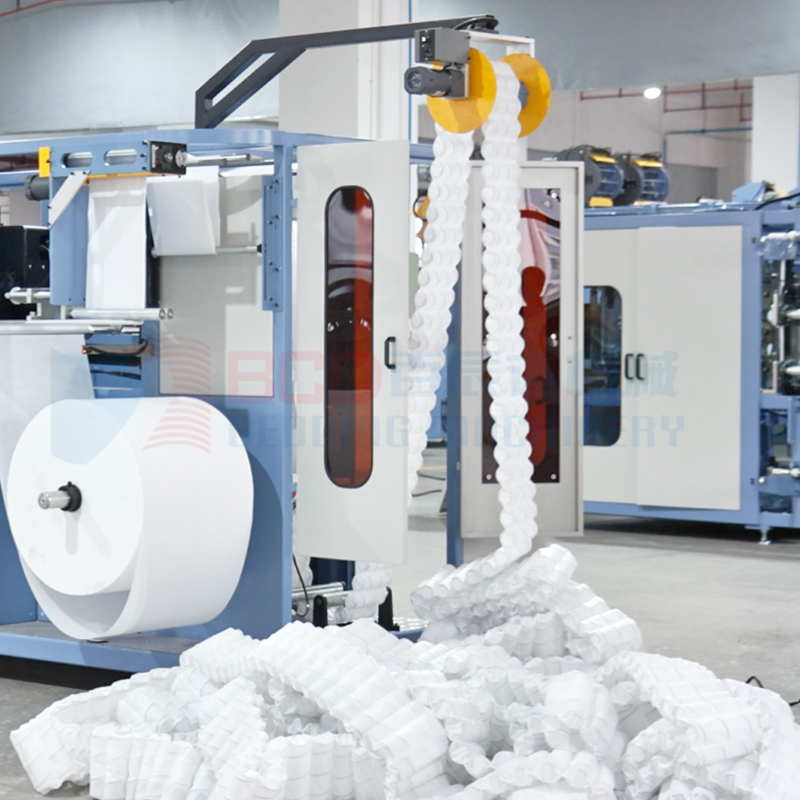

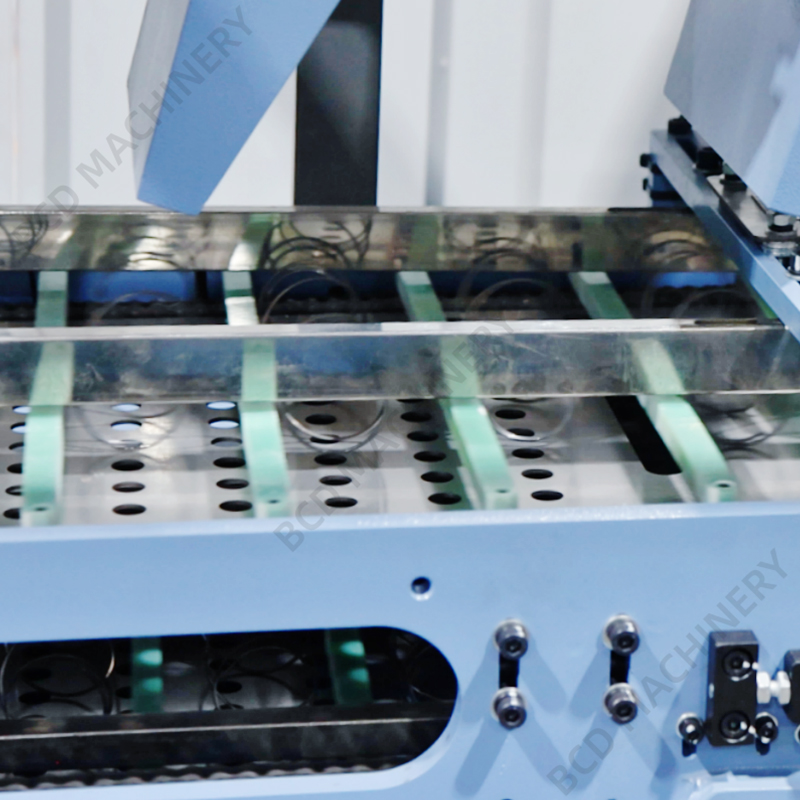

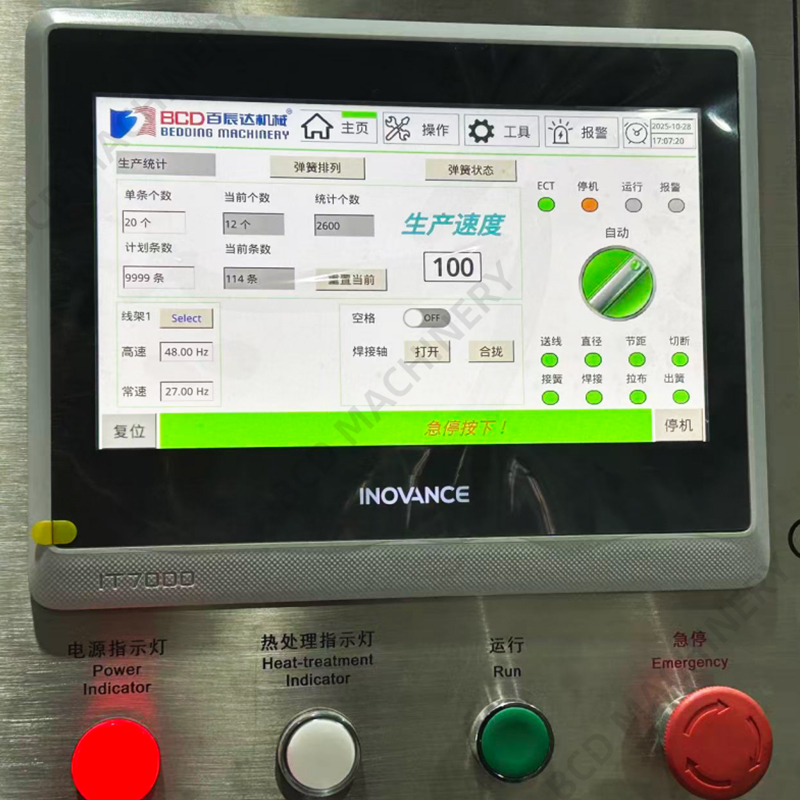

FULLY COMPUTERIZED CONTROL Runs the entire production process from wire feeding, spring forming, sealing to packaging，for consistent, reliable quality. |  PROCESS ADVANTAGES Spring conveying system prevents non-woven fabric thermal damage; dual heat treatment + high-power cooling ensures precise spring shaping and optimal tempering. |

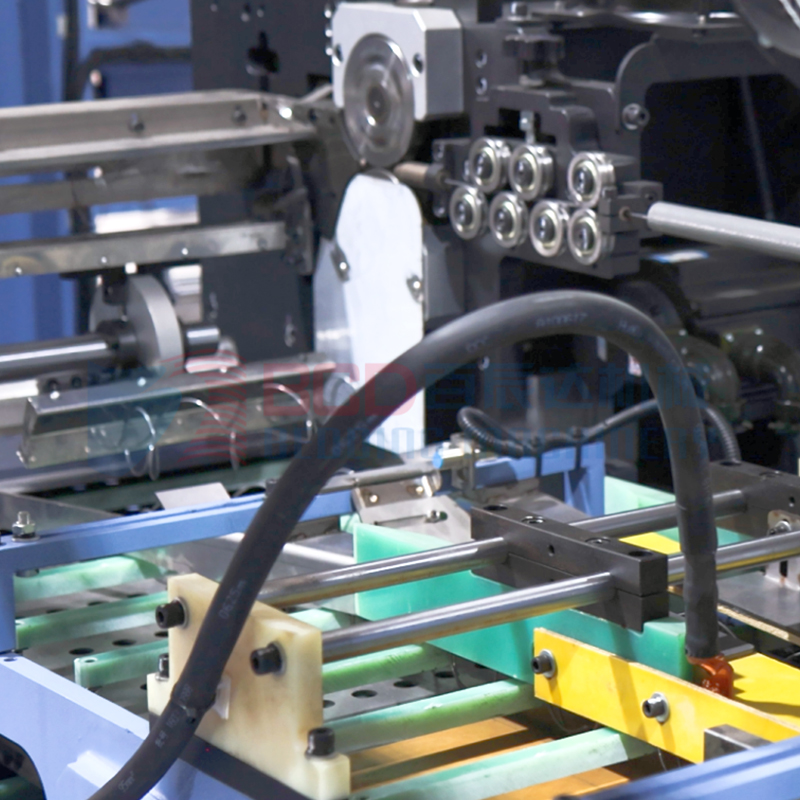

HIGH PRODUCTION EFFICIENCY The machine achieves up to 130 pcs/min,with precise servo control ensuring consistent dimensions of finished springs. |

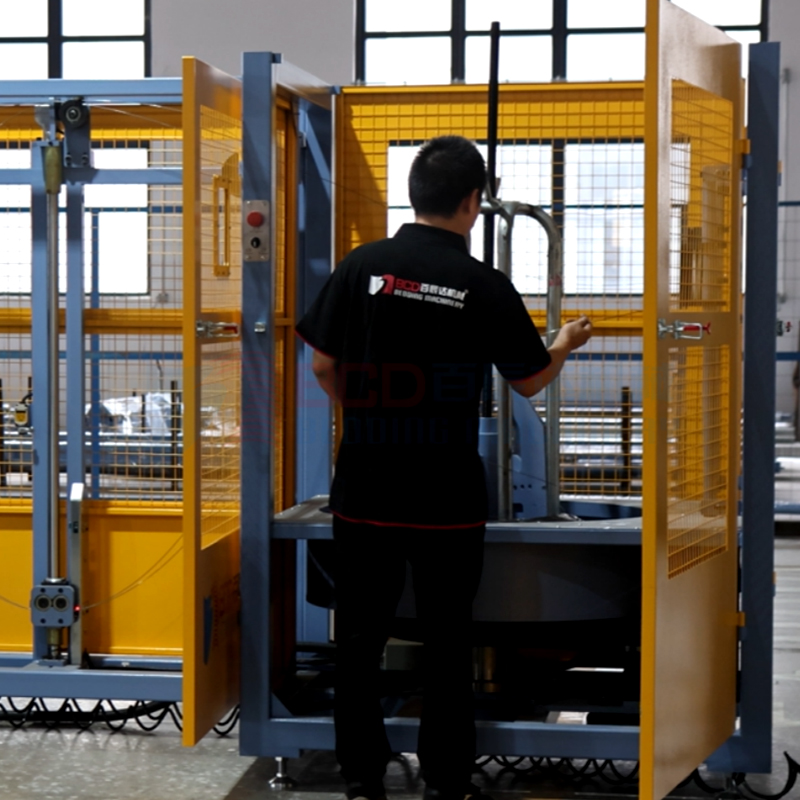

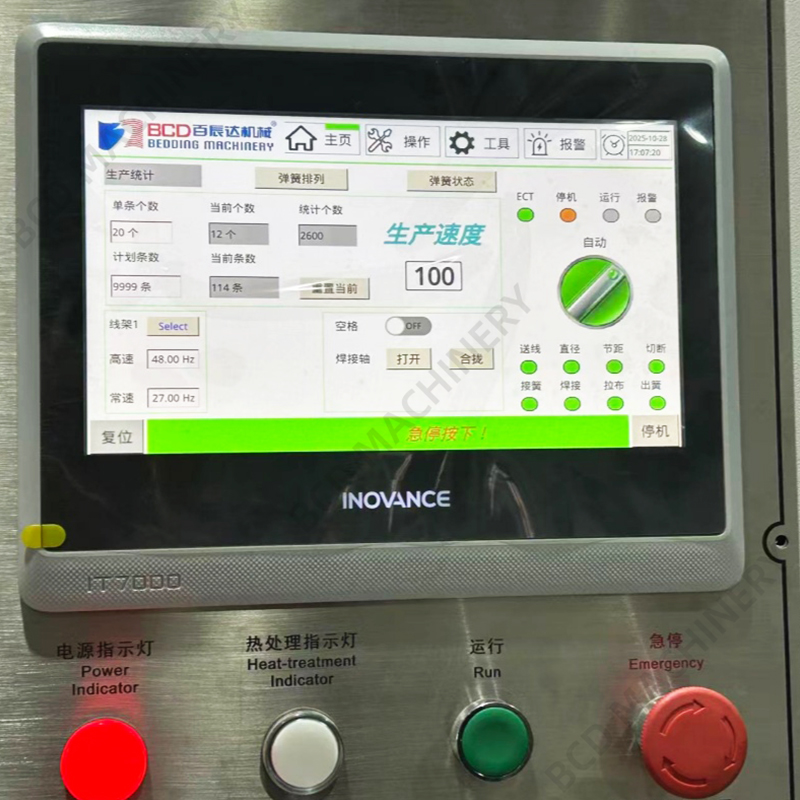

INTELLIGENT FAULT SYSTEM Proactively detects potential malfunctions and alerts operators in real time, minimizing unplanneddowntime, reducing production losses, and upholding strict product manufacturing standards, qualityconsistency,and industry compliance. |

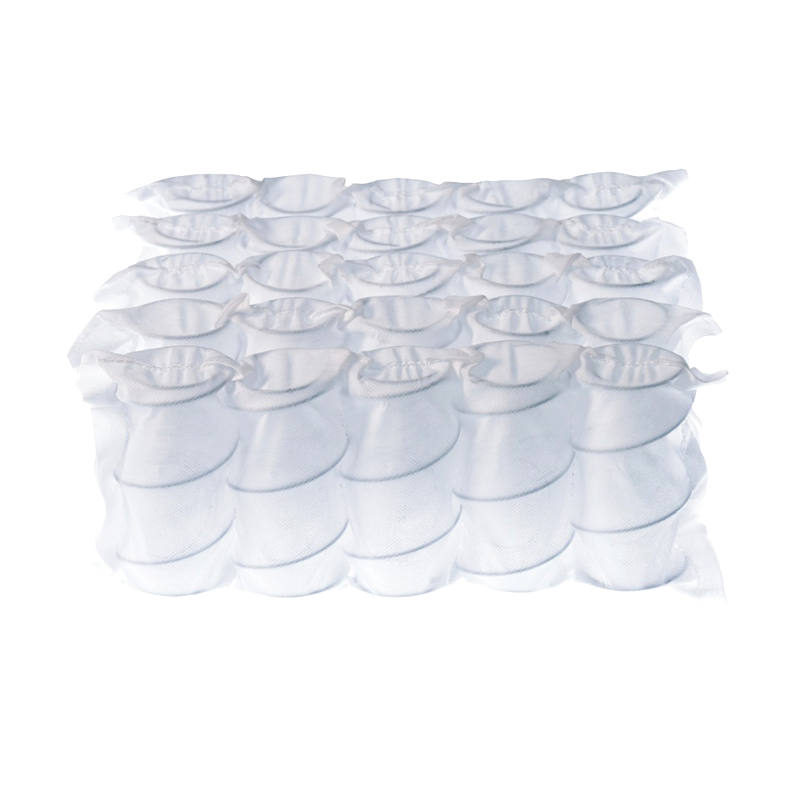

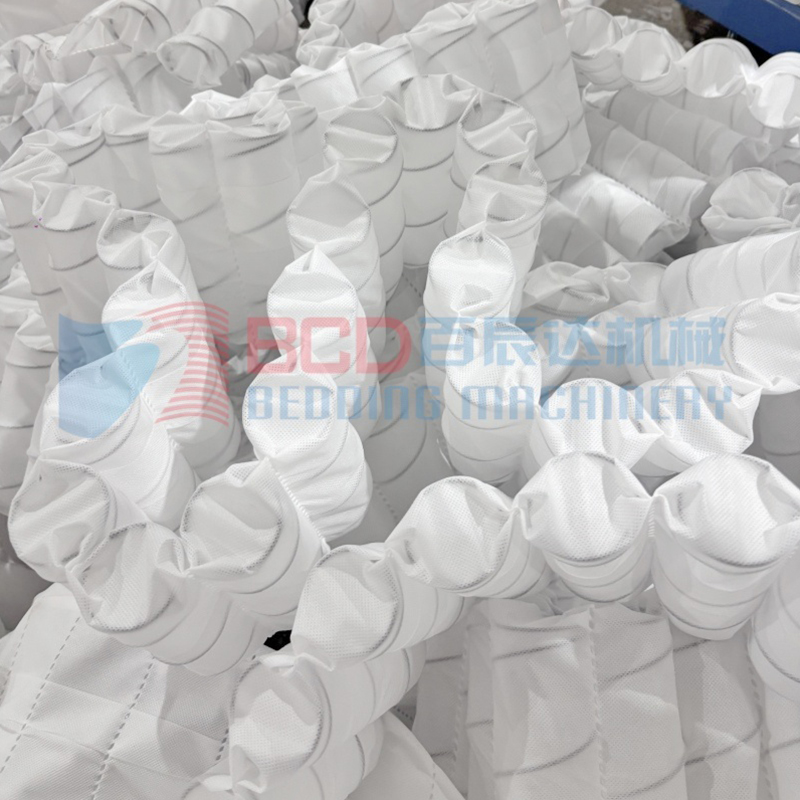

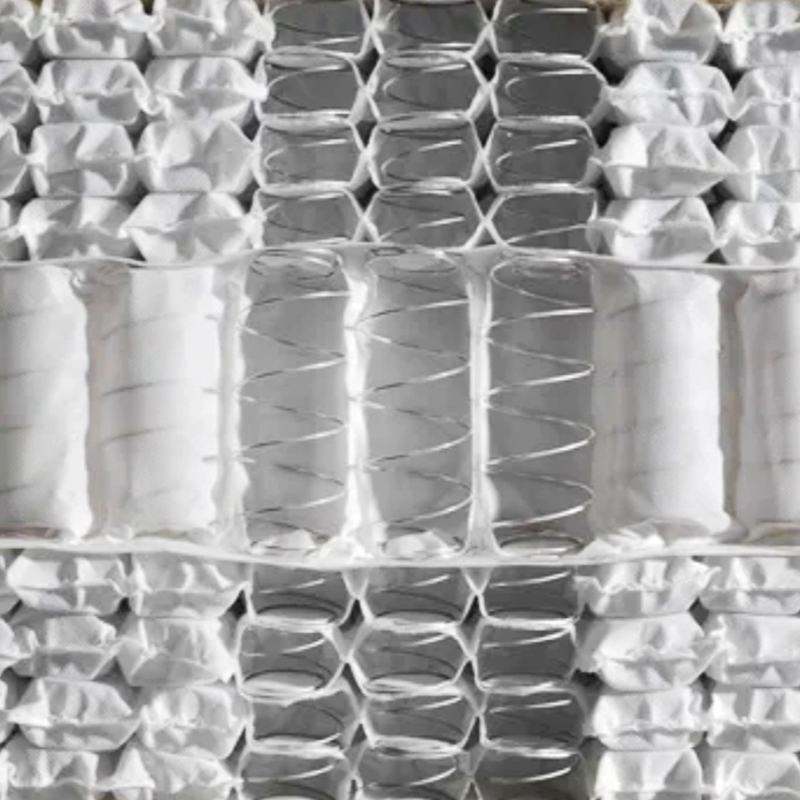

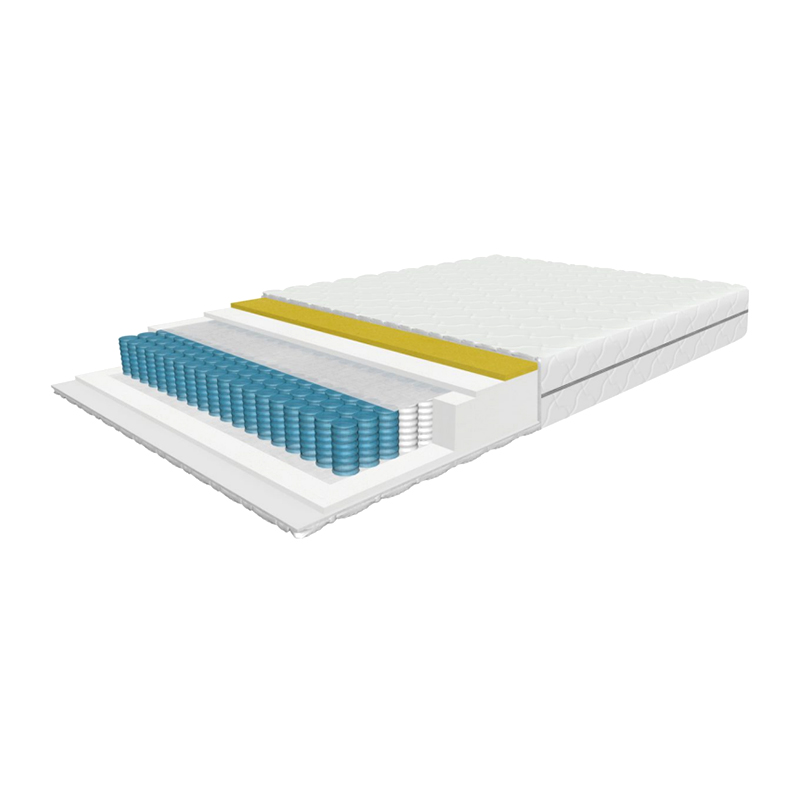

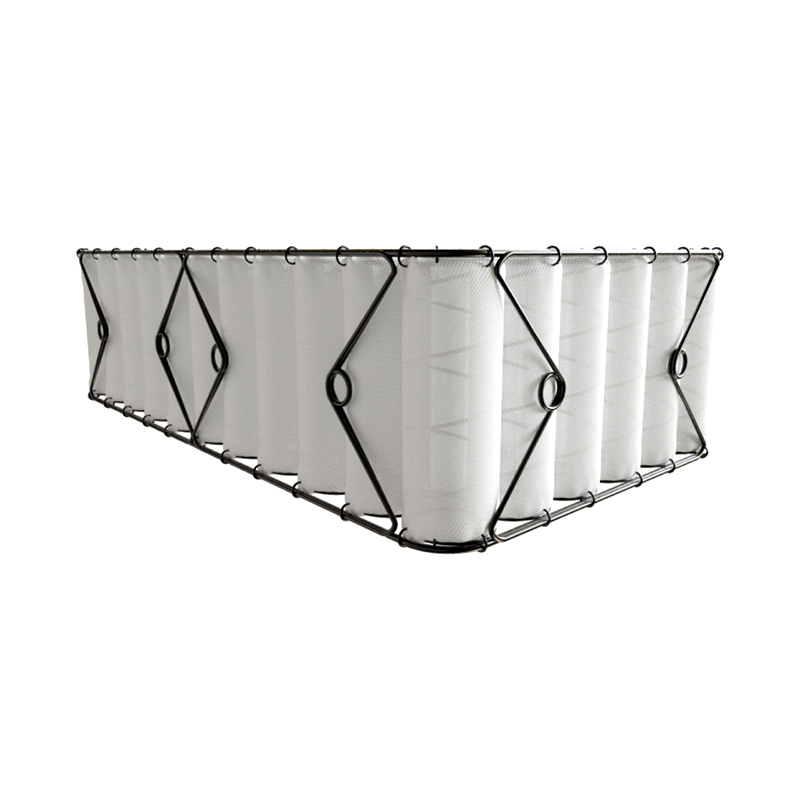

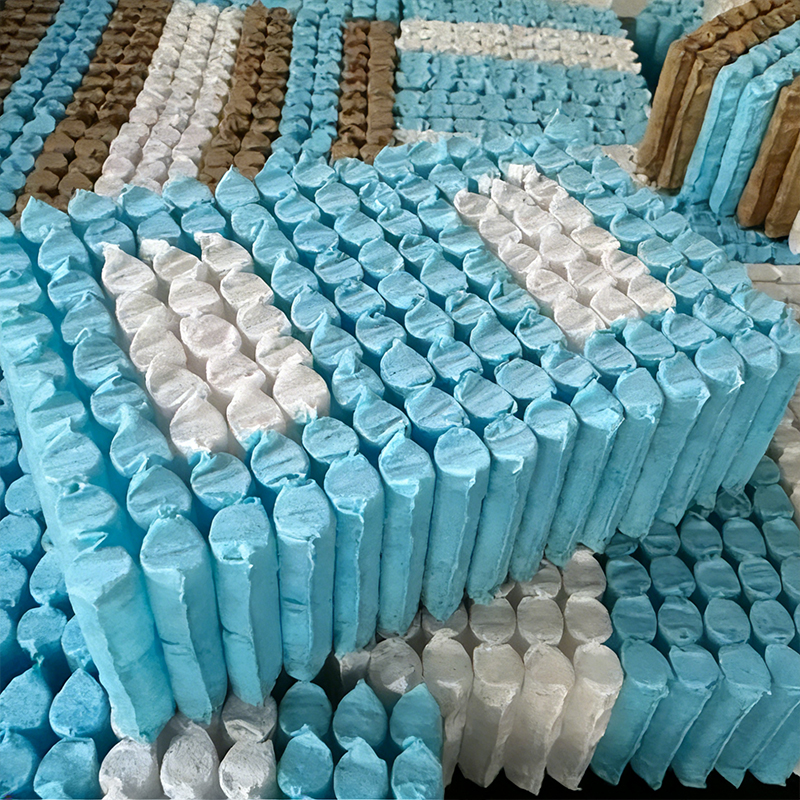

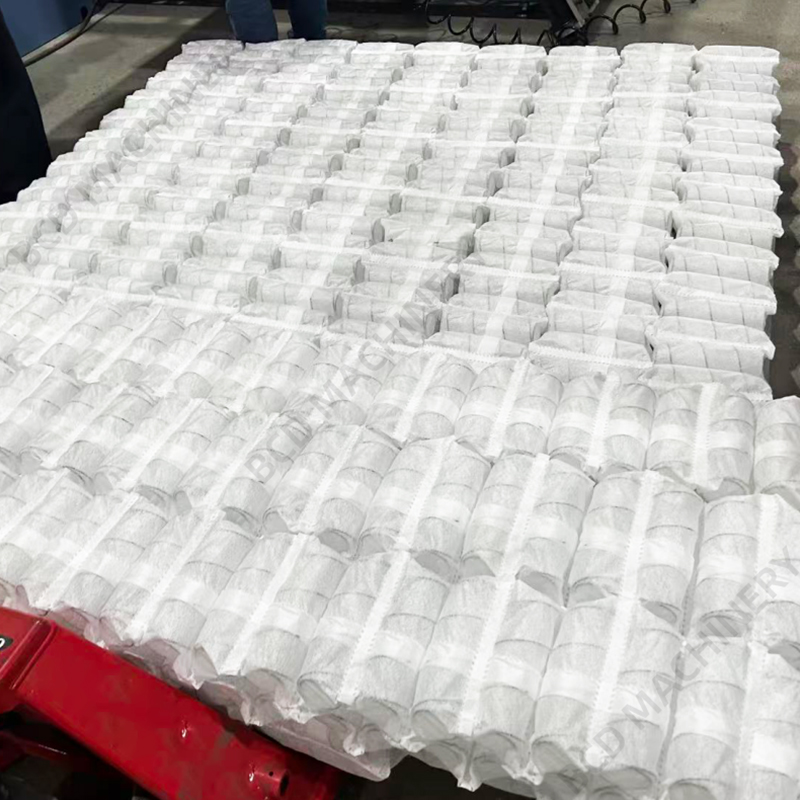

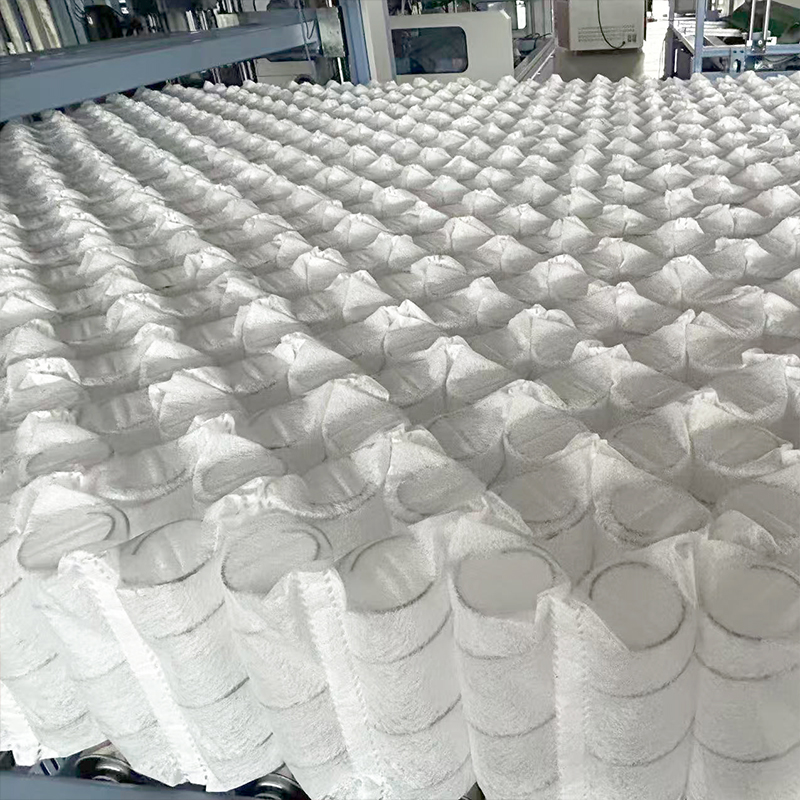

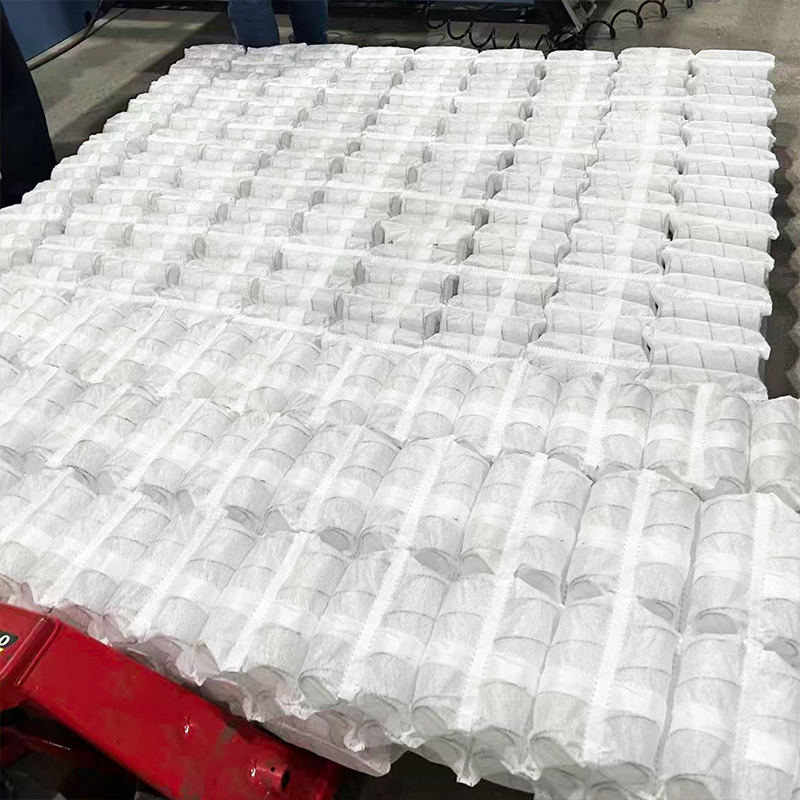

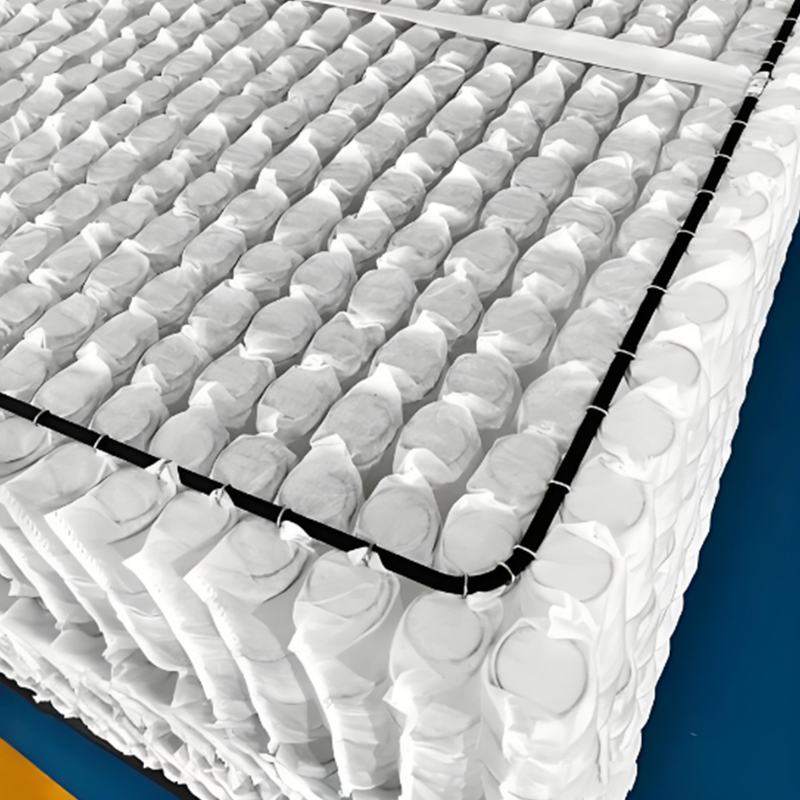

▎FINISHED PRODUCT DISPLAY
 |  |  |  |
▎MODEL COMPARISON
WHICH ONE IS MORE SUITABLE FOR YOU ?

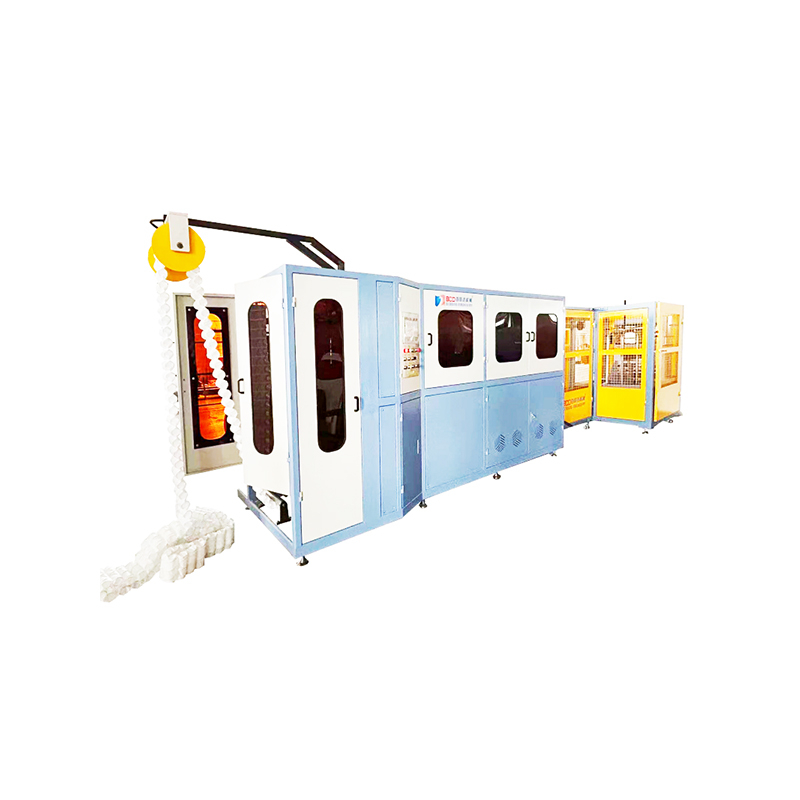

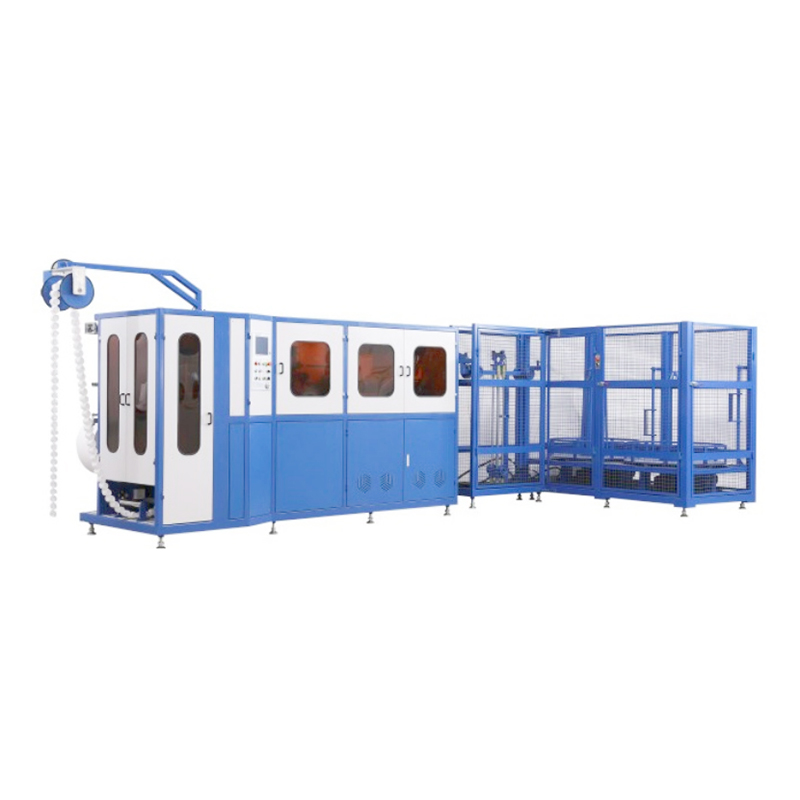

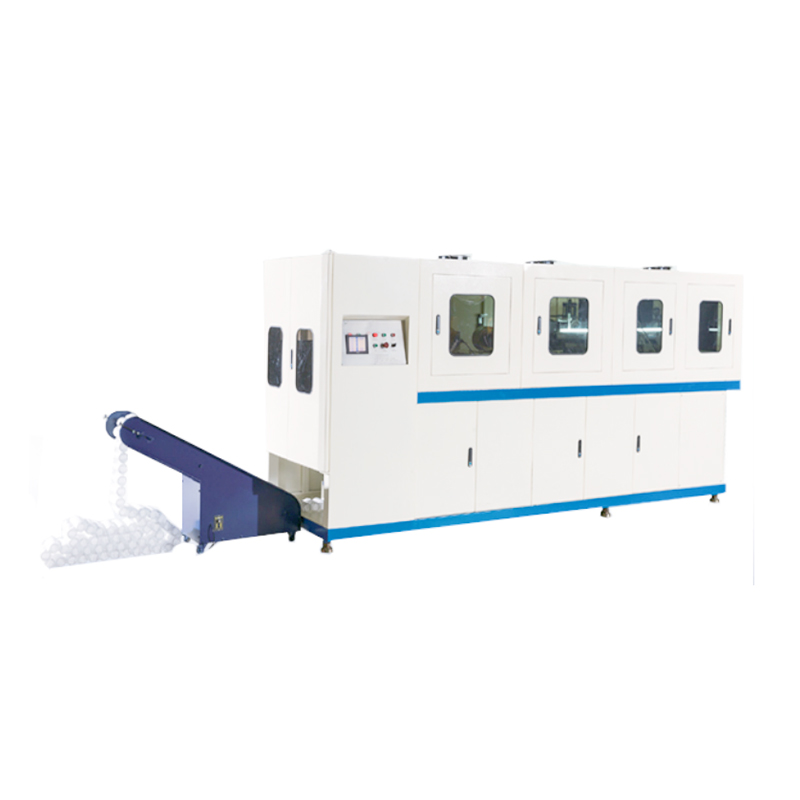

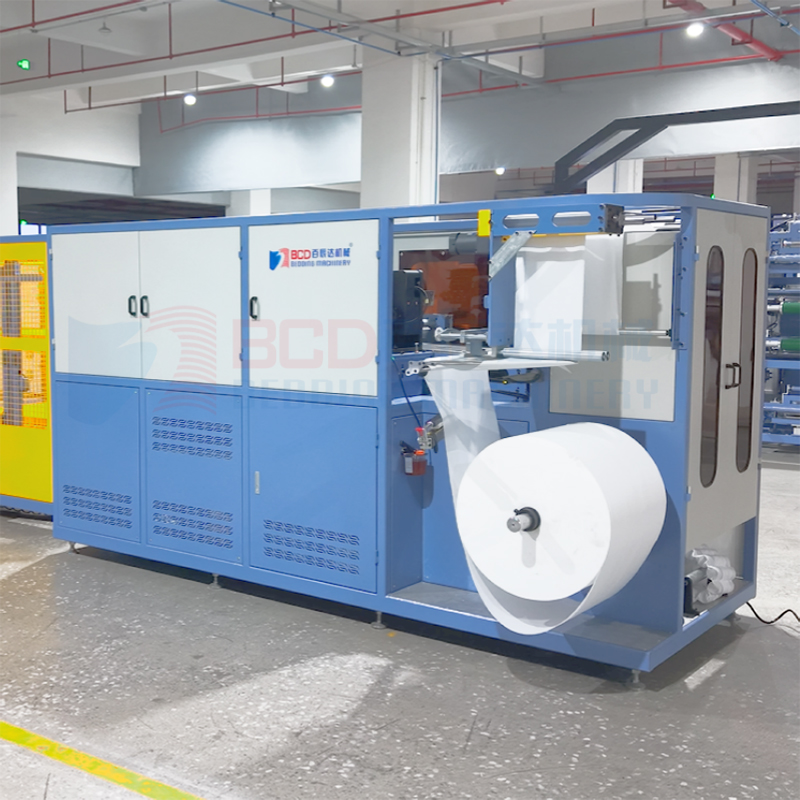

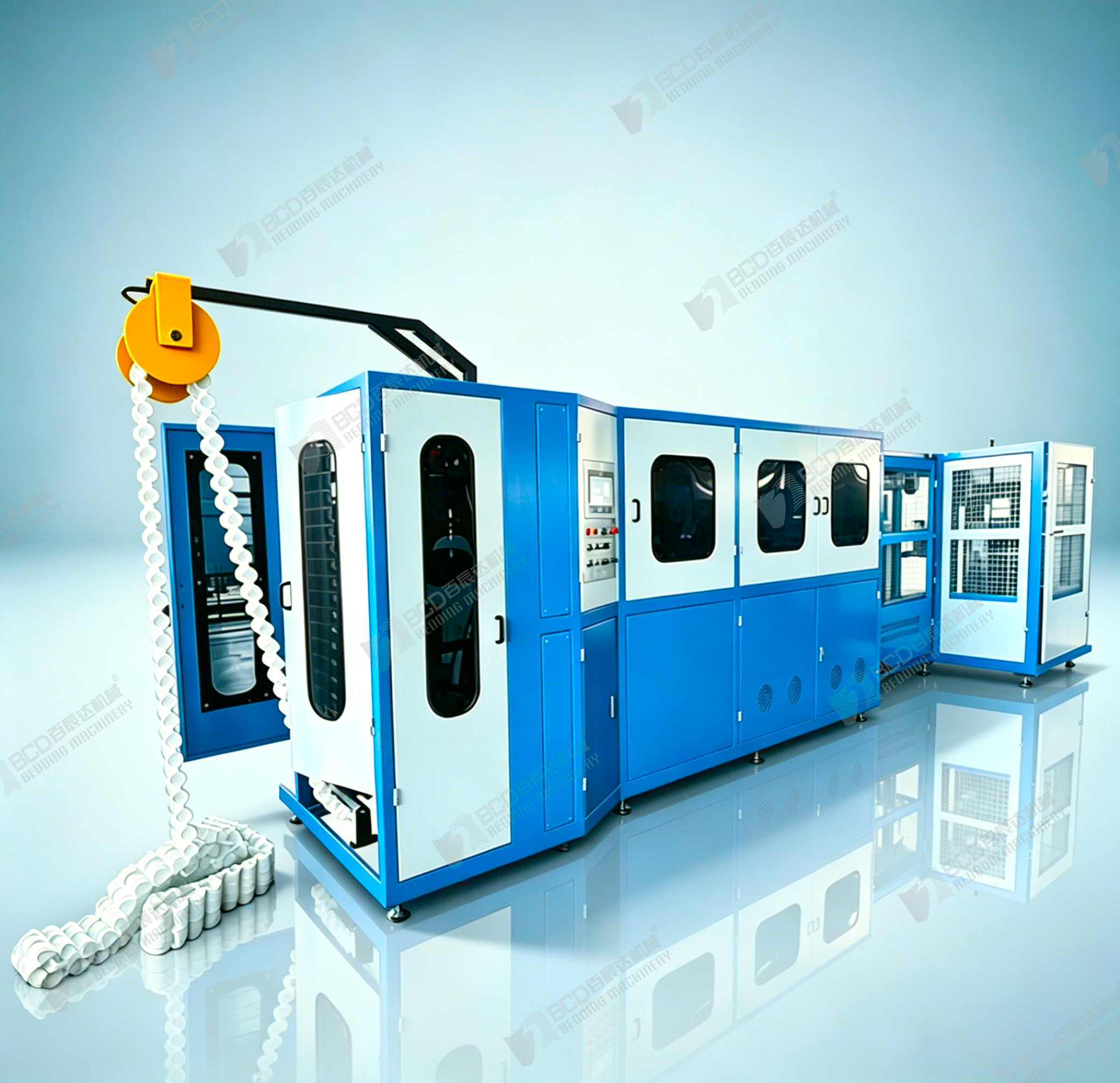

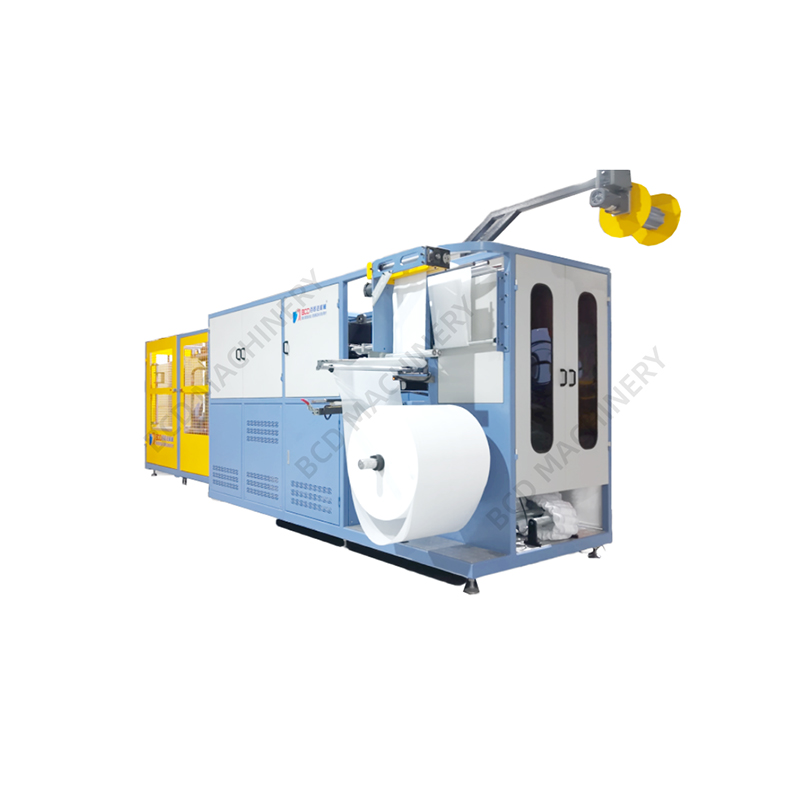

| BBTH Automatic Pocket Spring Machine | |||
| Model No. | BBTH-240 | BBTH-110 | BBTH-150 |
| Spring dia | φ30-50mm | φ55-72mm | φ55-80mm |
| Spring height | 20-40mm | 80-250mm | 100-250mm |
| Wire thickness | φ1.0-1.8mm | φ1.8-2.2mm | φ1.6-2.3mm |
| Fabric thickness | 60-90g/m² | 50-150g/m² | 60-100g/m² |
| Work efficency | 240pcs/min | 110-130pcs/min | 150pcs/min |
| Power | 26kw | 38kw | 38kw |
| Machine size(L*W*H) | 5700*2000*2100mm | 7300*1300*12400mm | 5550*1500*1950mm |
▎FAQ

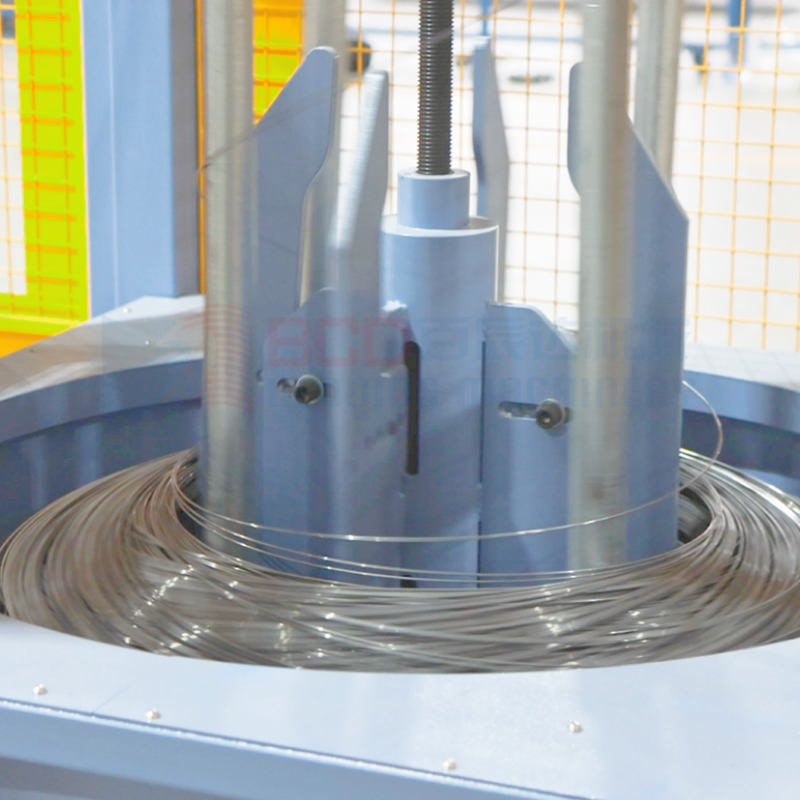

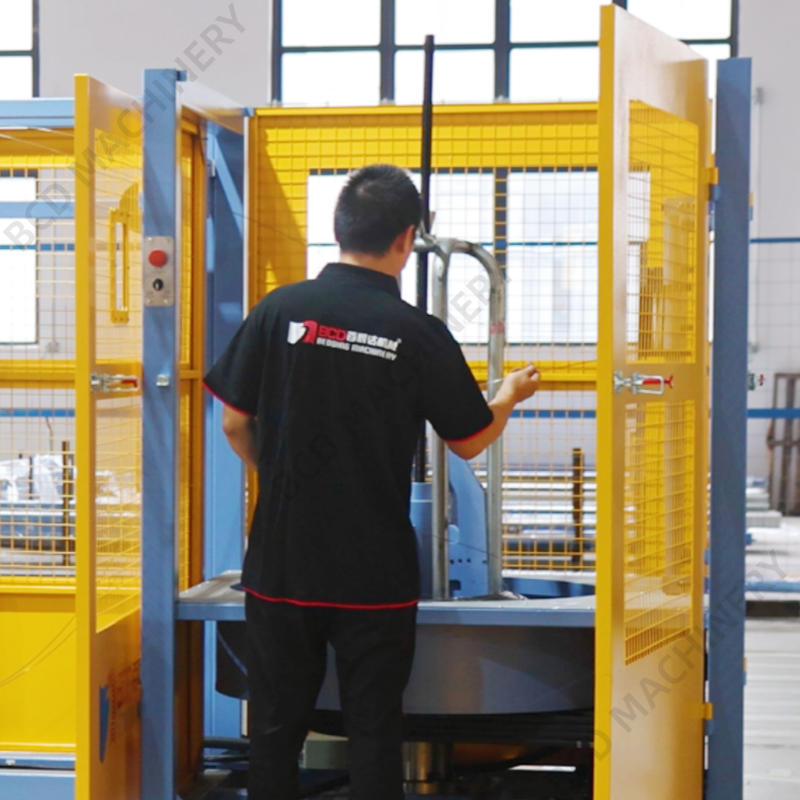

Q: What is the bearing capacity of the coil holder?
A: The coil holder has a bearing capacity of 1000kg
Q: What spring sizes (diameter, height) can the machine handle?
A: It supports spring diameters of 80-110mm (with 55-77mm optional) and heights of 80-250mm, covering most standard pocket spring specifications for mattresses.
Q: Which model can make thick springs with a height of 250mm?
A: Both BBTH-110 and BBTH-150 support this. Their spring height ranges are 80-250mm and 100-250mm respectively.
Q: What wire thickness is suitable for the BBTH-110?
A: It is compatible with wires of φ1.8-2.2mm, which meets the hardness requirements of regular mattress springs.
Q: Can it produce different pocket spring types (e.g., drum-shaped)?
A: Yes, it can be adjusted to produce standard cylindrical springs; drum-shaped/zoned springs are available with custom configuration.
Q: Does it have international certifications?
A: Yes, it meets CE standards (compliant with EU safety & quality regulations).
Q: What is the after-sales warranty period of the product?
A: The standard warranty period is one year
Q: Can you provide a detailed operation manual?
A: Yes. Contact us for one-on-one guidance.

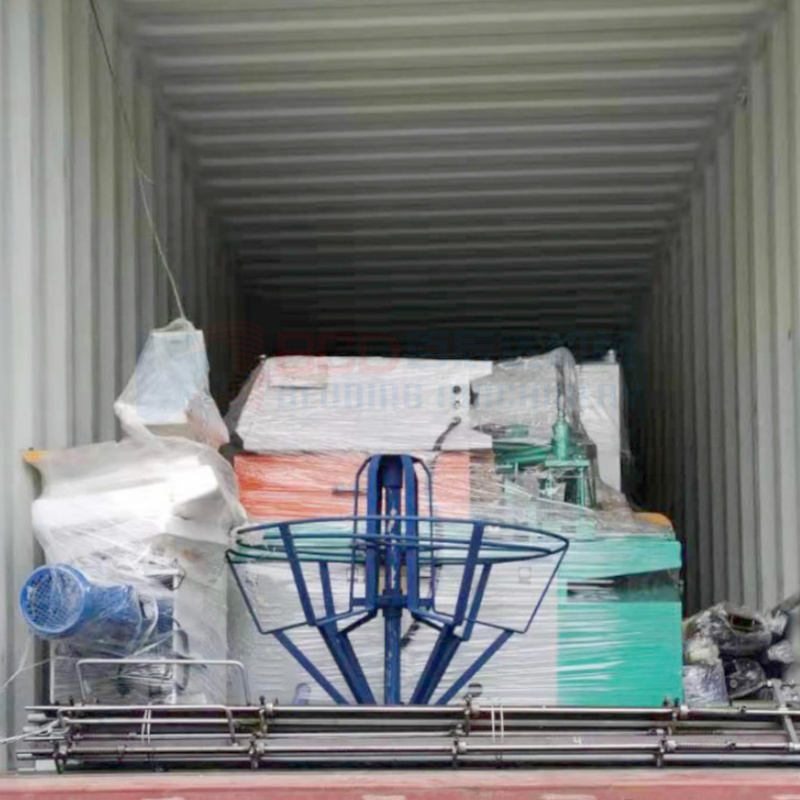

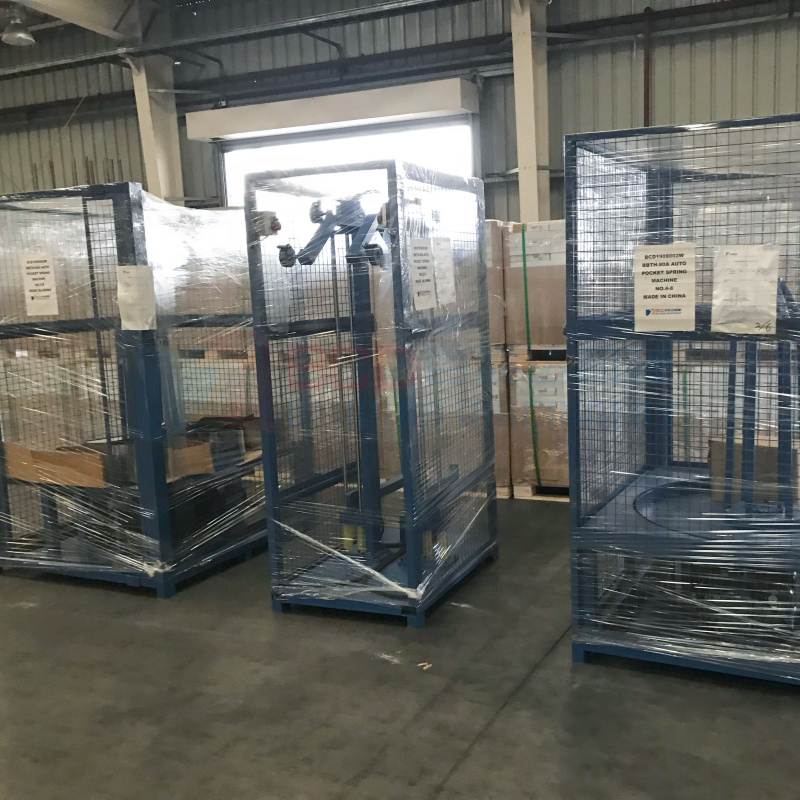

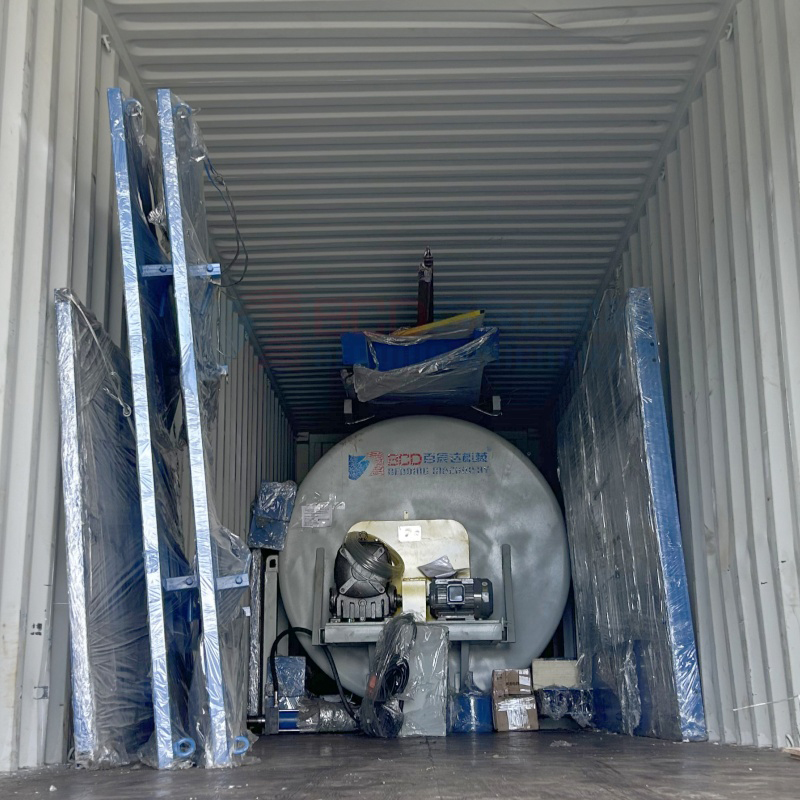

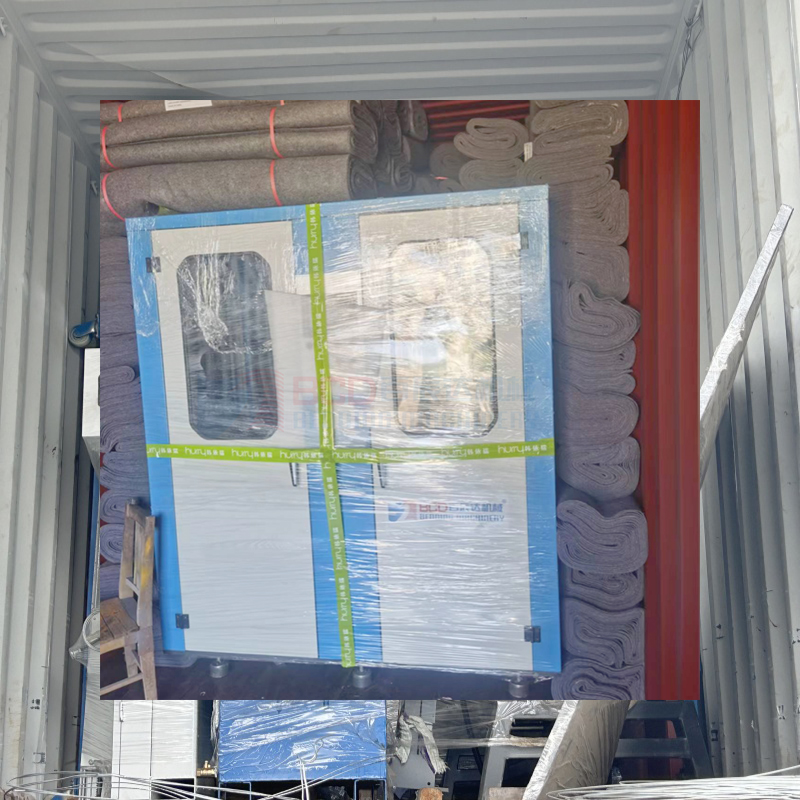

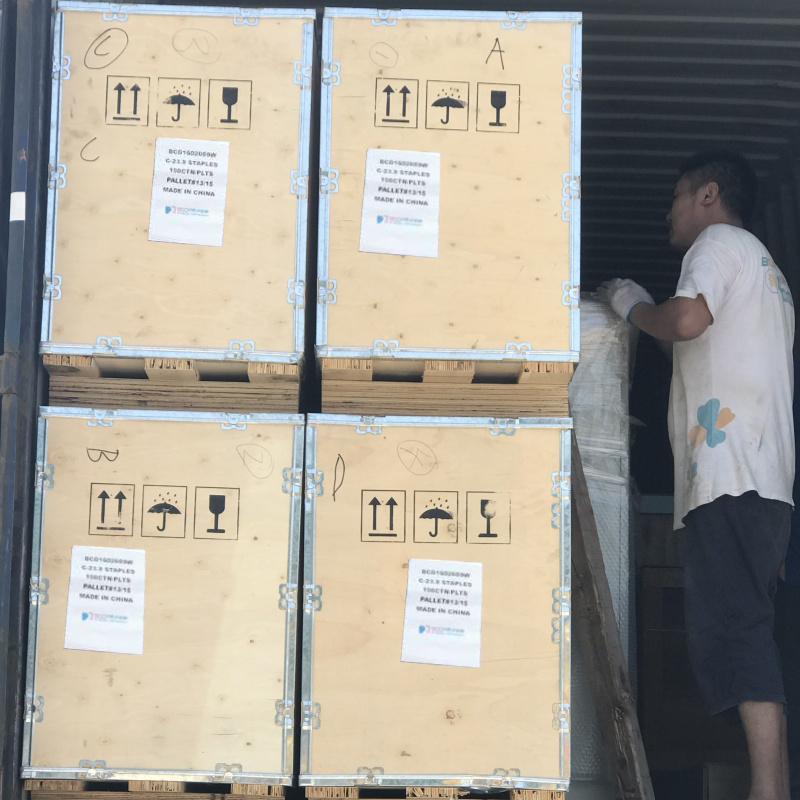

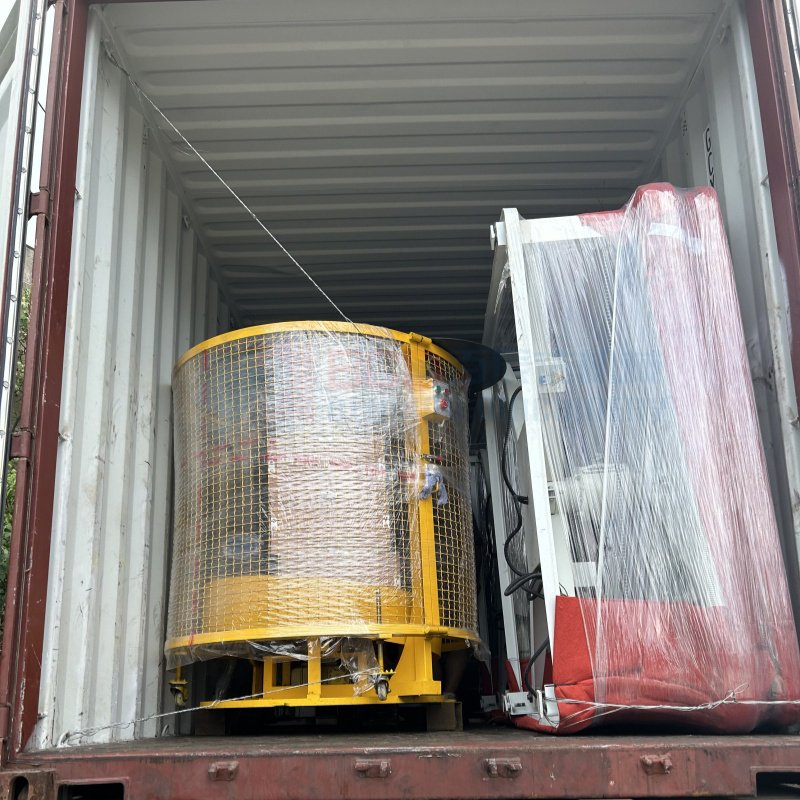

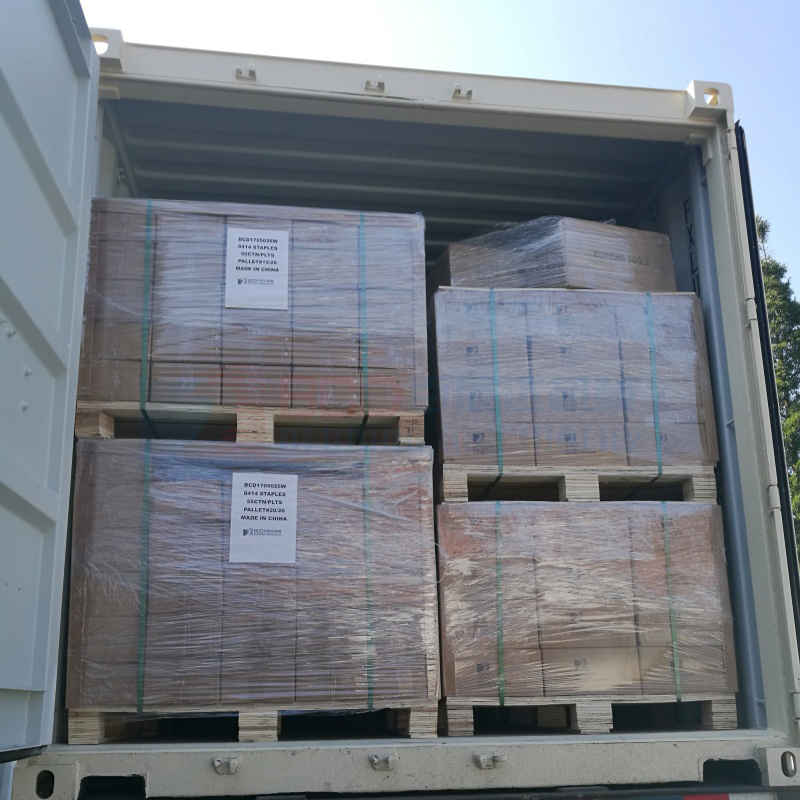

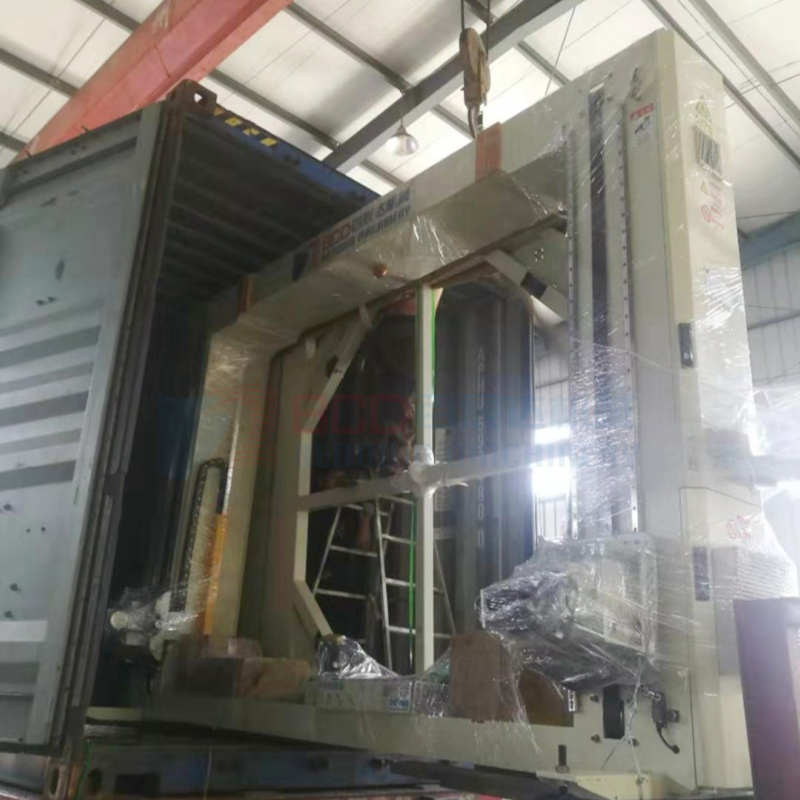

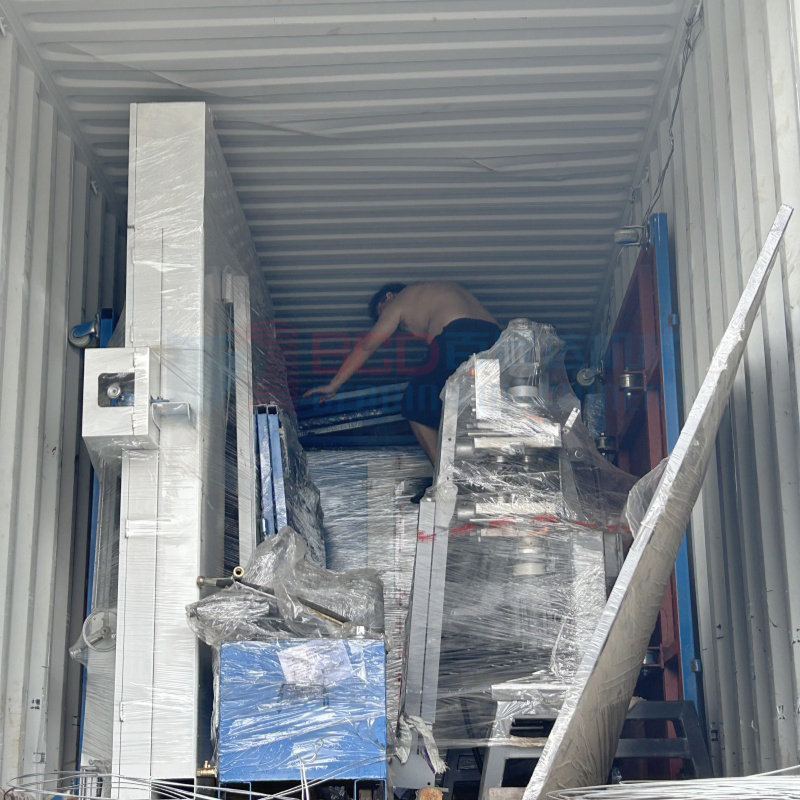

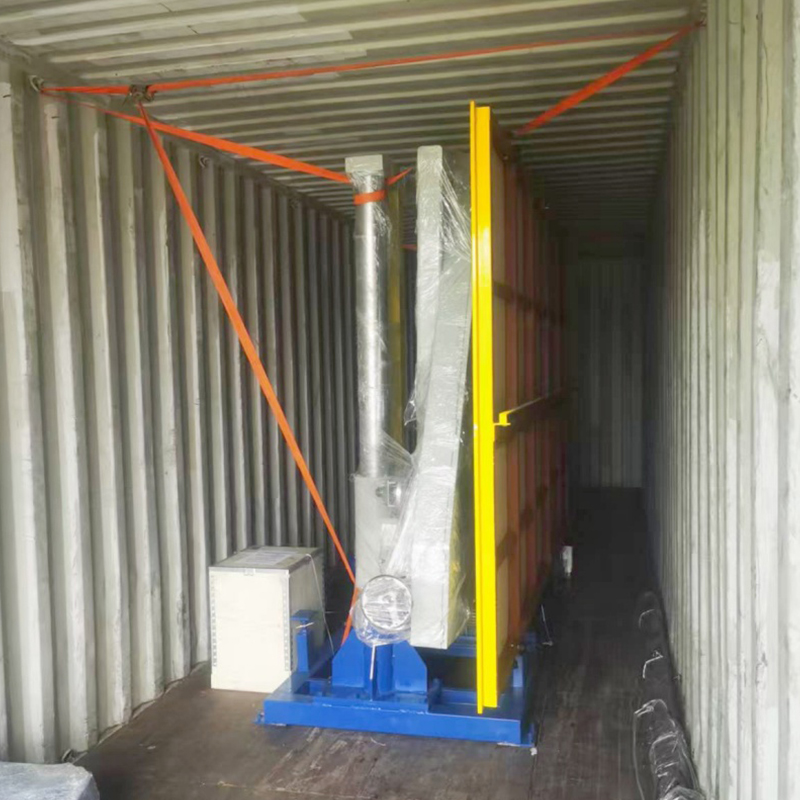

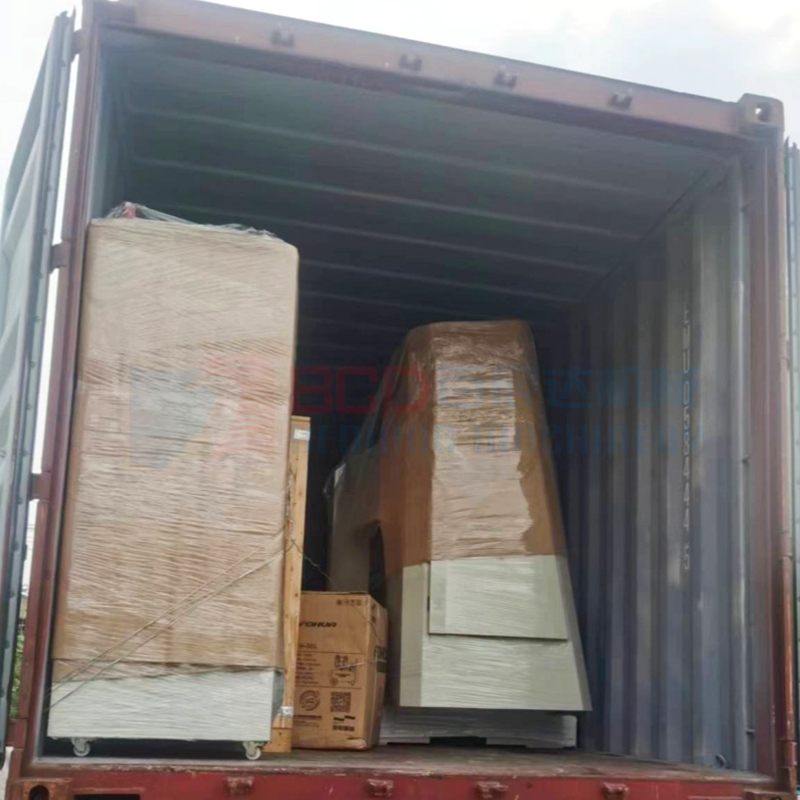

▎PACKAGING
 |  |  |  |
 |  |  |  |
  |   |   |   |
