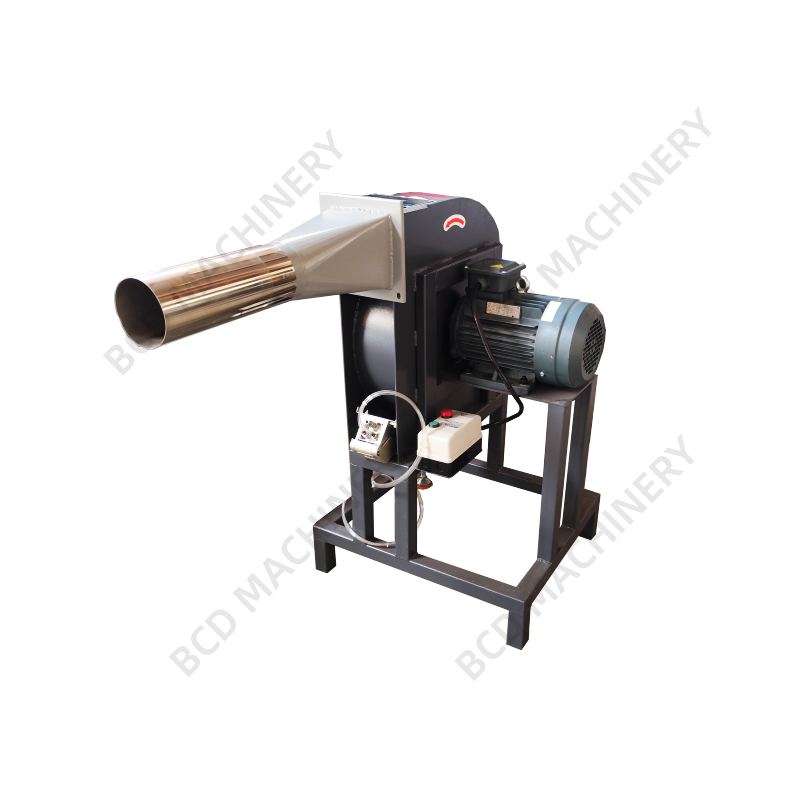

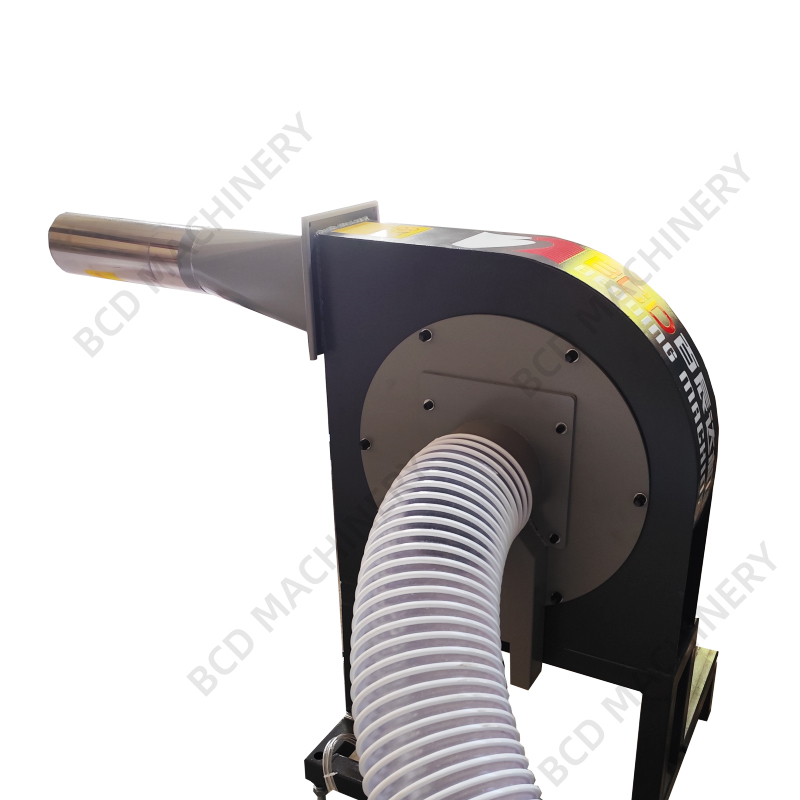

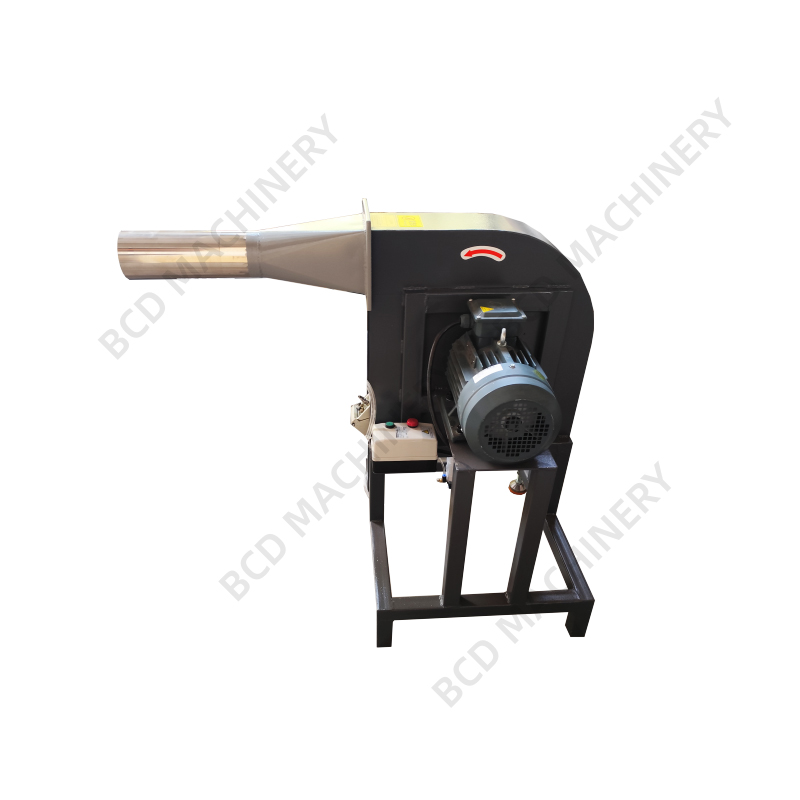

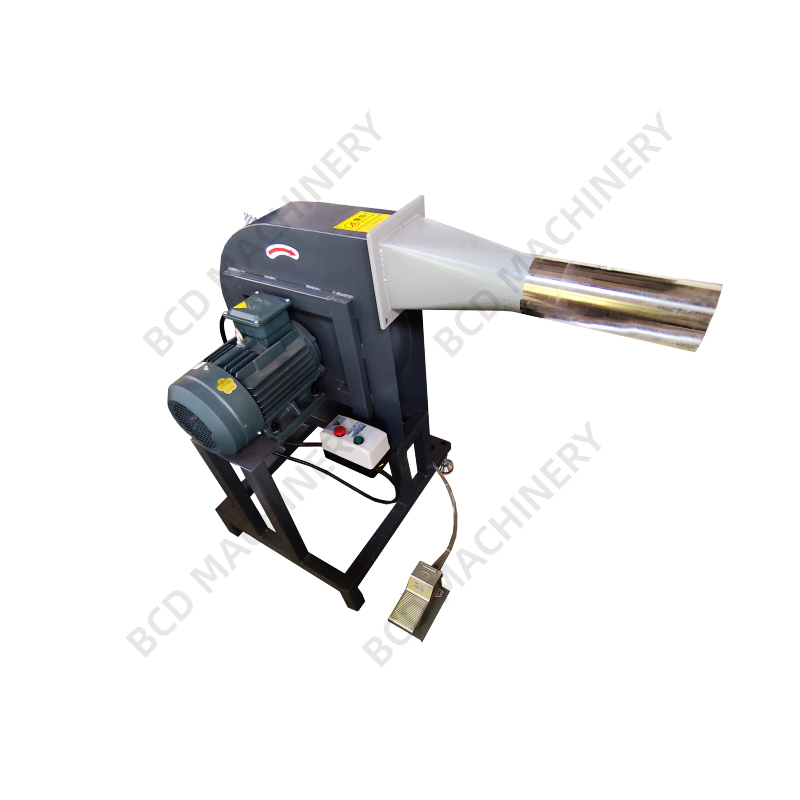

Smooth fiber conveying, applicable for filling pillows, cushions, plush toys and other products Industrial-grade core components enable long-term continuous operation for regular factory production Smooth filling outlet prevents blockage; 0.4-0.6MPa adjustable air pressure for precise filling volume control The entire filling process can be completed by a single operator 220V/60Hz civil voltage, no need for special industrial power supply 3kW industrial-grade motor with a high processing capacity of 150kg/h, meeting small and medium batch continuous production needs. |
▎PRODUCT FEATURES

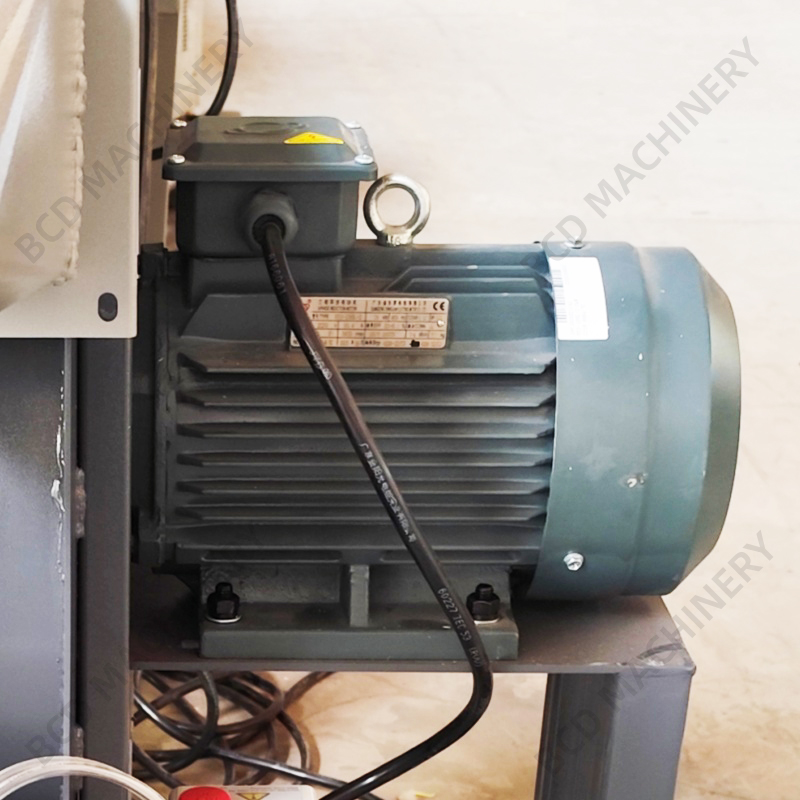

POWERFUL & STEADY Equipped with a 3kw industrial motor, delivers ample power and achieves high efficiency of 150 kg/h, ideal for small to medium batch production. |

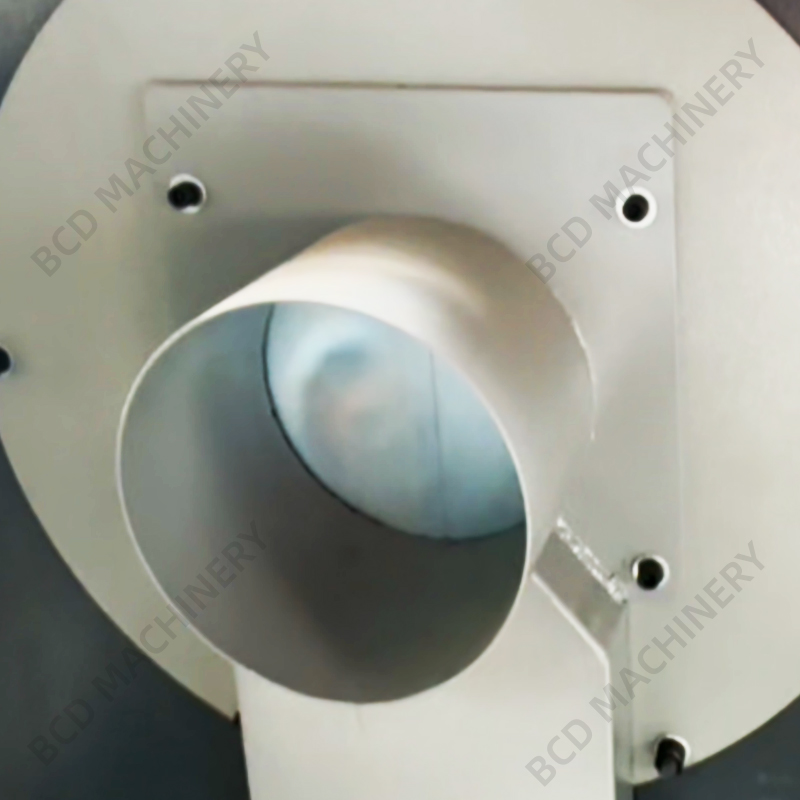

UNIFORM OUTPUT Smooth circular outlet with burr-free inner wall ensures smooth fiber flow; adjustable 0.4–0.6 MPa air pressure allows precise control of output volume. |

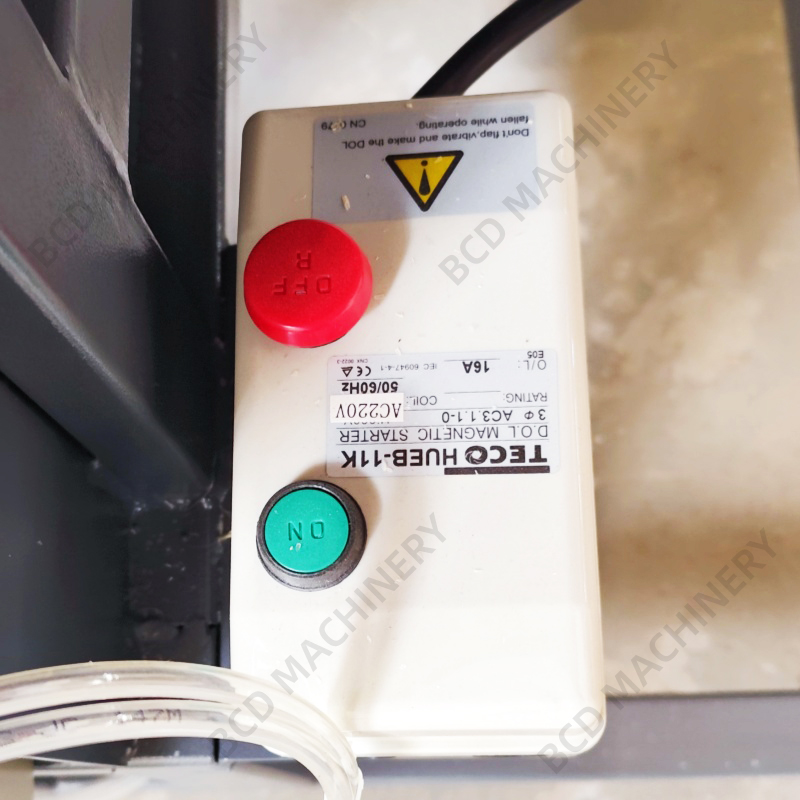

EASY CONTROL Control box with emergency stop and start buttons ensures safe operation. |

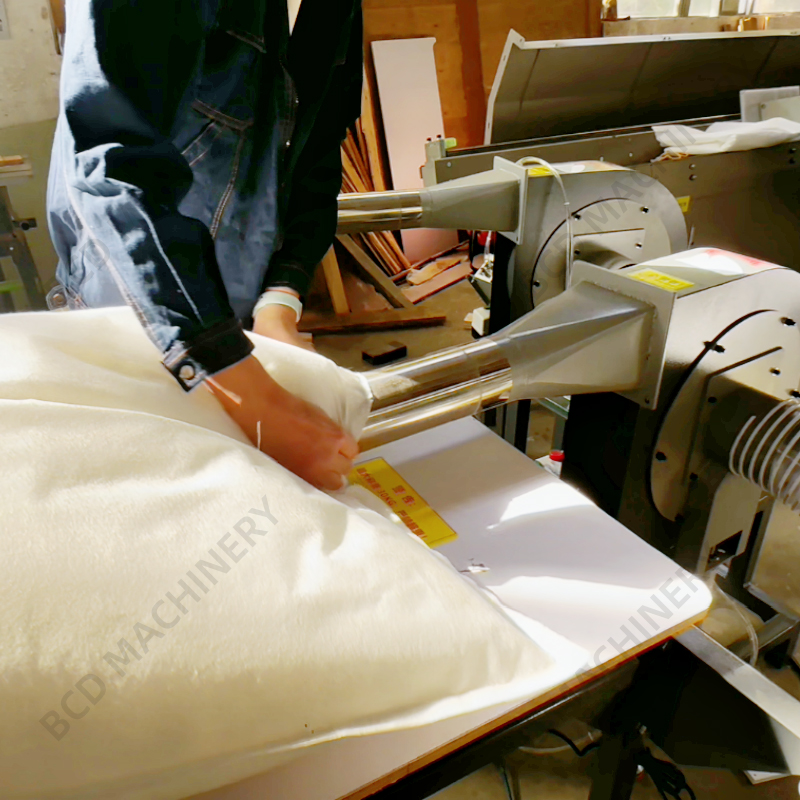

SINGLE-OPERATOR DESIGN Open workbench enables one person to handle the entire process – positioning, filling, and compacting. |
▎FINISHED PRODUCT DISPLAY
 |  |  |  |
▎MODEL COMPARISON
WHICH ONE IS MORE SUITABLE FOR YOU ?

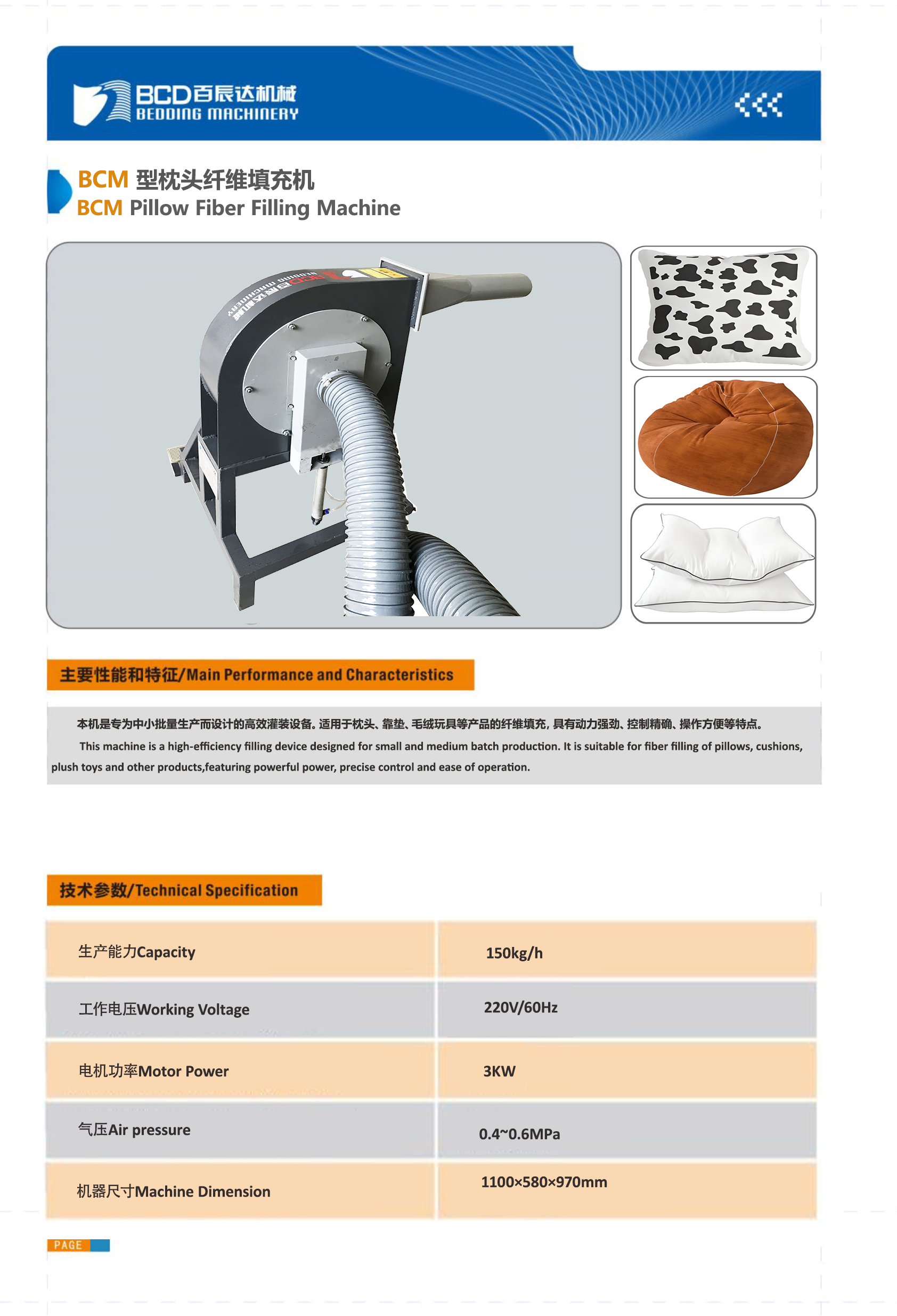

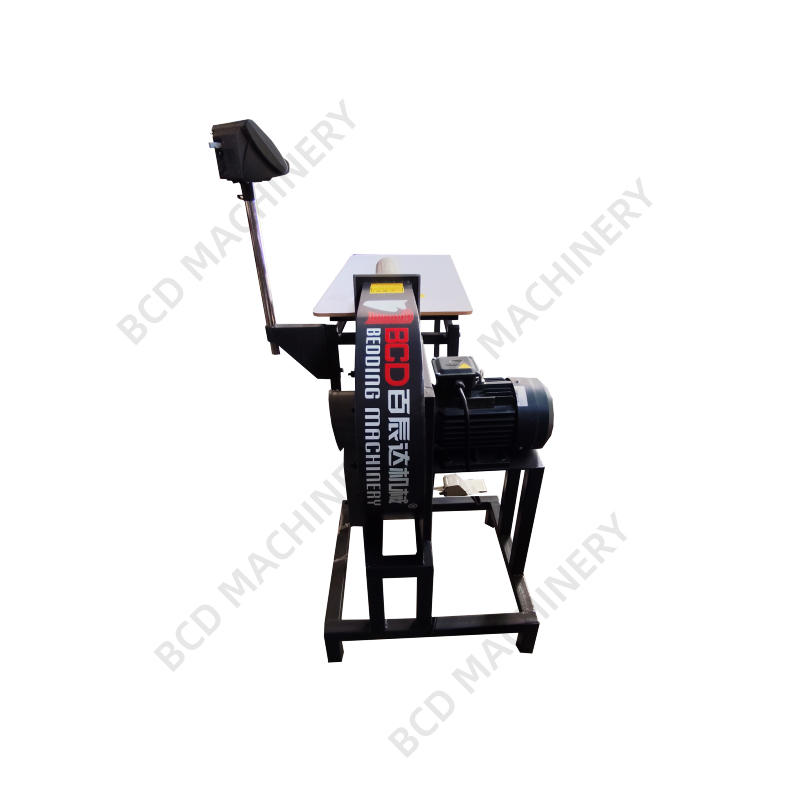

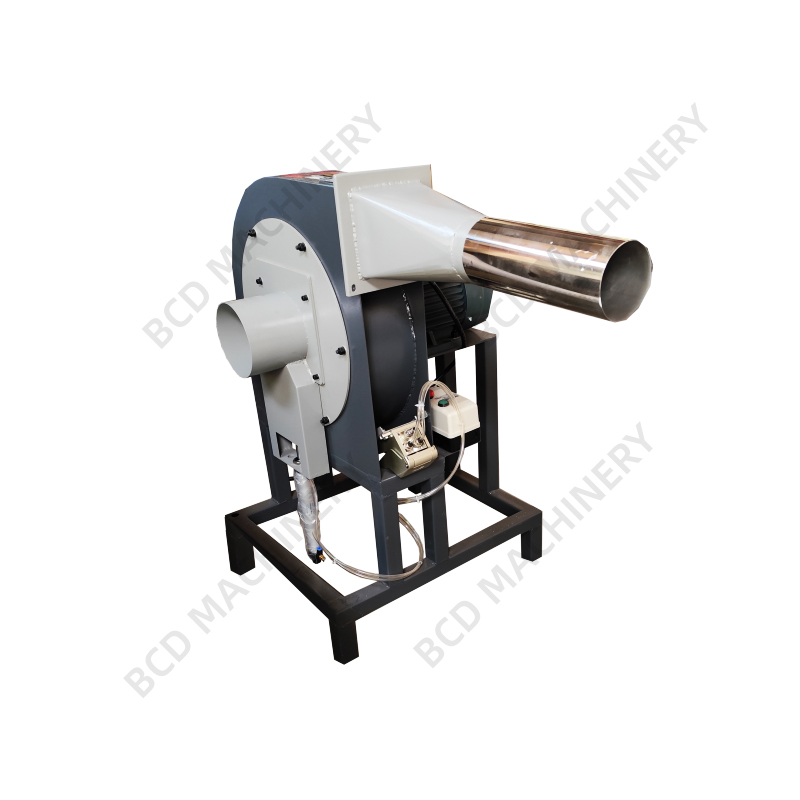

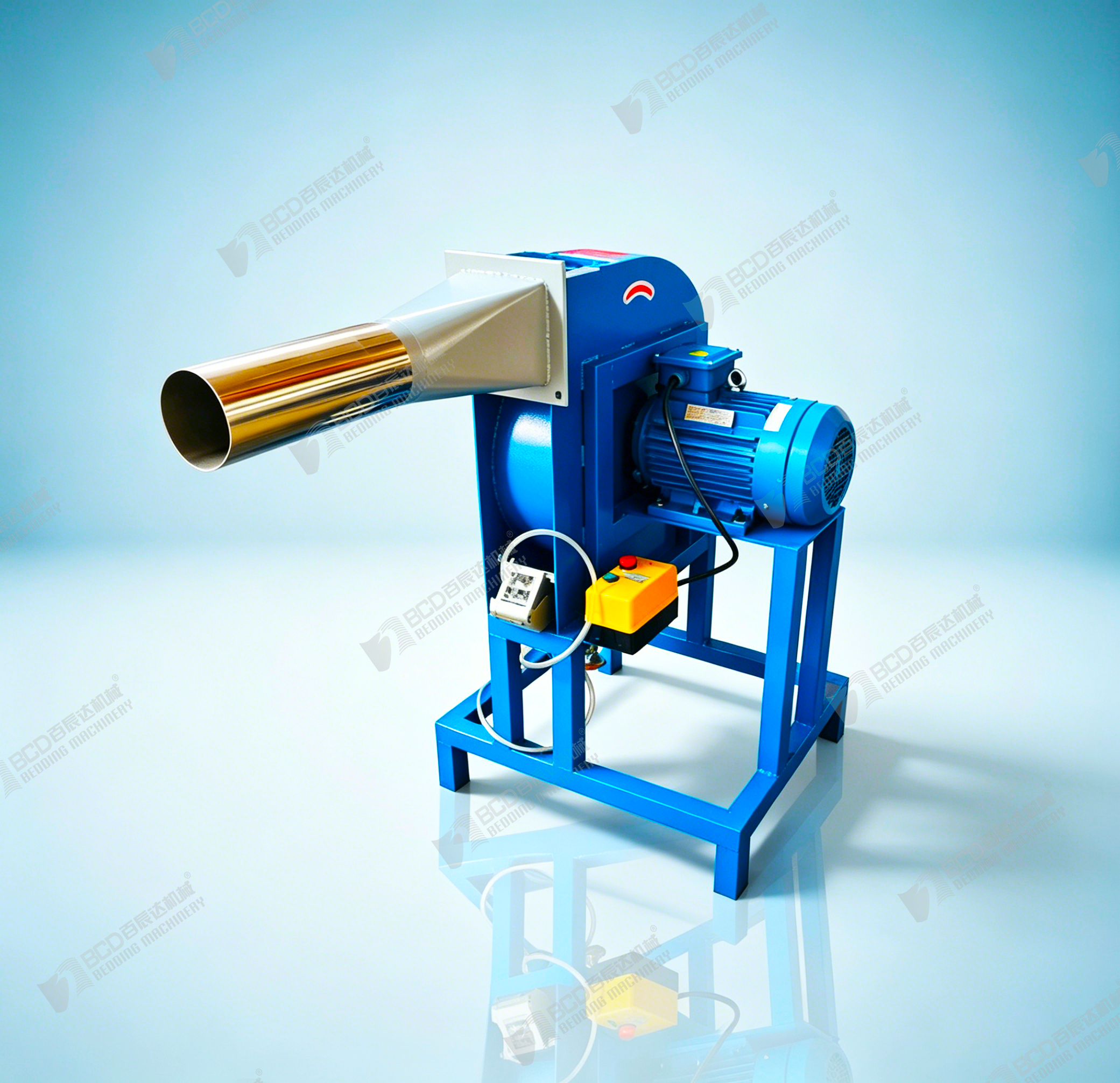

| BCM Pillow Fiber Filling Machine | |||
| Model no. | BCM-1 | BCM-2 | BCM-3 |
| Capacity | 120~150kg/h | 150kg/h | 90~110kg/h |
| Work Voltage | 220V/50Hz | 220V/60Hz | 220V/50Hz |
| Motor Power | 1.5KW | 3KW | 2.2KW |
| Air Pressure | 0.4MPa | 0.4~0.6MPa | 0.4MPa |
| Dimensions | 750×830×900mm | 1100×580×970mm | 920×680×930mm |
| Net Weight | 70Kg | 90Kg | 80Kg |
▎FAQ
Q: What is the maximum processing capacity of the BCM-35 fiber filling machine?
A: The maximum processing capacity is 150 kg/h, suitable for small to medium batch production. Customized models with higher capacity are available upon request.
Q: Does the machine require an external air source? What is the air pressure requirement?
A: Yes, an external compressed air supply is required. The recommended air pressure is 0.4–0.6 MPa to ensure consistent and uniform fiber output.
Q: What could be the reasons if the machine does not output fiber or the output is uneven after starting?
A: Please check the following in order: whether the air pressure is above 0.4 MPa; whether the fiber inlet is blocked; and whether the motor is running normally.
Q: What types of fiber filling materials is this machine suitable for?
A: Suitable for conventional filling fibers such as PP cotton, pearl cotton, 3D hollow cotton and doll cotton, meeting the mainstream filling material needs of home textile and plush toy production.
Q: Does single-person operation require professional training?
A: No professional training is required. The machine operation only needs to control the start/emergency stop button and air pressure regulating valve
Q: Can the filling volume be precisely quantified?
A: Quantitative filling can be achieved by adjusting the air pressure and the duration of filling operation
Q: What is the after-sales warranty period of the product?
A: The standard warranty period is one year
