1. Supports multi-span independent patterns (including 360° and 180° quilting patterns), featuring strong pattern combinability and excellent multi-span performance, and can quilt various patterns on mattresses of different sizes. 2. Full-process automation, equipped with automatic needle position setting, numerical control speed regulator and CE-certified control system. 3. Automatically adjusts presser foot height to adapt to the thickness of different mattress fabrics. 4. High quilting precision, excellent stitch forming and pattern accuracy. 5. With automatic stop function to improve operational safety.Bottom thread and upper thread breakage detection function. 6. Intuitive operation interface,easy to get started. |

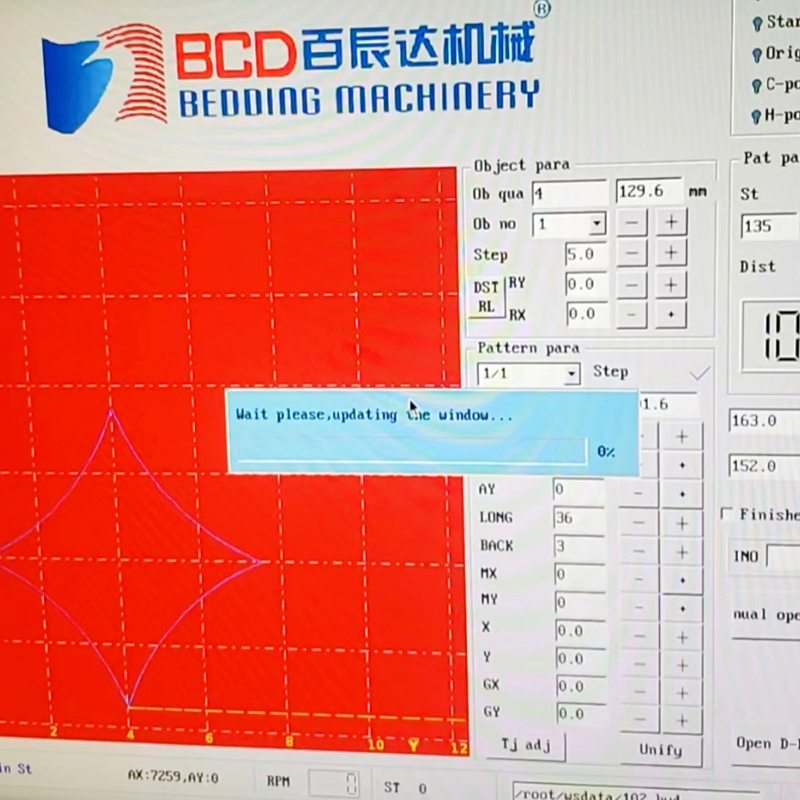

FULL COMPUTER CONTROL Integrates pattern adjustment, production counting, fault/status display – one-stop production control for efficient high-volume management. |  REINFORCED DOUBLE-BEARING NEEDLE BAR SEAT Supported by double bearings, it makes the needle bar run more stably with less vibration, resulting in neater stitch patterns. |

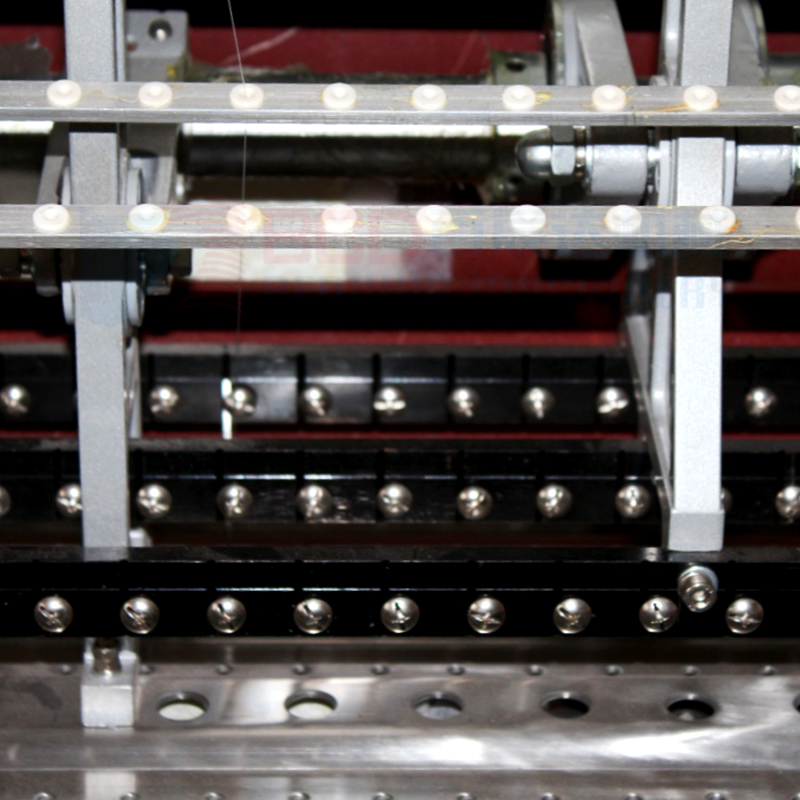

DURABLE STABILITY STRUCTURAL Precision-assembled and neatly arranged metal components (needle bases, thread guides) ensure the equipment's long-term stable operation. |
HIGH QUILTING PATTERN ACCURACY Precise stitch and pattern processing delivers consistent complex/detailed quilting designs, ideal for high-quality products like premium mattresses. |

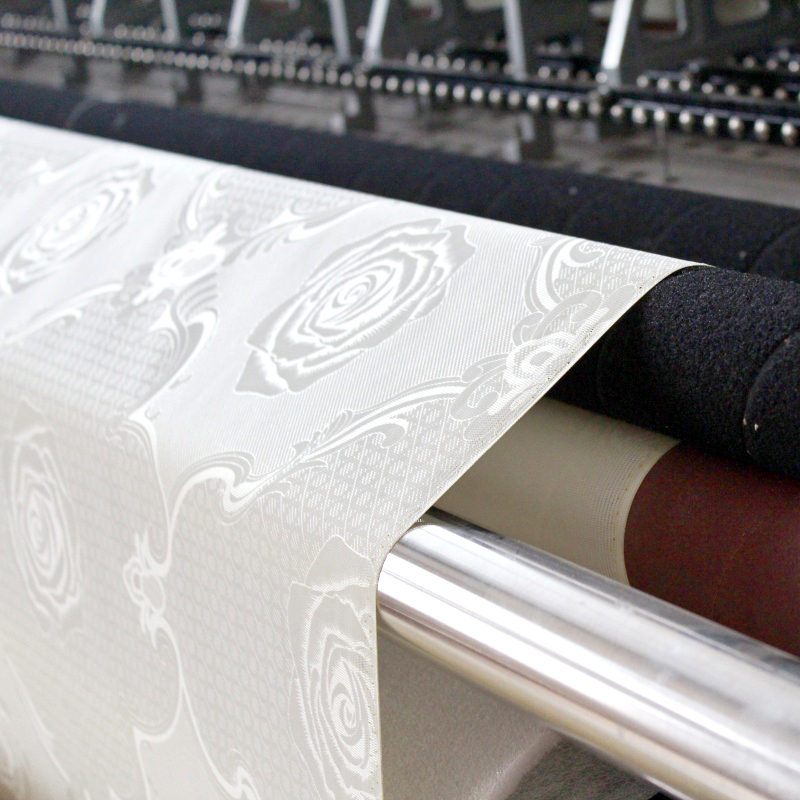

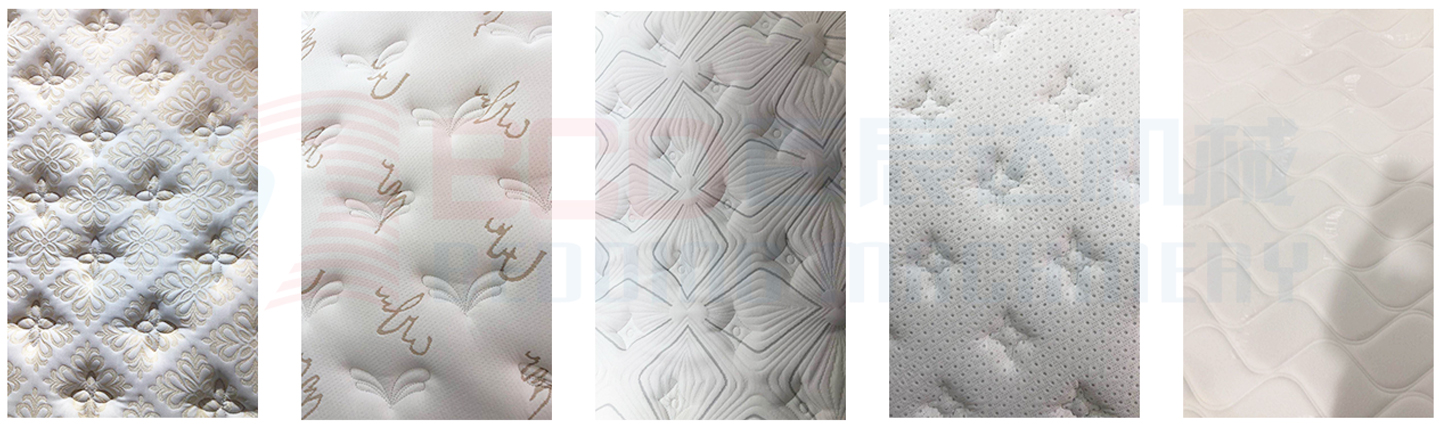

▎FINISHED PRODUCT DISPLAY
▎MODEL COMPARISON
WHICH ONE IS MORE SUITABLE FOR YOU ?

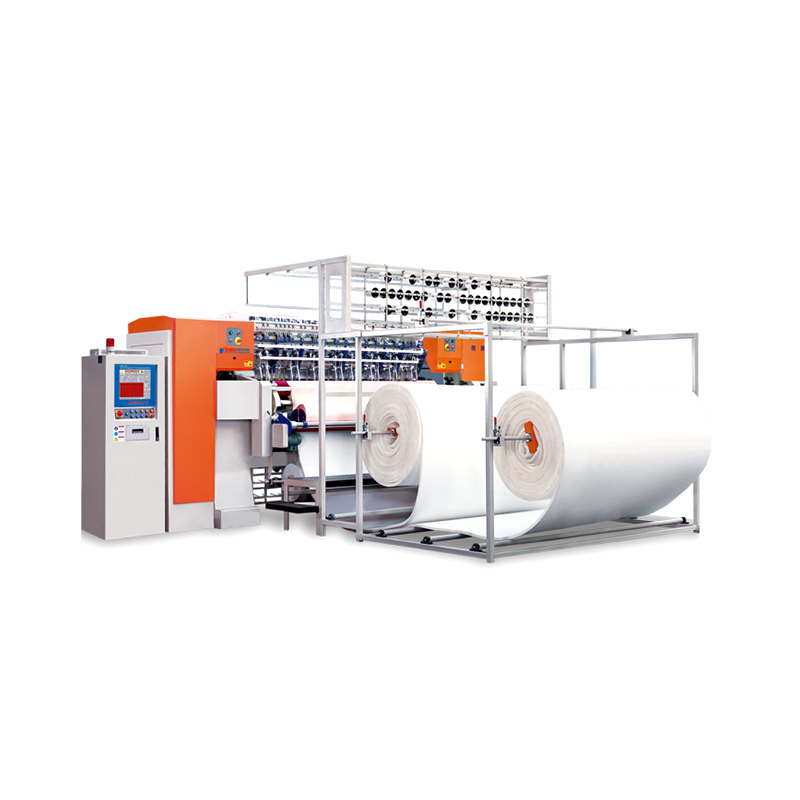

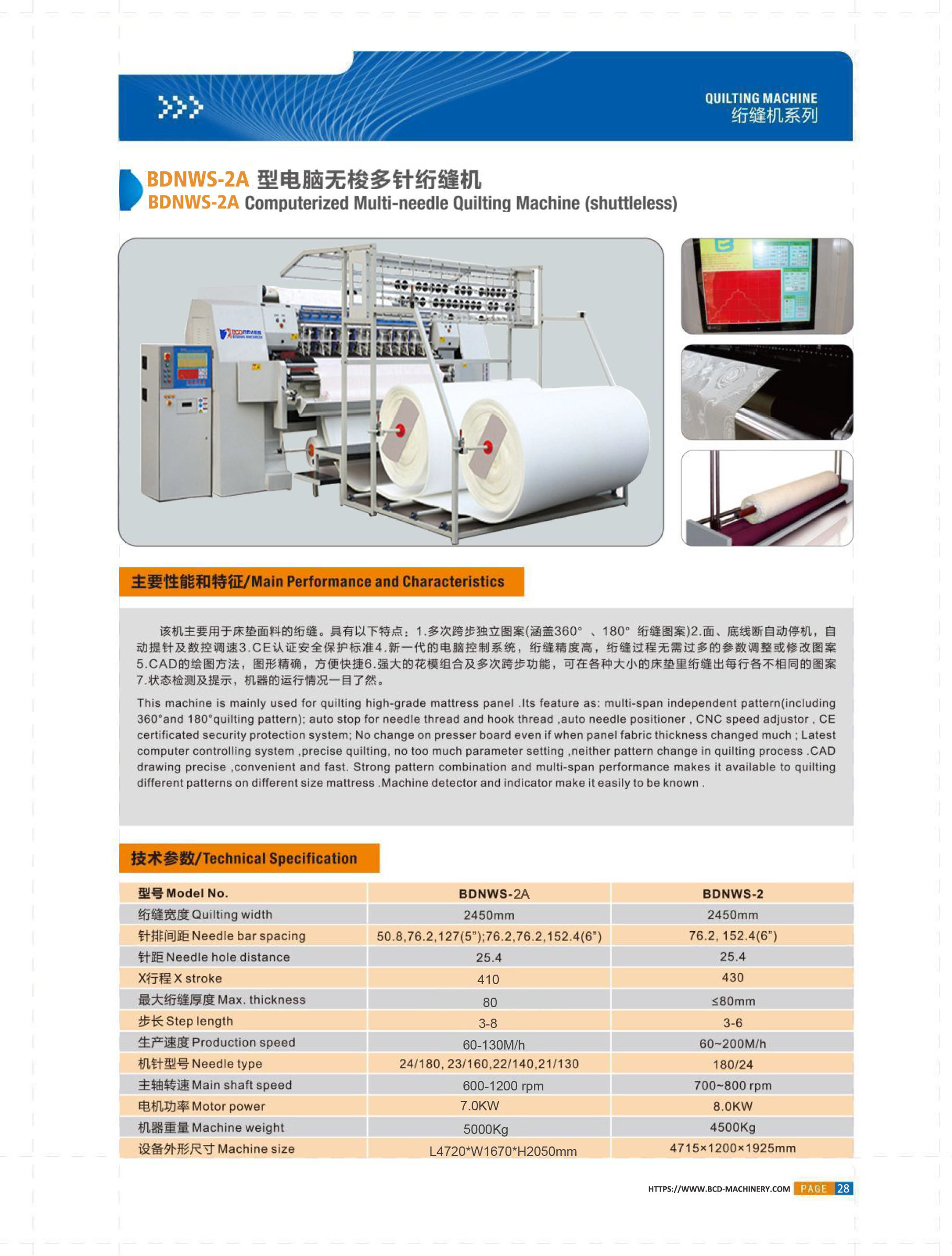

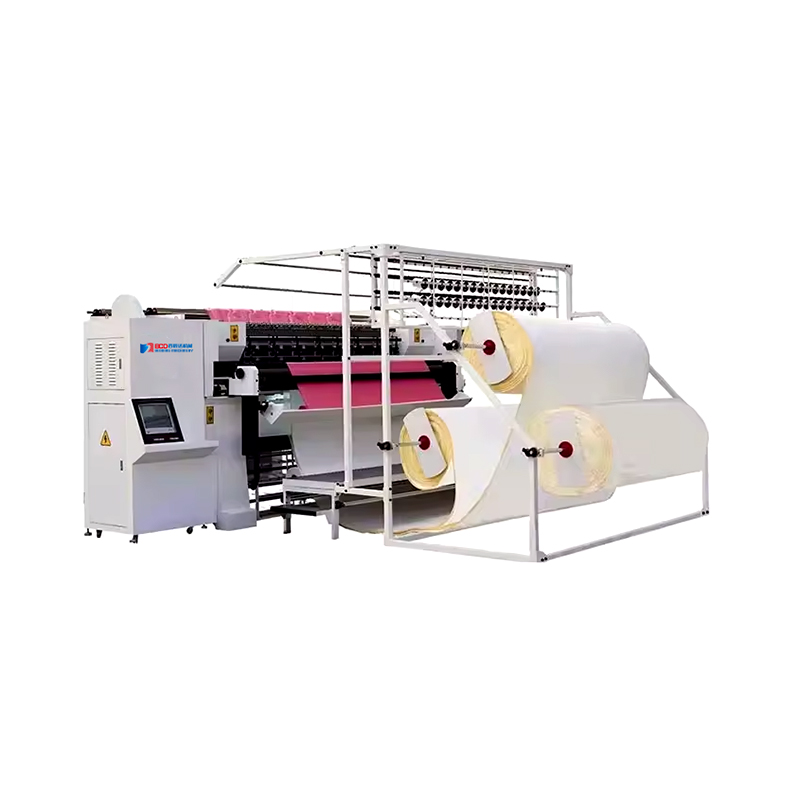

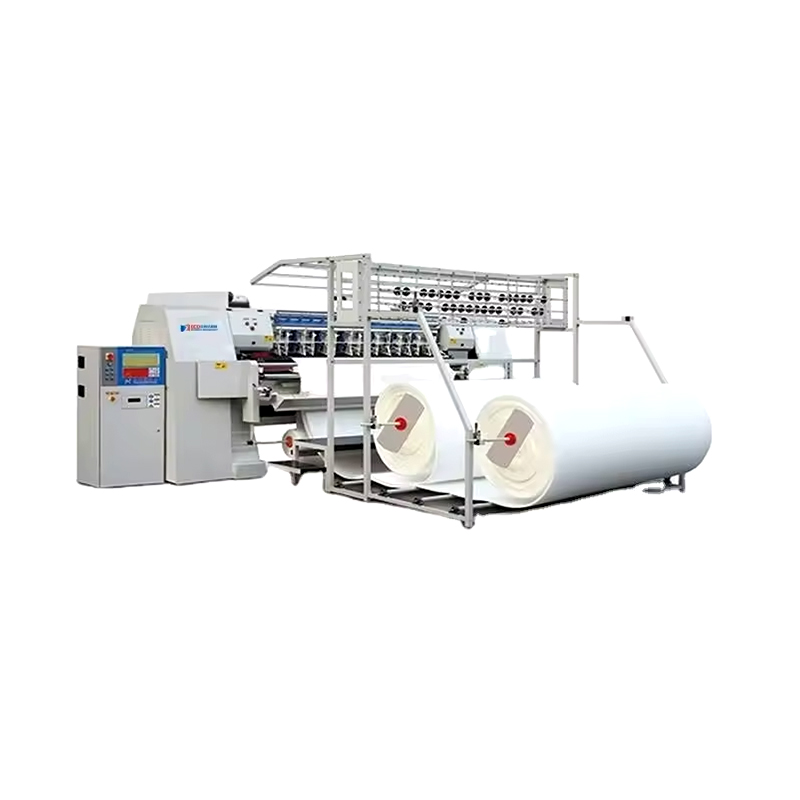

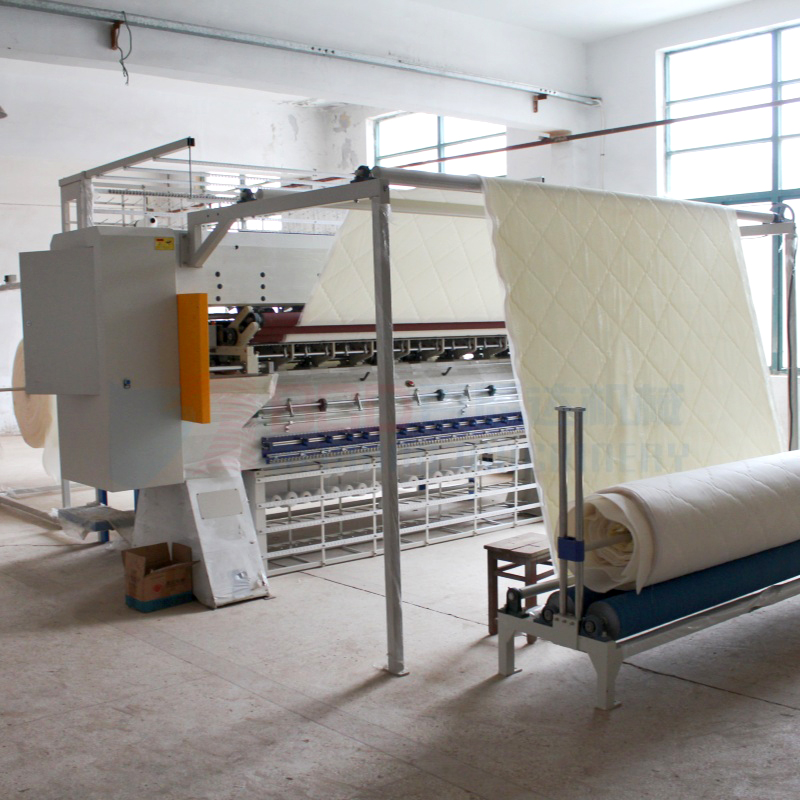

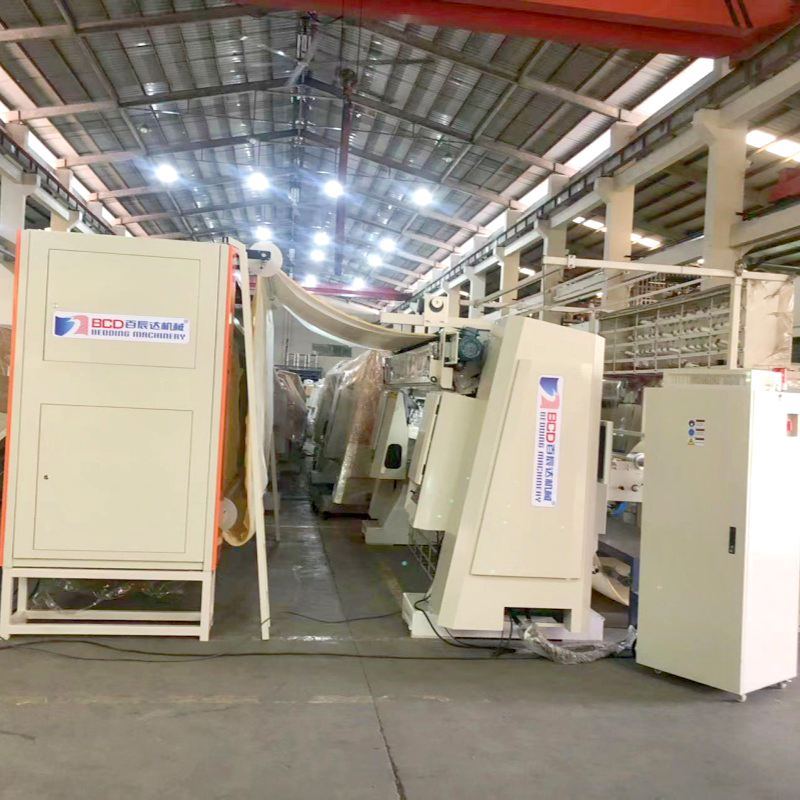

| BDNWS High Speed Multi-needle Quilting Machine | |||
| Model No. | BDNWS-2A | BDNWS-2 | BDNWS-3500 |
| Quilting width | 2450mm | ||
| Needle bar spacing | 50.8,76.2,127(5");76.2,76.2,152.4(6") | 76.2, 152.4(6") | (50.8,76.2,127)(76.2,76.2,152.4) |
| Needle hole distance | 25.4 25.4 25 | ||
| X stroke | 410 | 430 | 480 |
| Max. thickness | ≤80mm | ||
| Step length | .3-8 | .3-6 | 2~7 |
| Production speed | 60-130M/h | 60-200M/h | 80-230M/h |
| Needle type | 24/180,23/160,22/140,21/130 | 180/24 | 140/22,160/23,180/24 |
| Main shaft speed | 600-1200 rpm | 700~800 rpm | 600-1000rpm |
| Motor power | 7.0KW | 8.0KW | 10.0KW |
| Machine weight | 5000Kg | 4500Kg | 5200Kg |
| Machine size(L*W*H) | 4720*1670*2050mm | 4715*1200*1925mm | 5340*1130*2160mm |
▎FAQ
Q: What is the production speed of the BDNWS?
A: The production speed ranges from 60-200M/h, with machine rotation speeds of 100-1000 RPM.
Q: What advantages does this shuttleless machine have over shuttle models?
A: More stable stitches, lower noise; no frequent bobbin changes, higher thread efficiency—great for continuous batch production.
Q: How do different needle bar spacings (e.g., 50.8mm/76.2mm) affect quilting?
A: Smaller spacing (50.8mm) = denser stitches (for fine patterns); larger spacing (76.2mm) = looser stitches (for large, bold designs).
Q: Does the machine have automatic thread break detection?
A: Yes, the machine will automatically stop when a thread breaks.
Q: What is the Max quilting thickness of the BDNWS?
A: The Max.quilting thickness is 80mm.
Q: Does the product support customization?
A: Yes, we offer both OEM and ODM customization services.
Q: What is the after-sales warranty period of the product?
A: The standard warranty period is one year
Q: What is the average manufacturing lead time on products?
A: Within 30 days after receipt of deposit.
