| Quantity: | |
|---|---|
1.360° Complex Pattern Quilting: Accurately reproduces custom patterns designed by designers and meets diverse process requirements 2.Intelligent "Dot-type" Presser Foot System: Reduces presser foot resistance during thick fabric quilting, ensuring clear and compact stitches with outstanding three-dimensionality 3.High-sensitivity Thread Breakage Protection Device: Responds promptly to thread breakage abnormalities and ensures operational continuity 4.Touch Screen Control: Features a visual operation interface with automated functions for quick mastery by operators 5.Upgraded computer control systems and improved mechanical manufacturing procedures contribute to the reduction of machine noise. 6.The needle bar features an oil-free needle bar frame structure, which prevents oil stains on fabrics. It resists damage and entails low maintenance costs. |

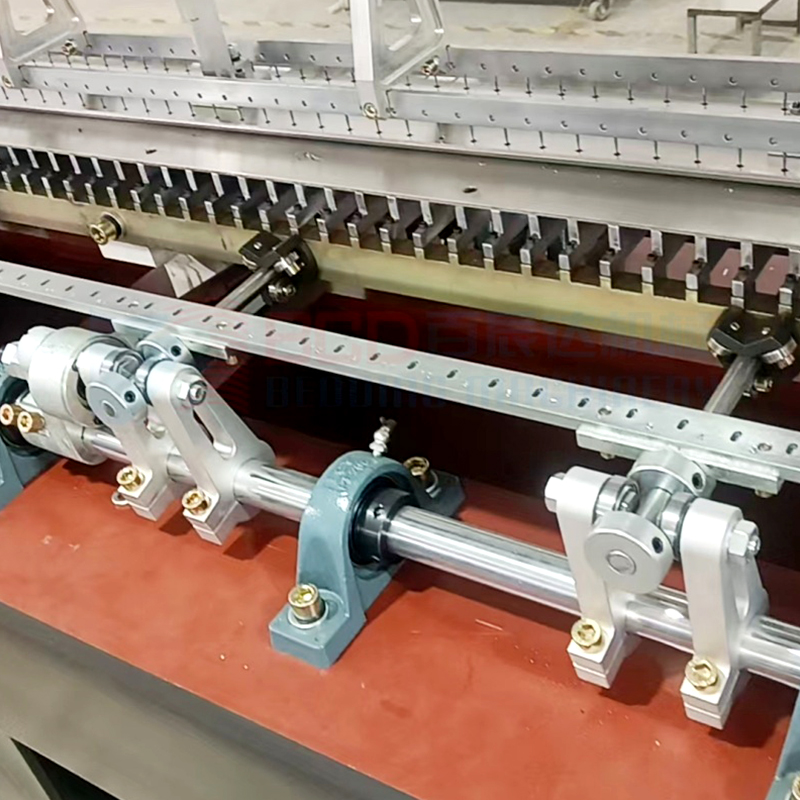

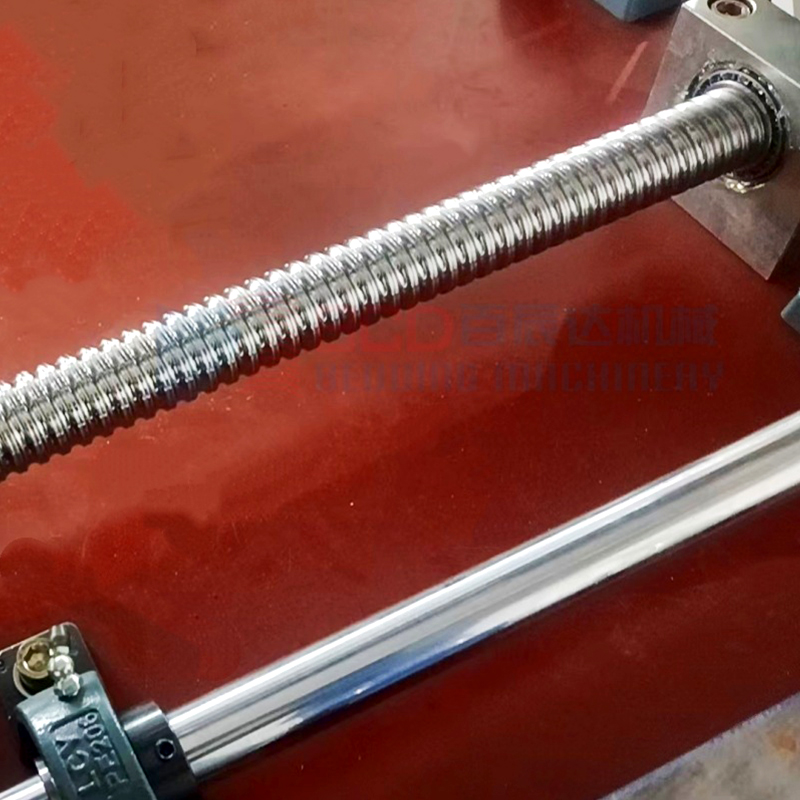

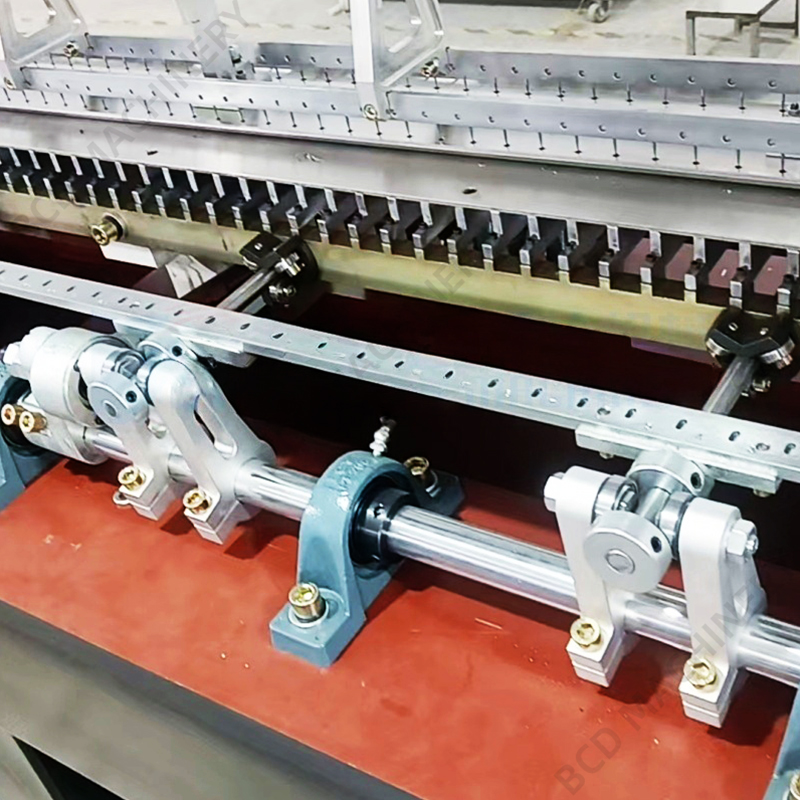

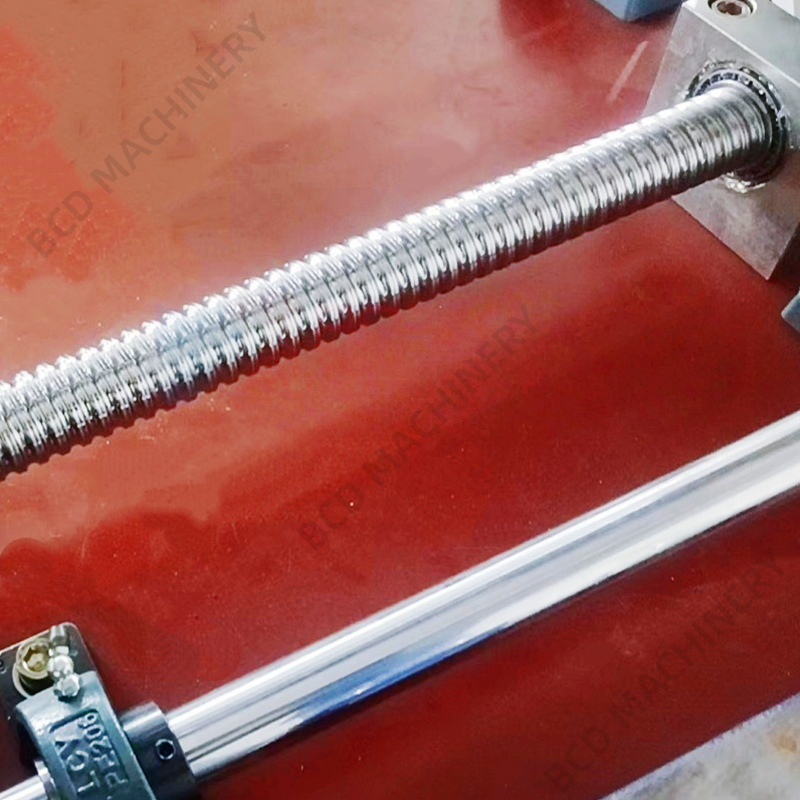

HIGH ACCURACY FOR COMPLEX QUILTING High-precision pitch and gapless transmission convert motor rotation to precise linear motion, achieving millimeter-level needle positioning and ensuring accurate complex pattern forming. |  STABLE OPERATION FOR UNIFORM STITCHES Rolling friction design with precision brackets minimizes head vibration and resistance, prevents displacement deviation, and ensures consistent quilting stitch uniformity. |

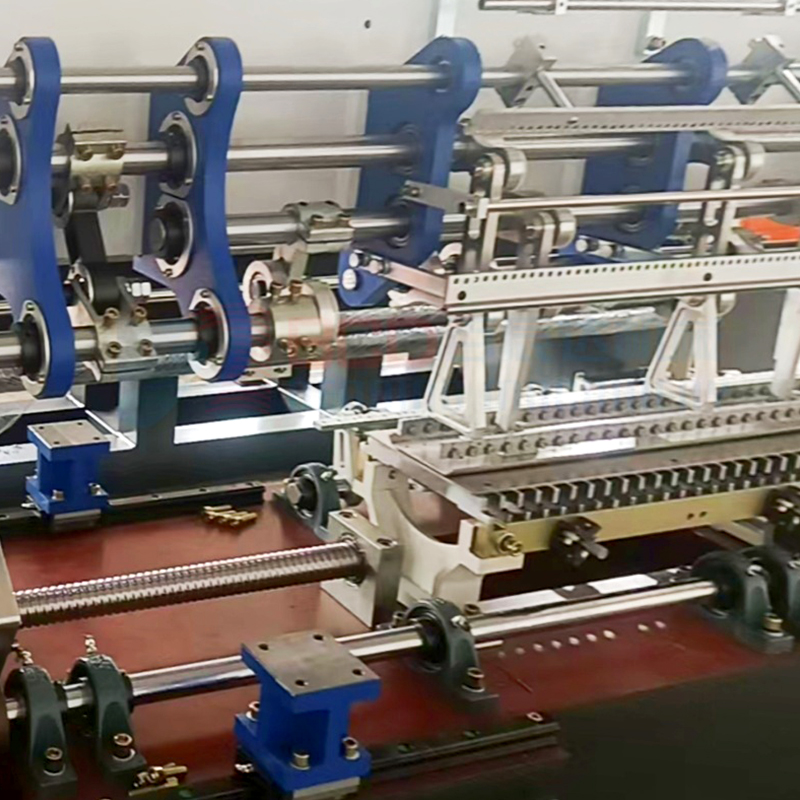

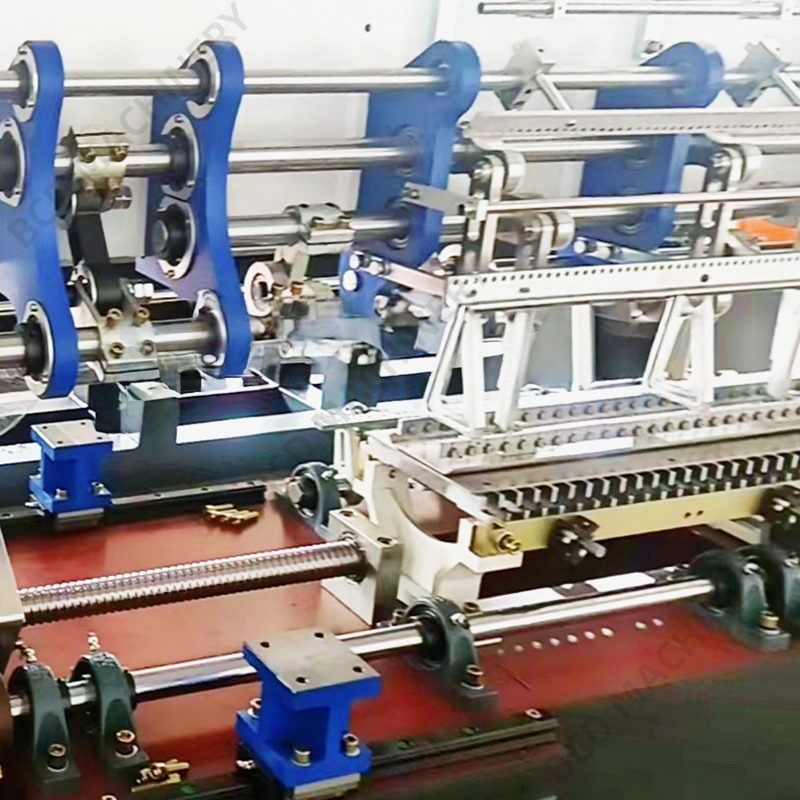

STRONG TRANSMISSION FOR HIGH-FREQUENCY OPERATION Rigid connecting rods and precision shafts deliver motor power loss-free to the needle bar, enabling high-frequency reciprocation. Multi-axis linkage synchronizes multi-needle movements to meet mass production demands of lockstitch quilting. |

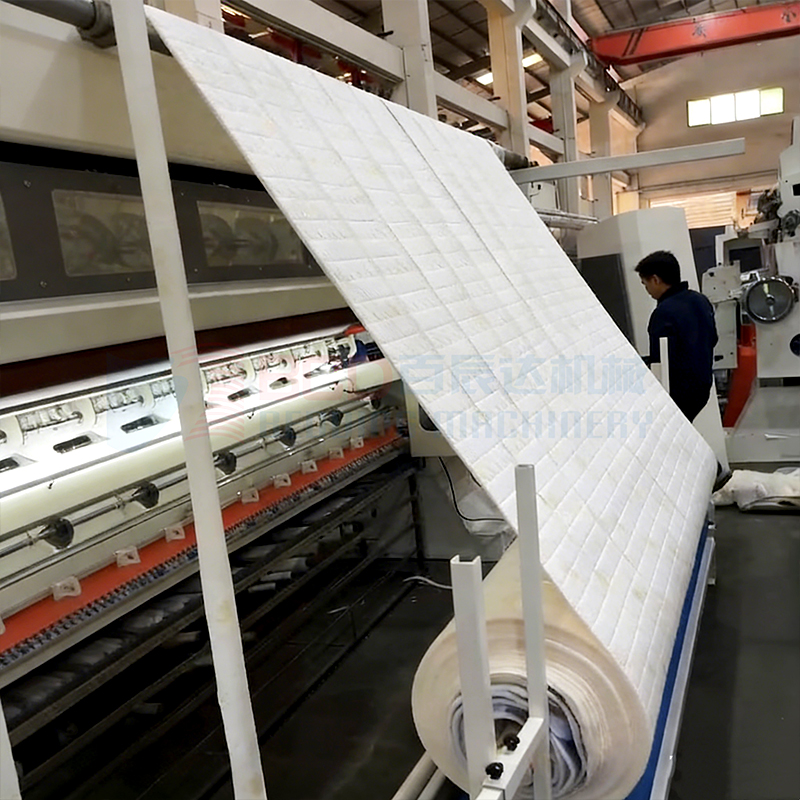

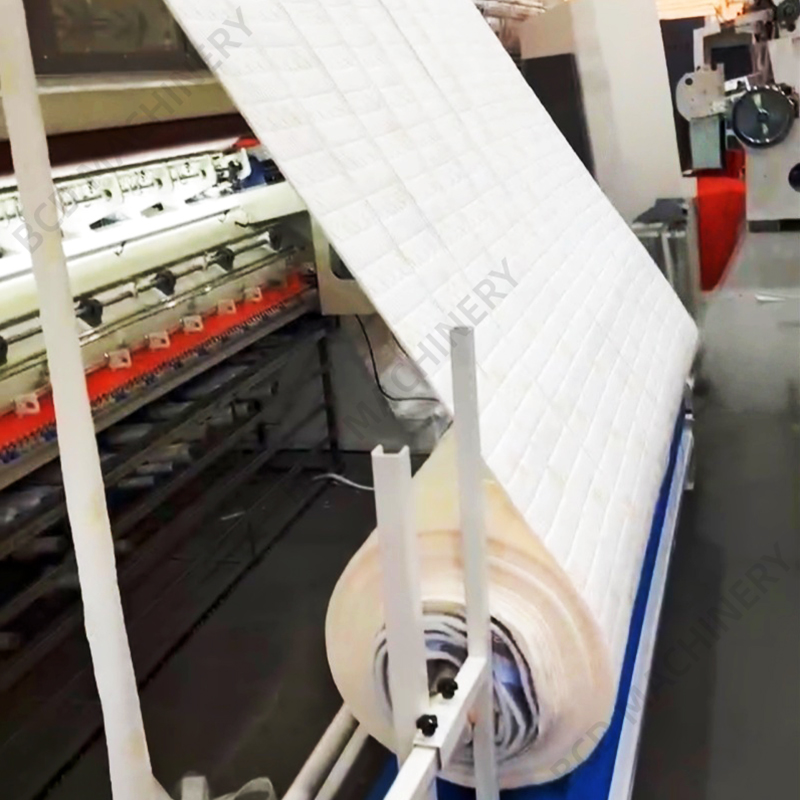

STRONG PROCESSING CONTINUITY Seamless integration of quilting and winding enables a continuous "process-wind" workflow, boosting overall production efficiency. |
▎APPLICATION SCENARIOS
 |  |  |  |
▎MODEL COMPARISON
WHICH ONE IS MORE SUITABLE FOR YOU ?

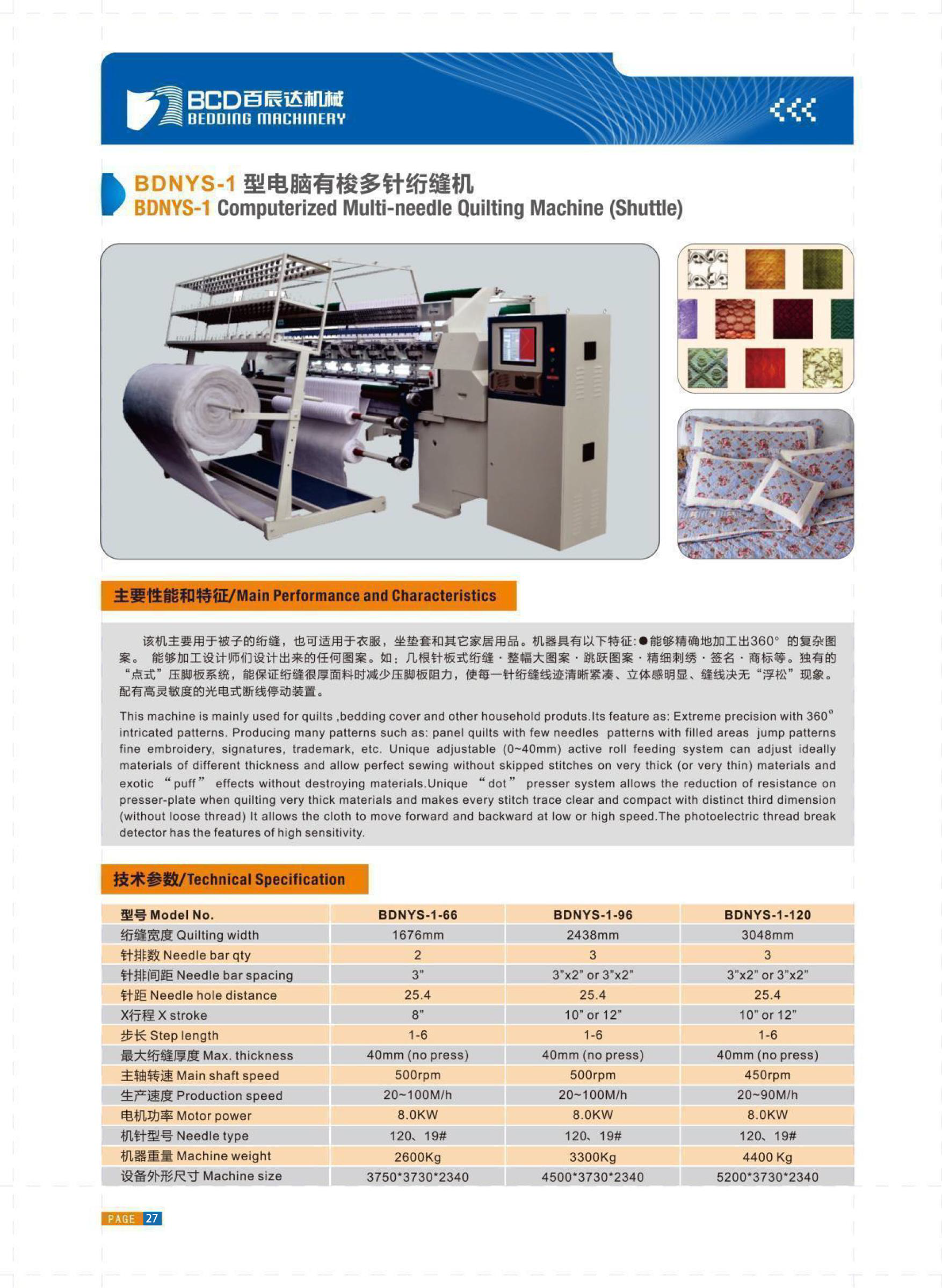

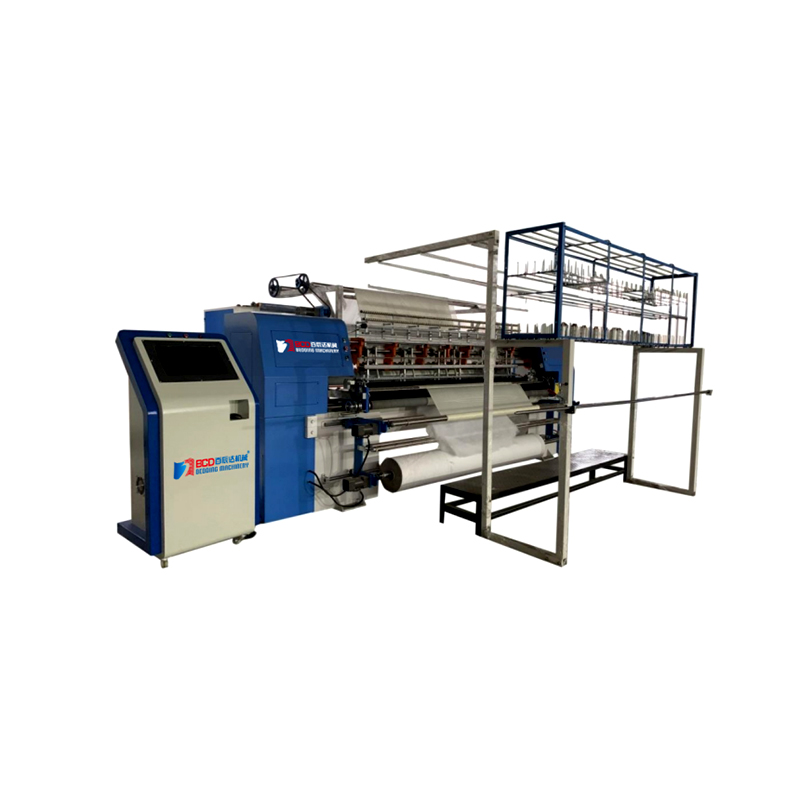

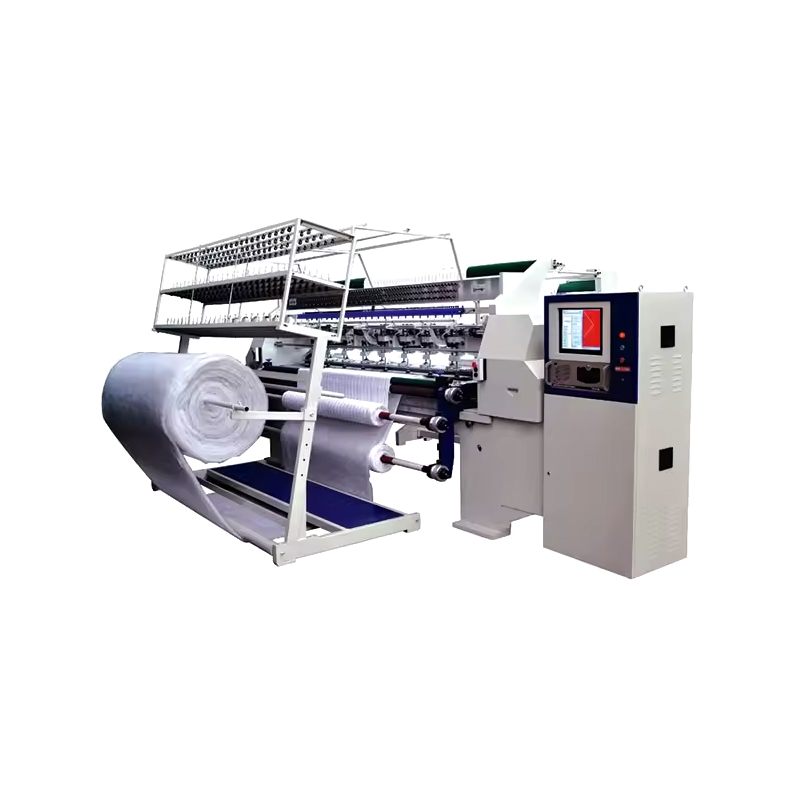

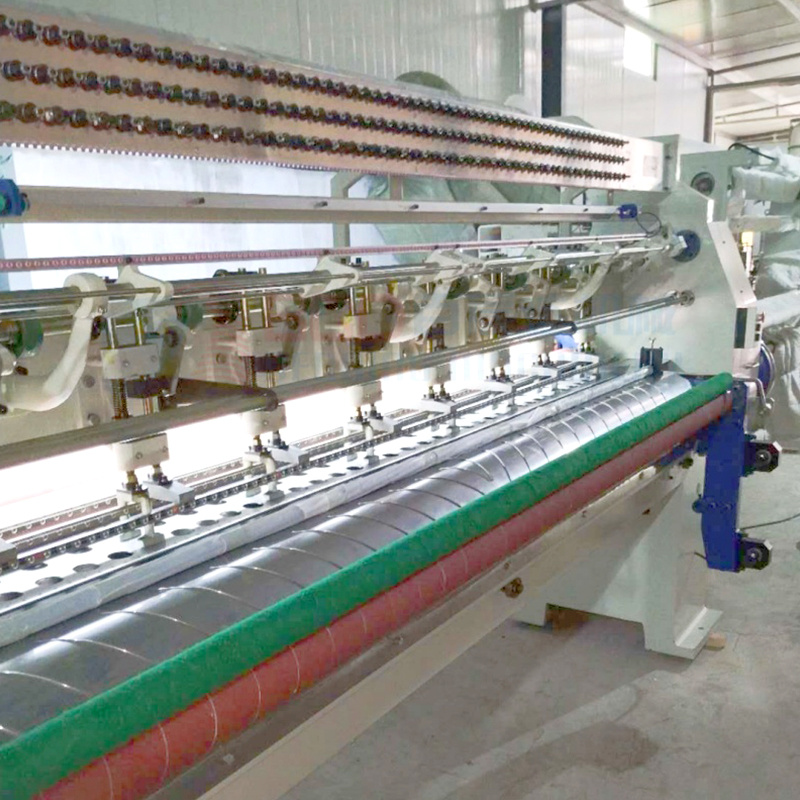

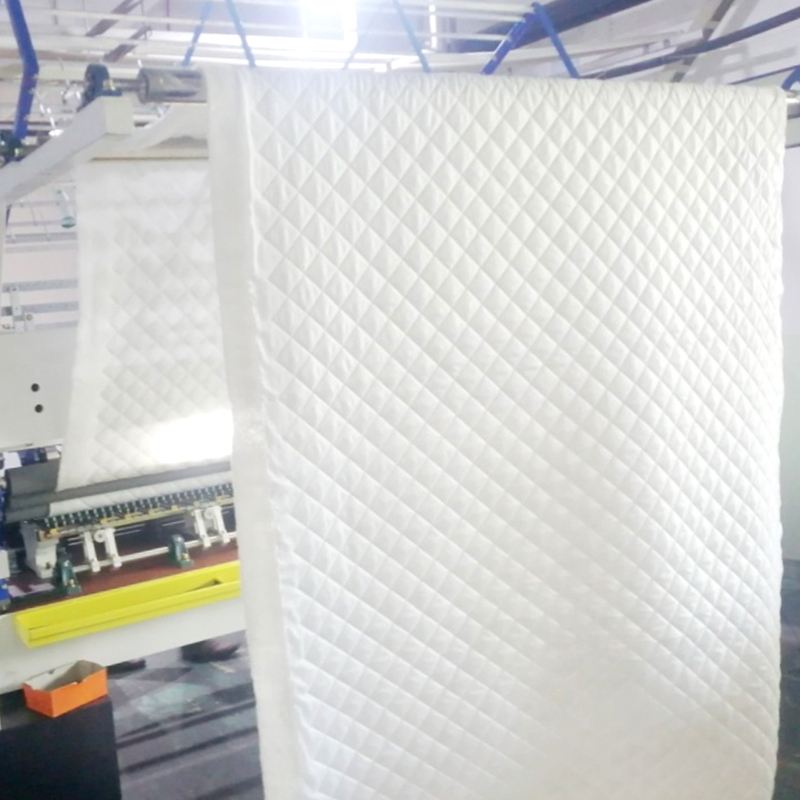

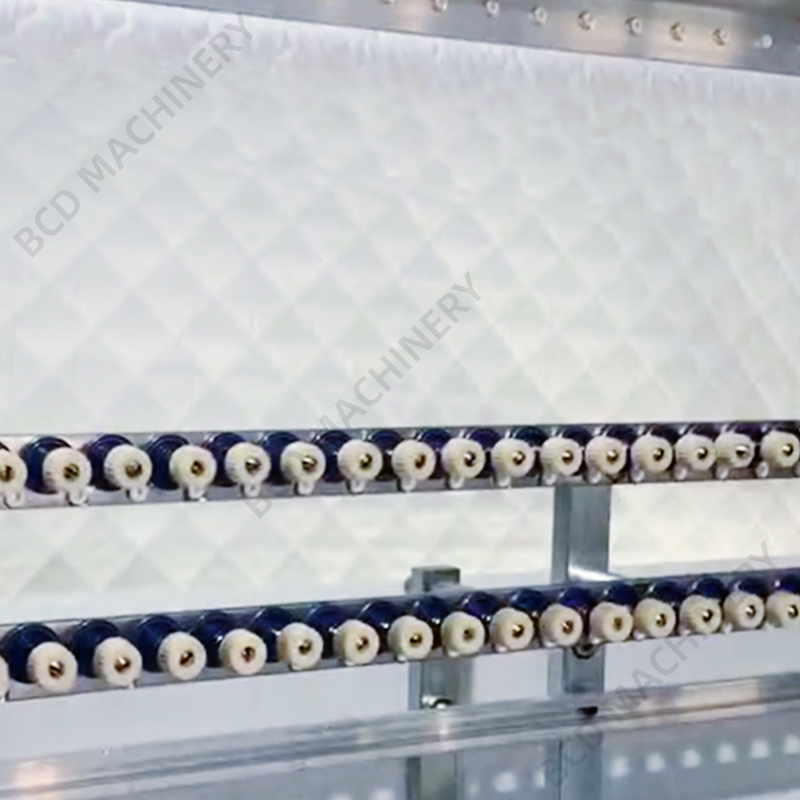

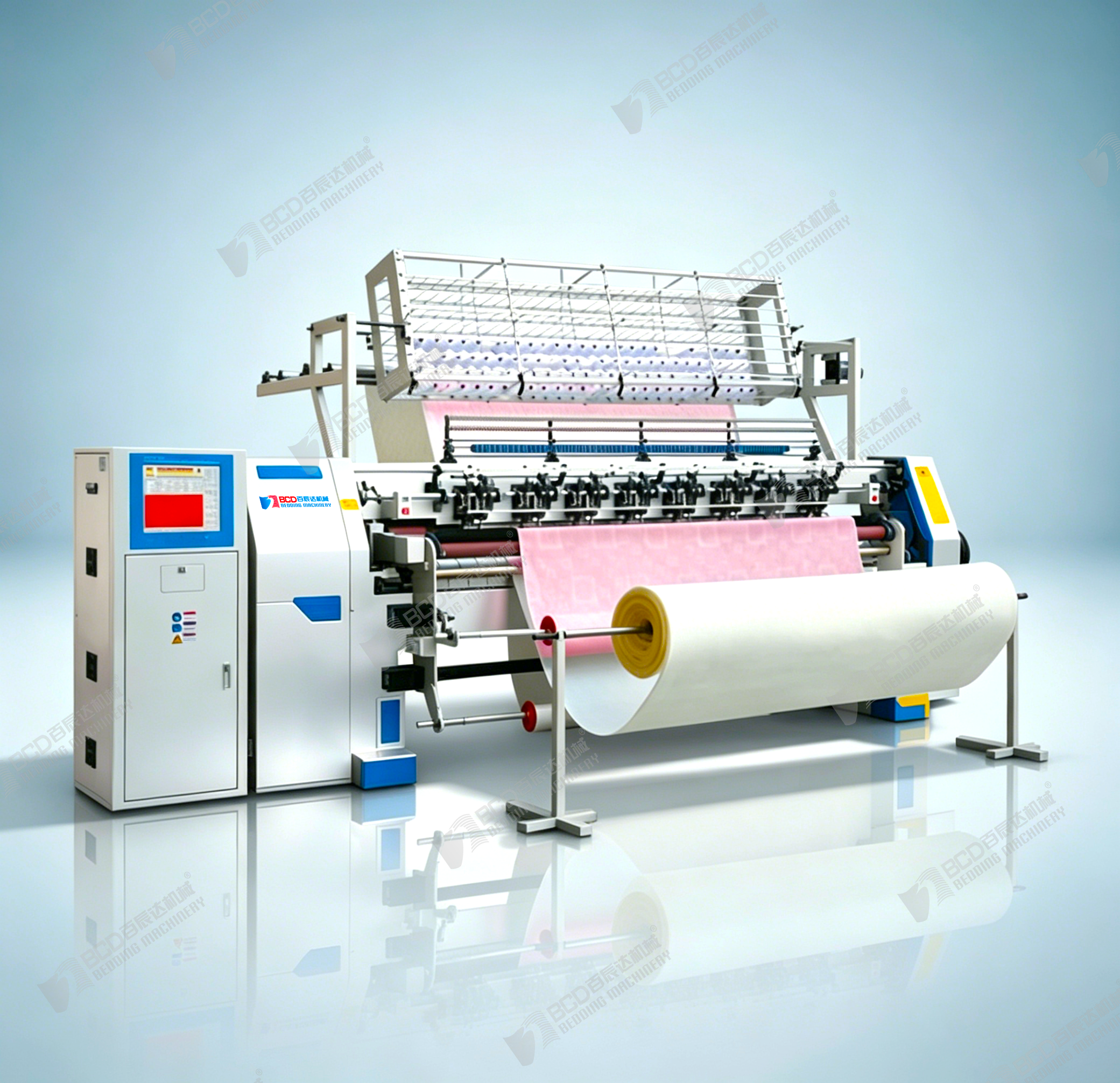

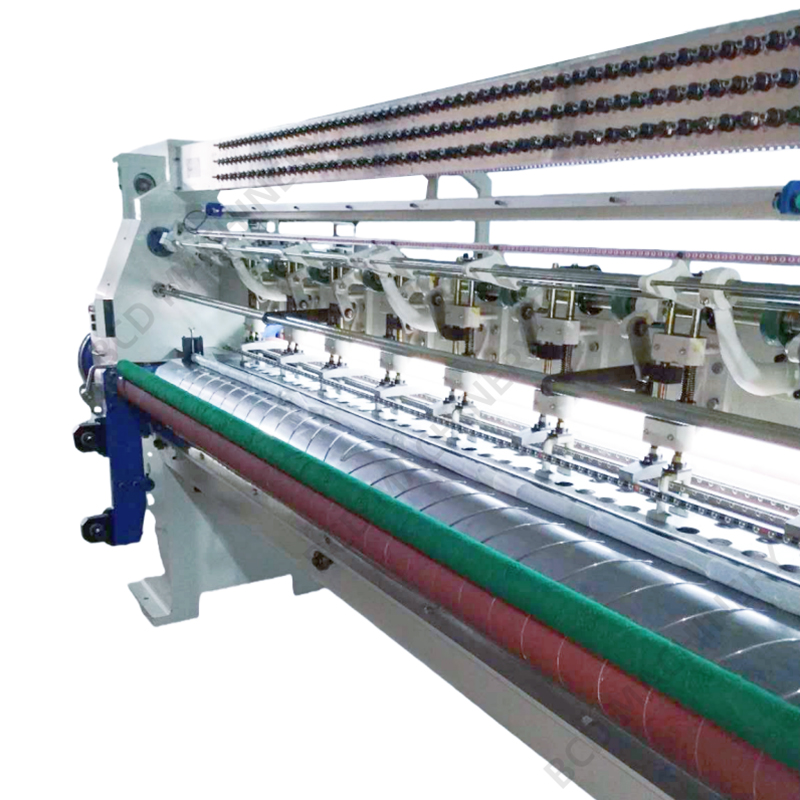

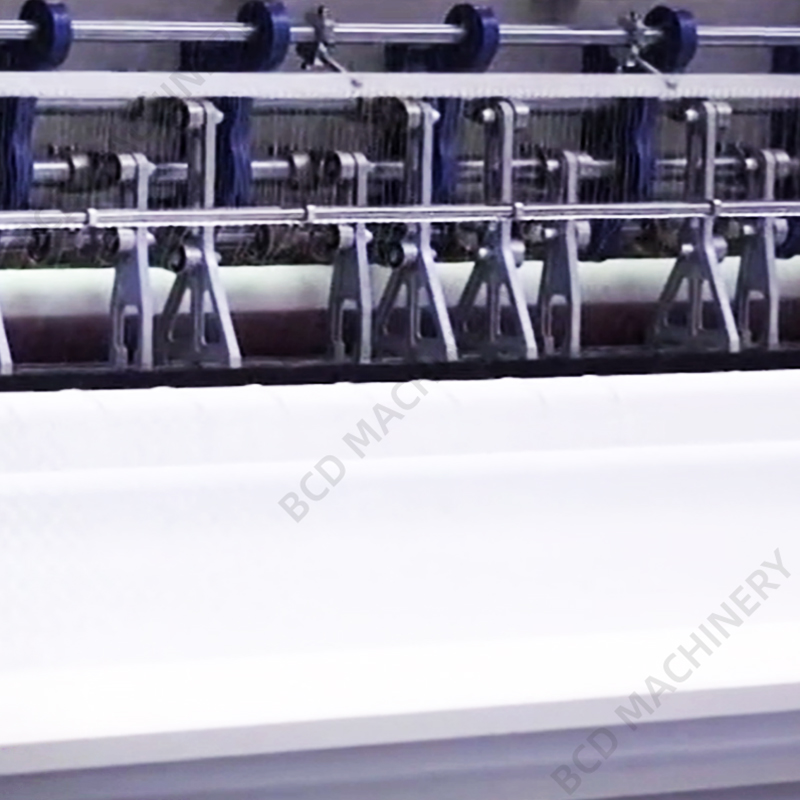

| BDNYS Multi-needle Quilting Machine (Shuttle) | |||
| Model No. | BDNYS-1-66 | BDNYS-1-96 | BDNYS-1-120 |
| Needle width | 1676mm | 2438mm | 3048mm |
| Needle bar qty | 2 | 3 | |
| Needle bar spacing | 3" | 3*2" or 3*2" | |
| Needle hole distance | 25.4 | ||
| X stroke | 8" | 10" or 12" | |
| Step length | 1-6 | ||
| Max. thickness | 40mm (no press) | ||
| Main shaft speed | 500rpm | 450rpm | |
| Production speed | 20-100M/h | 20-90M/h | |
| Motor power | 8.0KW | ||
| Machine weight | 120、19# | ||
| Machine type | 2620kg | 3300kg | 4400kg |
| Machine size | 3750*3730*2340 | 4500*3730*2340 | 5200*3730*2340 |
▎FAQ
Q: What thickness of fabrics can this machine quilt?
A: The maximum quilting thickness of this machine is 40mm (without presser foot). It can adapt to everything from regular thin fabrics to thick fluffy cotton or heavy textiles.
Q: For the model with 1676mm quilting width, what size of quilt can it make?
A: Take the BDNYS-1-66 model as an example. A 1676mm quilting width typically corresponds to a finished quilt width of about 1.5-1.8 meters.
Q: Can I customize quilting patterns? How to import them?
A: Custom patterns are supported. You just need to import your designed pattern files into the machine's control system.
Q: Is it complicated to replace the needle bar or adjust the needle distance?
A: There are standardized procedures for replacing the needle bar and adjusting the needle distance. We will provide operation training, and once proficient, you can finish the adjustment in 10-15 minutes.
Q: Will the machine stop automatically when the thread breaks?
A: The machine is equipped with a thread break detector with high sensitivity. It will stop automatically when the thread breaks, avoiding fabric waste.
Q: What daily maintenance is required?
A: For daily maintenance, you just need to clean the thread ends in the needle bar/hook area, lubricate the transmission components regularly, and check the wear of the needle bar/presser foot once a month.
Q: How much installation space does the equipment need?
A: Take the smallest model BDNYS-1-66 as an example. The equipment size is 375037302340mm, and we recommend reserving an operating space of about 4*4 meters.
Q: Is the warranty period and training service included?
A: The whole machine has a 1-year warranty period, and we will provide operator training services.
