1.Capable of processing various foam materials, including soft foam, rigid foam, memory foam, high resilience foam, latex foam, phenolic foam, and mineral wool. 2.Maximum cutting dimensions: 2200mm (length) × 2200mm (width) × 1500mm/1150mm (height), suitable for large-scale material processing. 3.Supports mirror cutting, inverse cutting, rotary cutting, and other modes, enabling processing of arbitrary geometric shapes. 4.Adopts a CNC system, supporting computer-aided drawing and cutting with easy operation. 5.Equipped with a carousel turning table for flexible adjustment of processing angles. 6.Automatically calculates material utilization to minimize raw material costs. |
▎PRODUCT FEATURES

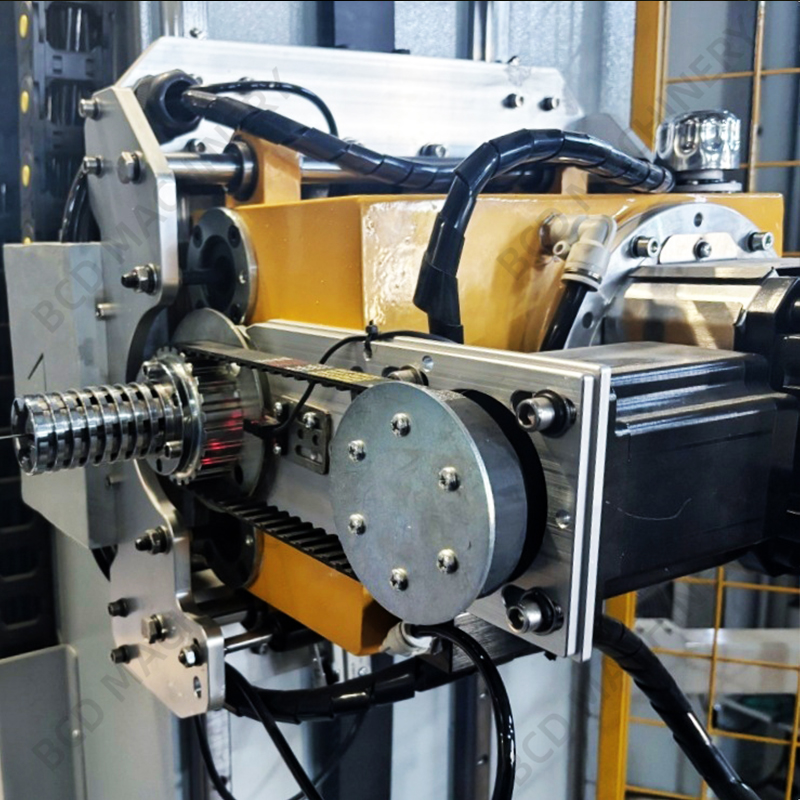

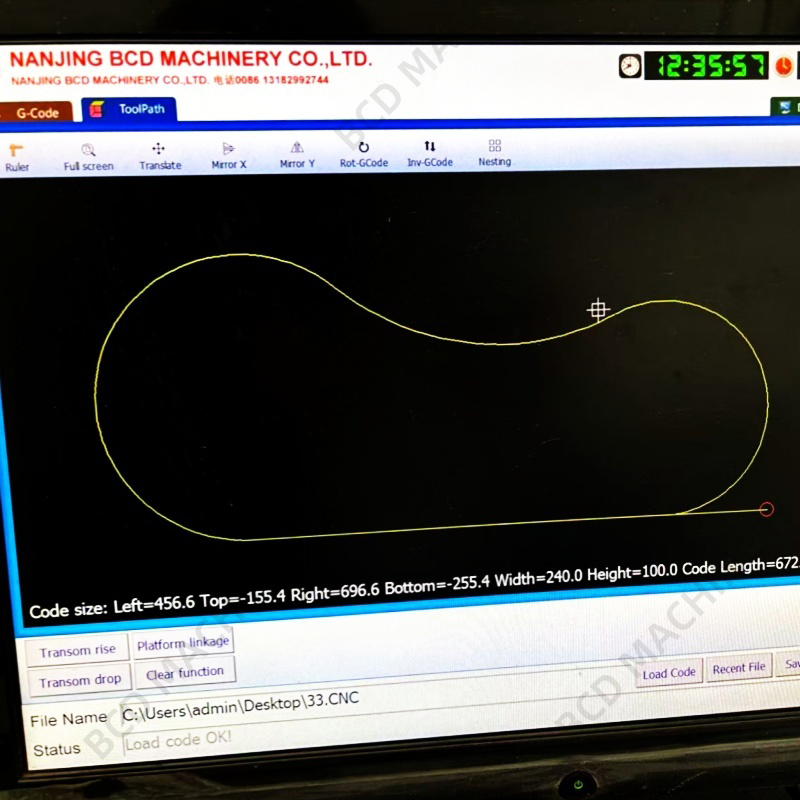

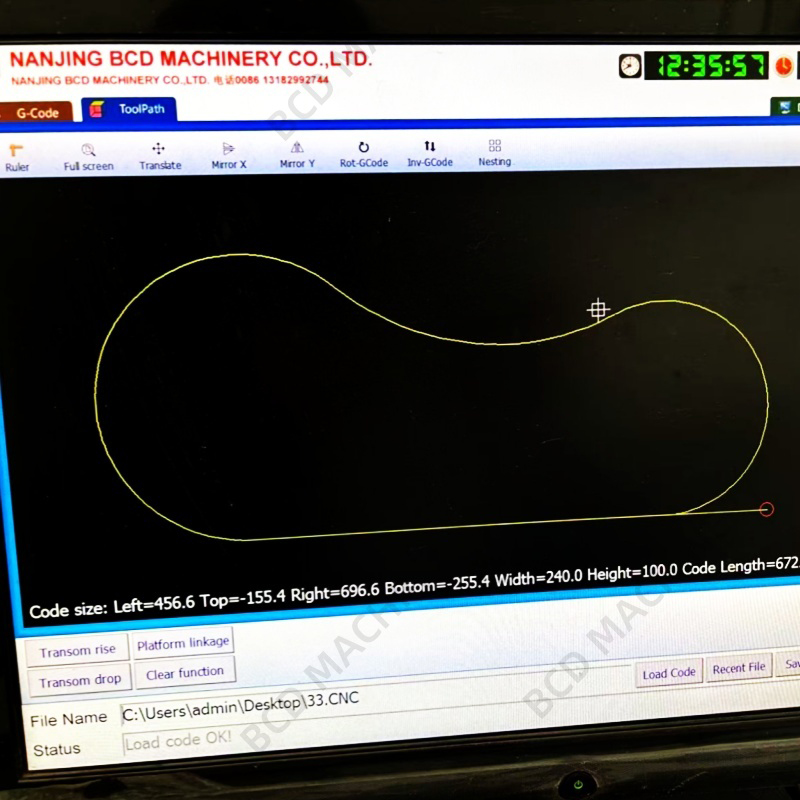

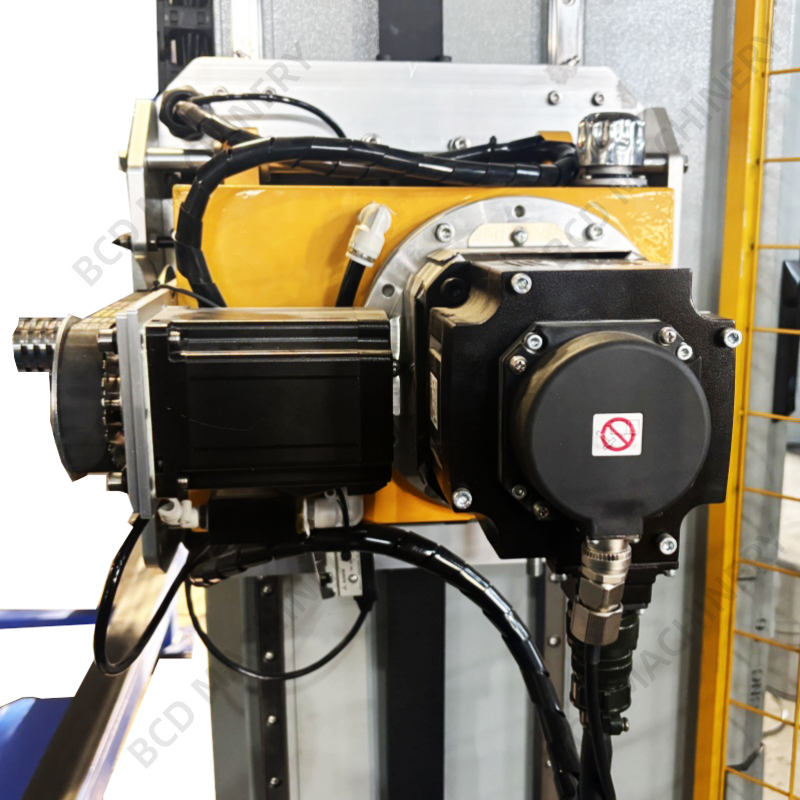

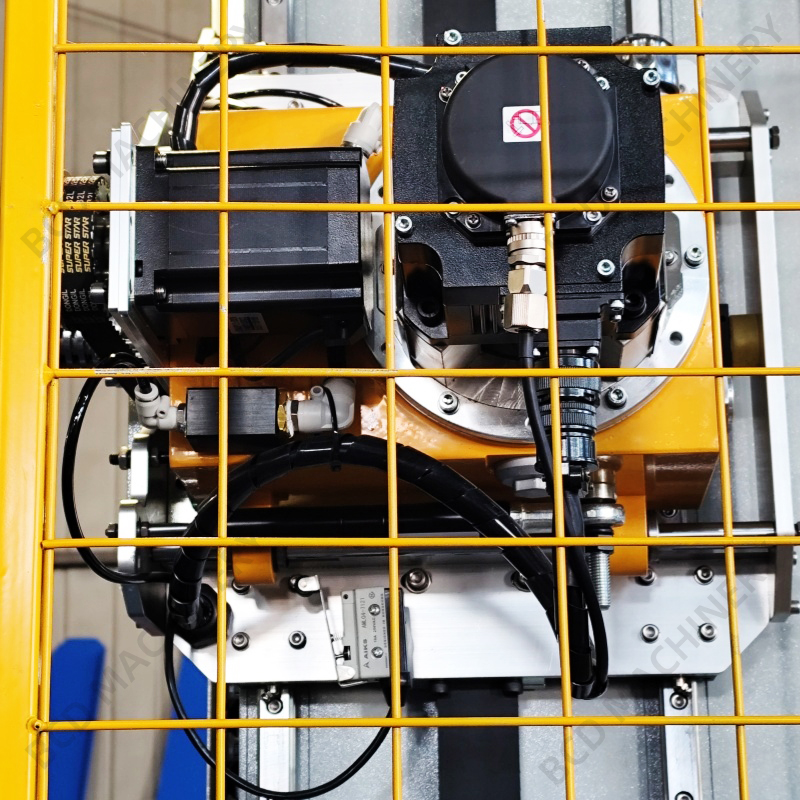

INTELLIGENT CNC CONTROL Full English CNC system supports graphic import, automatic drawing and real-time monitoring, with simple operation. |  PRECISION TRANSMISSION Adopts high-precision servo motor and gear-rack drive, ensuring high accuracy and stability at high speed. |

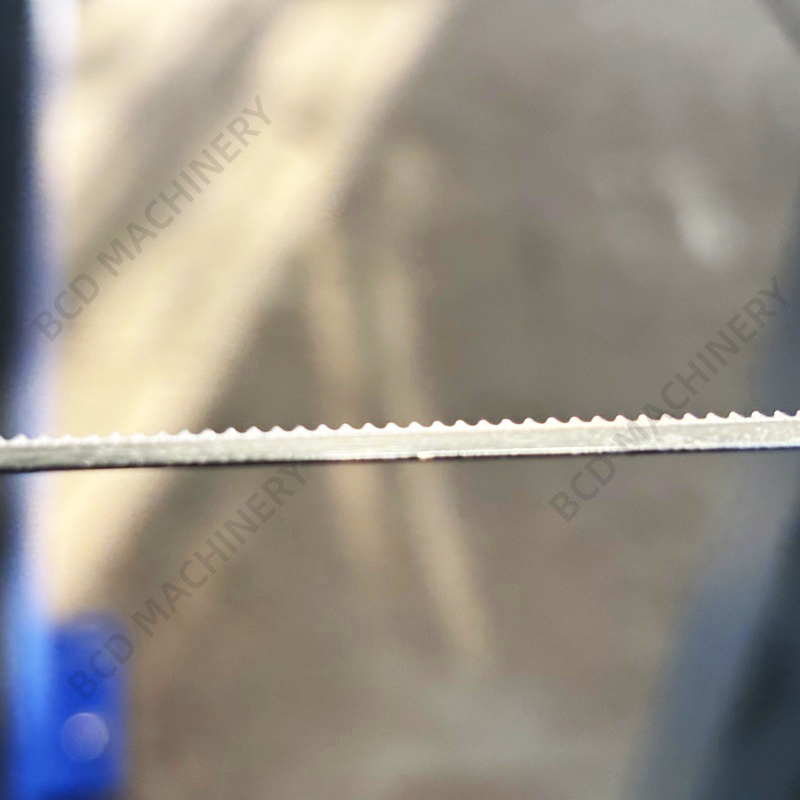

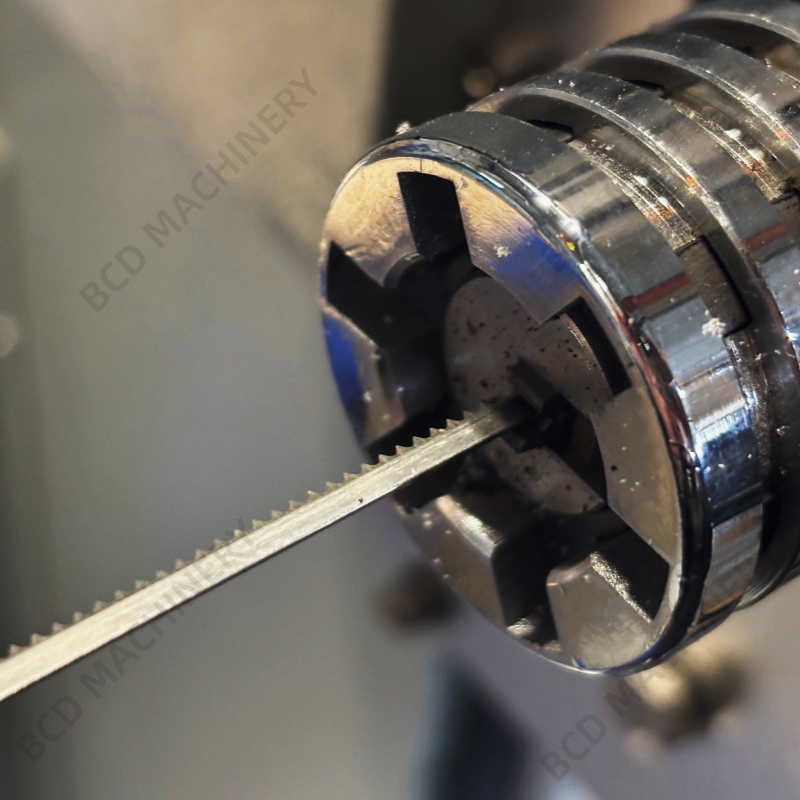

EFFICIENT CUTTING High-rigidity vibrating cutter with speed up to 3000m/s, cutting various foams smoothly without burrs. |

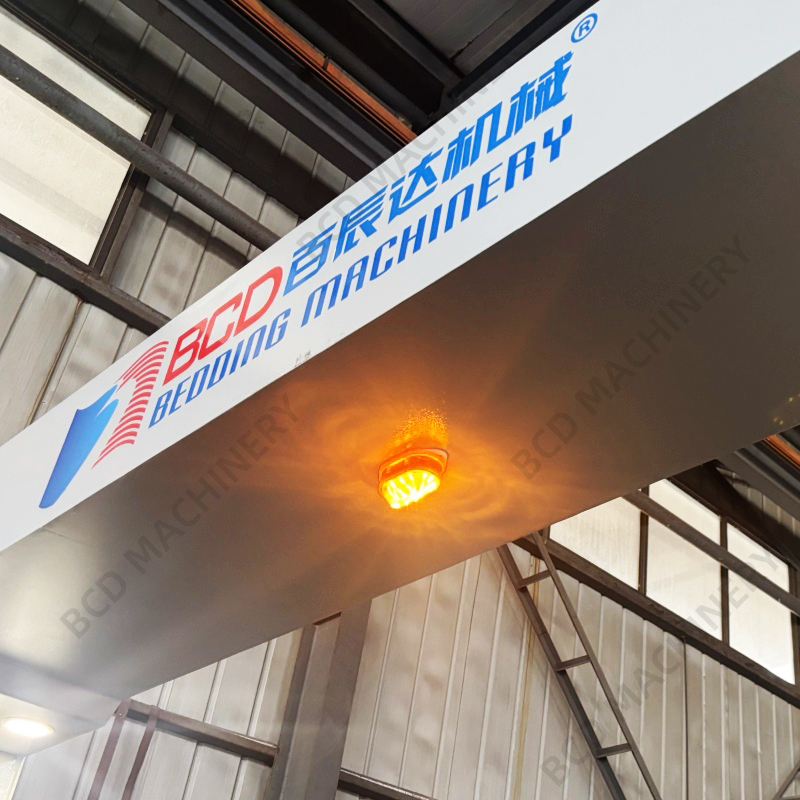

SAFETY PROTECTION Equipped with yellow safety guard to isolate moving parts and ensure operator safety. |

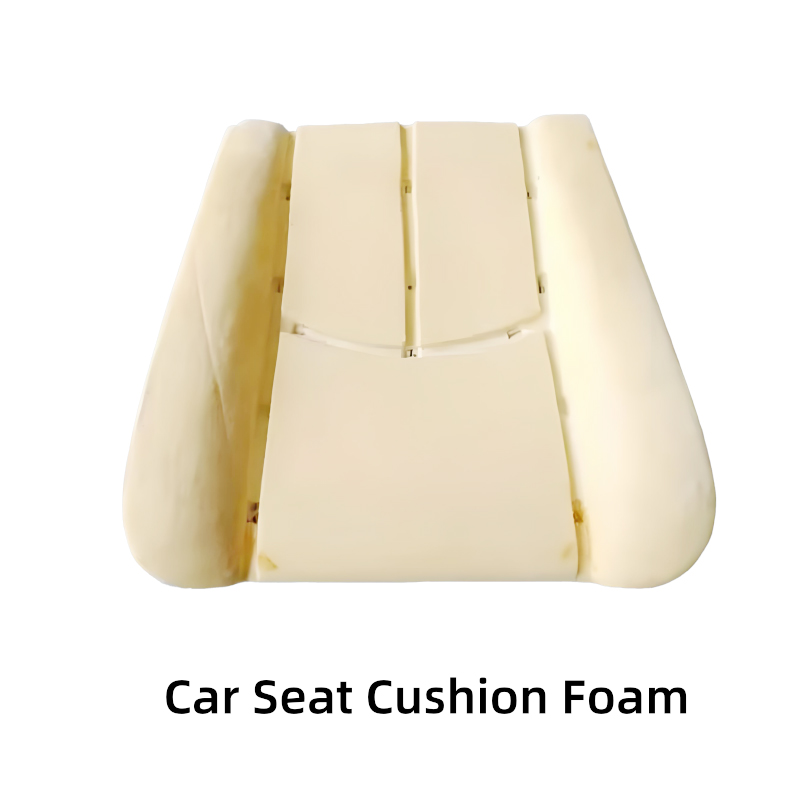

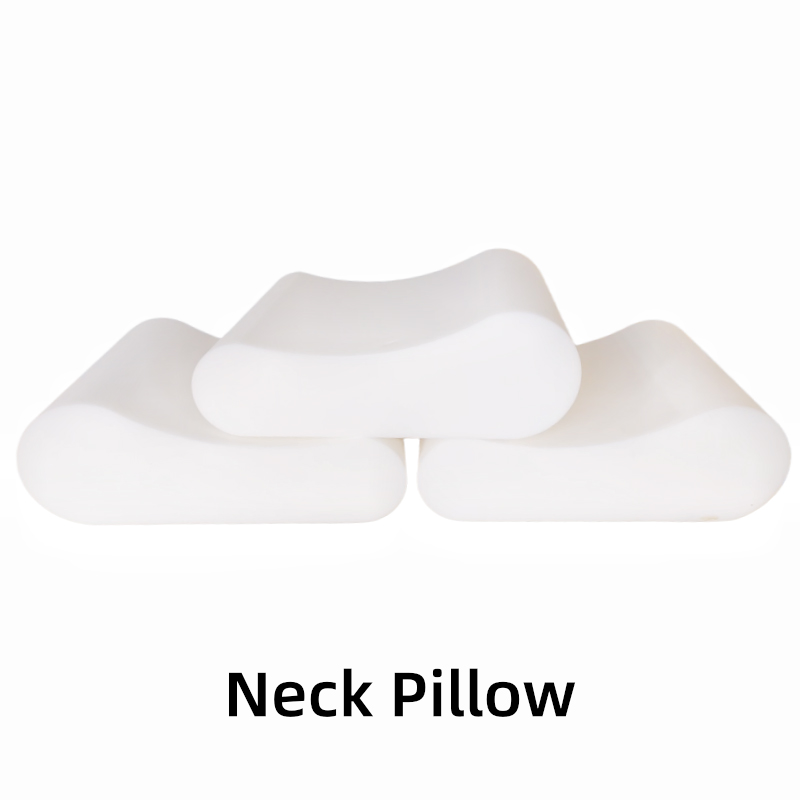

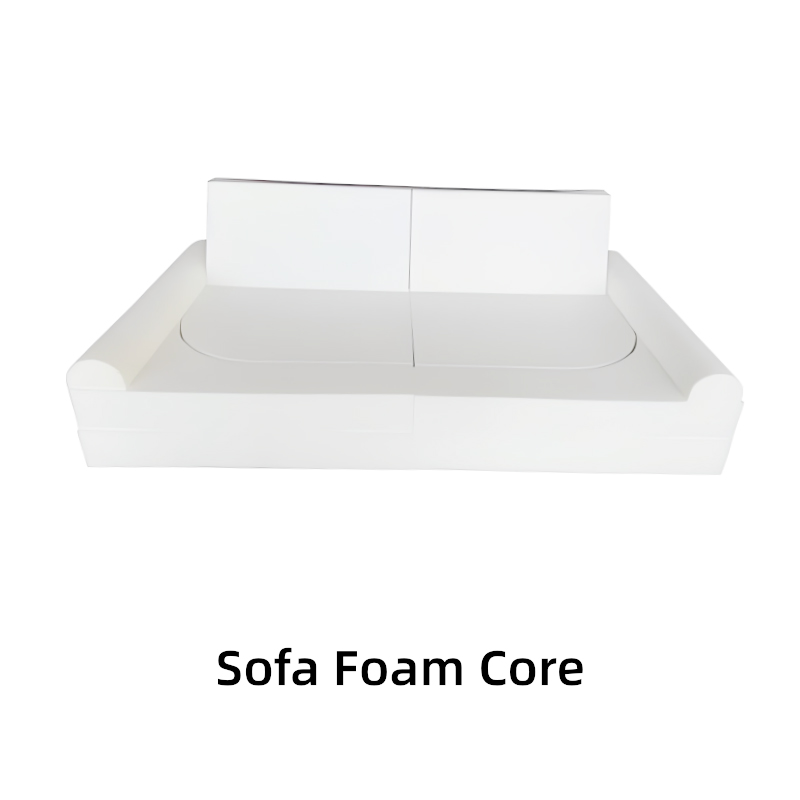

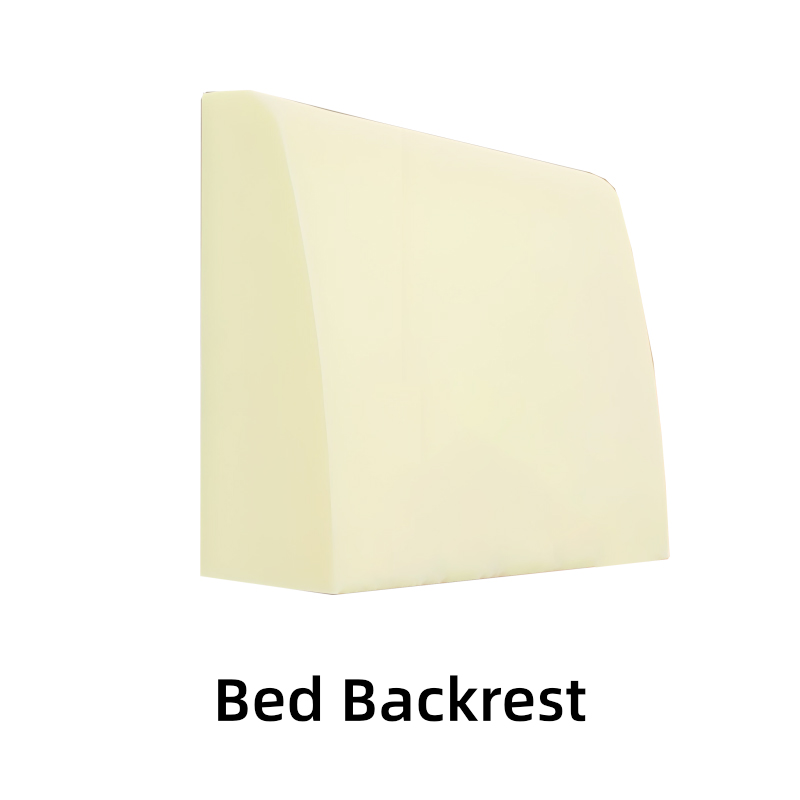

▎FINISHED PRODUCT DISPLAY
 |  |  |  |
▎MODEL COMPARISON
WHICH ONE IS MORE SUITABLE FOR YOU ?

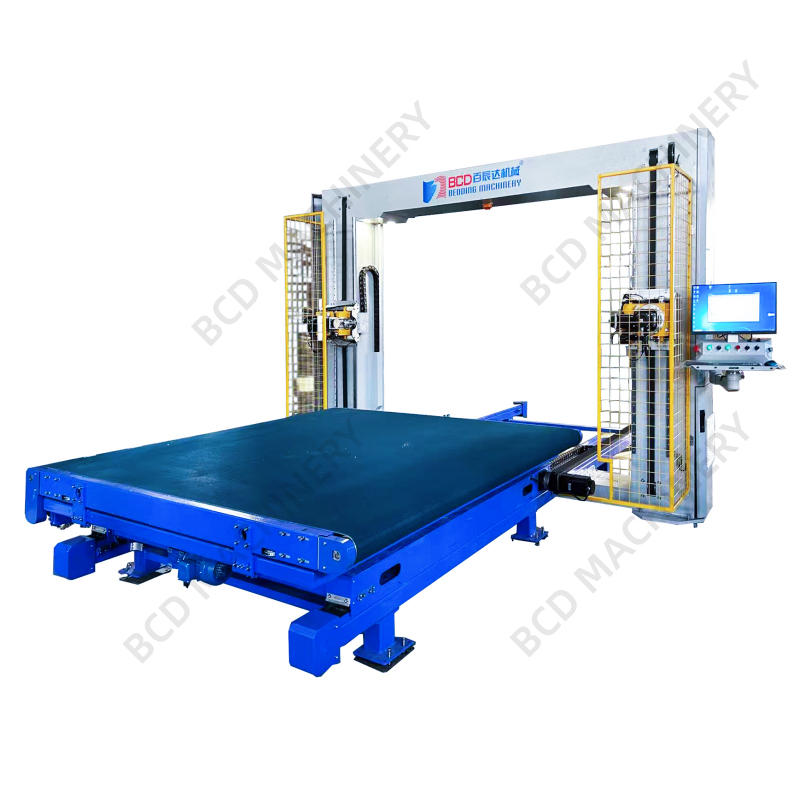

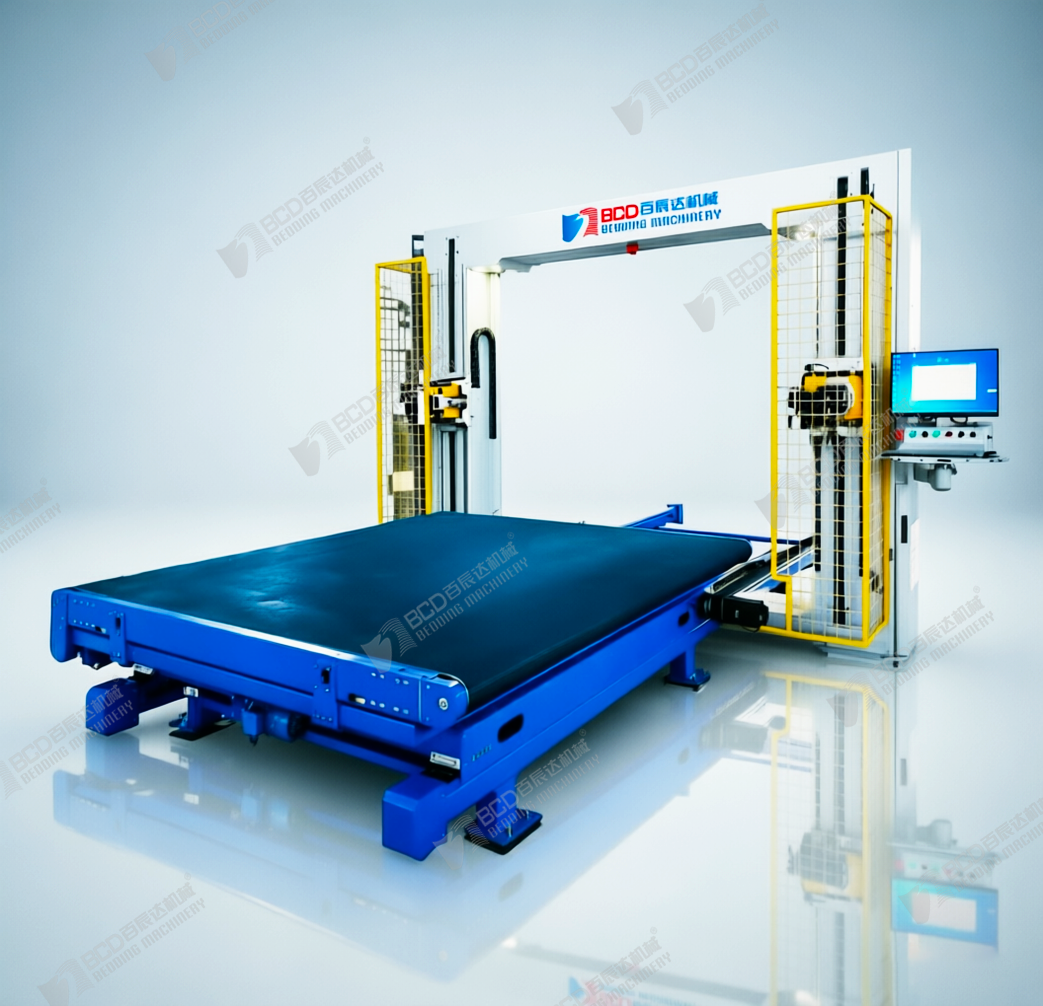

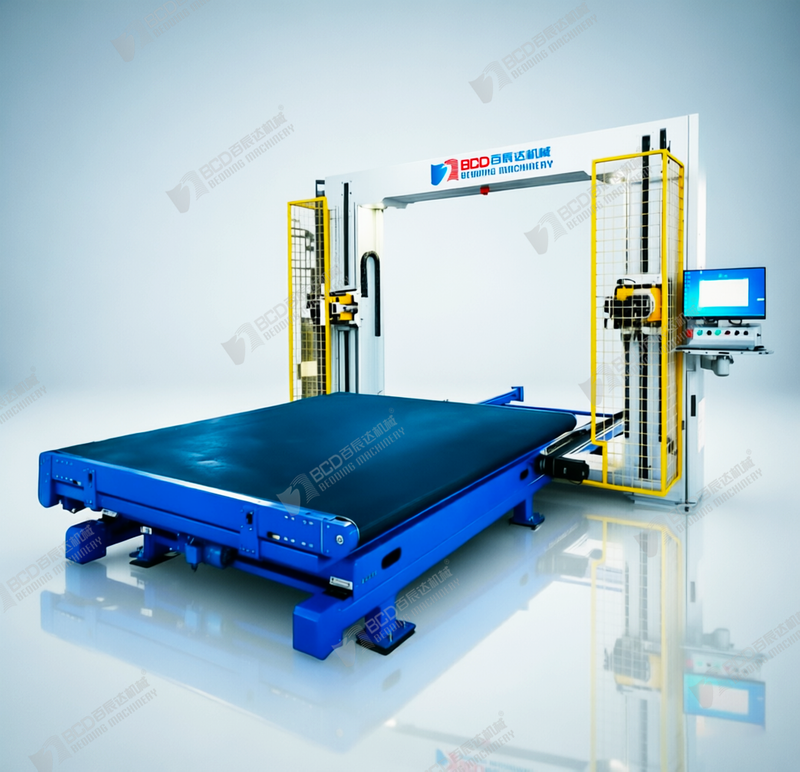

| BFXQ-3 CNC Foam Horizontal Profile Cutting Machine | |
| Model no. | BFXQ-3 |
| Maximum cutting length | 2200mm |
| Max. cutting width | 2200mm |
| Max. cutting height | 1250mm (40HQ) / 1150mm (20GP Container) |
| Machine working table | Carousel turning |
| CNC system | YES |
| Max. cutting speed | 15M/min (related to cutting raw materials) |
| Cutting accuracy | ±0.5mm |
| Sliding band size | 0.5mm3.0mm2300mm |
| Sheet pressure | 0.6Mpa |
| Blade travel | 48mm, 50Hz |
| Vibrating tool line speed | 3000mm/s |
| Cutter breakage protection | Yes |
| Operation options | Modem (remote diagnosis and maintenance), automatic programming software, computer operating desk |
| Power supply | 380V, 3 phase, 50Hz |
| Total motor power | 5.0KW |
| Machine weight | 2200KG |
| External dimensions of the machine | L5000W3500H2200mm |
▎FAQ
Q: What specific materials can the machine cut?
A: Suitable for foam materials including soft foam, hard foam, memory foam, high resilience foam, latex foam, phenolic foam, mineral wool, EVA, etc.
Q: What is the maximum processing size? Can it fit our existing production line?
A: Maximum processing size (L×W×H): 2200mm×2200mm×1250mm. The machine size can be adjusted reasonably to match your production line layout.
Q: Can cutting accuracy and speed meet mass production requirements?
A: Cutting accuracy ±0.5mm with smooth, burr-free edges and no secondary processing needed. Max cutting speed 15m/min, vibrating cutter speed up to 3000m/s, ideal for mass orders.
Q: What is the transmission structure of the machine?
A: Adopts high-precision servo motor and gear-rack drive with high rigidity and stable positioning.
Q: How long is the service life of the vibrating cutter head?
A: The vibrating cutter head can work stably for 1–2 years under normal use, depending on material hardness and working frequency.
Q: Can it perform automatic layout and material-saving cutting?
A: Supports automatic area calculation, mirror cutting, reverse cutting, rotary cutting and optimized layout to minimize material waste.
Q: Is the control system easy to operate?
A: Full English CNC control system with simple and intuitive interface, supporting CAD graphic import, automatic drawing, real-time monitoring and parameter adjustment.
Q: What is the after-sales warranty period of the product?
A: The standard warranty period is one year.
