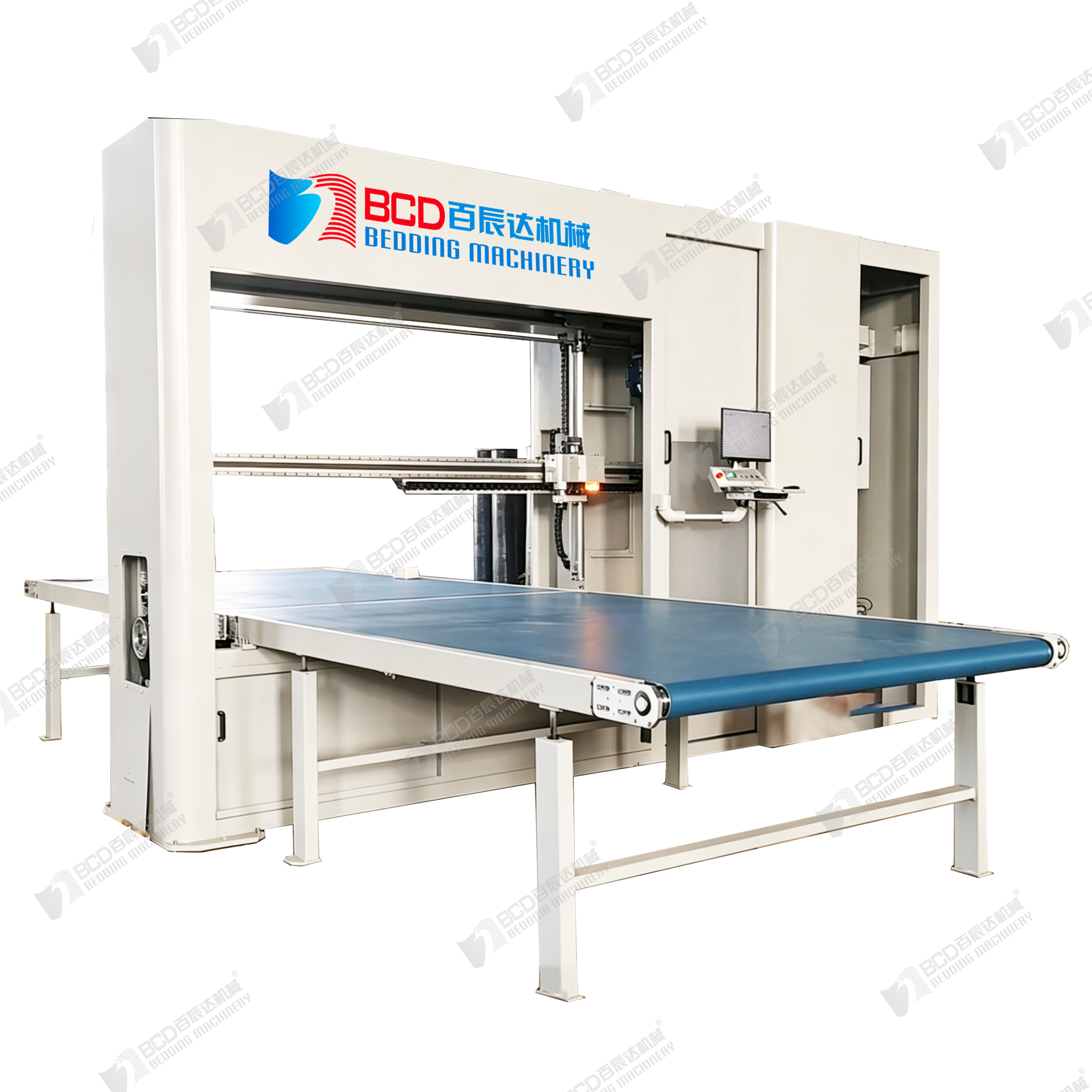

| | 1. Advanced CNC system, easy to operate and program, supporting program storage and call-up. 2. Automatic feeding with 6300mm extended conveyor belt, no manual pushing, saving labor. 3. Strong special-shaped processing capability, able to accurately cut various complex contours to meet the customized shaping needs of foam products in various industries. 4. Dust-free cutting process, no dust or burrs, flat processing surface, no subsequent trimming required. 5. High-quality steel body, solid structure, low vibration, maintaining stable precision during long-term high-intensity operation to ensure continuous production. 6. Suitable for various foam materials such as EPS, EVA and sponge, capable of precise cutting of both high and low density. |
▎PRODUCT FEATURES
 |  |  |  |

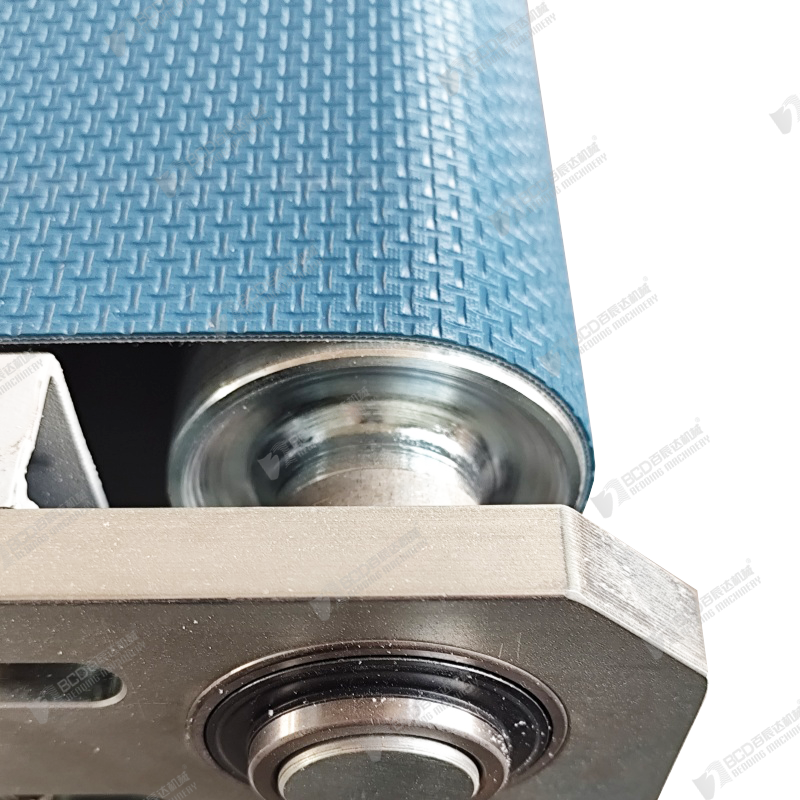

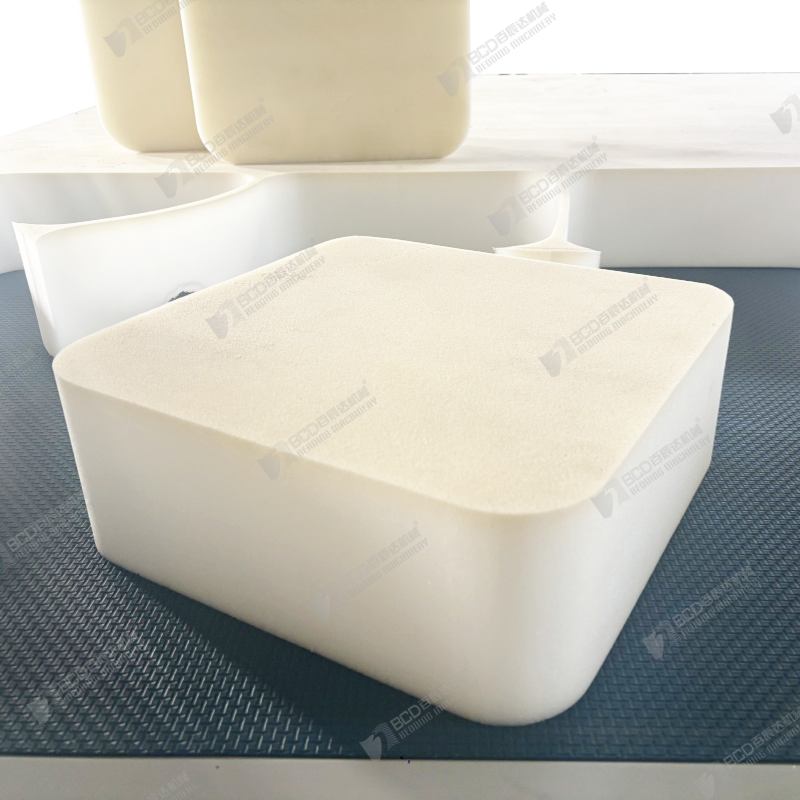

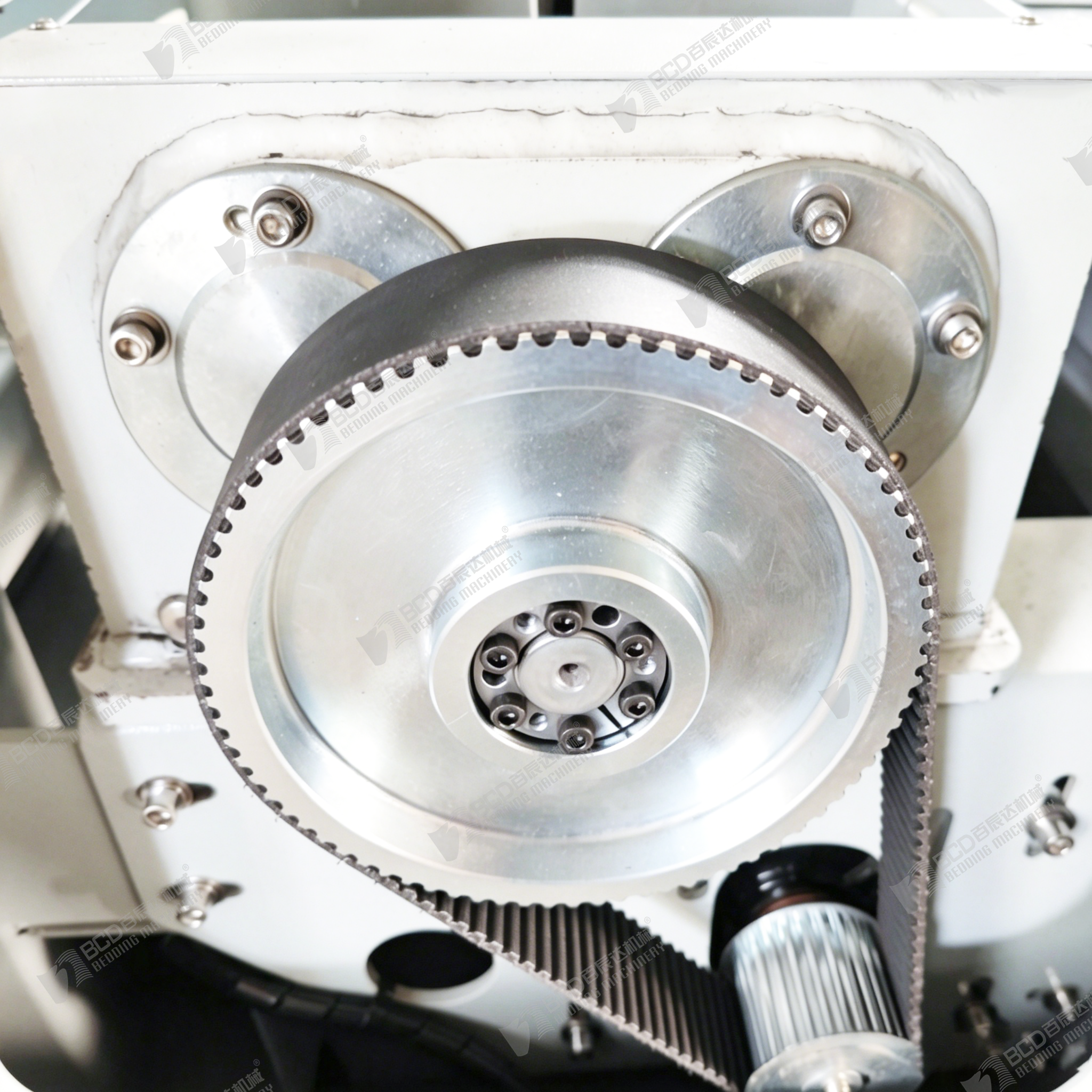

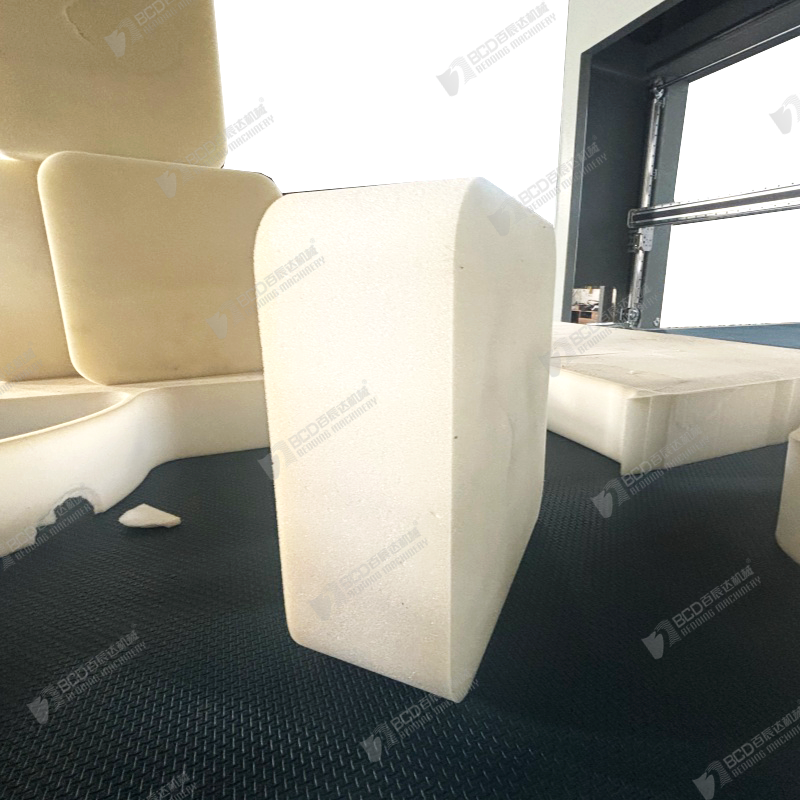

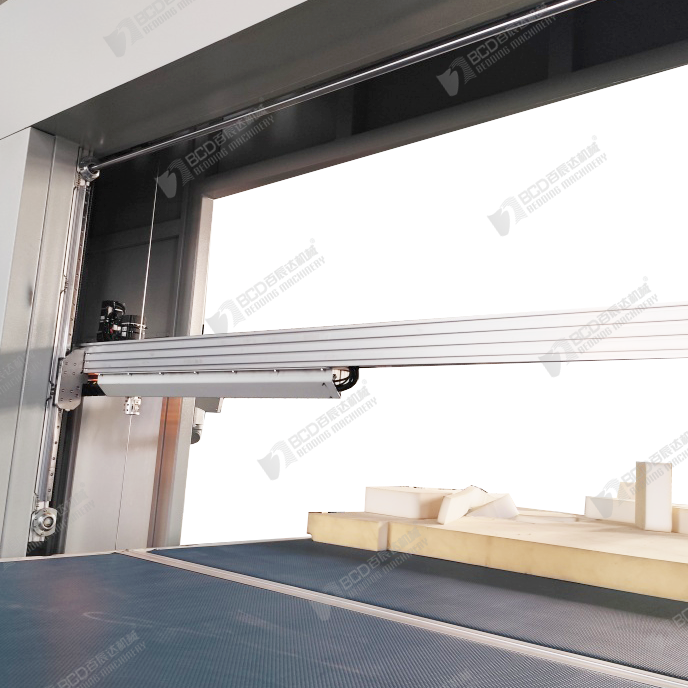

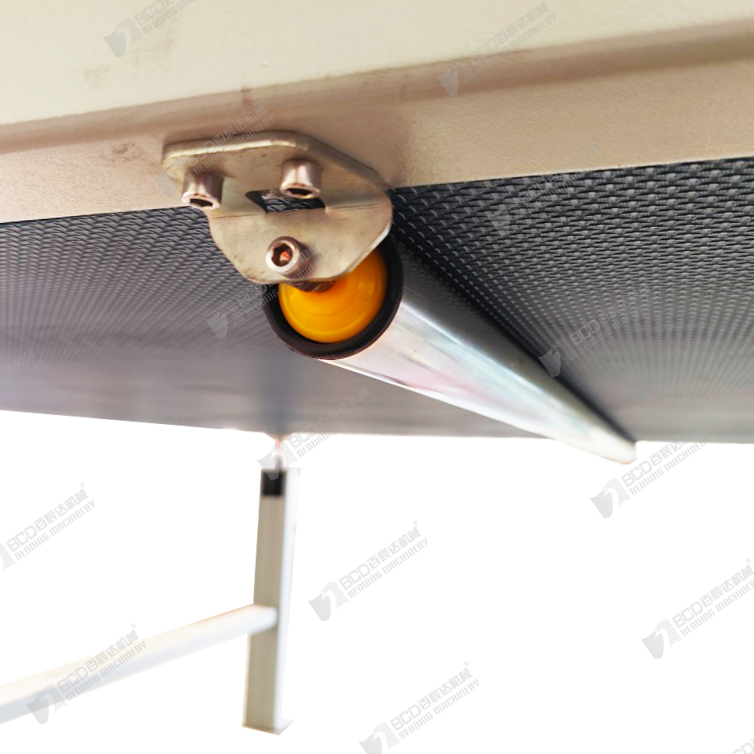

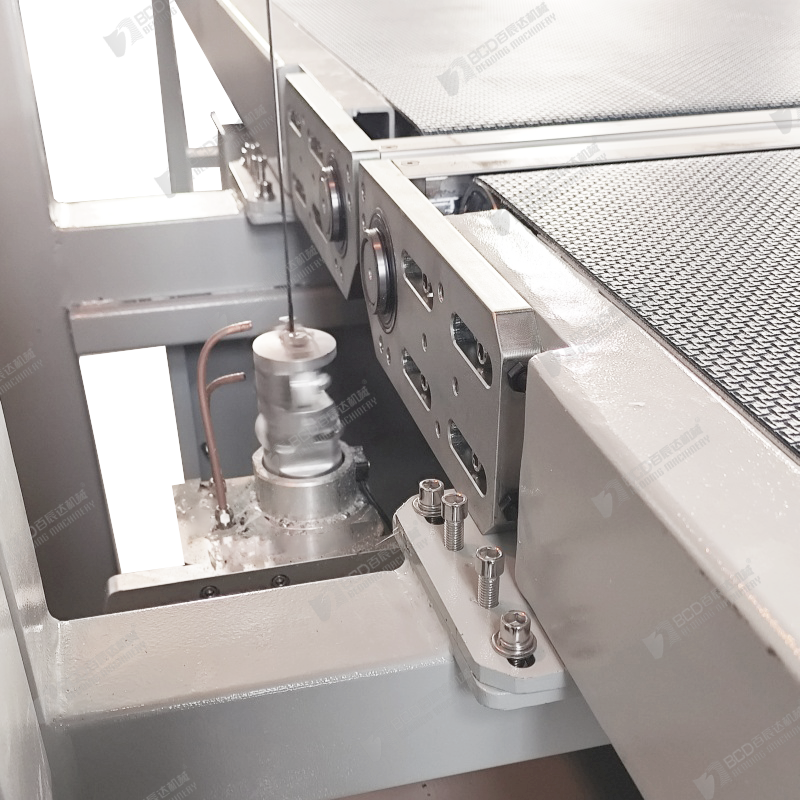

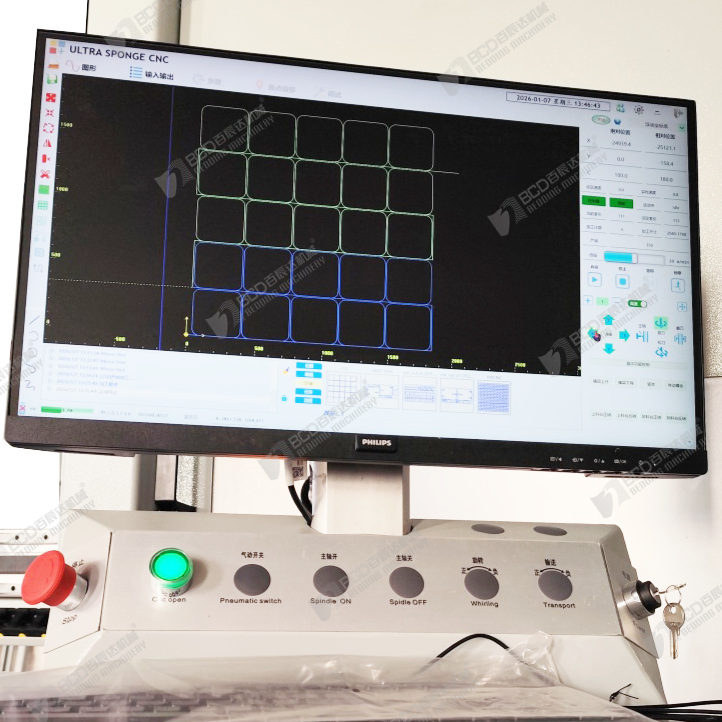

Intelligent CNC Control Visual CNC interface supports graphic import and precise programming. Combined with physical buttons, it enables intuitive operation and efficient complex contour cutting. | High-Efficiency Vibrating Knife High-speed vibrating knife with precision transmission and stable base ensures smooth, high-speed, dust-free foam cutting. | Robust Structure Anti-slip textured conveyor belt and high-precision roller bearings deliver stable material conveying and long-term operational reliability. | High-Quality Finished Products Performs high-precision special-shaped foam processing, producing smooth contours, rounded corners, and consistent dimensions. |
▎MODEL COMPARISON
WHICH ONE IS MORE SUITABLE FOR YOU ?
BPQ Foam Horizontal Cutter Machine | |
Model no. | BPQ |
Cutting size | W2150×L3000mm |
Max. cutting height | 1200mm; Optional 800MM (custom order) |
Cutting speed | 0~25M/min |
Blade length | 9880mm |
Cutting thickness | 2.0~200mm |
Machine weight | 2200Kg |
Total power | 8.32KW |
Machine overall dimension | L7800×W4200×H2400mm |
▎FAQ
Q: What is the maximum cutting size range of BFXQ-3?
A: Max. cutting length 3000mm, width 2200mm, height 1250mm, covering most large-scale workpiece cutting scenarios in various industries.
Q: What is the cutting precision of BFXQ-3?
A: Standard cutting precision is ±0.5mm. The device has a stable structure and cutter broken protection to ensure long-term precision stability.
Q: How does the vibrating tool linear speed of 5000mm/s affect cutting effect and cutter lifespan?
A: High linear speed improves cutting efficiency and section smoothness. Reasonable linear speed design balances cutting effect and cutter wear cycle.
Q: Does the 6300mm conveyor belt support continuous feeding or automated production line docking?
A: The long conveyor belt enables continuous feeding and flow operation, and can dock with front-end and back-end automated equipment to improve overall production line efficiency.
Q: Does it support custom cutting profile programming?
A: Supports importing vector graphic files such as DXF/AI. It can quickly edit and generate cutting paths through supporting software, adapting to complex geometric profile processing needs.
Q: What is the stability of the device during continuous operation?
A: Adopting industrial-grade design, the core components have optimized heat dissipation and load capacity, supporting 24-hour continuous production for batch processing scenarios.
Q: Are there learning materials such as operation manuals and video tutorials provided?
A: Chinese and English operation manuals, video tutorials, and fault diagnosis guides are available. Subsequent software function and parameter updates can be realized through remote online troubleshooting.
Q: What is the after-sales warranty period of the product?
A: The standard warranty period is one year
