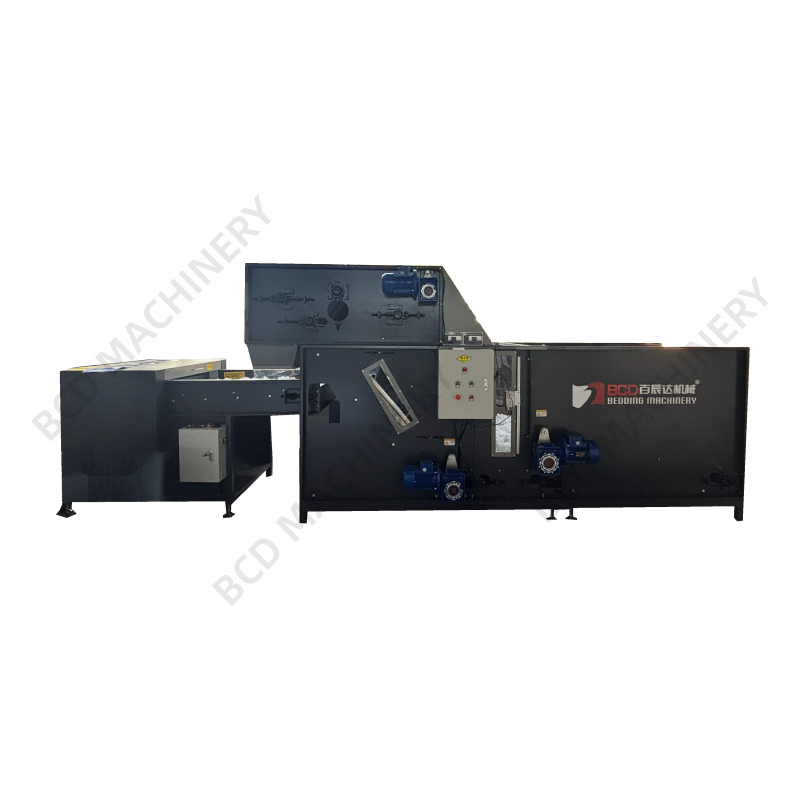

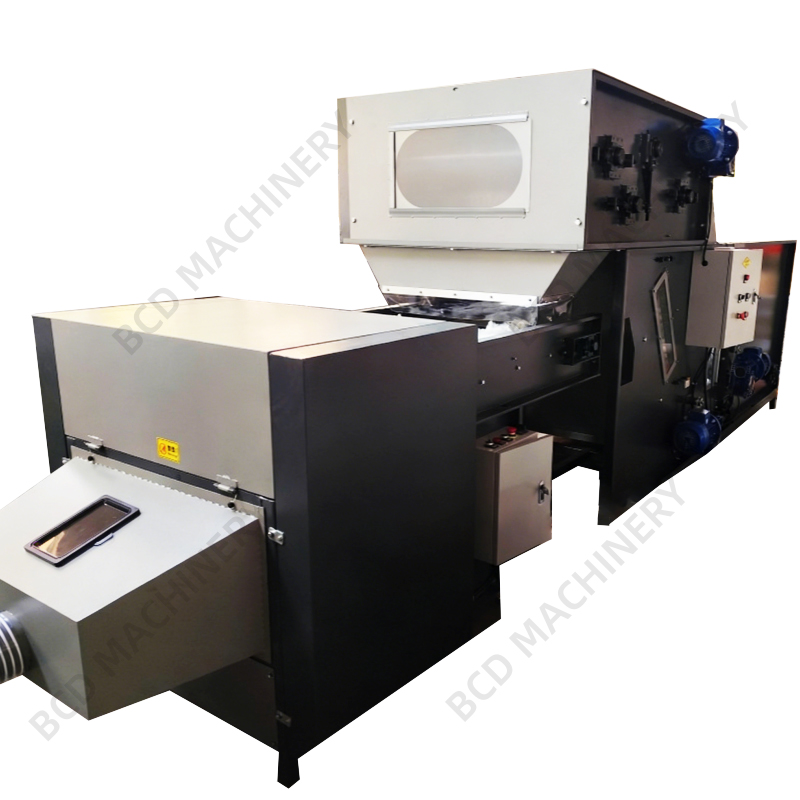

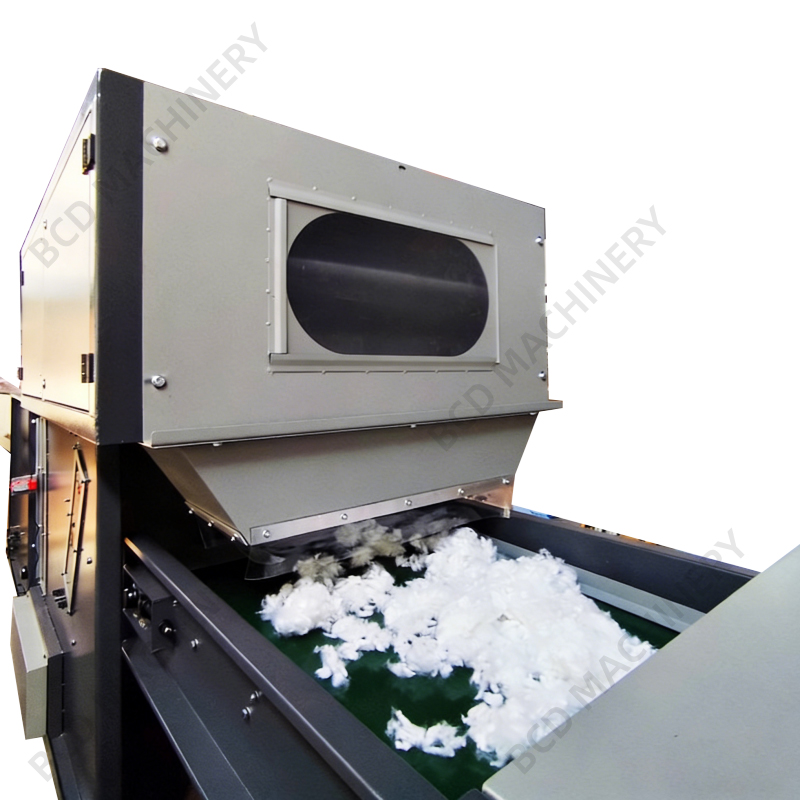

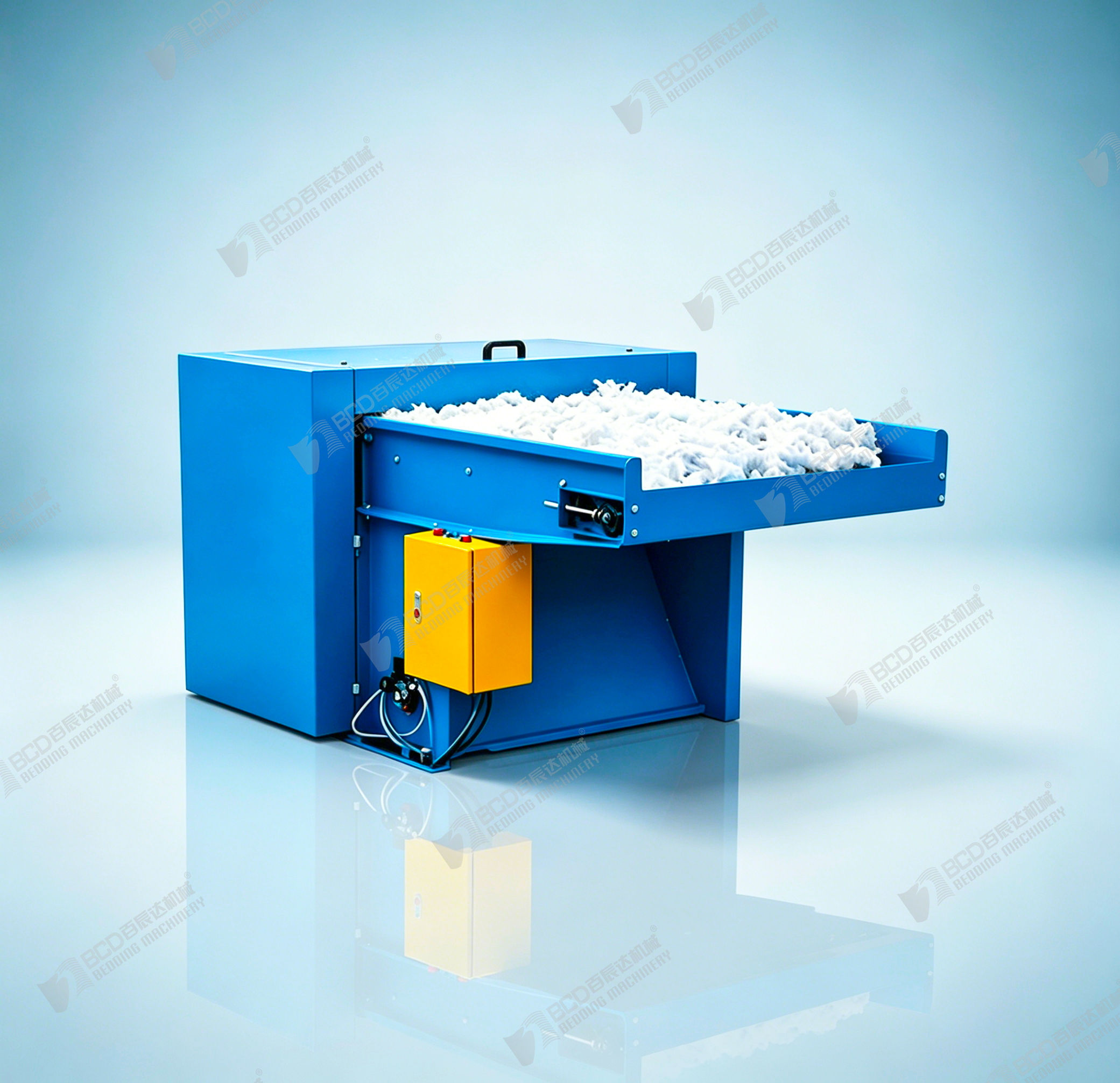

BKS Pillow Fiber Opening Machine

BKS is a professional core equipment for pillow production, specially designed for opening and loosening pillow filling materials such as chemical fiber cotton and PP cotton. Equipped with an 8.25kw high-power motor, it achieves stable processing of 300-350kg/h, and the opened cotton can be directly used for filling high-end products.

Availability:

Quantity:



Add to Basket Download

Product Description

▎OVERVIEW

1.Engineered for synthetic fibers, polypropylene, and other pillow fillings, with versatile opening capabilities.

2.Ensures stable processing of 300-350 kg/h to meet mass production demands.

3.Adjustable opening speed for tailored fluffiness based on material.

4.Fully enclosed feeding structure ensures operator safety.

5.Compatible with standard 220V/60Hz power supply, no special wiring needed.

6.Compact dimensions: 2200 * 1300 * 1180mm, ideal for space-efficient floor planning.

▎PRODUCT FEATURES

SPEED CONTROL PANEL

Adjustable opening speed, max RPM for 300-350kg/h capacity, fits different material fluffiness needs.

BKS-F2

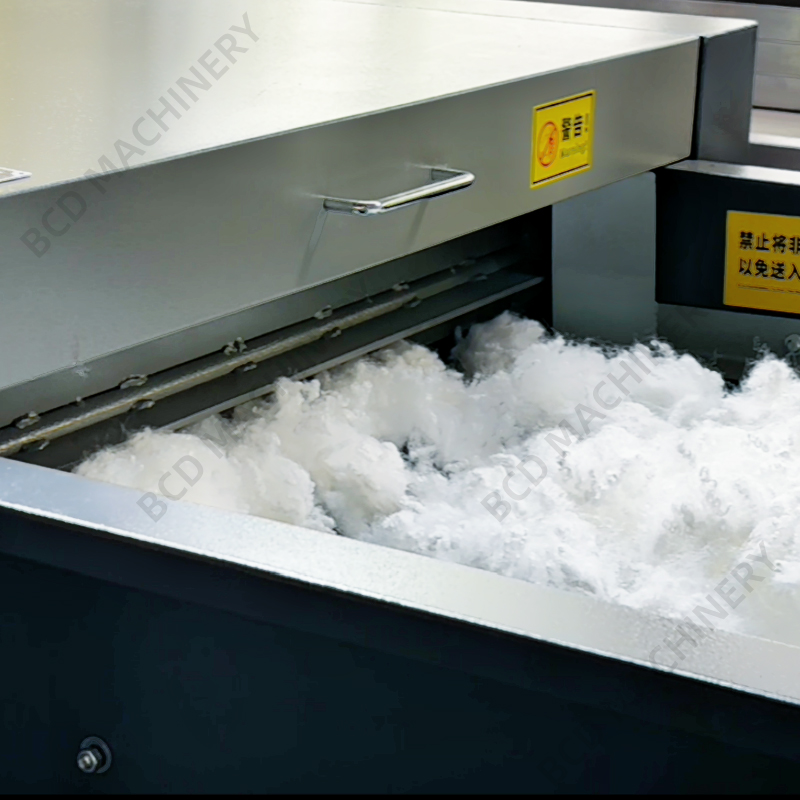

SAFETY OPENING ZONE

Fully enclosed feeding structure triggers immediate stop if foreign objects enter, ensuring operator safety.

BKS-F3

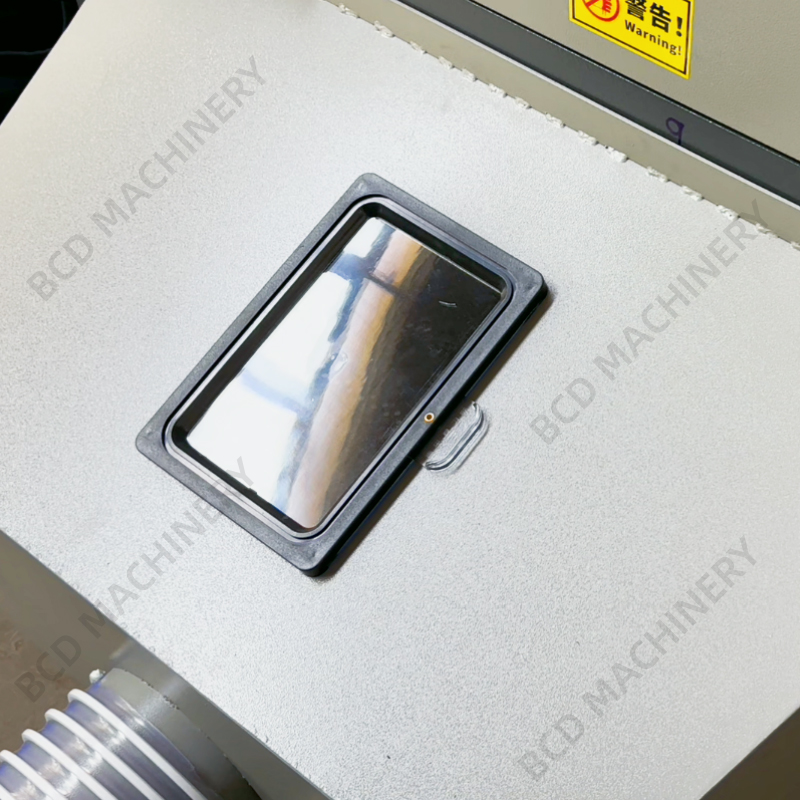

TRANSPARENT OBSERVATION WINDOW

High-transparency acrylic window, real-time internal monitoring without shutdown, quick fault detection (clumps/blockages).

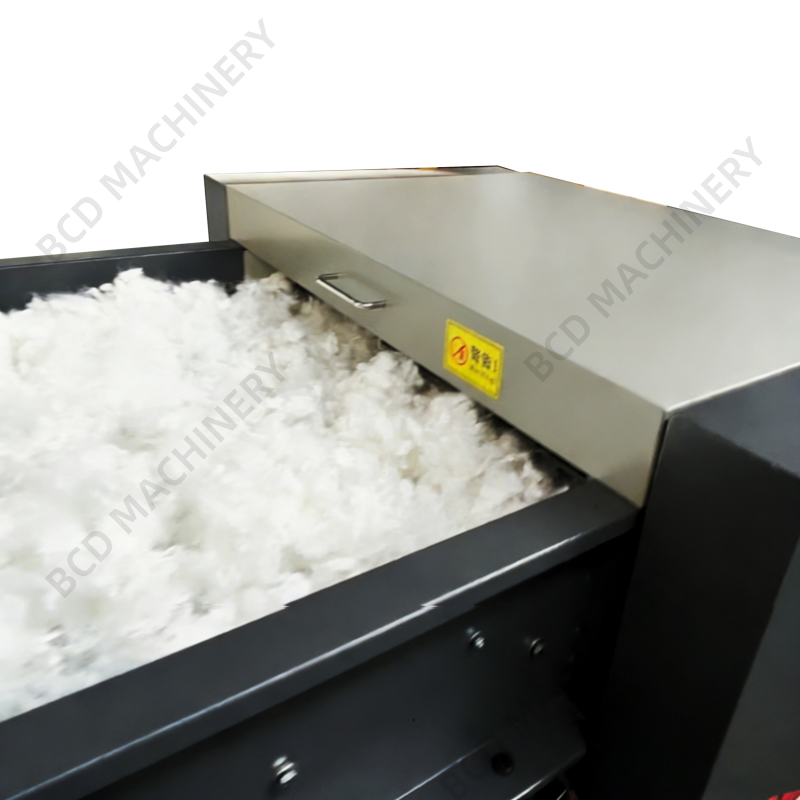

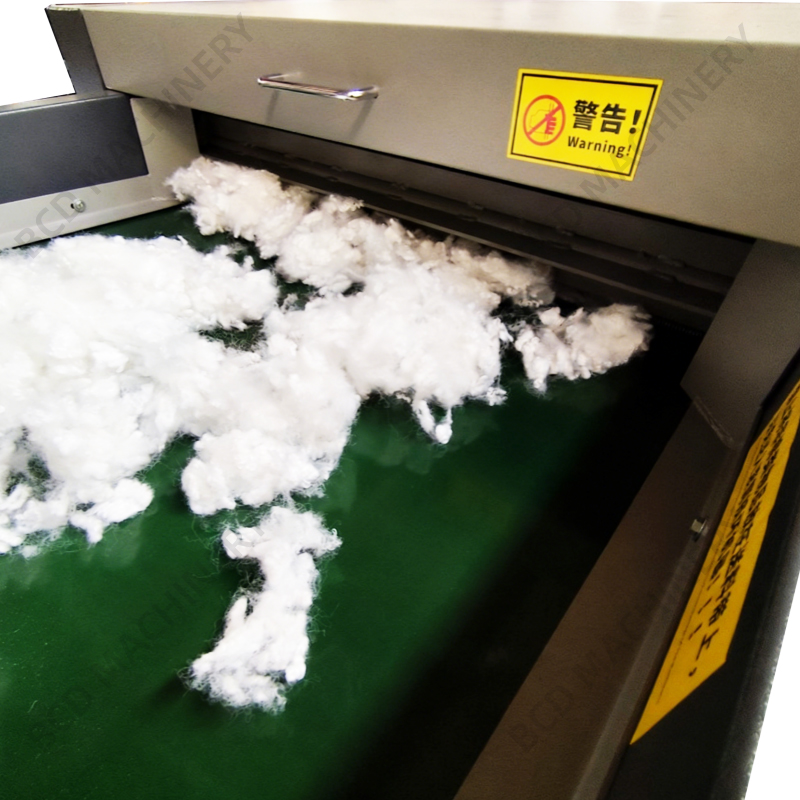

HIGH-QUALITY OPENED COTTON

Even fibers, high fluffiness, no clumps, meets high-end filling product requirements (pillows/cushions etc).

▎FINISHED PRODUCT DISPLAY

▎MODEL COMPARISON

WHICH ONE IS MORE SUITABLE FOR YOU ?

BKS Pillow Fiber Opening Machine
Model no.	BKS-80	BKM-200	BSM-350
Capacity	70~80kg/h	180~220kg/h	300~350kg/h
Work Voltage	220V/50Hz	220V/50Hz/380V/50Hz	220V/60Hz
Motor Power	3.4KW	5.5KW	8.25KW
Air Pressure	0.4MPa	0.3~0.5MPa	0.4~0.5MPa
Dimensions	1800680880mm	19509501000mm	220013001180mm
Net Weight	270Kg	420Kg	650Kg

▎FAQ

Q: What materials can the machine handle? Can it process recycled materials?

A: The machine is designed for pillow fill materials like PP cotton, polyester fiber, and foam pellets. It can process clean, pre-shredded recycled materials. We recommend providing samples for optimal parameter adjustment.

Q: How is fluffiness adjusted?

A: Adjust the opening roller's speed steplessly. Recommended speed presets are available for different materials, and fine-tuning is possible based on the desired texture.

Q: Is the 300-350 kg/h output a stable or peak value? Will it vary with materials?

A: This is the stable average output when running continuously for 8+ hours with standard materials. Output may vary by ±10% depending on material type, impurity level, and target fluffiness.

Q: Does processing cause fiber damage?

A: The machine’s gradual opening and optimized tooth profile are designed to minimize fiber breakage while ensuring effective opening.

Q: How noisy is the machine?

A: Under full load, noise is ≤78 dB measured 1 meter from the machine.

Q: What is the weight and floor requirement

A: Net weight is about 850 kg. A solid, level concrete floor is sufficient; no special foundation is needed.

Q: Is the machine shipped fully assembled?

A: The machine is largely pre-assembled and tested. Free remote installation guidance is provided.

Q: How does BSM-350 differ from the BSM-250/450?

A: Mainly in capacity and power. BSM-350 (300-350 kg/h, 8.25 kW) provides the best cost-performance balance for mass production.

Q: What is the after-sales warranty period of the product?

A: The standard warranty period is one year.
