1.Suitable for producing soft polyurethane foam with a density range of 10-50kg/m³ 2.Can store 7 foaming formulas, supporting adjustment or modification at any time 3.Supports remote monitoring via the Internet, displays foaming changes in real time, and makes production cost control scientifically visualized 4.Foam height: 1000-1300mm, foam width: 1.15-2.3M, side plate width adjustable to 0.98-2.4M, strong adaptability to different specifications 5.High degree of automation, reduces reliance on manual labor, features good stability, and ensures consistency of finished products 6.Total output reaches 200-350Kg/min, conveyor belt linear speed: 2.0-7.0M/min, high production efficiency |
▎PRODUCT FEATURES

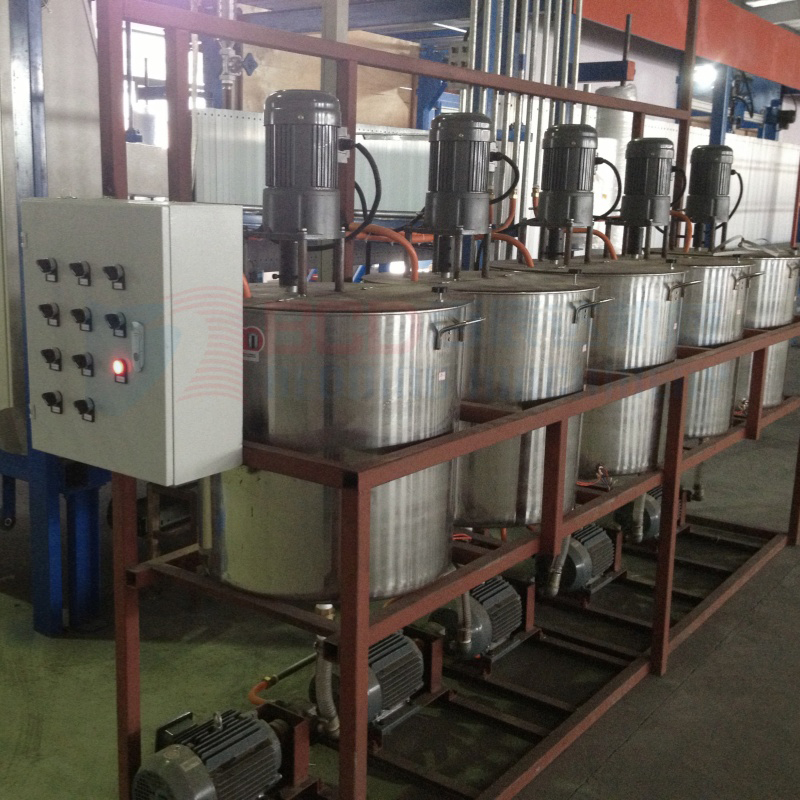

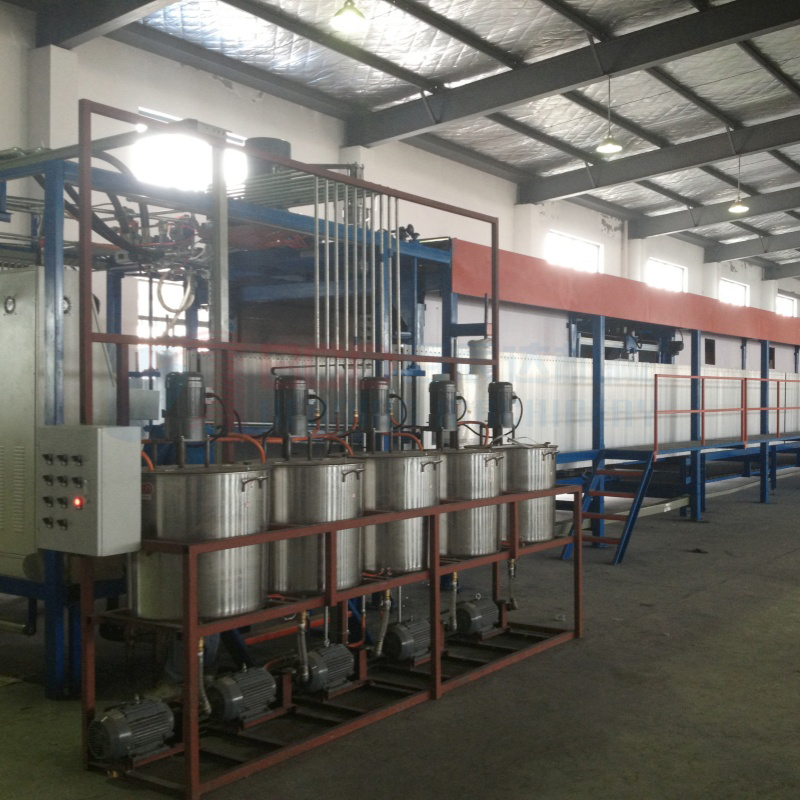

HIGH-SPEED MASS PRODUCTION Total discharge: 200-350Kg/min; conveyor speed: 2.0-7.0M/min; hourly output >2 tons, ideal for large-scale foam production. |  MULTI-TANK INDEPENDENT MATERIAL CONTROL Multiple tanks for simultaneous storage of PU A/B, latex base, etc.; quick formula switching; pre-saves 7 foam formulas. |

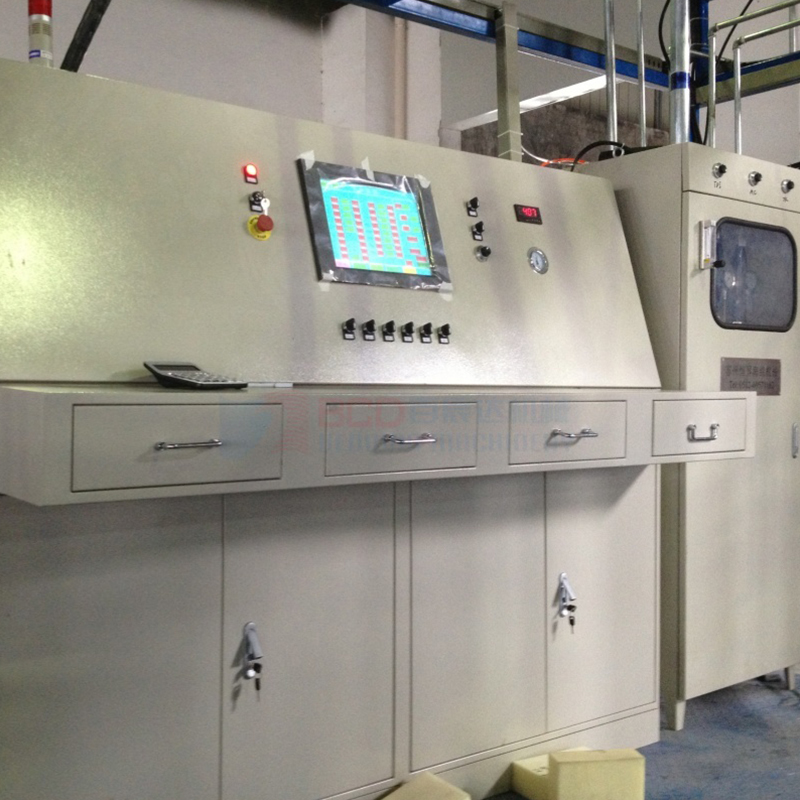

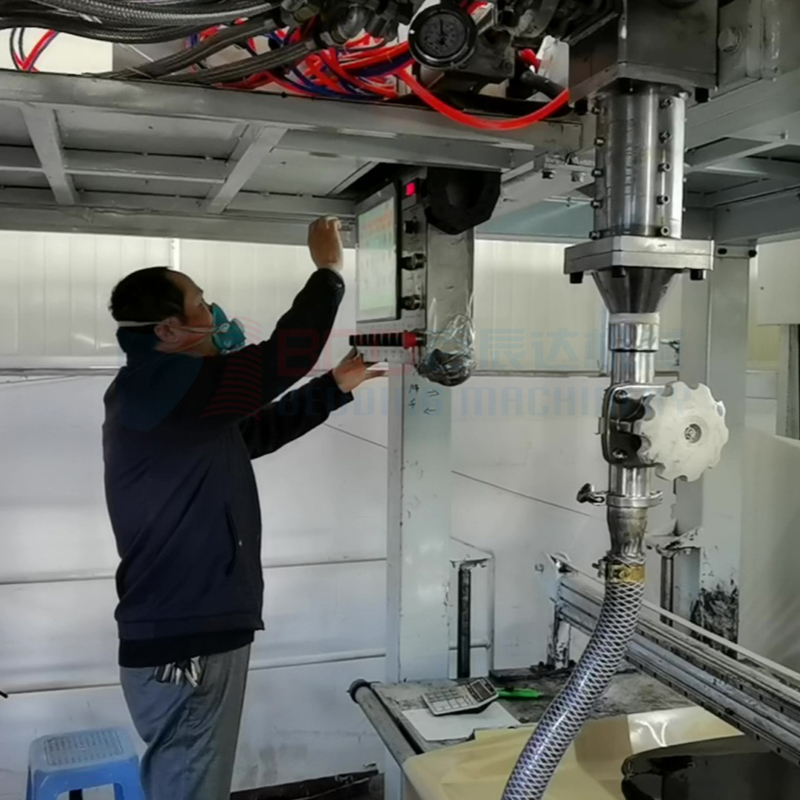

DUAL-CONTROL SYSTEM "Automatic/human-machine" modes: manual for small-batch debugging; automatic for large-scale stable output, flexible operation. |

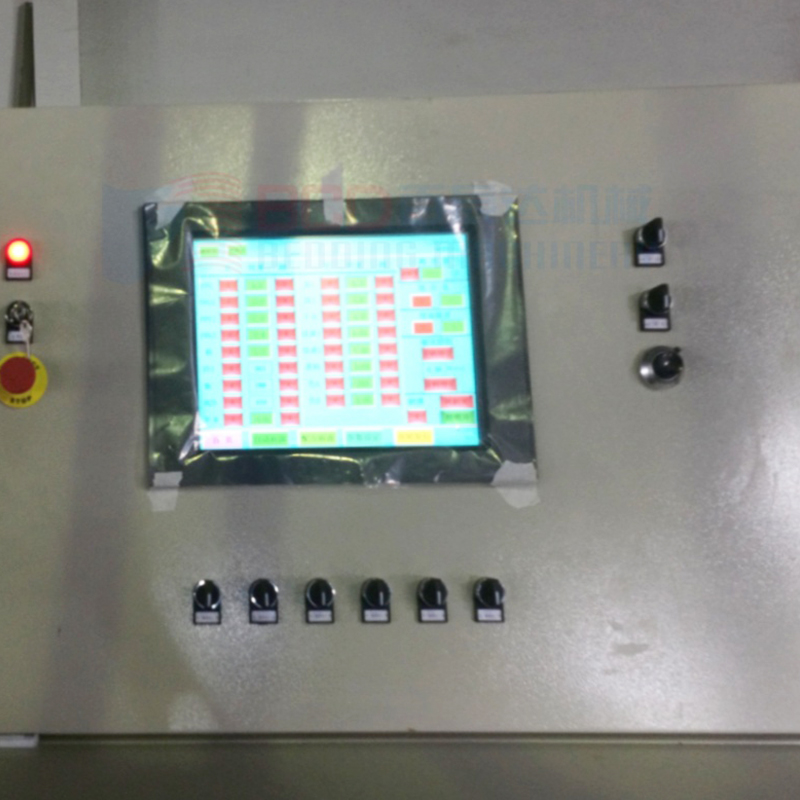

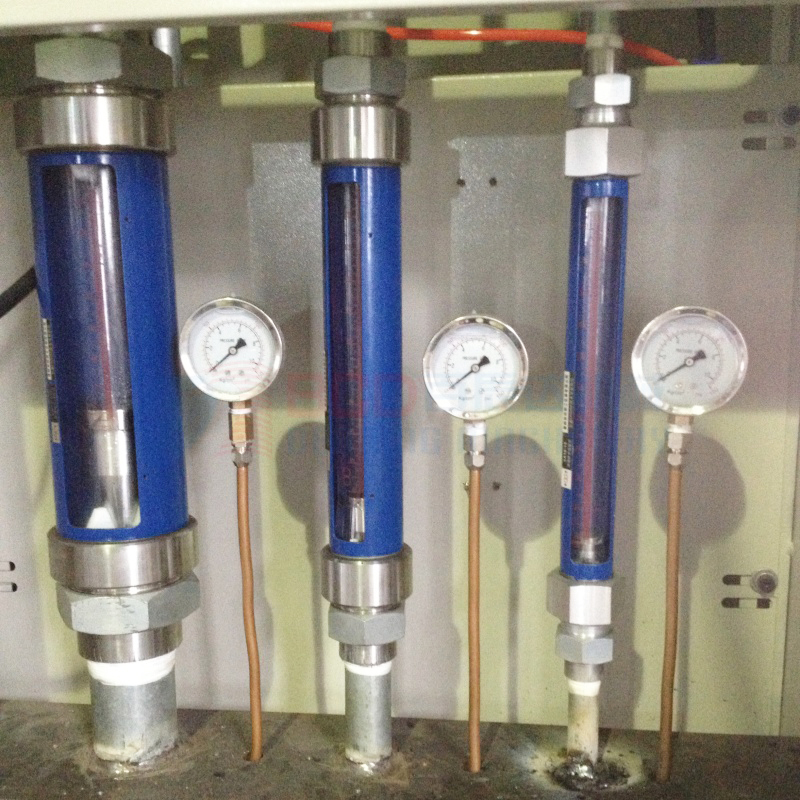

REAL-TIME MONITORING Independent temp-pressure gauges + flow meters per line/chamber; real-time pressure/temp/flow display; avoids uneven foaming, ensures uniformity. |

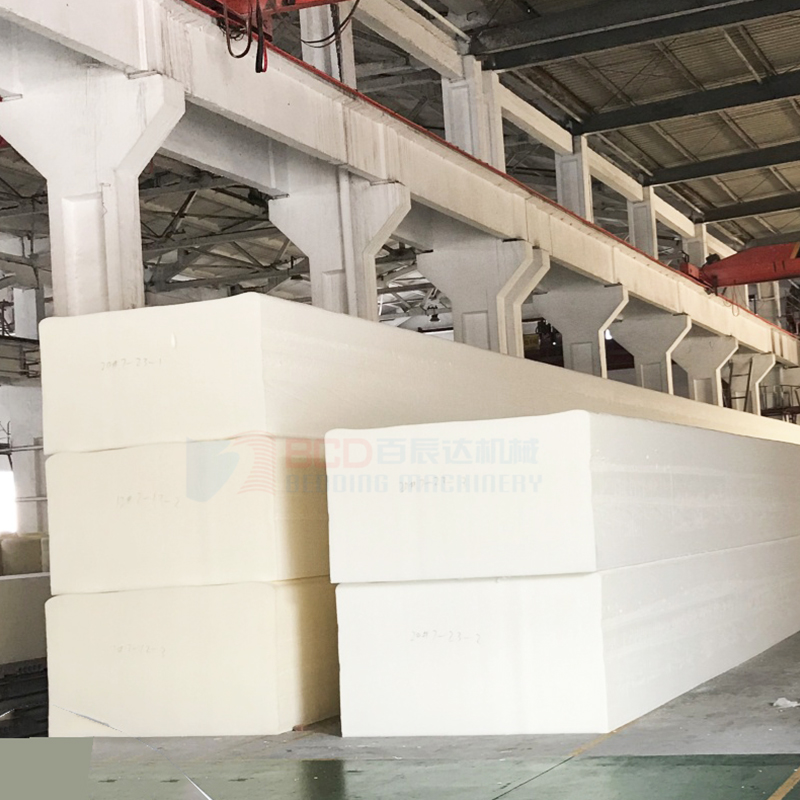

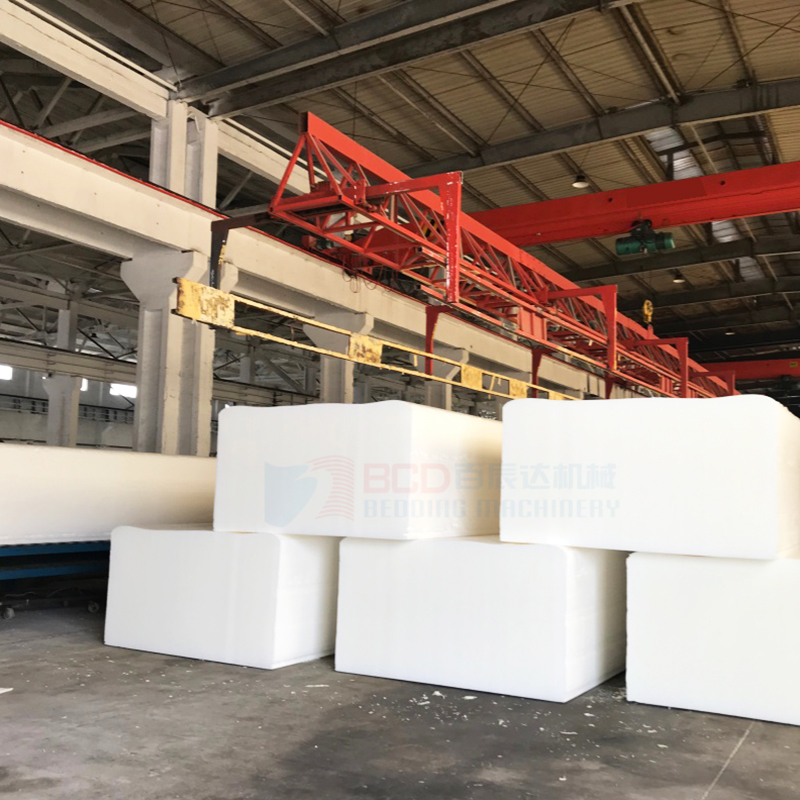

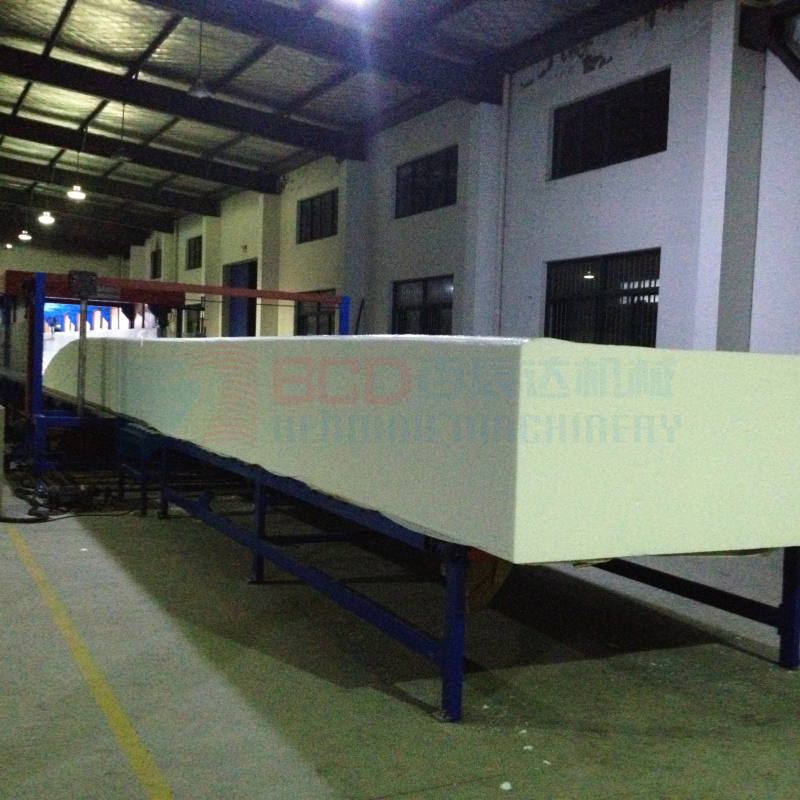

▎FINISHED PRODUCT DISPLAY
 |  |  |  |
▎MODEL COMPARISON
WHICH ONE IS MORE SUITABLE FOR YOU ?

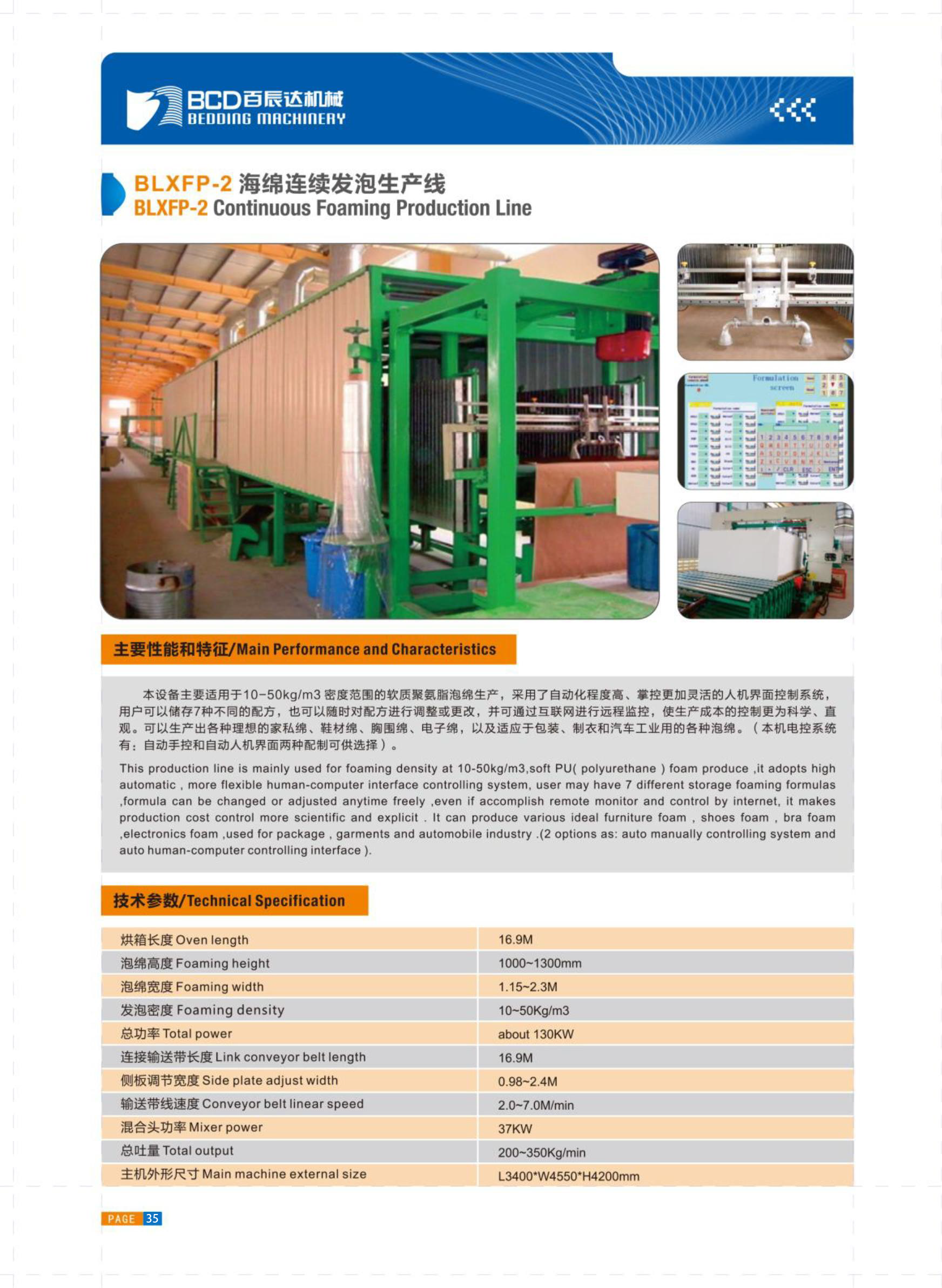

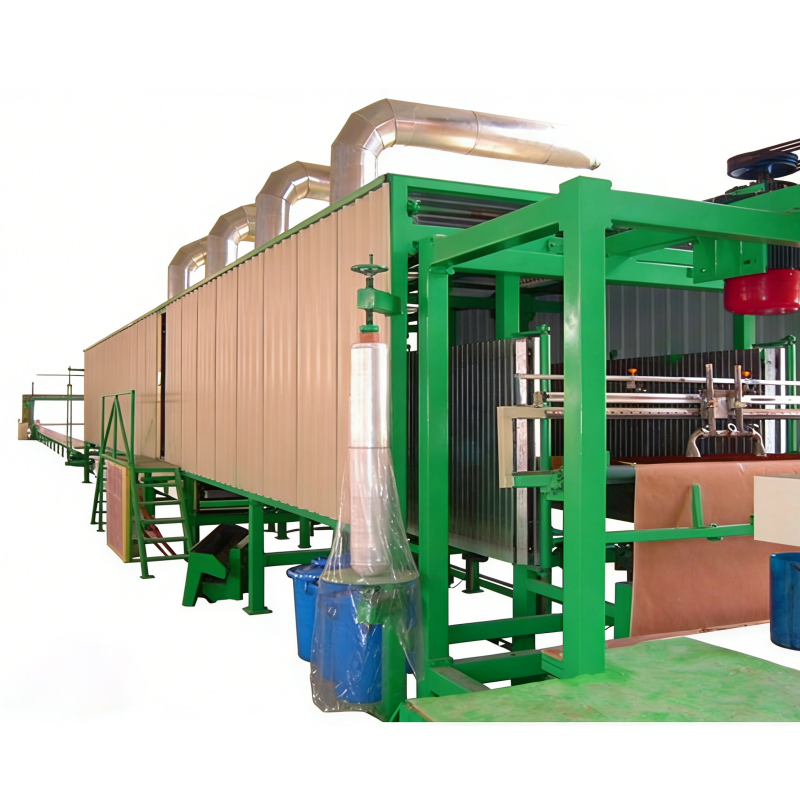

| BLXFP Continuous Foaming Production Line | |||
| Model no. | BLXFP-1 | BLXFP-2 | BLXFP-3 |
| Oven length | 12.5M | 16.9M | 18.1M |
| Foaming height | 1250mm | 1000-1300mm | 1420mm |
| Foaming width | 1.3-2.25m | 1.15-2.2M | 2.07m |
| Foaming density | 10-50Kg/M3 | ||
| Total power | 70.85KW | about 130Kw | about 75Kw |
| Link conveyor belt length | 18M | 16.9M | 18.1M |
| Side plate adjust width | 0.68-2.4M | ||
| Conveyor belt linear speed | ≤8m/min | 2.0-7.0M/min | 2.0-8.0M/min |
| Total output | 250kg/min | 200-550Kg/min | 280kg/min |
| Main machine external size | L3800×W4500×H4000mm | L3400×W4550×H4200mm | L2800×W6000×H4350mm |
▎FAQ
Q: What is the foam density range that the BLXFP Continuous Foaming Machine can produce?
A: It is suitable for producing flexible polyurethane foam with a density of 10–50kg/m³, meeting the requirements of various application scenarios.
Q: What is the adjustable foam size range of the equipment?
A: The foam height can be adjusted from 1000 to 1300mm, and the width from 1.15 to 2.3m. The side plate width is adjustable from 0.98 to 2.4m, adapting to different specification requirements.
Q: Is the equipment suitable for small-batch customized production?
A: It is mainly designed for large-batch mass production. For small-batch customized production, please contact us and we will recommend alternative solutions for you.
Q: Can the production status be monitored in real time during equipment operation?
A: It supports internet-based remote monitoring, allowing real-time viewing of foaming changes and production progress, which facilitates cost control and process optimization.
Q: How many foaming formulas can the equipment store? Is formula adjustment convenient?
A: It supports storing 7 different foaming formulas. Parameters can be manually adjusted or modified at any time with simple operation, enabling quick switching for multi-category foam production.
Q: Does the equipment support manual operation mode? Will sudden power failure and restart affect production?
A: The electronic control system is available in two configurations: manual control and automatic human-machine interface, which can be switched as needed. In case of sudden power failure and restart, the stored formulas will not be lost, but parameter calibration is required before restarting production.
Q: What should I do if problems occur during the foaming process of the machine?
A: Please immediately send relevant pictures and detailed descriptions of the problem to your account manager. We promise to give you a response within 24 hours and will follow up until the problem is completely resolved.
Q: What is the after-sales warranty period of the product?
A: The standard warranty period is one year
