1.The core components feature high durability; the permanent magnet motor has no demagnetization risk, and the main engine has a service life of up to 80,000-100,000 hours. 2.Standardized output interfaces enable quick connection with post-processing equipment such as air receivers and dryers, achieving high installation and adaptation efficiency. 3.Constant pressure and stable air supply with a uniform working pressure of 0.8Mpa, suitable for most industrial scenarios. 4.Precise pressure control with a fluctuation range of ≤±0.01MPa, ensuring the stability of downstream equipment. 5.Equipped with a permanent magnet frequency conversion core, the motor efficiency reaches over 95%, adjusting air supply speed on demand with a comprehensive energy saving rate of 20%-50%. 6.Uniform dimensions for the same power range, small installation footprint, making warehousing, transportation and later transformation more convenient. |
▎PRODUCT FEATURES

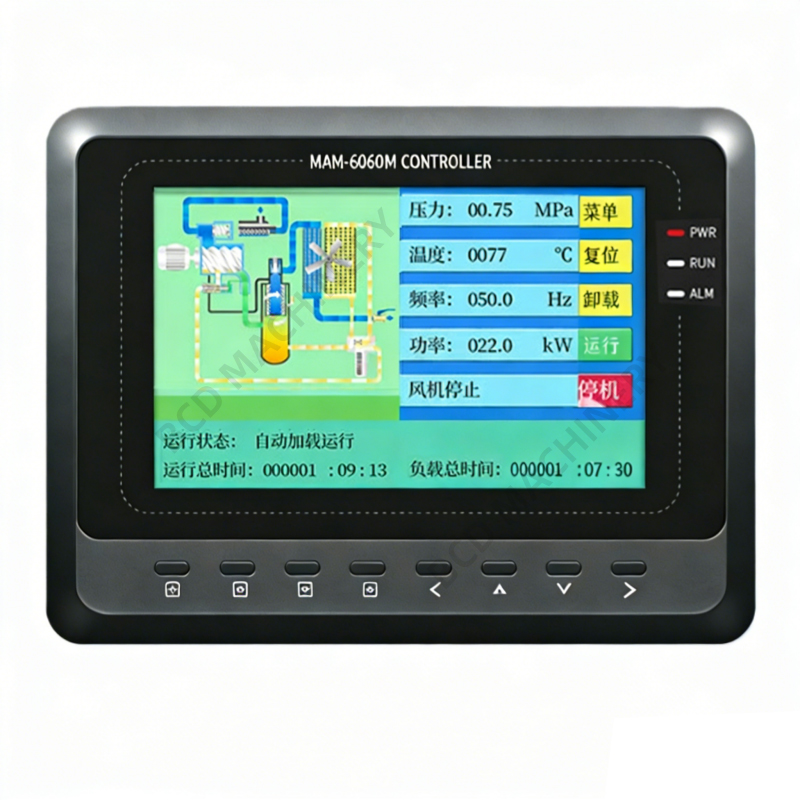

INTELLIGENT MONITORING High-definition color screen displays core parameters such as pressure, temperature, frequency, and power in real time, facilitating maintenance and energy efficiency analysis. |

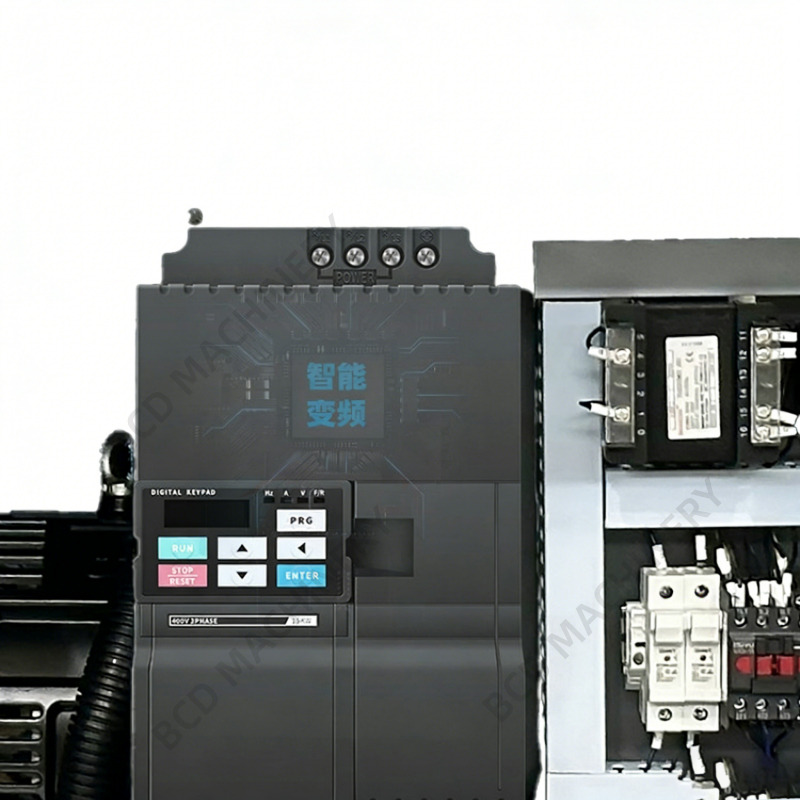

INTELLIGENT DRIVE Dynamically adjusts motor speed in real time based on air demand, minimizing no-load energy consumption. |

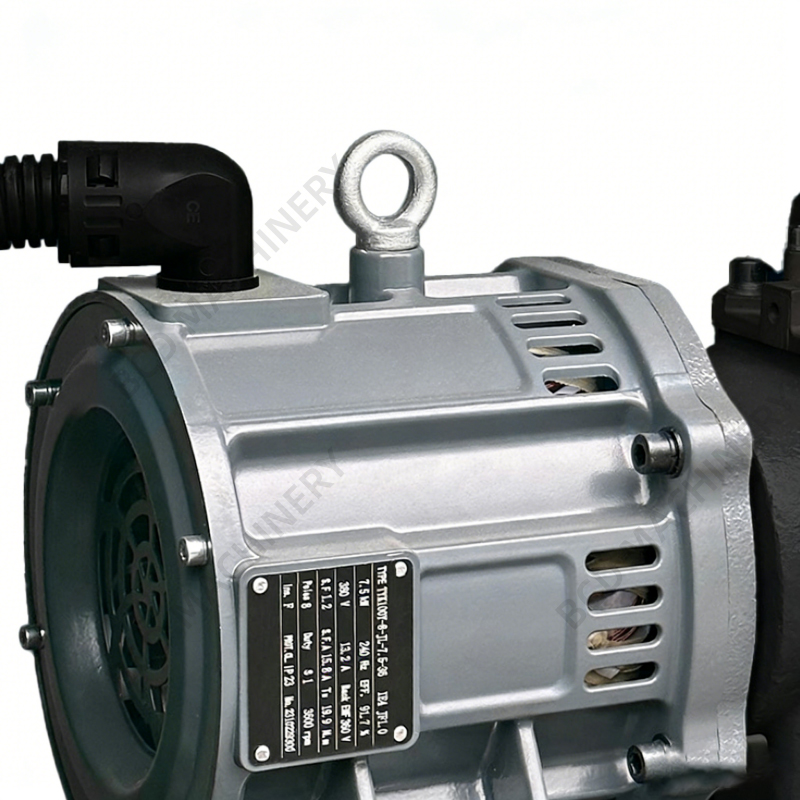

HIGH-EFFICIENCY MOTOR Made of rare earth permanent magnet material, the motor achieves an efficiency of over 95% and a transmission efficiency of 100%, adapting to complex industrial environments. |

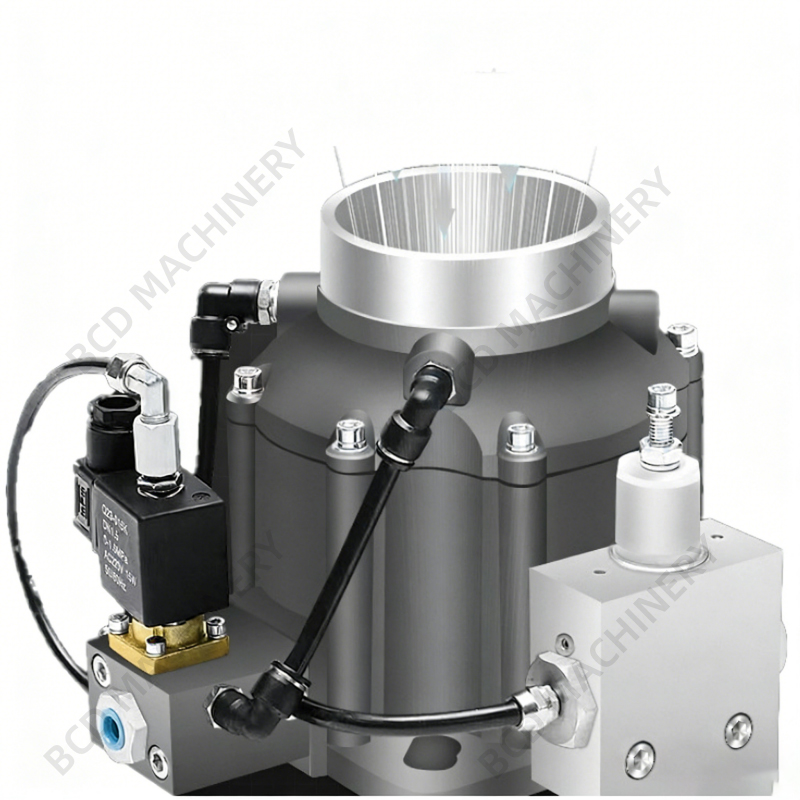

HIGH-EFFICIENCY AIREND Integrates intake valve and solenoid valve to precisely control air intake, matching the frequency conversion system for on-demand air supply. |

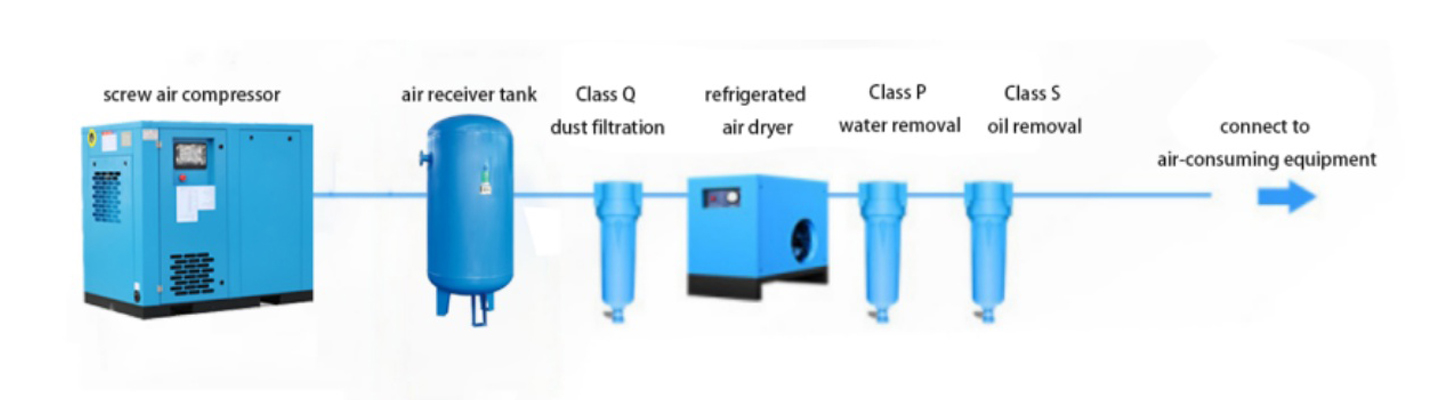

▎PRODUCT APPLICATION
▎MODEL COMPARISON
WHICH ONE IS MORE SUITABLE FOR YOU ?

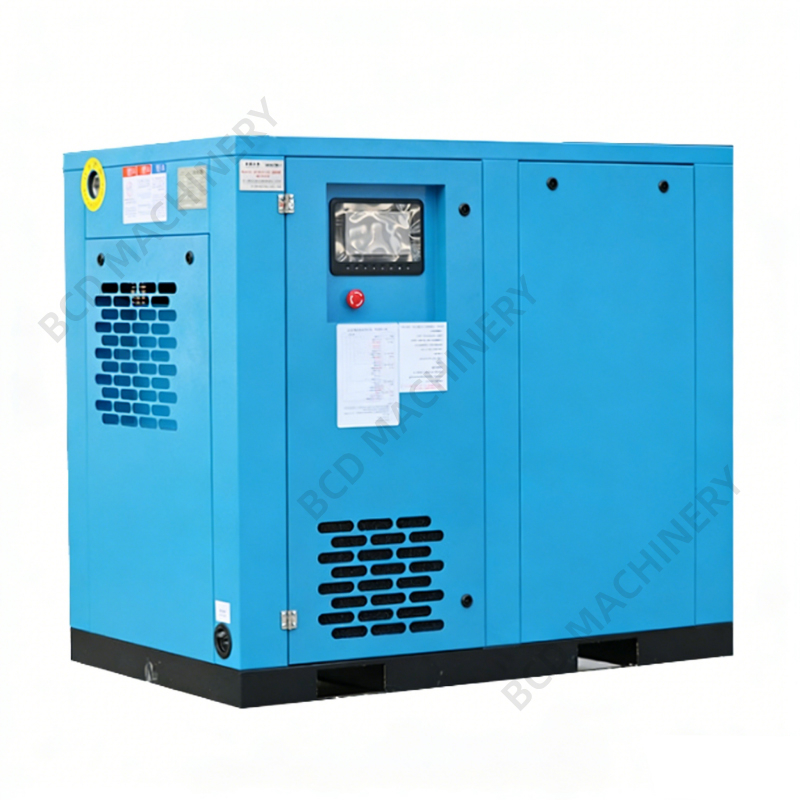

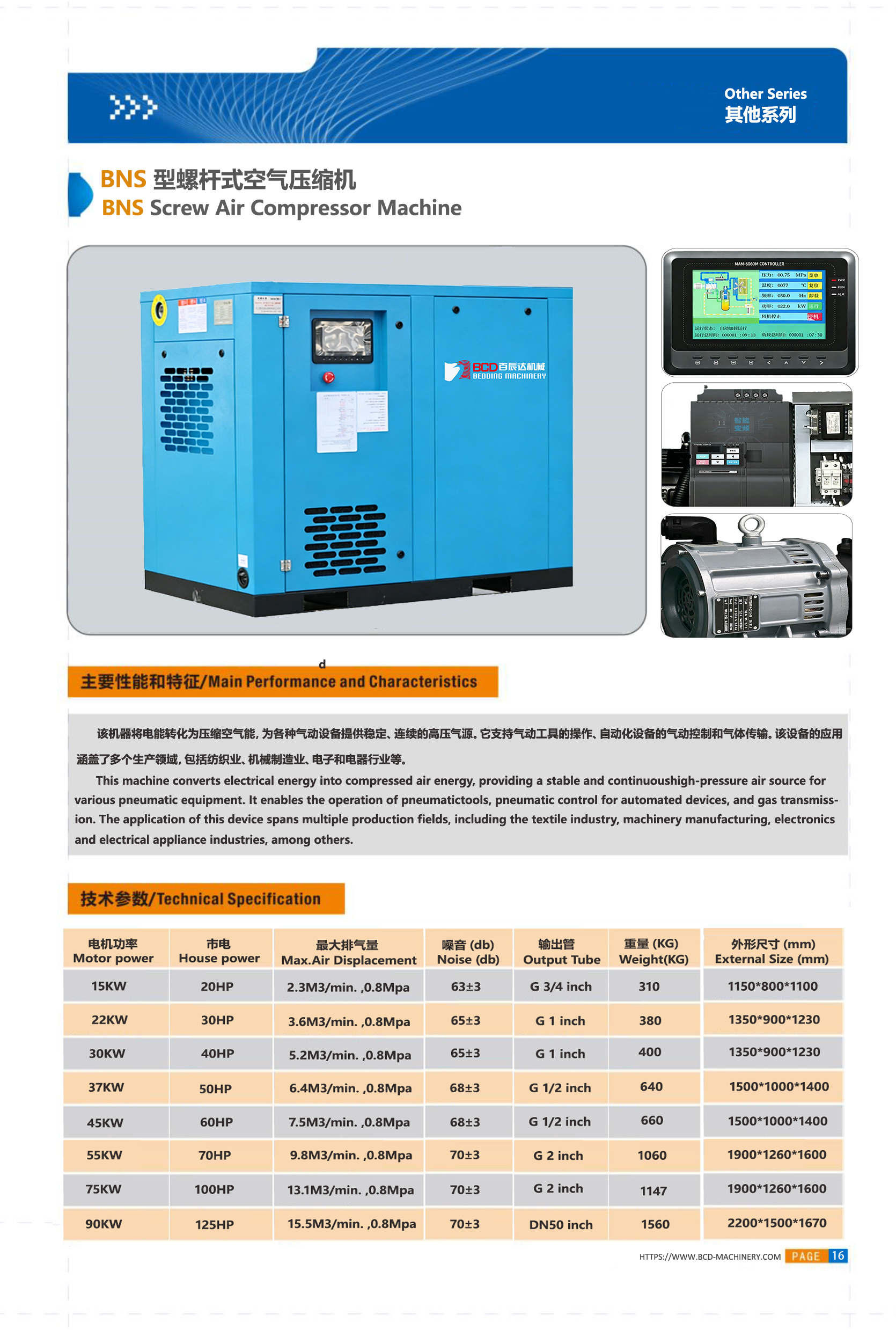

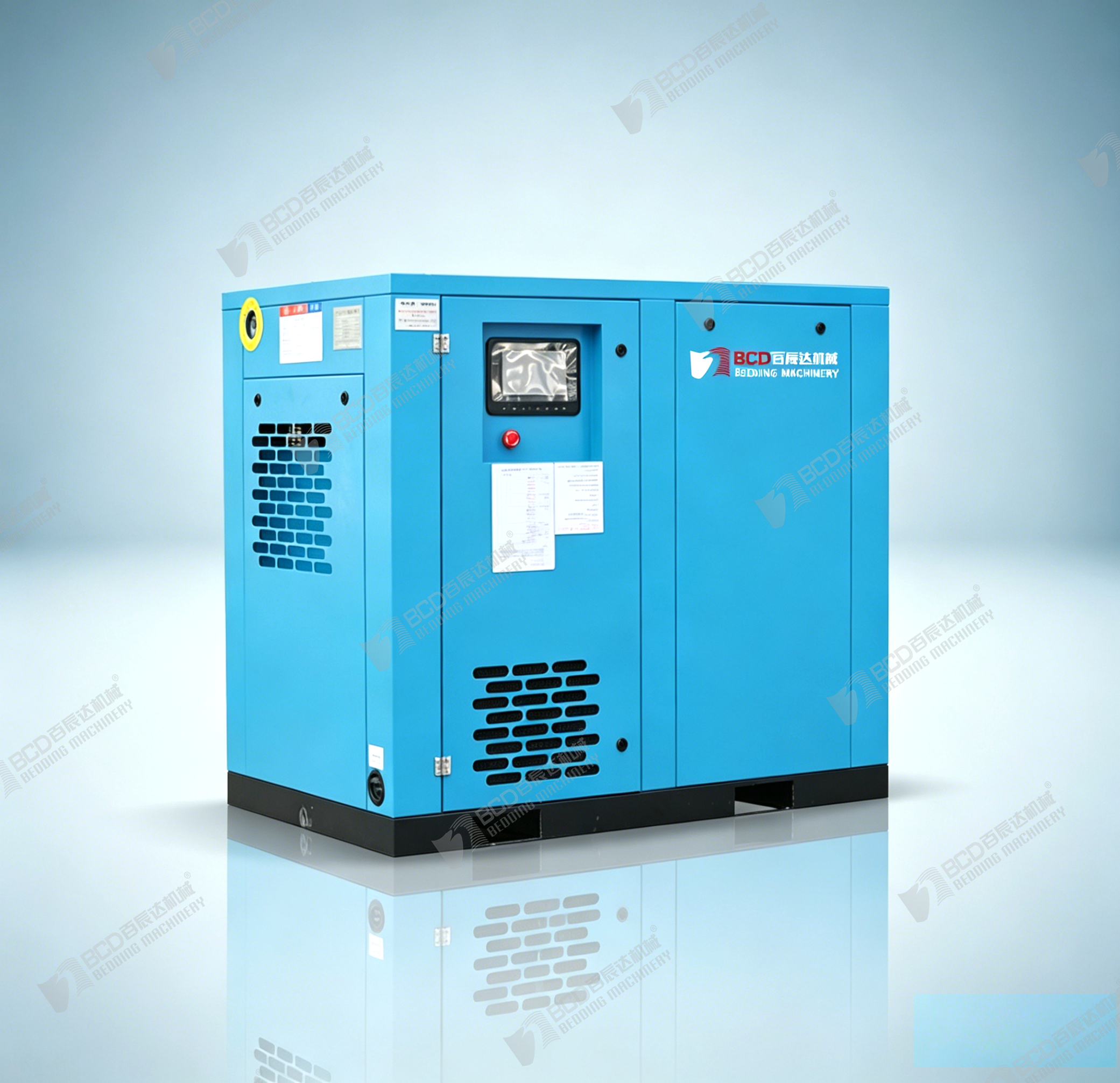

| BNS Screw Air Compressor Machine | |||||||
| No. | Motor Power | House power | Max.Air Displacement | Noise db | Output Tube | Weight KG | External Size mm |
| 1 | 15KW | 20HP | 2.3M3/min. ,0.8Mpa | 63±3 | G 3/4 inch | 310 | 1150*800*1100 |
| 2 | 22KW | 30HP | 3.6M3/min. ,0.8Mpa | 65±3 | G 1 inch | 380 | 1350*900*1230 |
| 3 | 30KW | 40HP | 5.2M3/min. ,0.8Mpa | 65±3 | G 1 inch | 400 | 1350*900*1230 |
| 4 | 37KW | 50HP | 6.4M3/min. ,0.8Mpa | 68±3 | G 1/2 inch | 640 | 1500*1000*1400 |
| 5 | 45KW | 60HP | 7.5M3/min. ,0.8Mpa | 68±3 | G 1/2 inch | 660 | 1500*1000*1400 |
| 6 | 55KW | 70HP | 9.8M3/min. ,0.8Mpa | 70±3 | G 2 inch | 1060 | 1900*1260*1600 |
| 7 | 75KW | 100HP | 13.1M3/min. ,0.8Mpa | 70±3 | G 2 inch | 1147 | 1900*1260*1600 |
| 8 | 90KW | 125HP | 15.5M3/min. ,0.8Mpa | 70±3 | DN50 inch | 1560 | 2200*1500*1670 |
▎FAQ
Q: Can 0.8MPa support jackhammers and pneumatic wrenches?
A: 0.8MPa is the industrial pneumatic standard. Most tools (jackhammers, wrenches, clamps) have a rated pressure of 0.6-0.8MPa, fully compatible with no extra pressure adjustment needed.
Q: What if higher pressure is needed for new equipment later?
A: Pressure customization is available (0.7-1.2MPa). The existing 0.8MPa model can be upgraded with a booster module, no full machine replacement required.
Q: Will fixed 0.8MPa cause energy waste without pressure adjustment?
A: With permanent magnet frequency conversion + precise pressure control, the equipment adjusts motor speed by air demand (no air venting for pressure regulation), so no energy waste.
Q: What are the advantages of the constant pressure equipment compared with adjustable pressure equipment?
A: The constant pressure design reduces vulnerable parts such as pressure regulating valves and lowers maintenance costs.
Q: What should I do if my air consumption scenario occasionally requires lower pressure?
A: A small pressure reducing valve can be installed at the equipment output end to achieve local low-pressure air supply.
Q: What is the after-sales warranty period of the product?
A: The standard warranty period is one year.
