| Quantity: | |
|---|---|
1. Minimum slitting width is only 2mm, with high slitting precision. It can meet the processing needs of narrow fabric strips, featuring flat and burr-free cuts to ensure stable product quality. 2. Default fabric width adaptation: 2200mm, compatible with various wide-width fabrics; fabric shaft diameter: 37mm, suitable for mainstream fabric roll specifications without additional modification. 3. The whole machine realizes fully automatic feeding and slitting processes, no manual intervention is required for core procedures. 4. Adopts dual digital display control technology, with intuitive and precise parameter adjustment to effectively avoid slitting deviation. 5. Dimensions: 2.8m×0.85m×1.5m, small floor area, easy for workshop layout and placement. 6. Stable operation with low noise, not prone to failures during long-term high-frequency operation, featuring long service life and low maintenance cost. |
▎PRODUCT FEATURES
ONE-KEY OPERATION The LCD display shows real-time processing parameters with clear, easy-to-read data, enabling operators to monitor production status conveniently. |

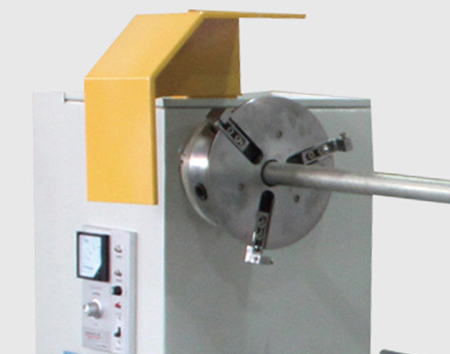

SAFETY PROTECTION The yellow top shield blocks flying processing debris and prevents accidental contact with rotating components, improving production safety. |

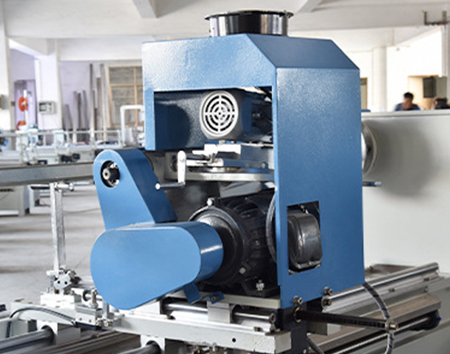

HEAVY-DUTY TRANSMISSION Built-in high-torque motor and precision gear set deliver stable power output, meeting long-term, high-frequency processing needs for mass production scenarios. |

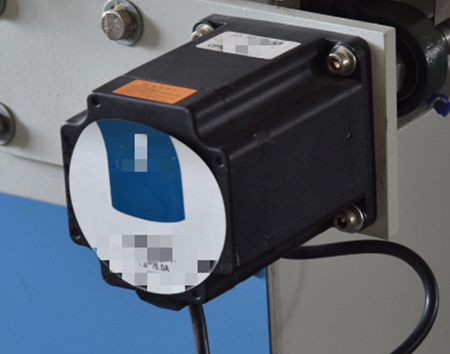

HIGH DURABILITY Equipped with an industrial-grade servo motor housed in a high-strength alloy casing, offering excellent impact and vibration resistance to adapt to complex workshop conditions. |
▎MODEL COMPARISON
WHICH ONE IS MORE SUITABLE FOR YOU ?

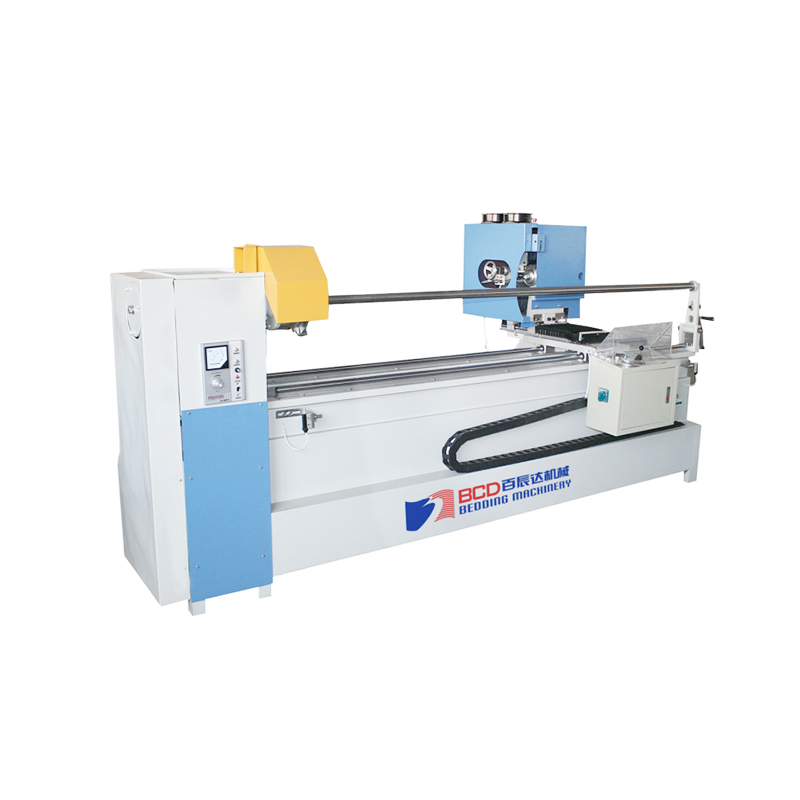

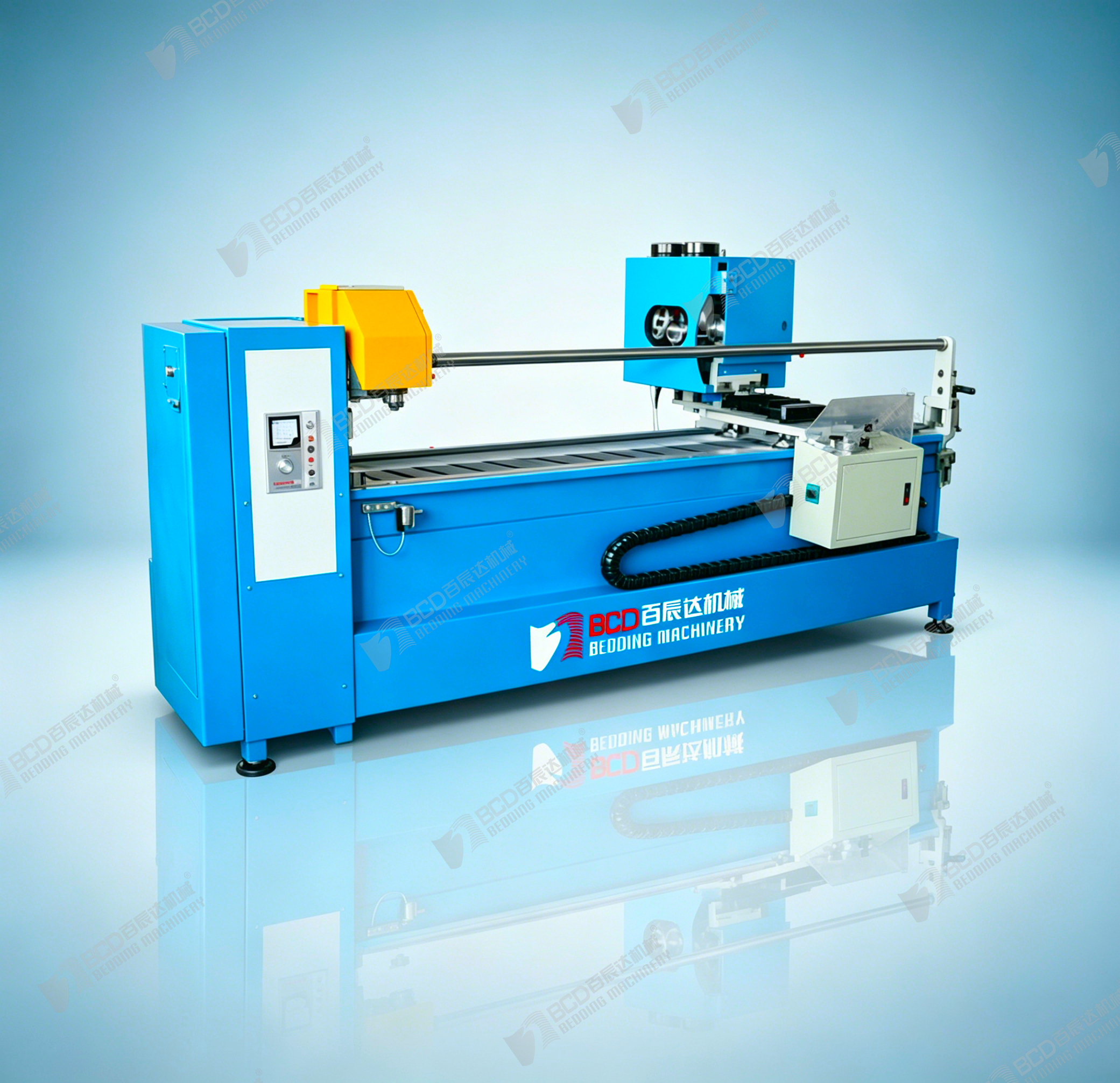

| BQTJ Fabric Roll Slitter Machine | |||
| Model no. | BQTJ-1 | BQTJ-2 | BQTJ-3 |
| Cloth width | 2200mm (default) | 2200mm (max 2400mm) | 2200mm (customizable to 2500mm) |
| Rotating speed of cloth roll | 0-800rpm/min | 0-600rpm/min | 0-700rpm/min |
| Diameter of cloth axis | 37mm | 38mm (compatible with 37mm) | 37mm |
| Cloth motor power | 0.75kw | 1.1kw | 0.75kw |
| Blade power | 1.5kw | 1.5kw | 1.8kw |
| Minimum width of cut strap | 2mm | 2mm | 1.5mm |
| Voltage | 380v/220v optional | 380v | 380v/220v optional |
| Machine dimensions | 2.8m0.85m1.5m | 3.0m0.9m1.6m | 2.9m0.8m1.5m |
| Machine weight | 720Kg | ~850Kg | ~700Kg |
▎FAQ
Q: What fabrics can it slit? Suitable for thick/thin fabrics?
A: Suitable for cotton, polyester, non-woven, etc. Adjustable speed (0-800rpm/min) and 1.5kw blade power, fit for thick/thin fabrics without damage.
Q: What's the max fabric width it can handle?
A: Default 2200mm, compatible with mainstream wide fabrics.
Q: What's the machine's size and weight?
A: Dimensions: 2.8m×0.85m×1.5m, weight 720Kg, small footprint, easy for workshop layout.
Q: Can slitting parameters be adjusted?
A: Yes, parameters are intuitively and precisely adjustable to avoid slitting deviation
Q: Does the blade need frequent replacement?
A: High-quality blade, wear-resistant, no frequent replacement for normal use.
Q: What's the minimum slitting width? Is the precision high?
A: Min slitting width 2mm, high precision, flat and burr-free cuts.
Q: What is the after-sales warranty period of the product?
A: The standard warranty period is one year
