| Quantity: | |
|---|---|
1.High-speed straight needle sewing, with optional sewing heads (JUKI/PEGASUS/others). 2.Upper and lower synchronous feeding to ensure smooth stitching. 3.Dual-cylinder drive system for stable operation. 4.Motor supporting continuous speed regulation, suitable for different fabrics. 5.Presser foot with adjustable pressure to prevent fabrics from being crushed or displaced. 6.Equipped with an automatic trimming and waste recycling system to improve production efficiency. |
TEMPERATURE-CONTROLLED EDGE PRESSING The temperature control module is adapted for hot-press bonding of thick fabrics, enhancing the tightness of edge locking; when used with the handle, it enables precise material feeding for mattress corners and edges. |  MULTI-THREAD SYNCHRONOUS EDGE LOCKING The multi-thread structure strengthens the seam fastness of thick fabrics; the wide anti-slip feed prevent fluffy fabrics from slipping, ensuring the flatness of edge wrapping for large-thickness mattresses. |
BUILT-IN WASTE THREAD TUBE The side-mounted tube can real-time collect thread ends and fabric scraps generated during edge locking, reducing waste accumulation, keeping the working area clean, and improving production efficiency. |
HIGH-PRESSURE PNEUMATIC CLEANING GUN Equipped with a high-pressure pneumatic cleaning gun, it quickly blows away debris from equipment and fabrics; the flexibility of the spring air tube adapts to cleaning needs of various equipment areas, helping maintain a clean production environment. |
▎FINISHED PRODUCT DISPLAY
 |  |  |  |
▎MODEL COMPARISON
WHICH ONE IS MORE SUITABLE FOR YOU ?

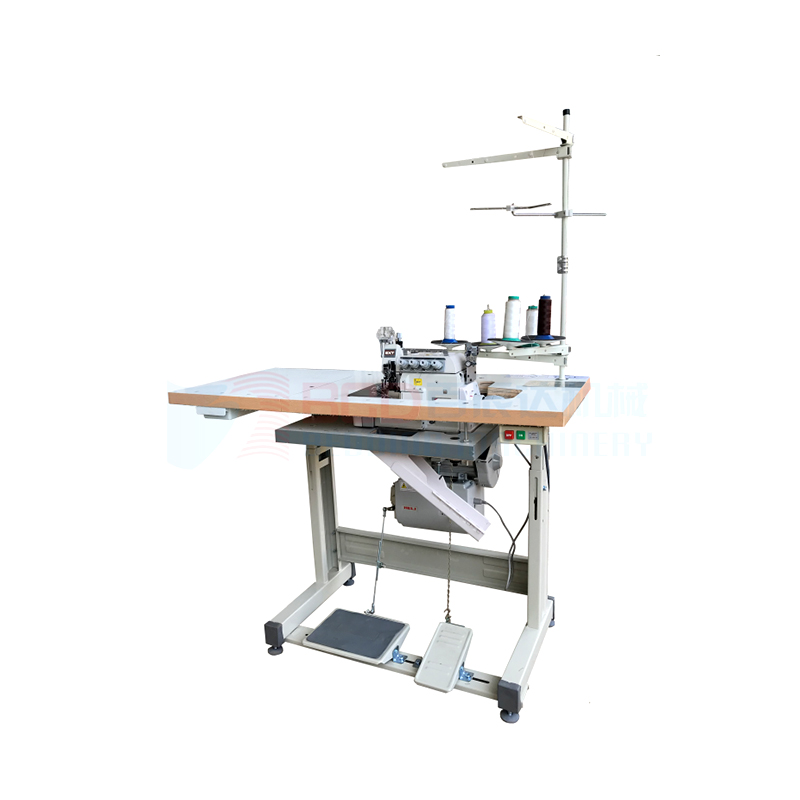

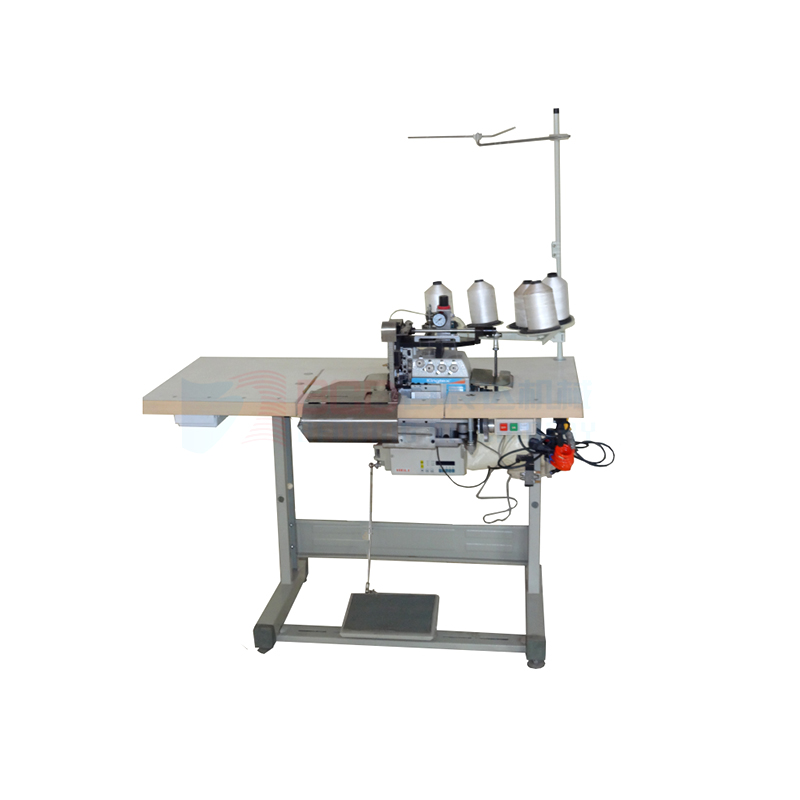

| BSBJ Mattress Panel Flanging Machine | ||||
| Model No. | BSBJ-4 | BSBJ-2 | BSBJ-3 | BSBJ-1 |
| Max. panel thickness | 90mm | 70mm | 80mm | 60mm |
| Overlocking width | 25mm | |||
| Max. sewing speed | 4500rpm | 4000rpm | 5000rpm | 4000 rpm |
| Needle type | #21 | #23 | #21 | |
| Needle stitch | 0-6mm (adjustable) | 4.5-6mm (adjustable) | 0-6mm (adjustable) | |
| Waste collection device | Yes | |||
| Upper feeding belt | Yes | |||
| Rated pressure | 0.4-0.8 Mpa | 0.5-0.8Mpa | ||
| Total motor power | 750w | 550W | 750W | 550W |
▎FAQ
Q: The maximum panel thickness of BSSJ-3 is 80mm. Can it handle 75mm thick mattress fabric?
A: Yes. 80mm is the Max.compatible thickness, and 75mm falls within this range, so stable operation is achievable.
Q: What's the difference between needle types #21 and #23?
A: Needle #23 is thicker than #21, making it suitable for thicker/tougher fabrics; mixing the two types is not recommended.
Q: How to clean the waste collection tube?
A: Simply remove the side-mounted tube and pour out the thread ends and fabric scraps inside.
Q: What's the function of the upper feeding belt?
A: It assists in material feeding, enhances the stability of fabric conveyance, and prevents slipping.
Q: Do different total motor powers (550W/750W) affect operation efficiency or energy consumption?
A: Yes. The 750W models (BSSJ-3/4) have stronger power, ensuring more stable operation and higher efficiency when handling thick fabrics.
Q: Which model is suitable for edge wrapping of large-thickness (90mm) mattresses?
A: BSSJ-4. Its Max panel thickness supports 90mm, making it the model (among the four) compatible with the thickest fabrics.
Q: Does the product support customization?
A: Yes, we offer both OEM and ODM customization services.
Q: What is the after-sales warranty period of the product?
A: The standard warranty period is one year
