| | 1.Efficiently straightens mattress frame wires with a diameter of φ2.0~6.0mm, ensuring the flatness of the wire material. 2.Supports unlimited cutting length adjustment to meet diverse processing requirements. 3.Achieves a straightening speed of up to 30 meters per minute, significantly improving wire processing efficiency. 4.Features a cutting tolerance of ±0.30mm, guaranteeing processing precision and enhancing finished product quality. 5.Adopts three sets of drive motors: 2.20kw straightening step motor, 2.30KW wire feeding servo motor and 1.0KW cutting servo motor, providing ample power to handle continuous high-intensity processing. 6.Boasts alloy straightening mold plus mature and reliable mechanical transmission and control system, enabling long-term, stable continuous operation. |
▎PRODUCT FEATURES

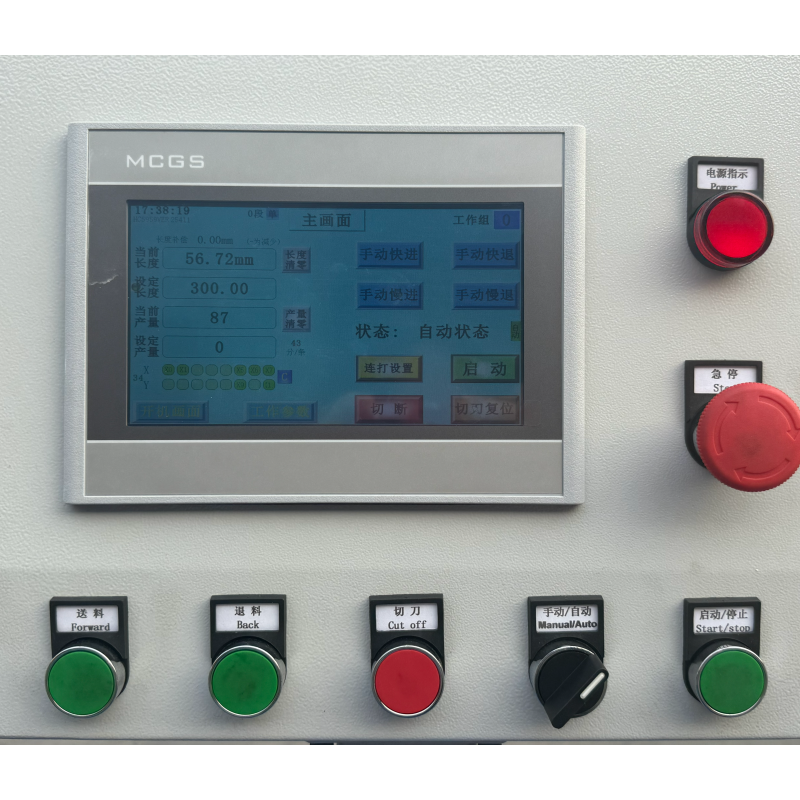

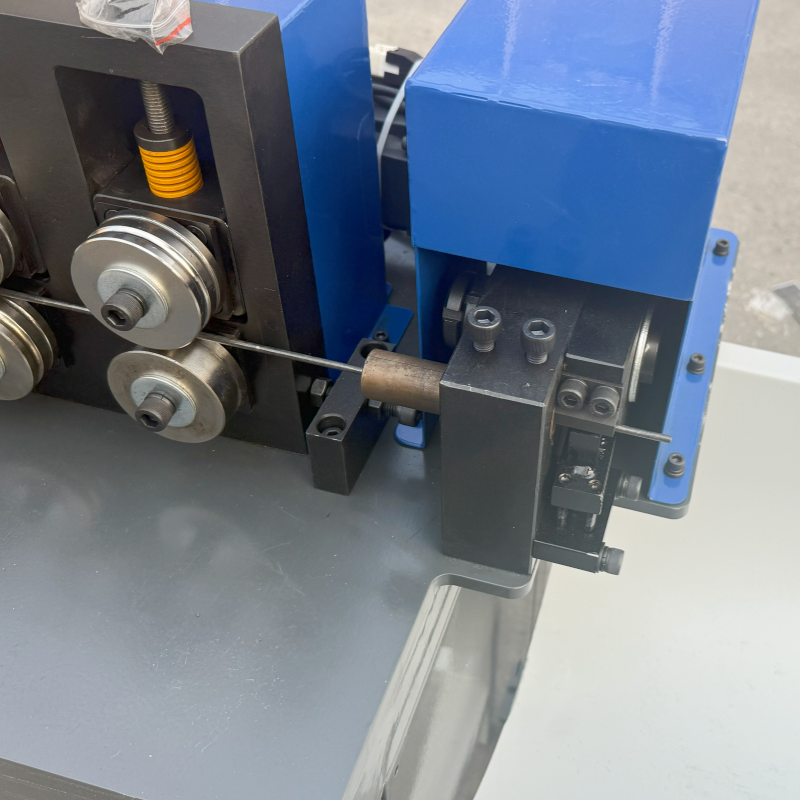

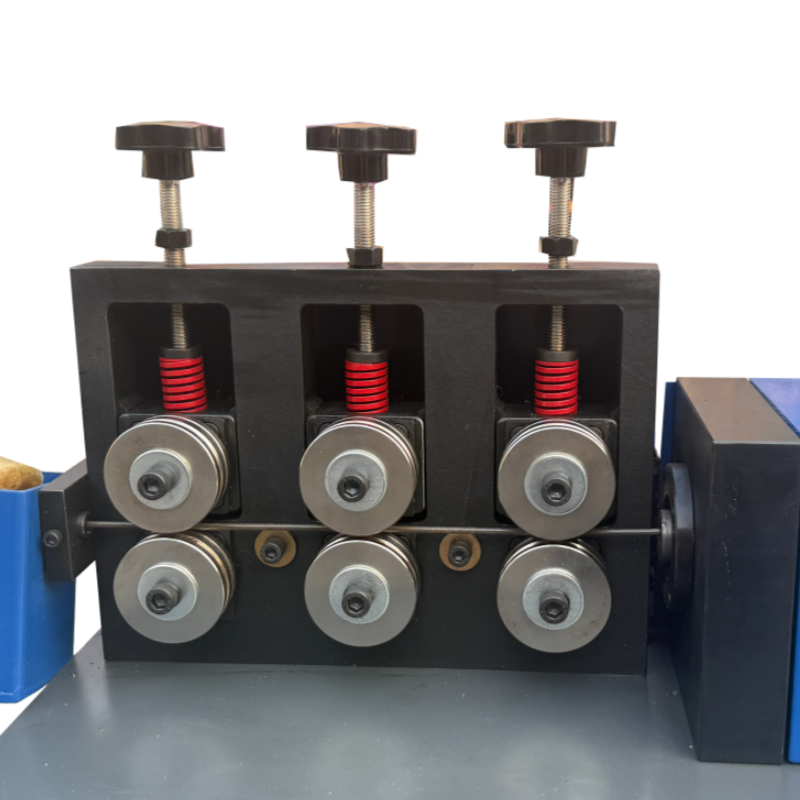

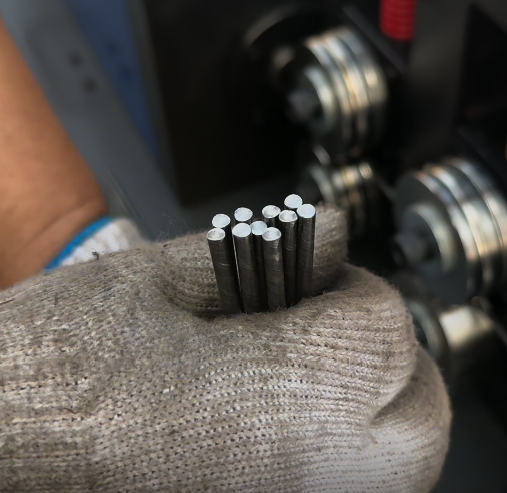

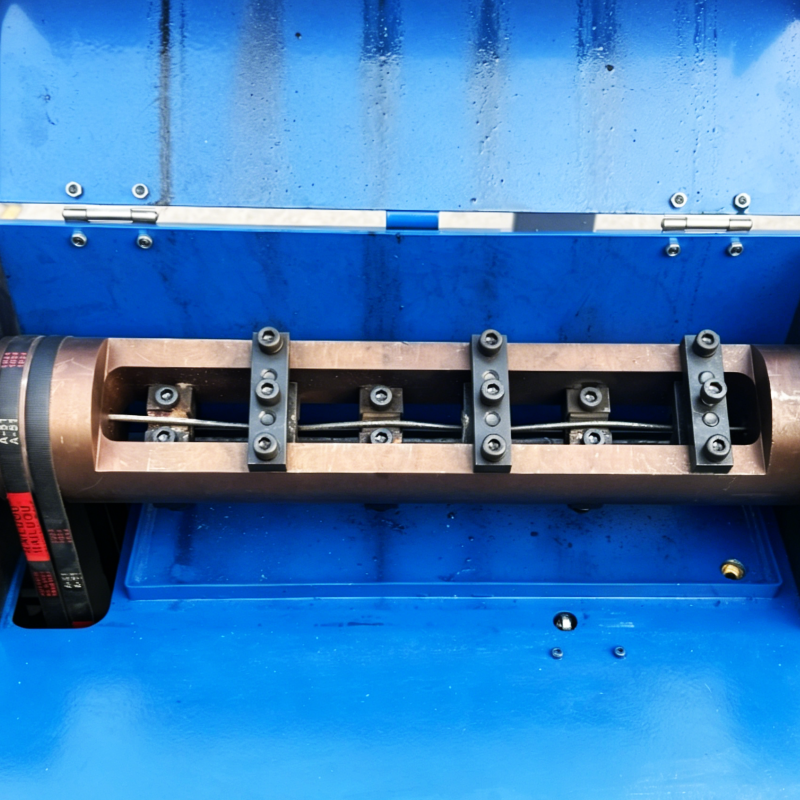

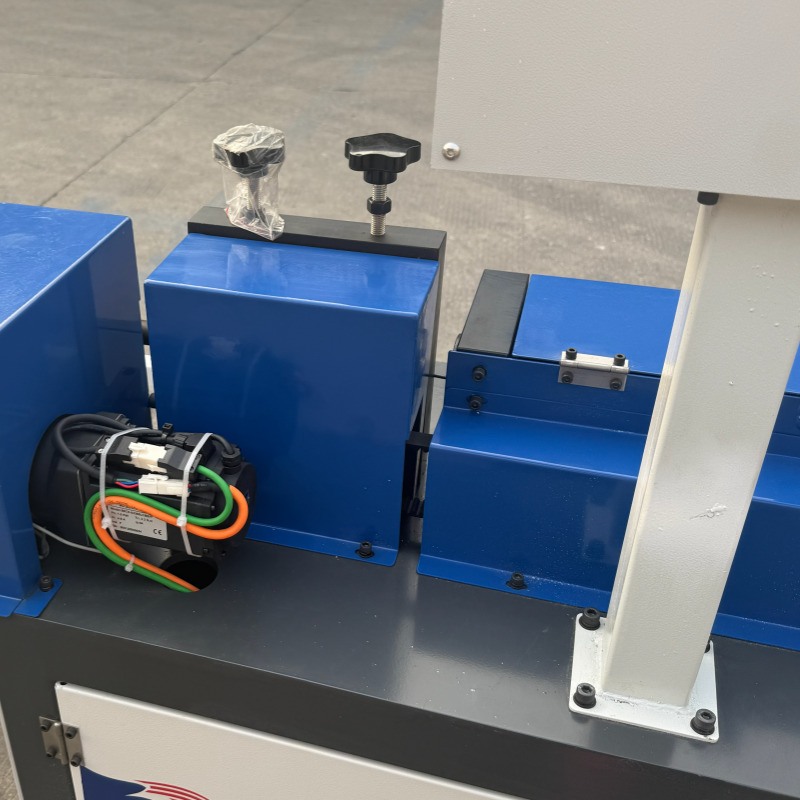

 CNC Servo Control Featured with visualized HMI panel, users can set cutting length and production count, check real-time wire data, and switch auto/manual mode by one click. |  6 Pairs of Opposite Straightening Rollers Roller pressure adjustable by top handwheel screws, suitable for Φ2.0~6.0mm hard wire and coiled wire to get accurate straightening. |  Alloy Straightening Die Alloy-made die owns great wear resistance and long lifespan; multi-position limit blocks fix wire route to avoid shifting while cutting |  High Precision Finished Wire Finished wire is straight with flat cutting end and strict tolerance, widely used for mattress frames and standard hardware components. |
▎MODEL COMPARISON
WHICH ONE IS MORE SUITABLE FOR YOU ?

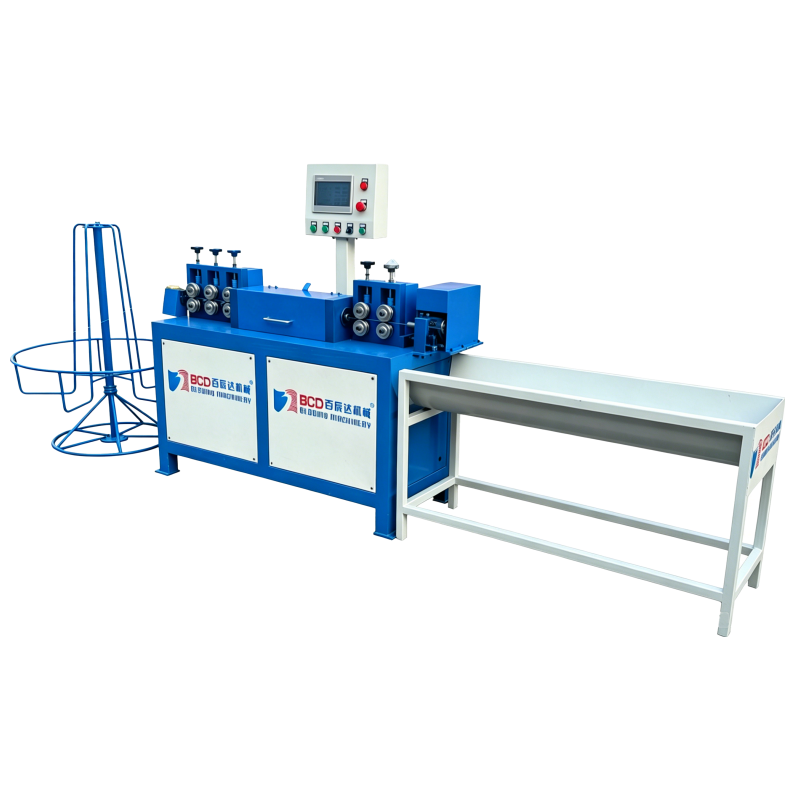

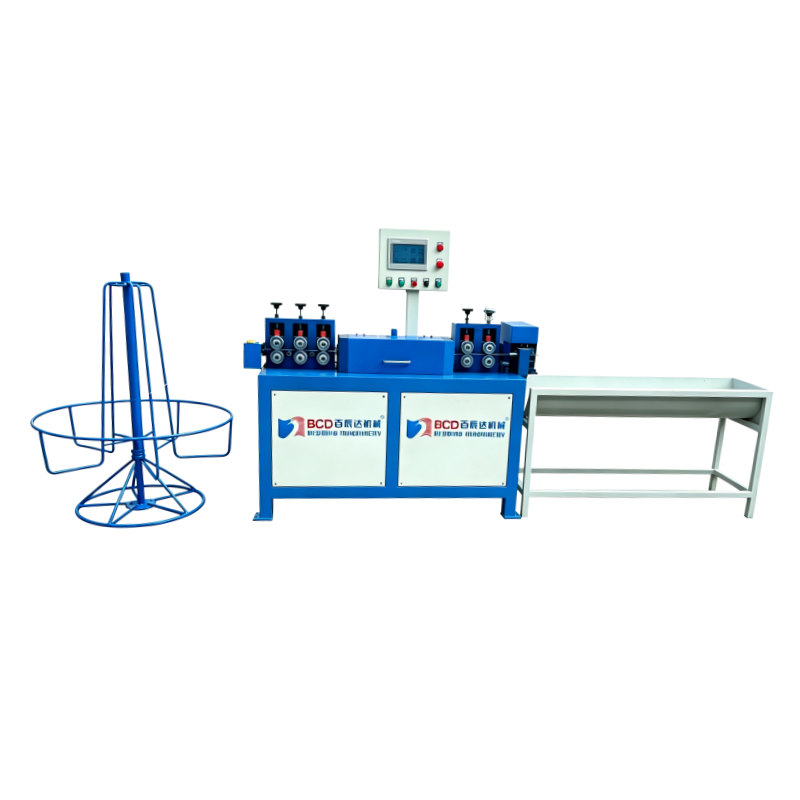

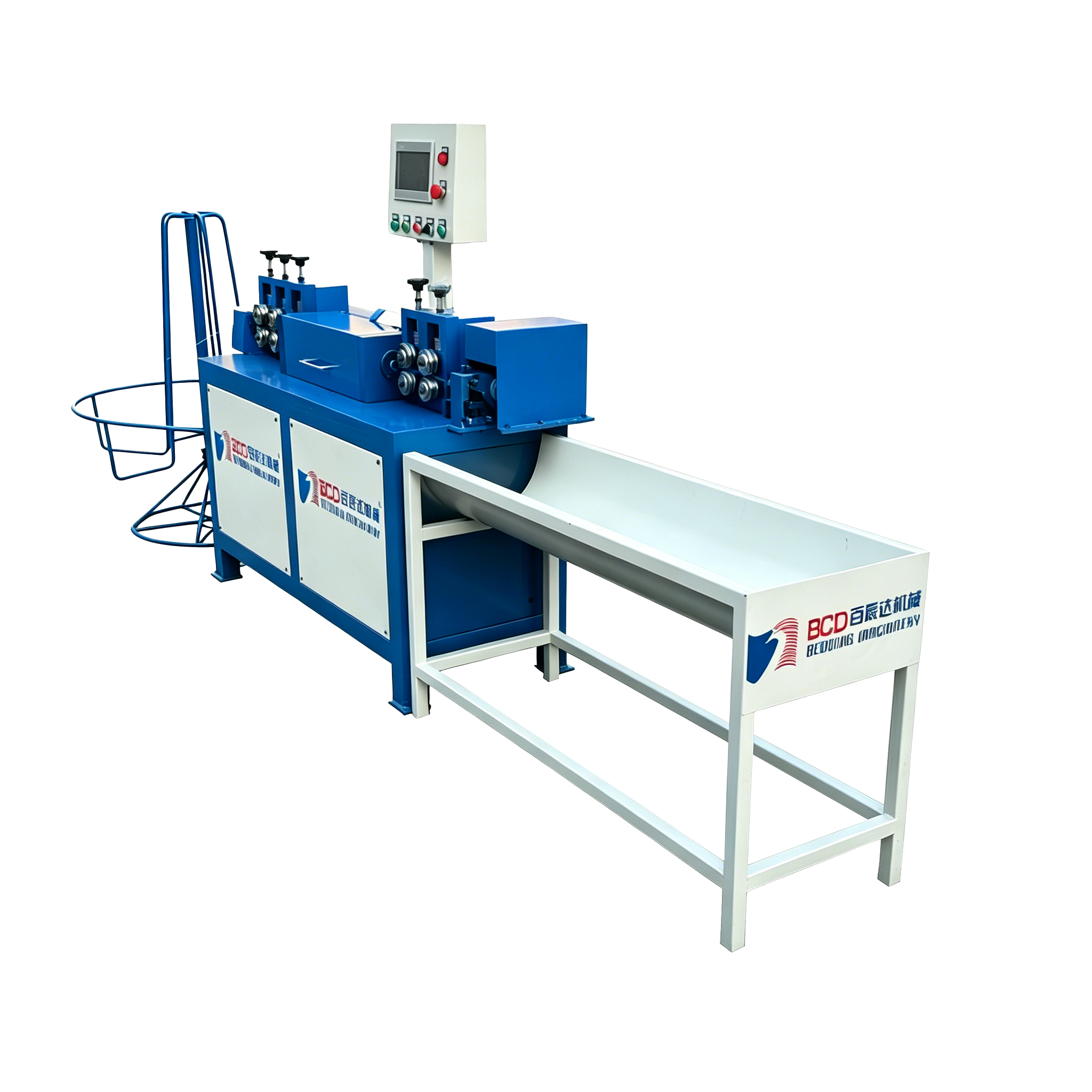

BTZ Wire Straightening & Cutting Machine | |
Model No. | BTZ-206SK |
Available frame wire | Φ2.0-6.0mm |
Straightening speed | Max. 30M/min |
Straightening shaft speed | 3500RPM |
Straightening mold material | alloy |
Max. cutting speed | 120pcs/Min. |
Cutting length tolerance | ±0.30mm |
Cutting length | no limit |
Straightening step motor power | 2.20kw |
Wire feeding servo motor power | 2.30KW |
Cutting servo motor power | 1.0KW |
▎FAQ
Q: What wire diameter can this machine process?
A: Standard processing range: φ2.0~6.0mm; spec can be slightly adjusted via customized dies and rollers.
Q: Can it process wire thinner than 2mm or thicker than 6mm?
A: The standard model is not recommended for out-of-range sizes, otherwise precision and service life will be affected.
Q: What is the maximum straightening speed?
A: Max straightening speed reaches 30 meters per minute.
Q: How many pieces can the machine cut per minute?
A: Max cutting output is 120pcs/min. Actual yield depends on cutting length: higher for short wire and lower for long wire.
Q: Is there any limit on cutting length? What is the length tolerance?
A: No upper limit for cutting length; min cutting length is 10mm, with stable tolerance of ±0.3mm.
Q: What material is the straightening die made of?
A: Straightening die is alloy-made with excellent wear resistance.
Q: How to guarantee the after-sales service after purchasing the equipment?
A: 1-year free warranty is provided.
