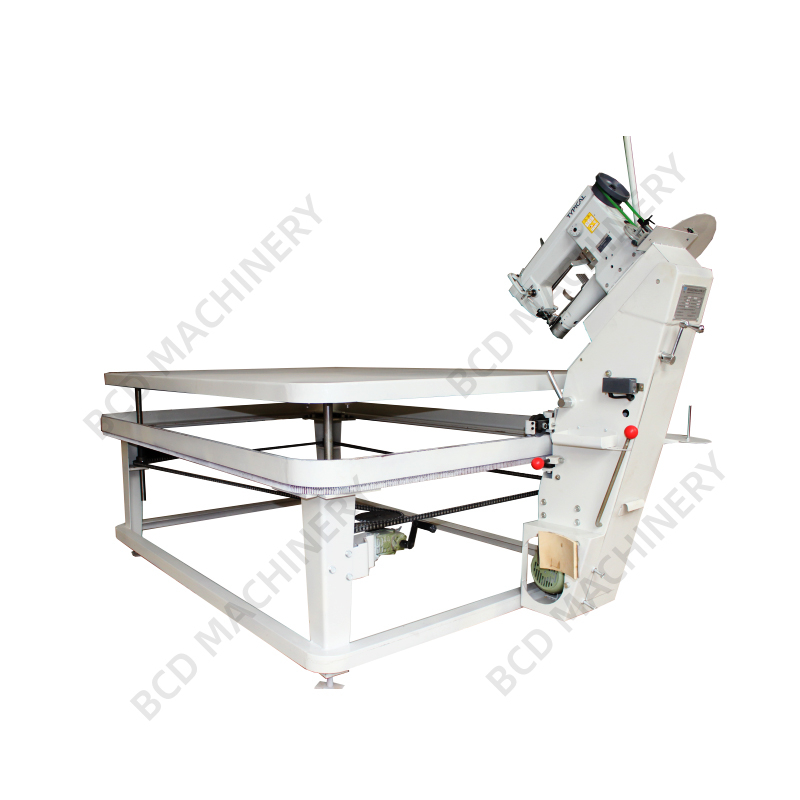

1.Equipped with a top rotary hook for continuous, stable stitching, ensuring uniform and neat stitches throughout the entire process. 2.Features a maximum sewing speed of 1600rpm, combined with a 5.0-9.0m/min carriage speed, enabling an output of 10-15 finished mattress edges per hour. 3.Sewing process and speed are easily controlled, freeing both hands so operators can focus on precise fabric alignment. 4.Allows for precise stopping at any position during sewing, making it easier to handle complex border designs and minimizing fabric waste and rework. 5.The sewing head angle is adjustable from 35° to 55°, providing perfect adaptability to mattresses of varying thicknesses and contours. 6.Supports a wide range of mattress thicknesses from 50-300mm (2"-12") or 150-400mm (6"-16"), accommodating everything from thin to extra-thick models. |

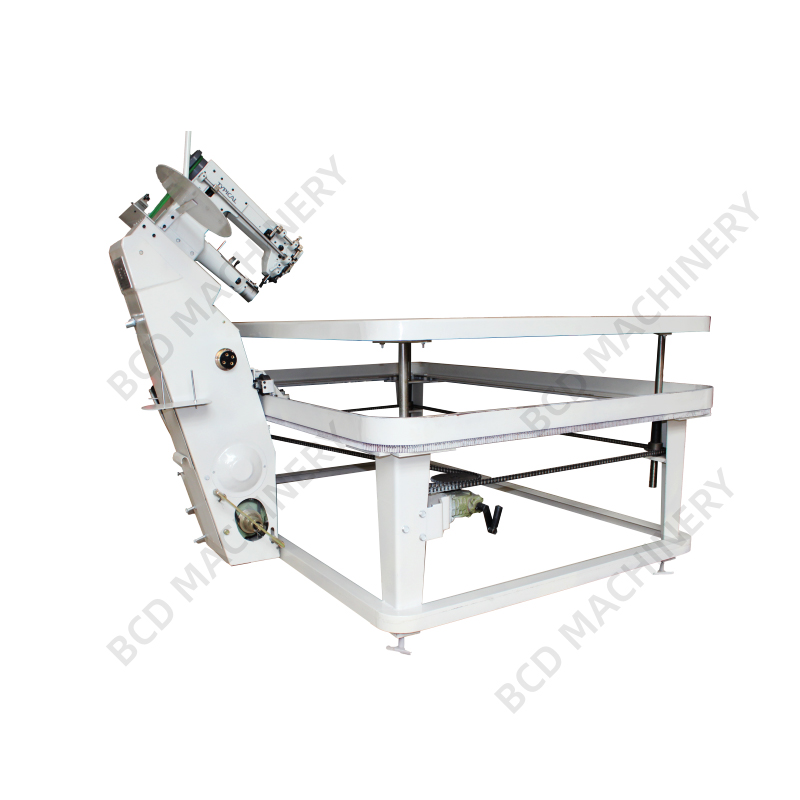

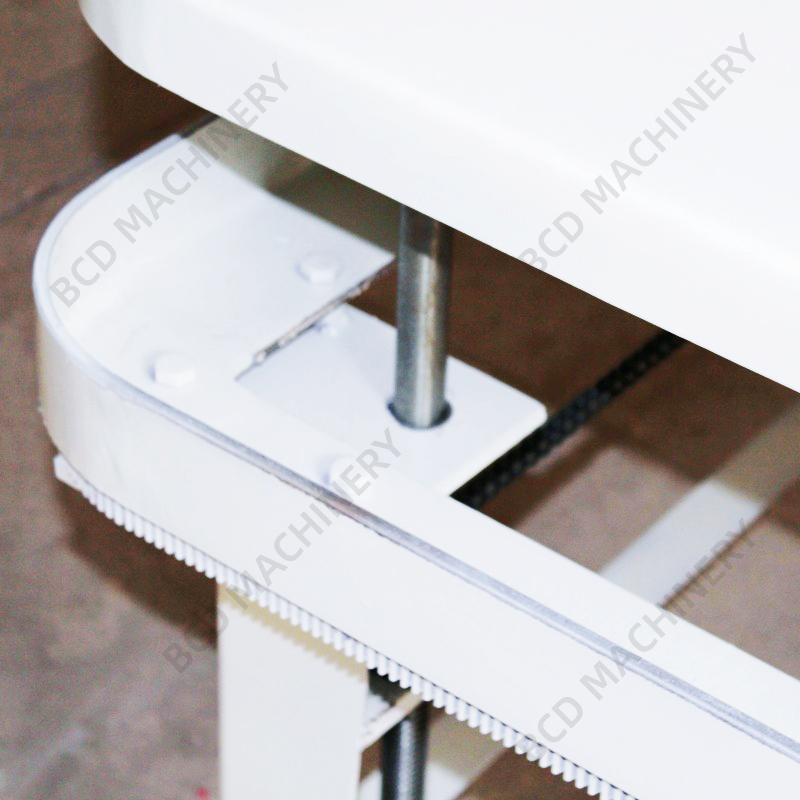

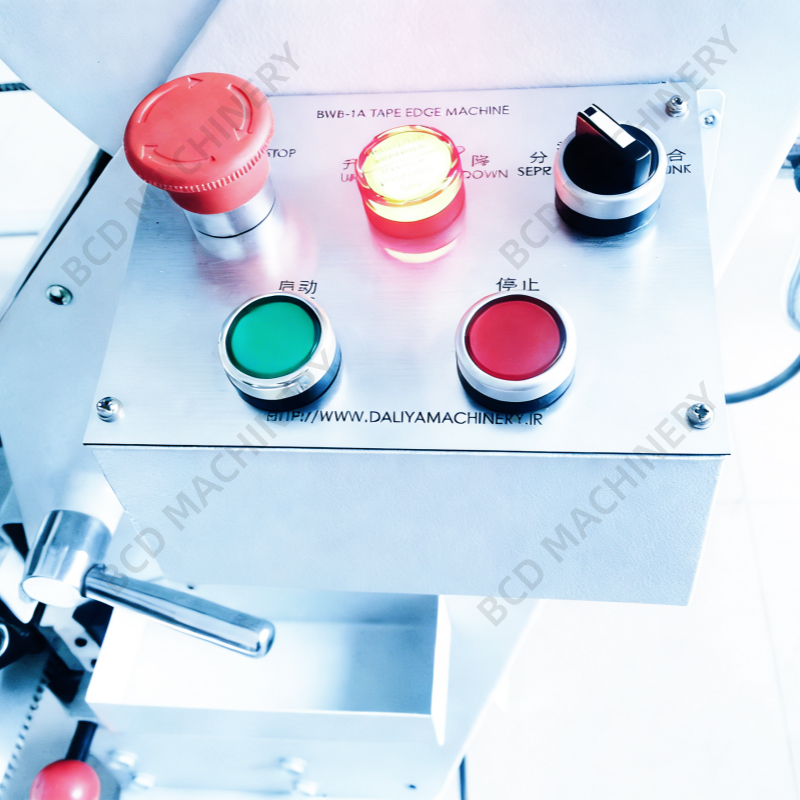

CONVENIENT OPERATION Equipped with an emergency stop knob, green start button, red stop button, and function switches for lifting and separating. The clear operational logic allows new users to master it quickly. |  MANUAL CRANK LIFT The table height can be adjusted rapidly via a side crank to accommodate mattresses of different thicknesses. |

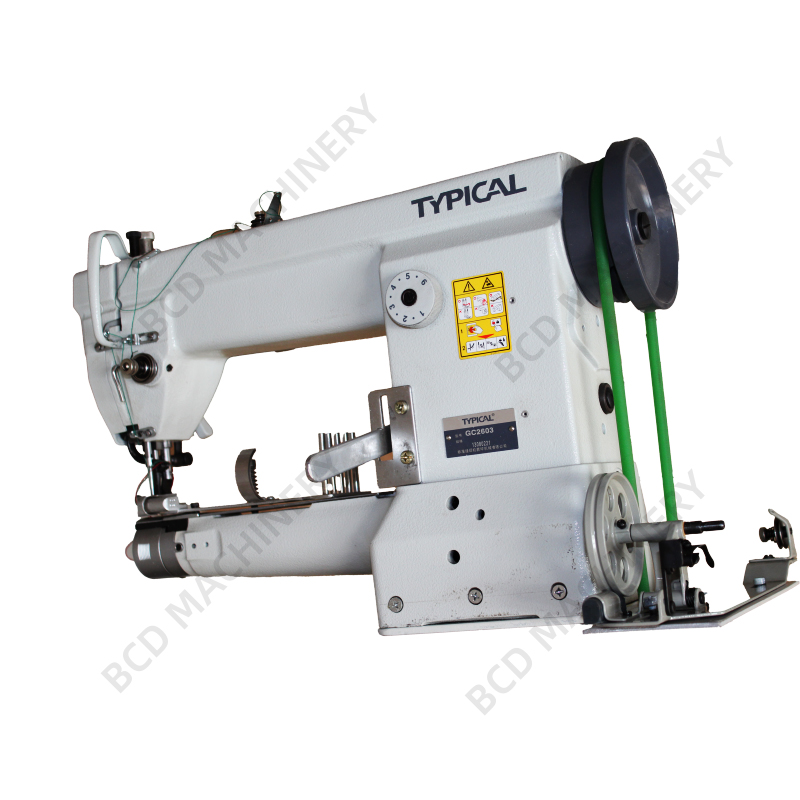

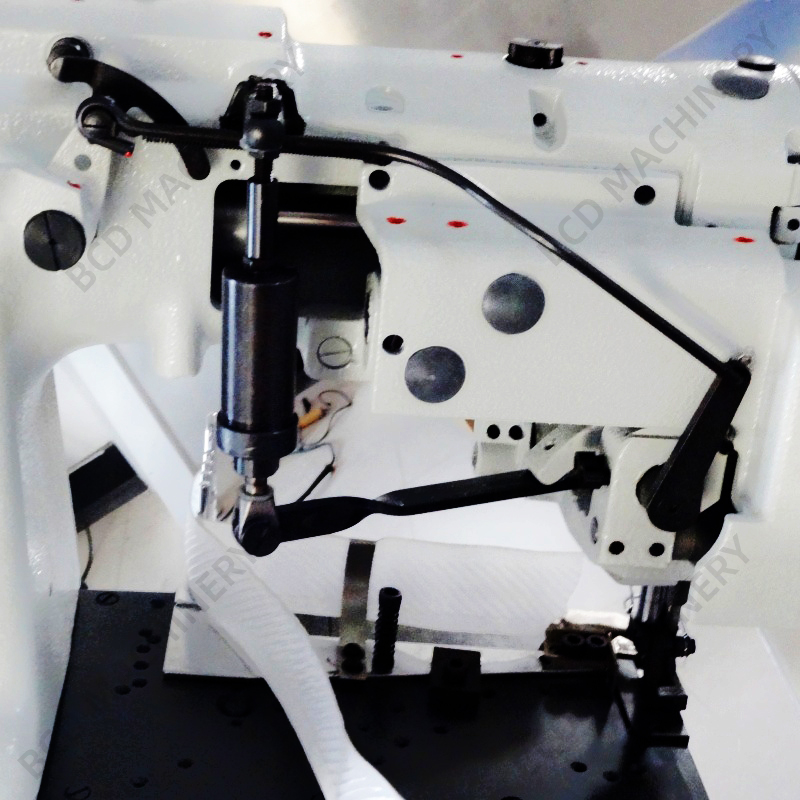

EFFICIENT STITCHING The machine head features a professional rotary hook for continuous, stable stitching, delivering uniform and neat stitches. |

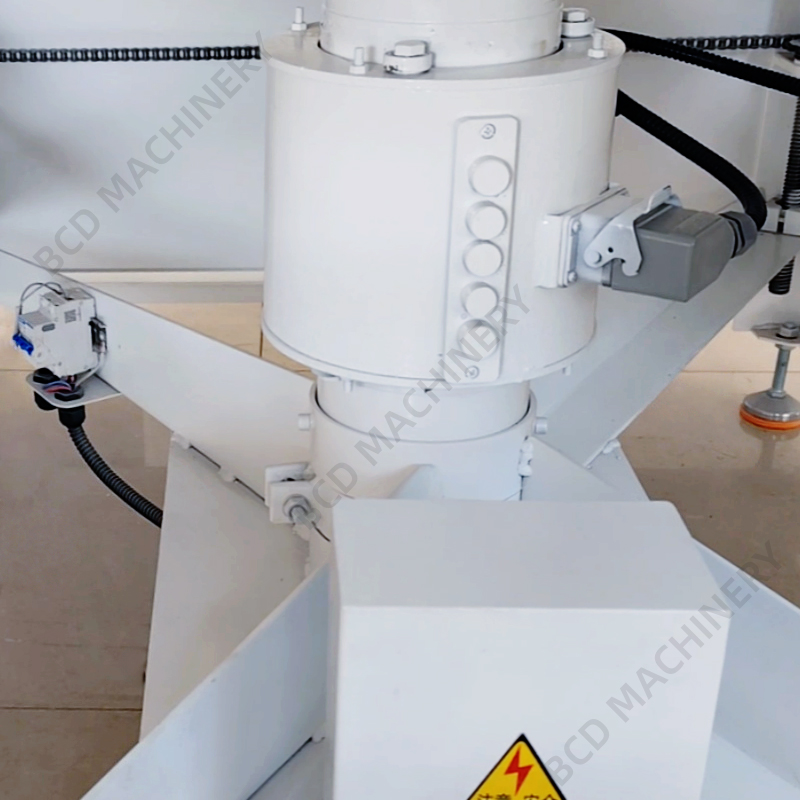

METAL DRIVE SYSTEM Core transmission components are made of high-strength metal, offering excellent wear resistance and durability to handle high-frequency, heavy-load production tasks. |
▎FINISHED PRODUCT DISPLAY
 |  |  |  |
▎MODEL COMPARISON
WHICH ONE IS MORE SUITABLE FOR YOU ?
| BWB-1 BWB-2 BWB-3 Series | |||
| Model No. | BWB-1 | BWB-2 | BWB-3 |
| Application | Basic | Basic | Intermediate |
| Sewing Machine Type | Typical lock stitch | Typical lock stitch | Typical chain stitch needle |
| Table Stand | Heavy-duty cast iron | Heavy-duty cast iron | Heavy-duty cast iron |
| Reverse Feeding Mechanism | Manual | Manual | Manual |
| Standard Table Size | 1400*1950mm | 1400*1950mm | 1400*1950mm |
| Max. Mattress Thickness | 30-300（or 150-400）mm | 30-300（or 150-400）mm | 30-300（or 150-400）mm |
| Work Efficiency | 8–15 mattresses/H (Depends on operator skills) | 8–15 mattresses/H (Depends on operator skills) | 10–20 mattresses/H (Depends on operator skills) |
| Head Inclination | Manual | (Electric) Rotation Inclination | (Electric) Rotation Inclination |
| Motor Type | Clutch motor with inverter | Clutch motor with inverter | Clutch motor with inverter |
| Motor Power | 0.75KW | 1.30KW | 1.30KW |
| Foot Pedal Speed | 5.6–8.5M/min | 5.6–8.5M/min | 5.6–9.8M/min |
| Clutch Type | Mechanical | Electronic actuation | Electronic actuation |
| Stainless Steel Worktable | Included | Included | |
▎FAQ
Q: How many mattress edges can the machine finish per hour?
A: With a travel speed of 5.0-9.0m/min and a head speed of 1600rpm, it can finish 10-15 mattress edges per hour under standard production conditions, meeting small and medium-scale production needs.
Q: Is the stitching prone to thread skipping or breaking?
A: No. The machine head adopts a professional top rotary hook structure for continuous and stable stitching.
Q: Can the machine handle complex mattress corners?
A: Yes. It features intelligent corner deceleration, automatically reducing speed at corners with precise stitch control for smooth, non-piled stitching.
Q: What mattress thickness is compatible?
A: It supports mattresses of 50-300mm (2"-12") or 150-400mm (6"-16") thick.
Q: What fabrics is it compatible with?
A: The pressure device's height and pressure are adjustable, suitable for knitted, woven, quilted and other mattress fabrics.
Q: What safety protection designs does the machine have?
A: Equipped with a top red emergency stop button to cut off the power circuit instantly, reducing misoperation risks. The overall design complies with CE industrial safety standards.
Q: What is the after-sales service response speed?
A: We provide 7×12-hour technical support.
Q: What is the after-sales warranty period of the product?
A: The standard warranty period is one year.
