| Quantity: | |
|---|---|

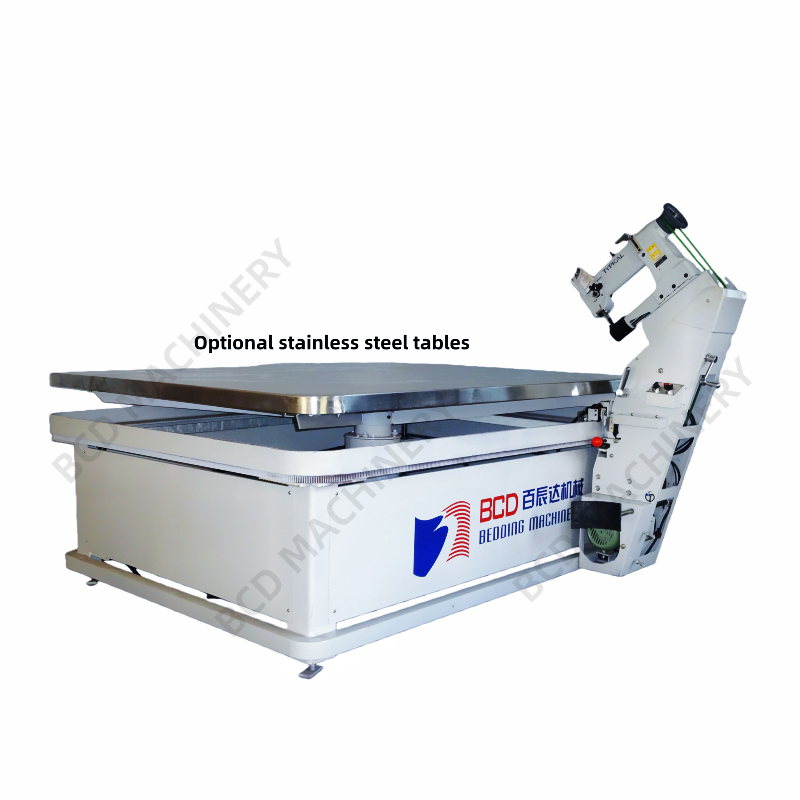

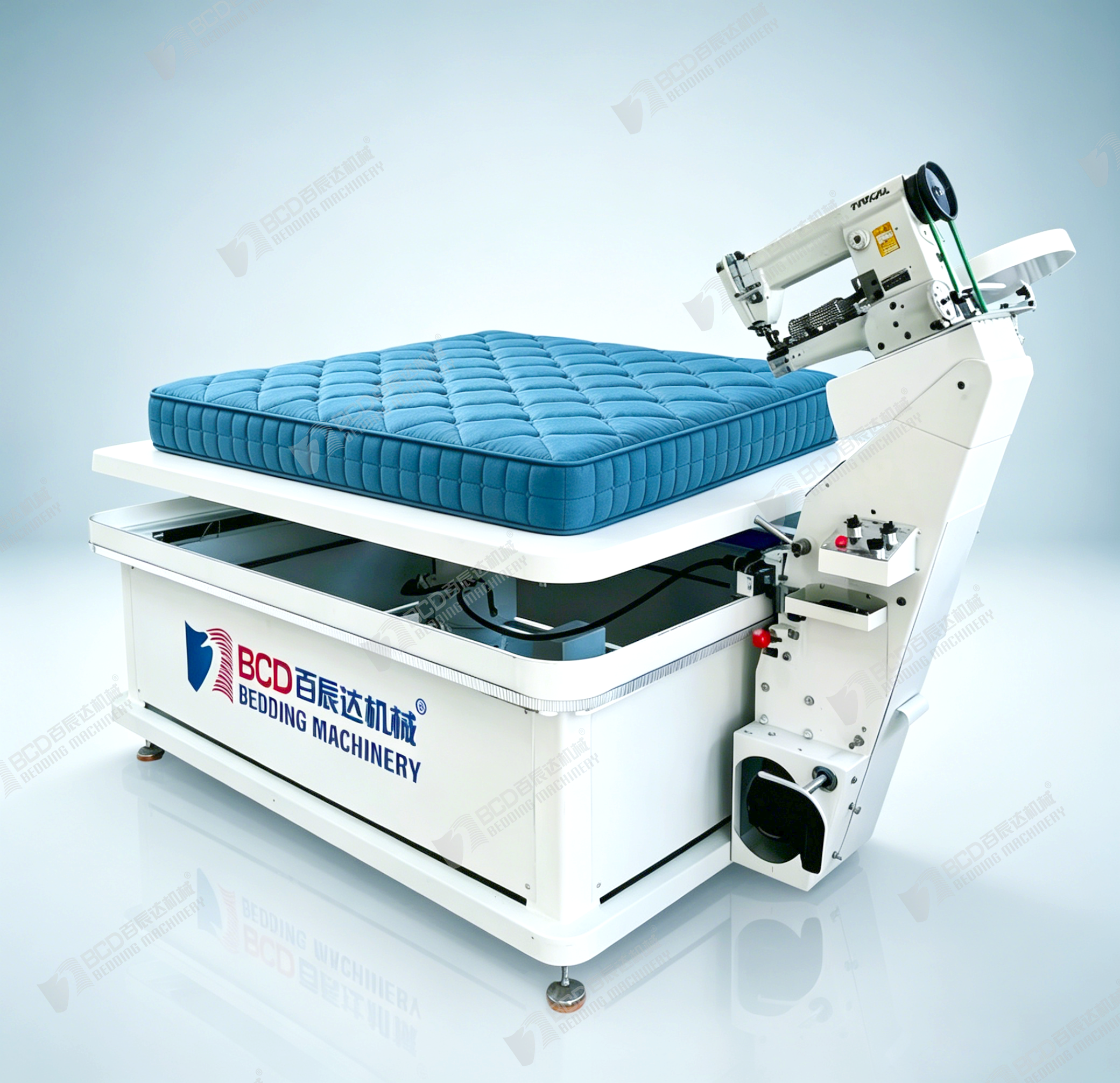

1.Supports 50-300mm (or 150-400mm) mattress edging sewing, fits various sizes/types. 2.Central independent support boosts stability, rotary under-table power ensures neat wiring & safe operation. 3.Built-in corner speed-down,auto slows when mattress corners. 4.Sewing head speed reaches 1600rpm, with capacity of 10-15 M/H. 5.Offers worktables in multiple sizes (standard:1400×1950mm ), with optional stainless steel tabletop. 6.Total power of 1.30KW, resulting in low energy costs. |

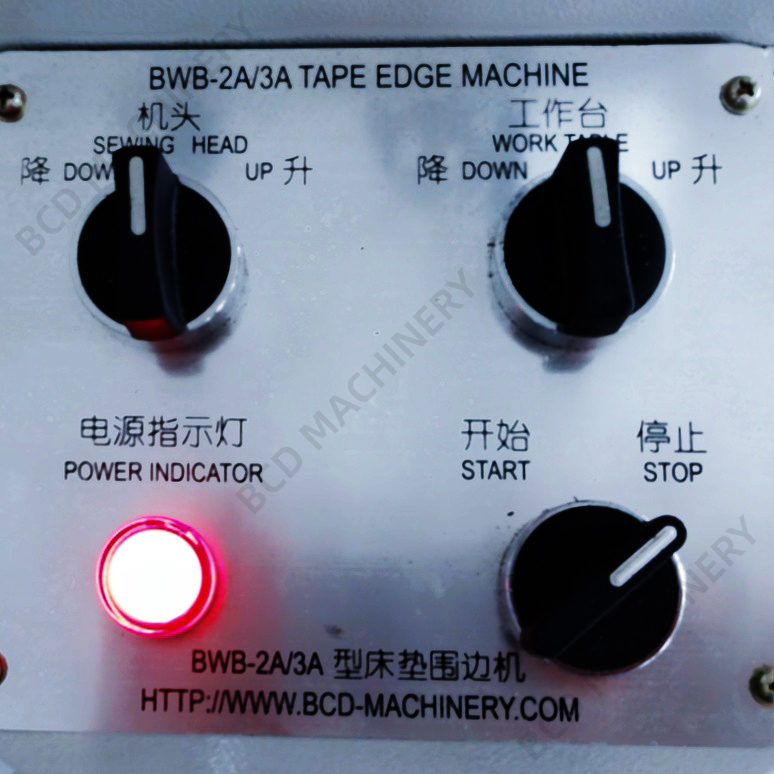

USER-FRIENDLY CONTROL PANEL With 2 independent knobs (head/workbench height), enables quick parameter adjustment for mattress thickness/size. |  AUTOMATIC DECELERATION AT CORNERS The system senses corners via sensors and automatically slows down the machine head, ensuring smooth stitching with no skipped stitches or wrinkles. |
ELECTRIC LIFTING WORKBENCH Built-in lifting motor and control buttons enable height adjustment for mattresses of various thicknesses. |
STABLE CHAIN DRIVE STRUCTURE Uses high-hardness steel sprockets + thickened wear-resistant chains. Prevents slipping/aging/breakage. |
▎FINISHED PRODUCT DISPLAY
 |  |  |  |
▎MODEL COMPARISON
WHICH ONE IS MORE SUITABLE FOR YOU ?

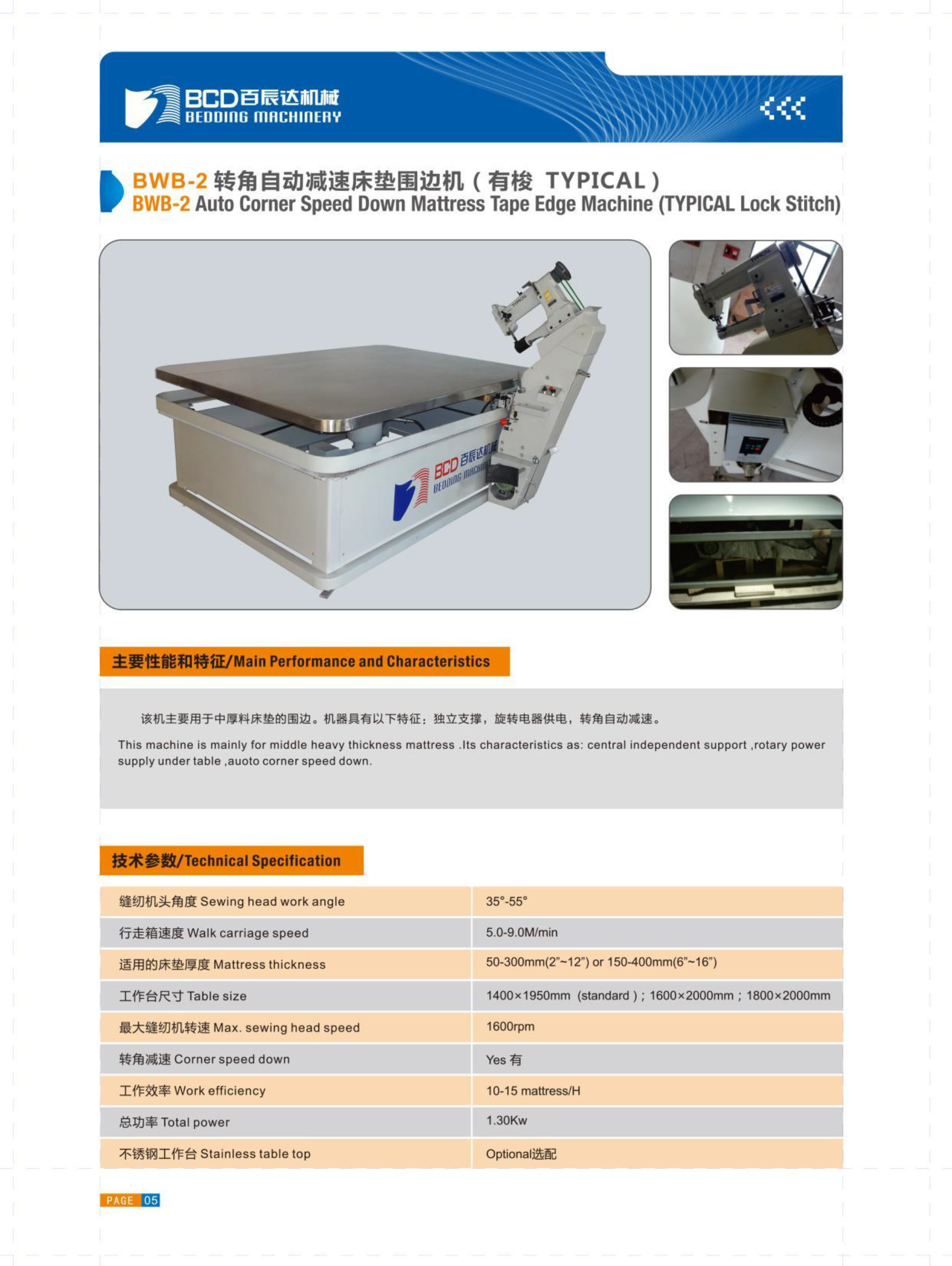

| BWB series Tape Edge Machine | ||||||
| Model No. | BWB-1 | BWB-2 | BWB-3 | BWB-4D | BWB-5 | BWB-6 |
| Sewing head work angle | 35°-55° | 25°- 60° | 35°-55° | 30°-58° | ||
| Walk carriage speed | 5.0-9.0M/min | 5.6-9.8M/min | 10-14M/min | 5.5-13.8M/min | 7-13.8M/min | |
| Mattress thickness | 50~300mm/150-400mm | 100-400mm | 50-500mm | 50-700mm | ||
| Table size | 1400*1950mm(standard) | 3800*2000mm | 1600*2000mm | |||
| Max. sewing head speed | 1600rpm | 3000rpm | ||||
| Corner speed down | yes | |||||
| Work efficiency | 10-15 mattress/h | 10-20 mattress/h | 16-20 mattress/h | 15-20 mattress/h | 15-20 mattress/h | |
| Total power | 0.75kw | 1.3kw | 1.3kw | 3.4kw | 1.3KW | 2.05kw |
▎FAQ
Q: What types of mattresses can this machine sew?
A: It is suitable for mainstream medium-thick mattresses such as spring, latex and memory foam ones, with a stable sewing range of 50–300mm or 150–400mm in thickness.
Q: Can it stably reach the stated efficiency of 10–15 mattresses/H in actual production?
A: With uniform mattress specifications and skilled operators, it can stably reach around 12 mattresses per hour.
Q: The total power is 1.30Kw. What voltage power supply does it need?
A: It is compatible with 380V industrial power supply by default. 220V can be customized upon request.
Q: Is door-to-door delivery available for the machine?
A: Yes, door-to-door delivery is supported. Please contact us for details.
Q: Is the sewing head speed of 1600rpm fixed, or can it be adjusted based on fabric/thickness?
A: The sewing head speed supports stepless adjustment, ranging from 800-1600rpm. It can be adjusted via the knob on the control panel.
Q: Is the machine noisy? Does it meet workshop noise standards?
A: The machine’s operating noise is about 70-75 decibels, which is below the national industrial workshop noise standard (85 decibels).
Q: Can the table size be customized?
A: Yes, table size customization is available. The lead time is 7-15 working days, depending on the complexity of the size adjustment. The customization cost will be calculated based on specific requirements.
Q: What is the after-sales warranty period of the product?
A: The standard warranty period is one year
