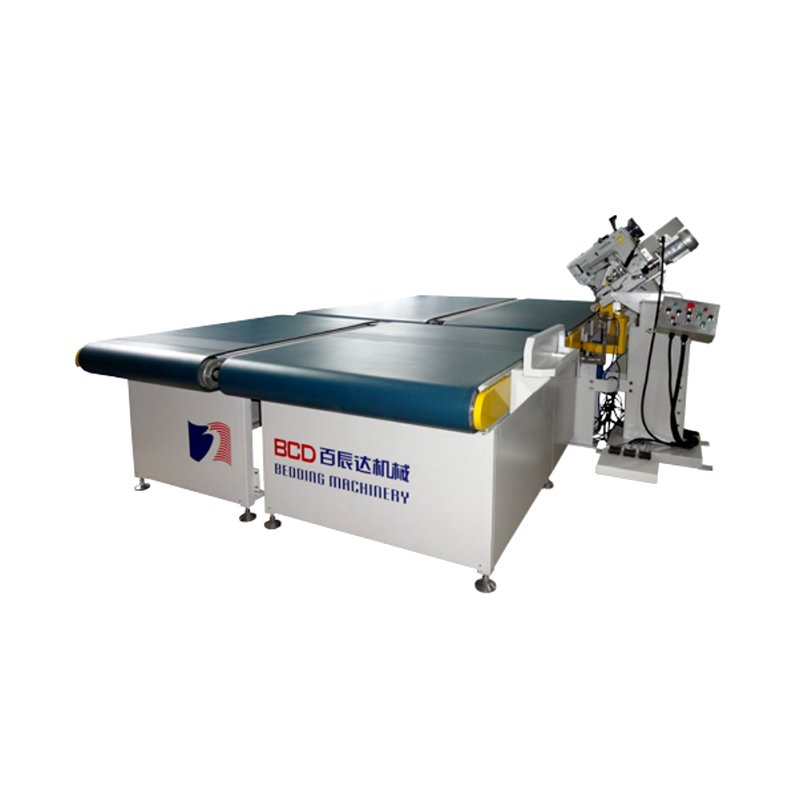

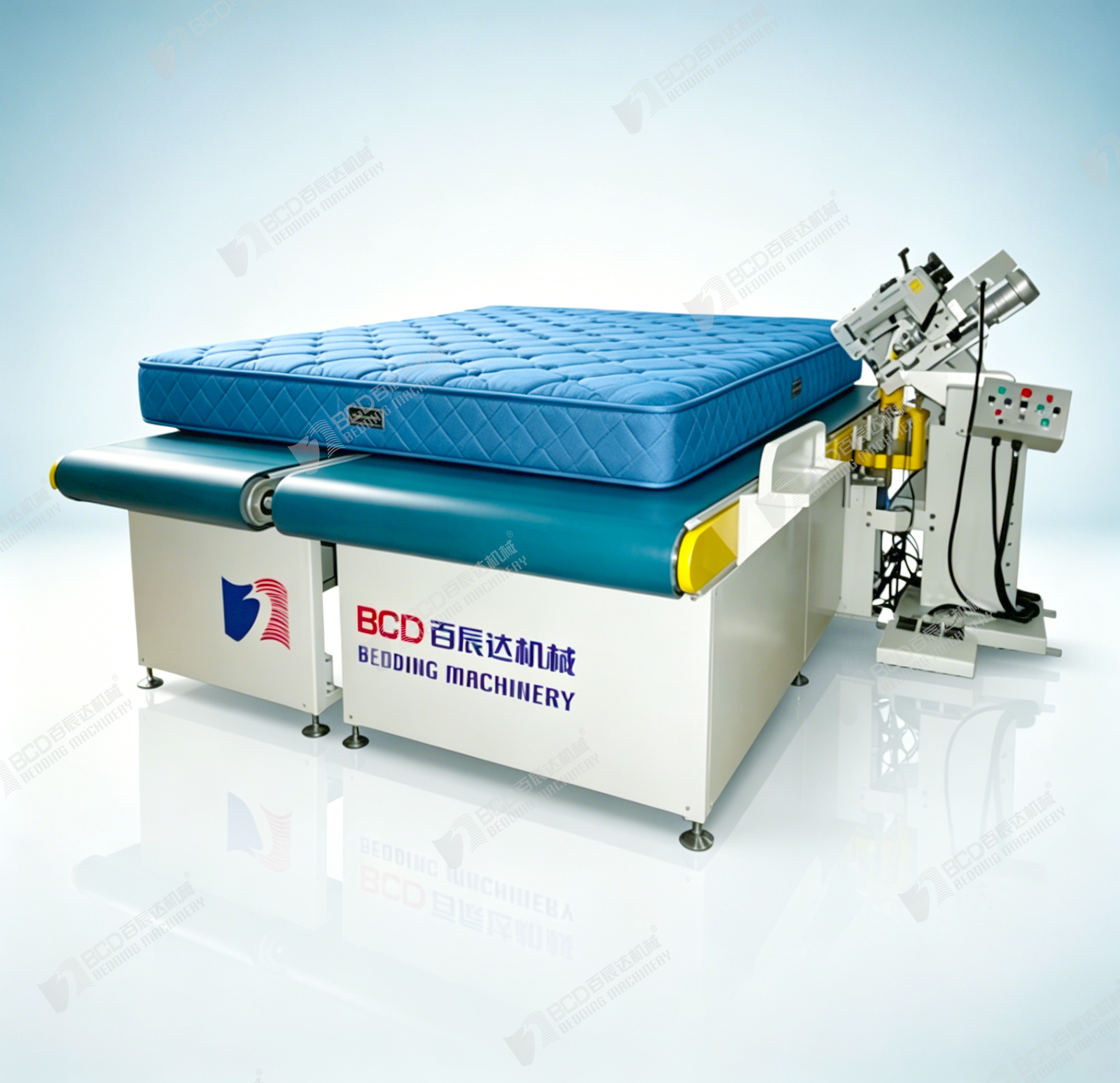

1.Machine head angle adjustable (25°-60°), adapting to diverse edge wrapping angle needs; 2.Edge wrapping sewing speed flexibly adjustable; 3.Supports automatic mattress transportation and flipping, saving labor and improving production efficiency; 4.Liftable workbench, compatible with mattresses of 100-400mm thickness; 5.Equipped with 3800*2000mm large workbench, meeting processing needs of different mattress sizes; 6.With skilled operation, production efficiency reaches 16-20 M/H |

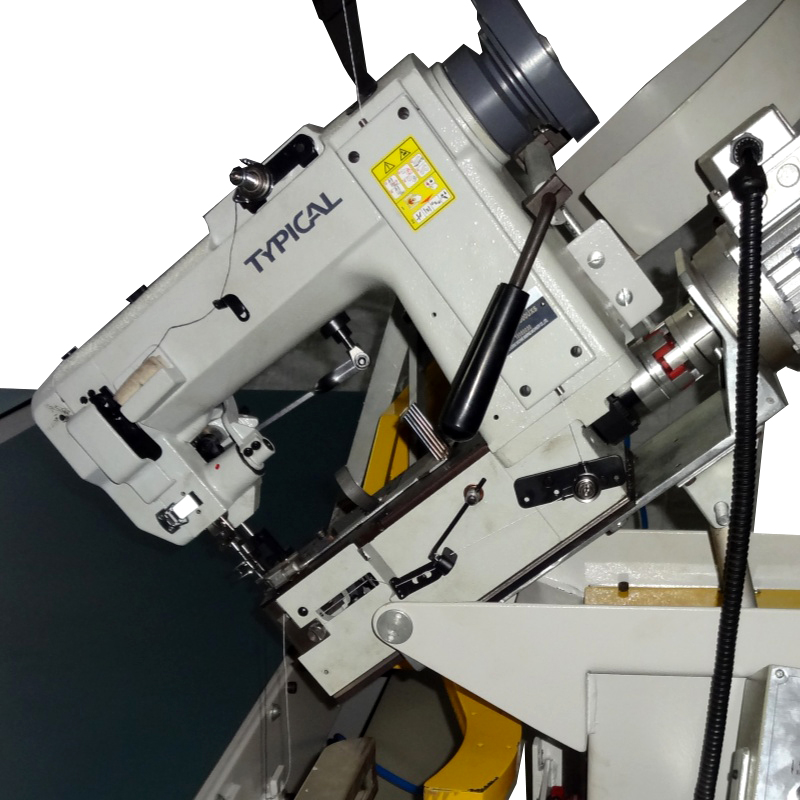

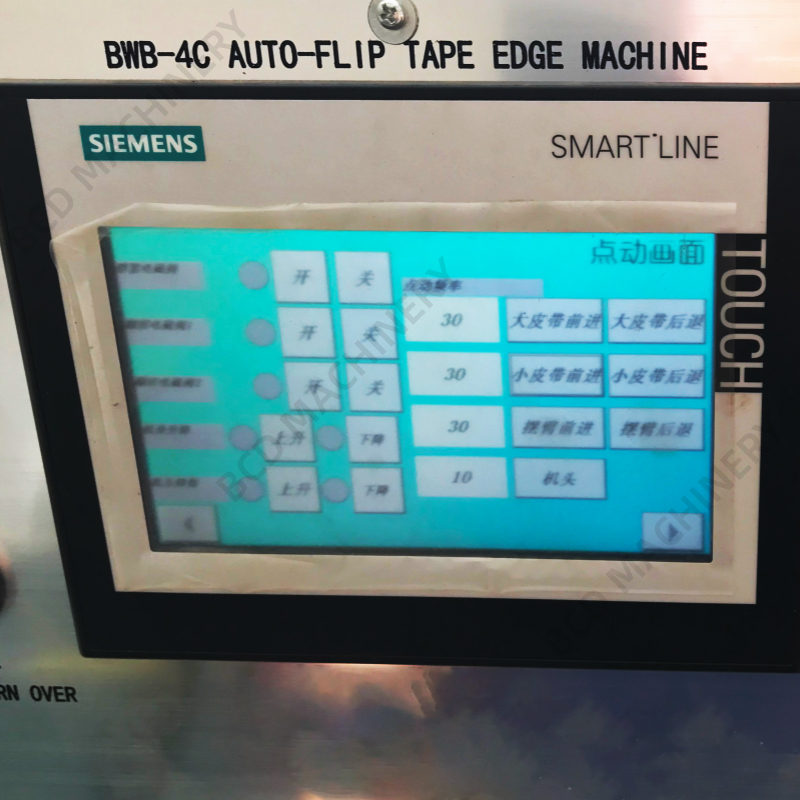

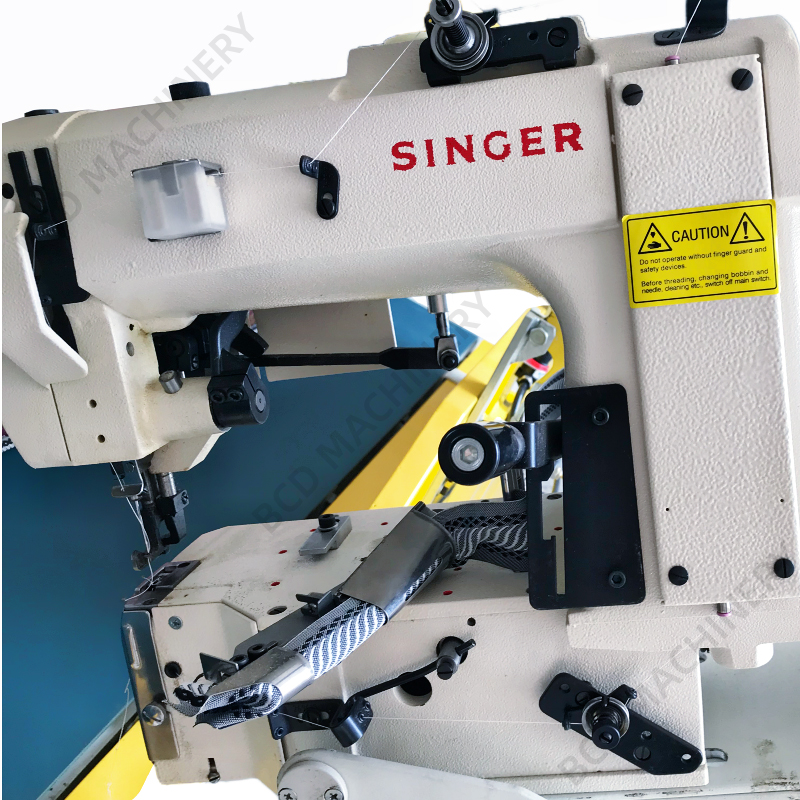

INTELLIGENT & EASY OPERATION It features a clear control interface, supporting one-click start/stop, pause, and flexible sewing speed adjustment for simple use (PLC touch screen system is optional). |  HEAVY-DUTY CHAIN STITCHING HEAD This heavy-duty head produces consistent, durable stitches, fitting all heavy-weight mattresses. （stitching head is optional) |

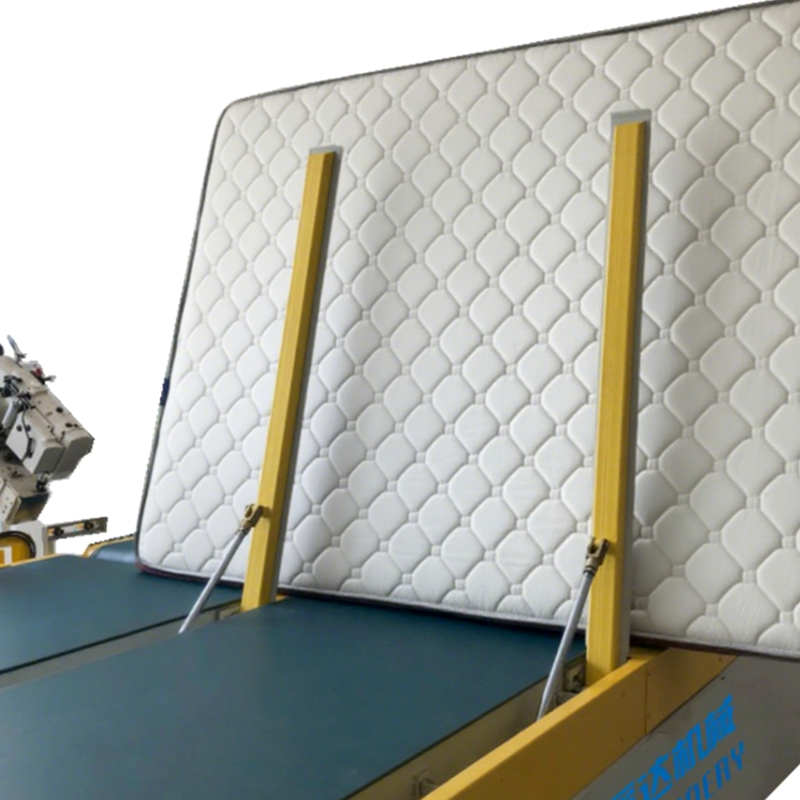

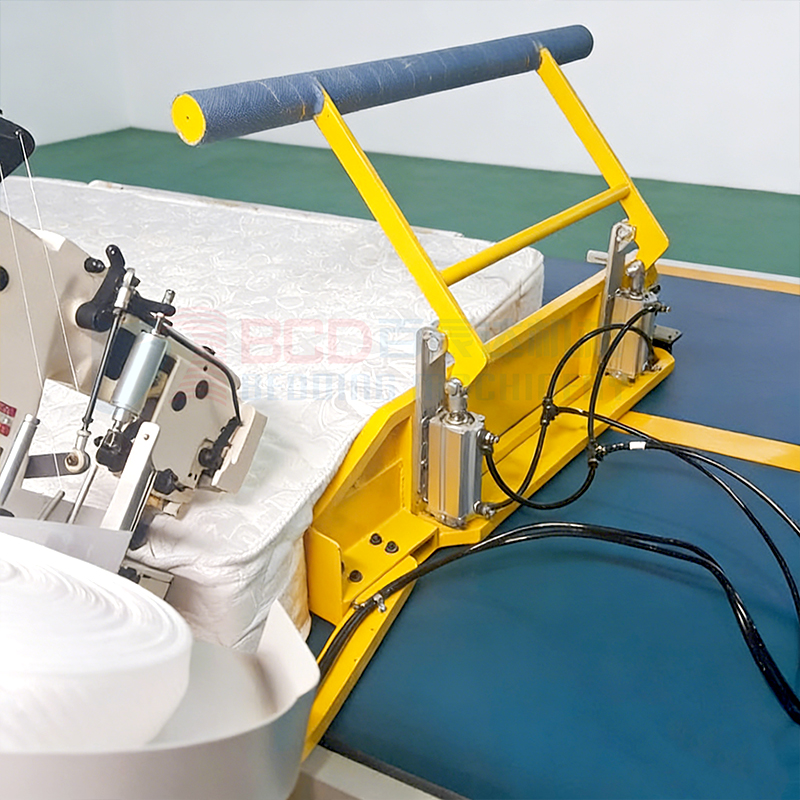

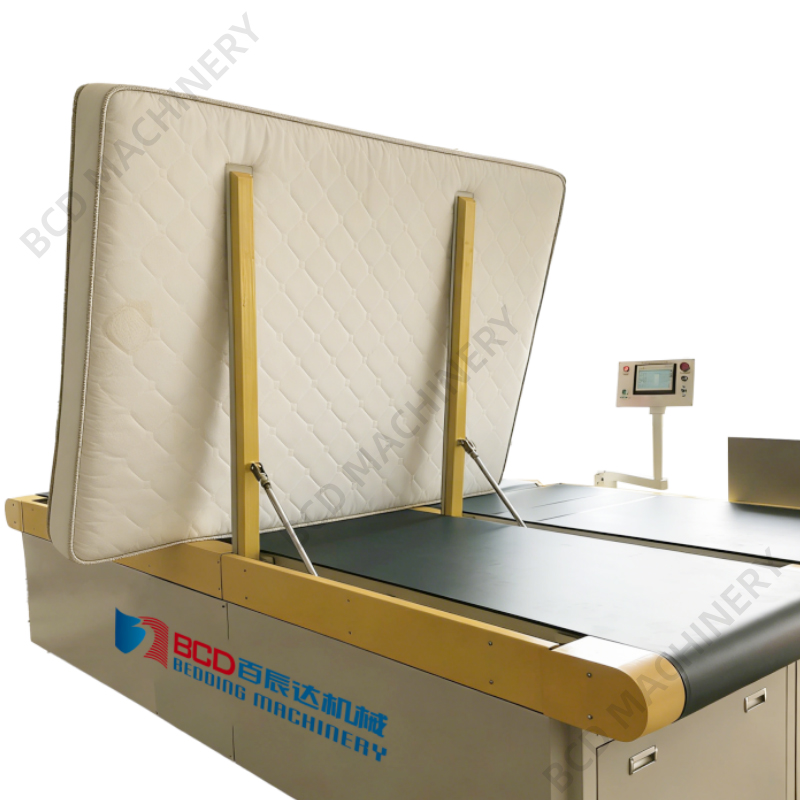

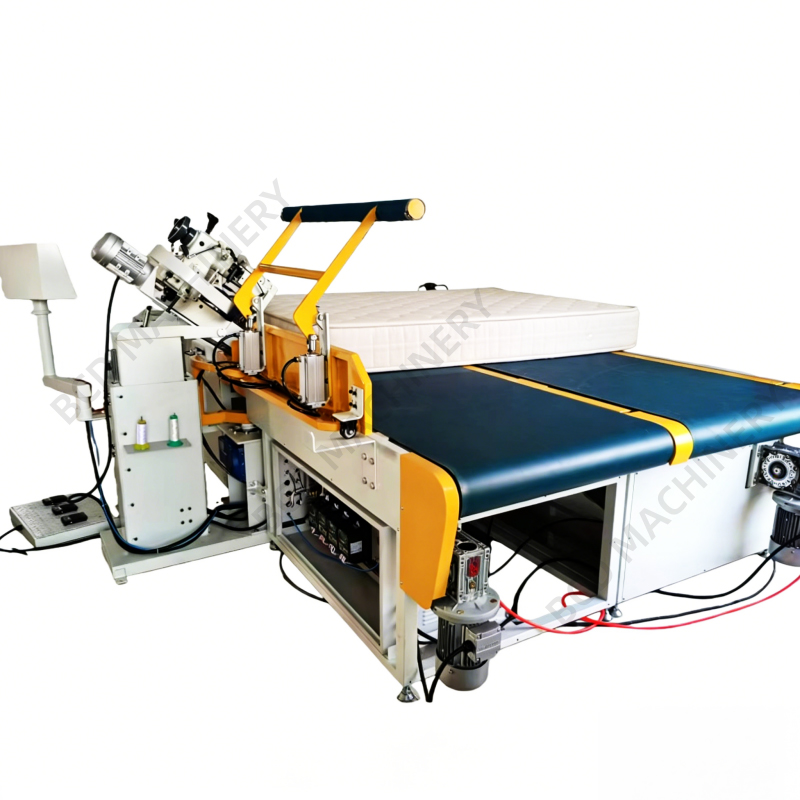

HIGH LEVEL OF AUTOMATION With a built-in auto-flip function, no manual mattress angle adjustment is needed. Along with head elevation and arm adjustment, it auto-completes edging/cornering, cutting down manual work. |

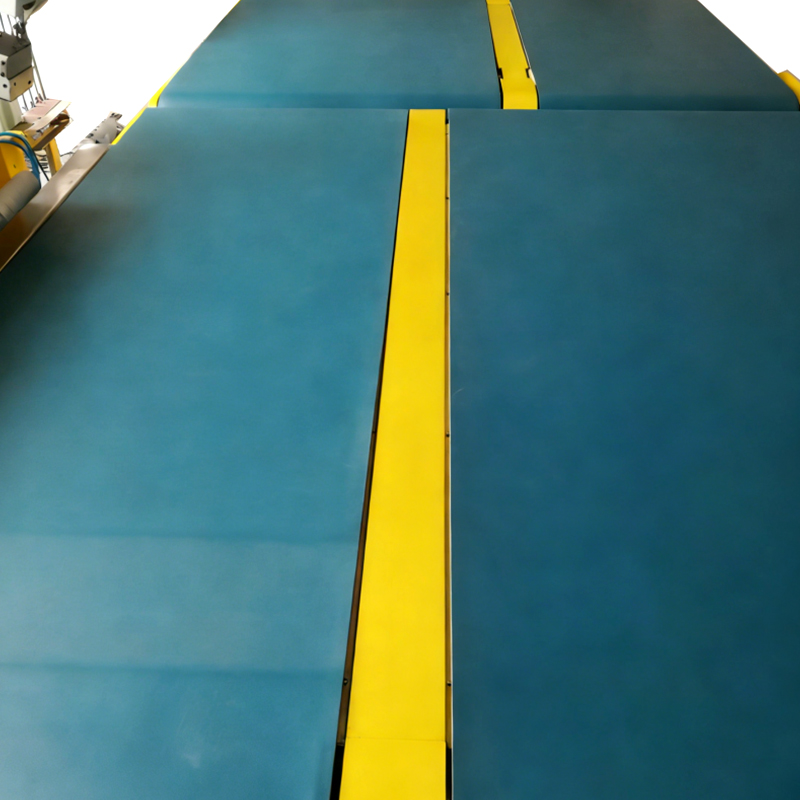

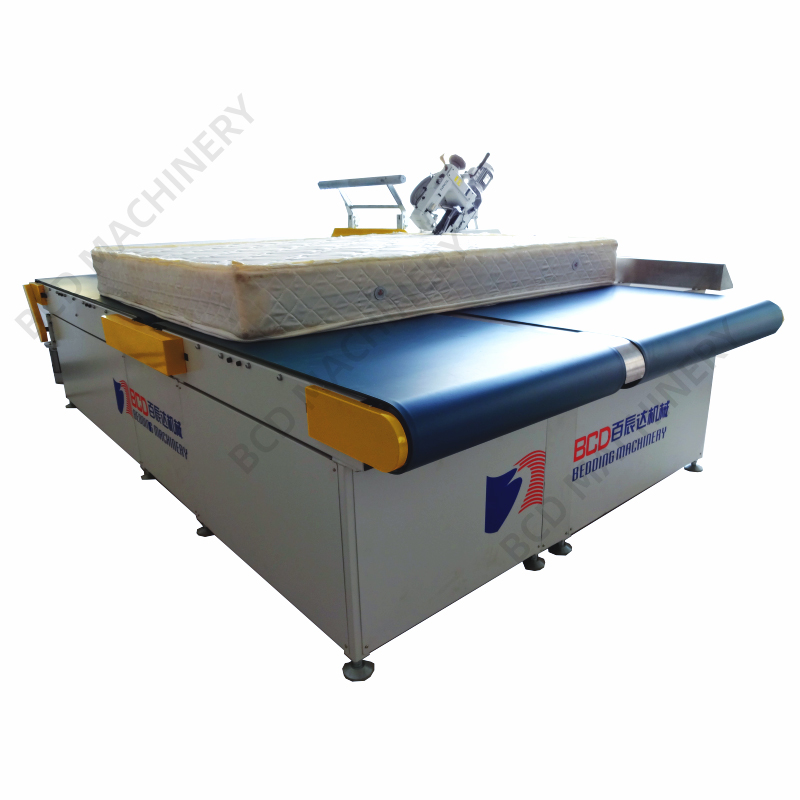

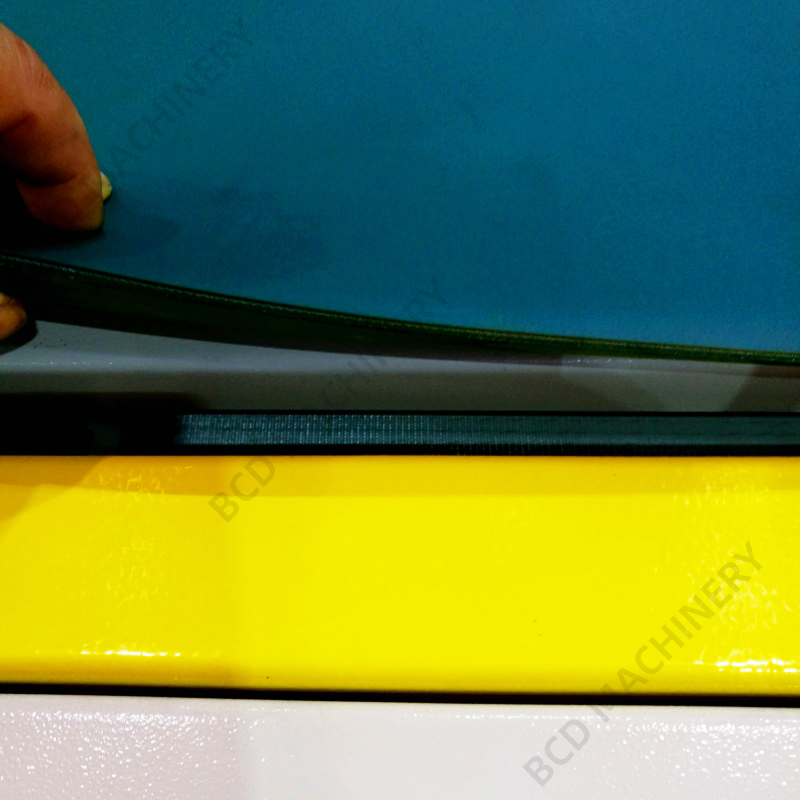

SPACIOUS WORKTABLE Its widened, lengthened segmented table stably holds mattresses from small single to large sizes. Even force distribution prevents shifting, ensuring precise edging. |

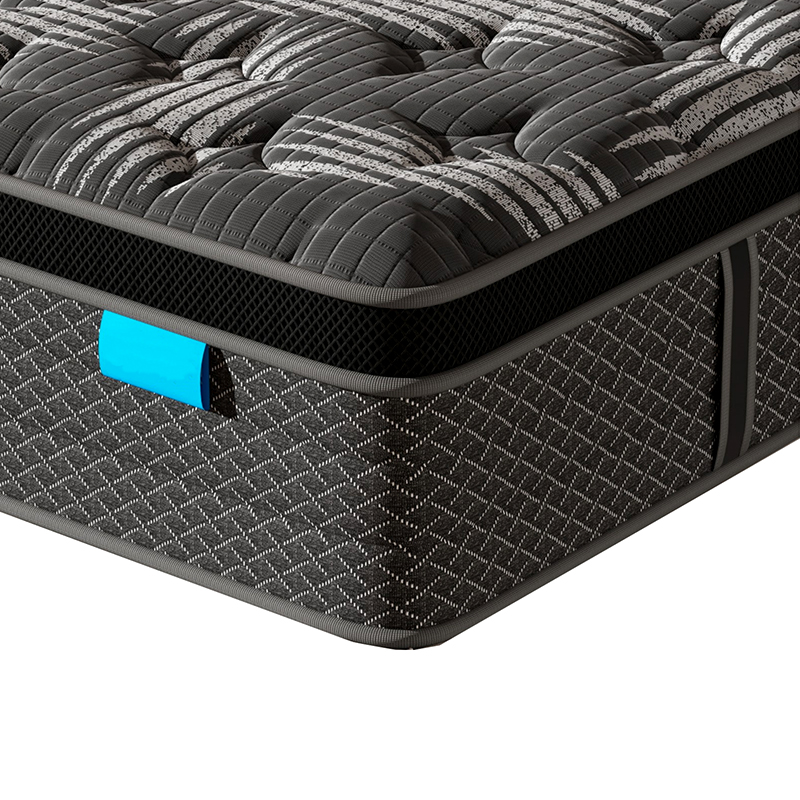

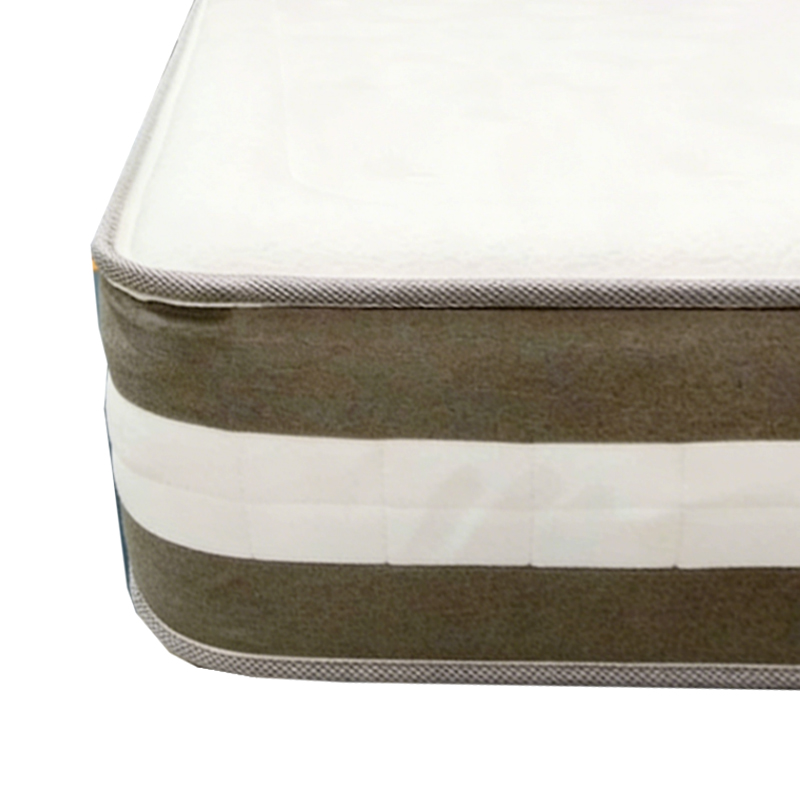

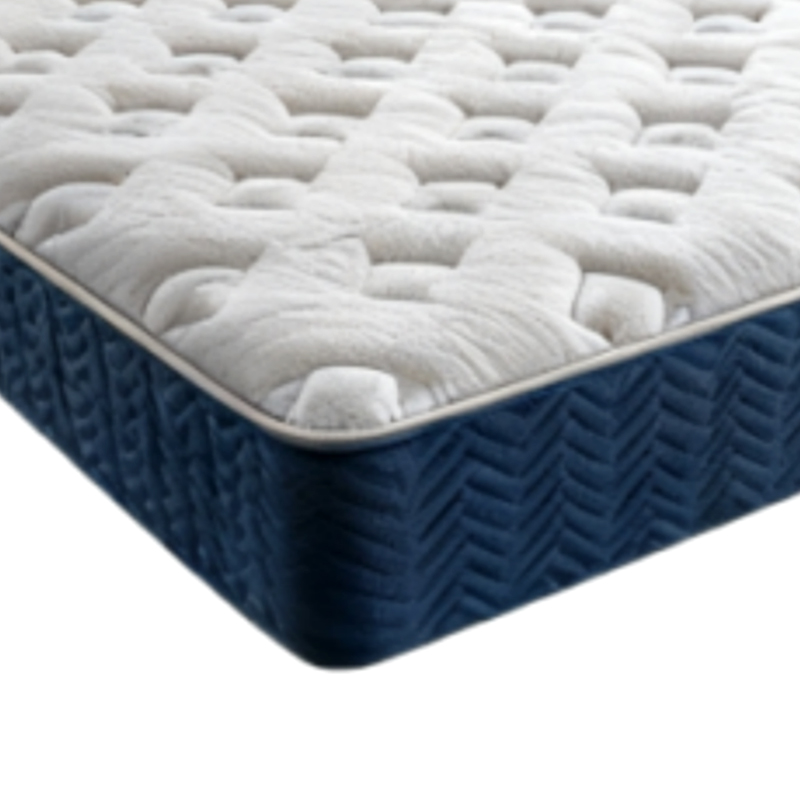

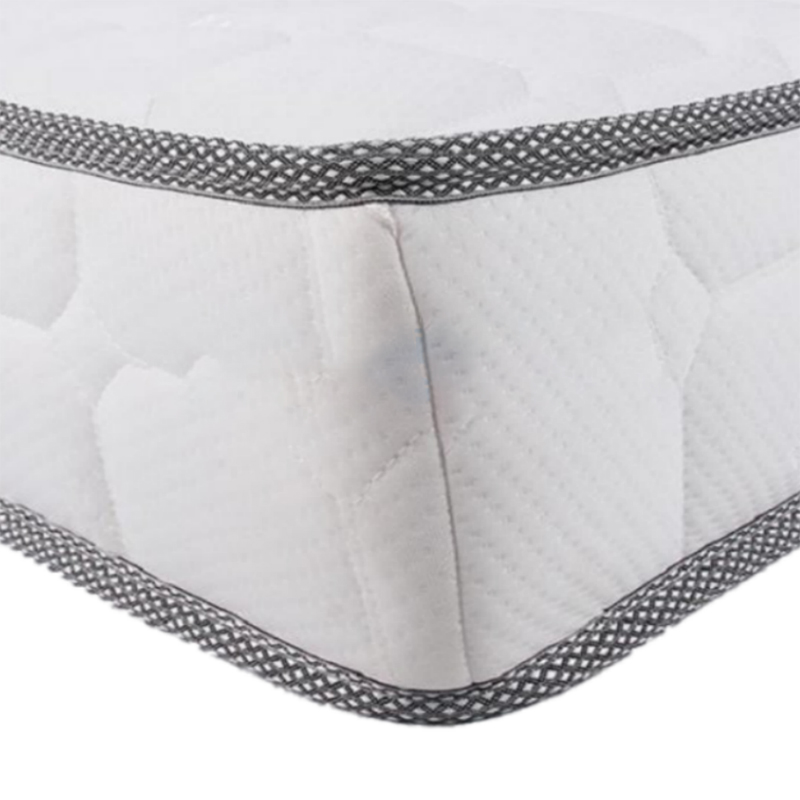

▎FINISHED PRODUCT DISPLAY
 |  |  |  |
▎MODEL COMPARISON
WHICH ONE IS MORE SUITABLE FOR YOU ?
| BWB series Tape Edge Machine | ||||||
| Model No. | BWB-1 | BWB-2 | BWB-3 | BWB-4D | BWB-5 | BWB-6 |
| Sewing head work angle | 35°-55° | 25°- 60° | 35°-55° | 30°-58° | ||
| Walk carriage speed | 5.0-9.0M/min | 5.6-9.8M/min | 10-14M/min | 5.5-13.8M/min | 7-13.8M/min | |
| Mattress thickness | 50~300mm/150-400mm | 100-400mm | 50-500mm | 50-700mm | ||
| Table size | 1400*1950mm(standard) | 3800*2000mm | 1600*2000mm | |||
| Max. sewing head speed | 1600rpm | 3000rpm | ||||
| Corner speed down | yes | |||||
| Work efficiency | 10-15 mattress/h | 10-20 mattress/h | 16-20 mattress/h | 15-20 mattress/h | 15-20 mattress/h | |
| Total power | 0.75kw | 1.3kw | 1.3kw | 3.4kw | 1.3KW | 2.05kw |
▎FAQ
Q: What is the Max.mattress thickness supported by the BWB-4D model?
A: BWB-4D is compatible with mattresses ranging from 100mm-400mm in thickness.
Q: Can the worktable size of different models be customized?
A: Currently, the standard worktable sizes for each model are as listed in the parameter table (e.g., 3800*2000mm for BWB-4D). Pls contact us for specific customization needs.
Q: Can the working angle of the sewing head be adjusted?
A: Yes, different models support different angle ranges (e.g., the BWB-4D supports 25°-60°).
Q: Can the sewing speed be adjusted according to the mattress material?
A: Yes, all models support flexible adjustment of sewing speed, which can adapt to mattress fabrics of different hardness.
Q: What is the Max.sewing head speed of the BWB-4D?
A: The Max.sewing head speed of the BWB-4D is 3000rpm, which is the highest sewing speed available.
Q: How does the machine prevent mattress displacement during sewing?

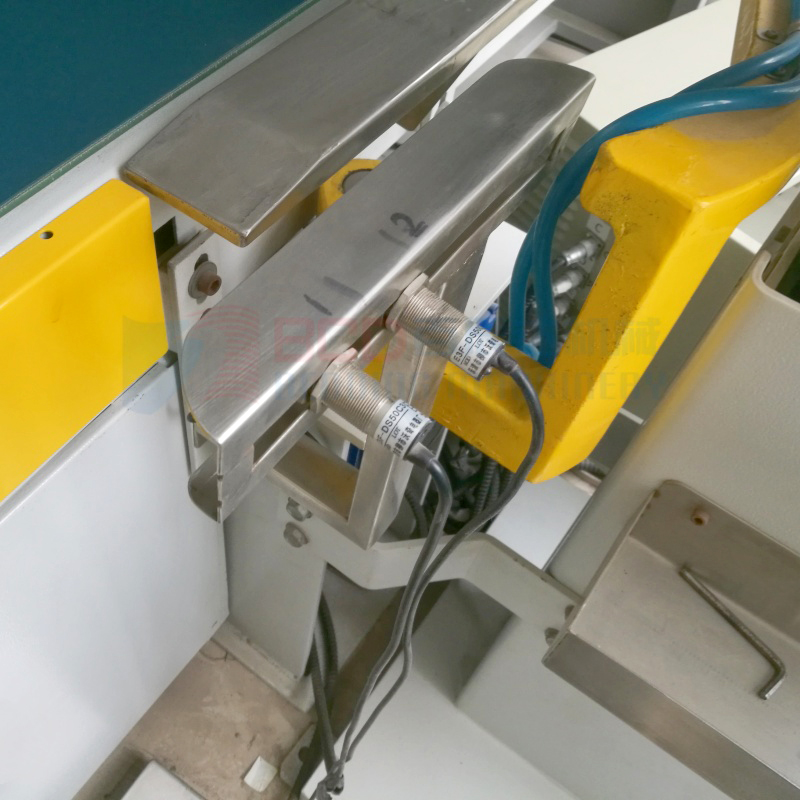

A: The BWB-4D is equipped with electronic sensing propulsion system that prevents mattress displacement, ensuring more precise tape edge sewing.
Q: What is the after-sales warranty period of the product?
A: The standard warranty period is one year
Q: What is the average manufacturing lead time on products?
A：within about 30 days after receipt of deposit.
