| Quantity: | |
|---|---|

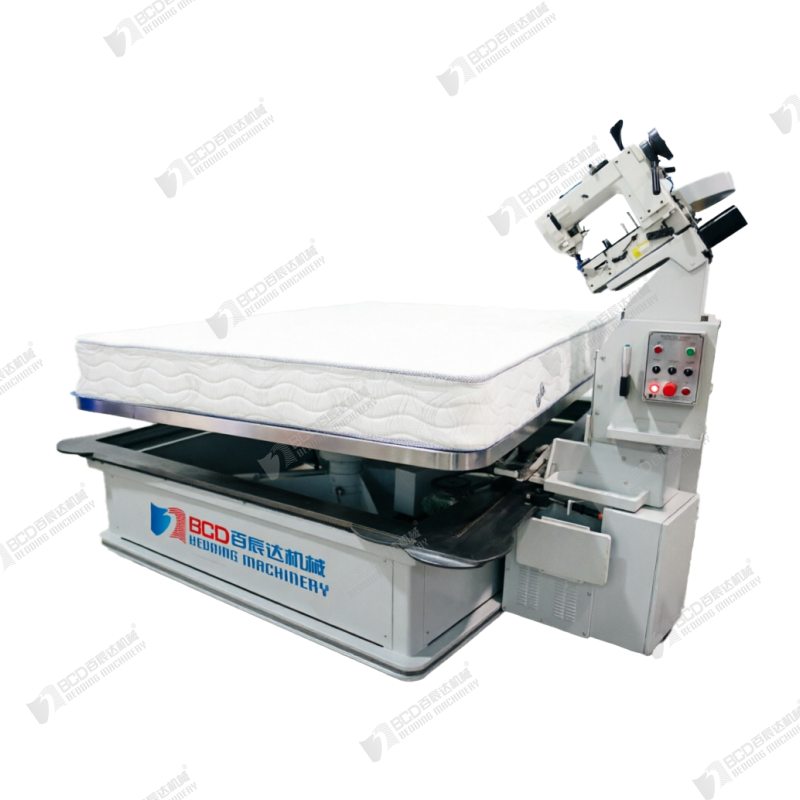

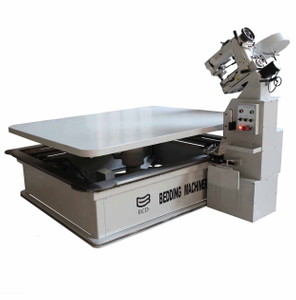

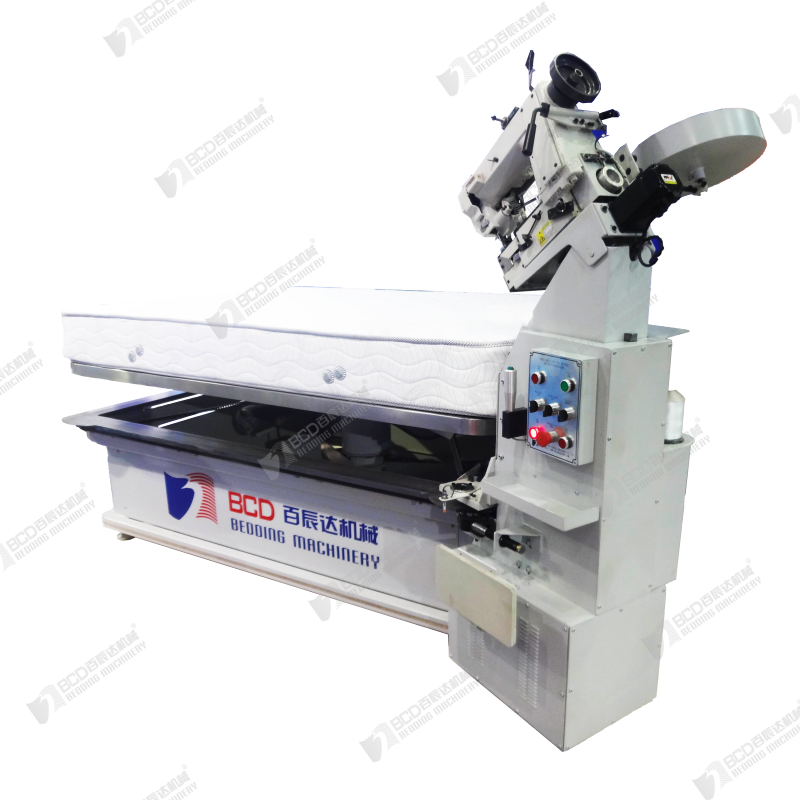

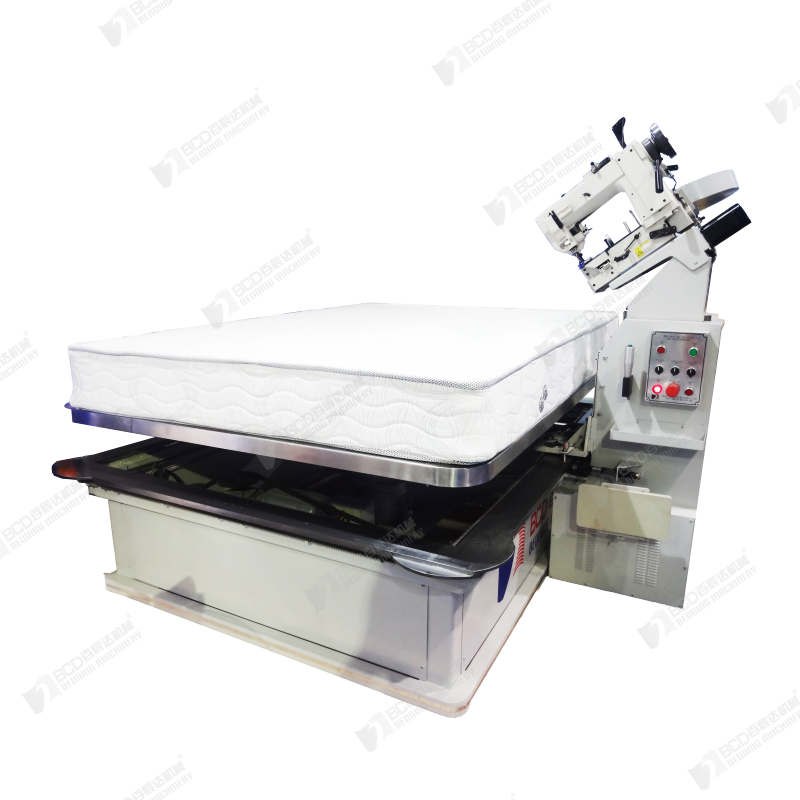

| | 1.Designed for border sewing of extra-thick, double-layer and high-end mattresses to meet various production needs. 2.Driven by AC servo motors with PLC intelligent control, ensuring stable operation and high precision. 3. 3 trimming strokes and 3 stitch lengths adjustable to suit different operator skills and processing requirements. 4.Precision guide rails ensure accurate movement and uniform sewing stitches. 5.Vertical head lifting, automatic needle positioning and corner deceleration reduce operation difficulty. 6.Stable running and strong continuous working capacity effectively improve production efficiency. |

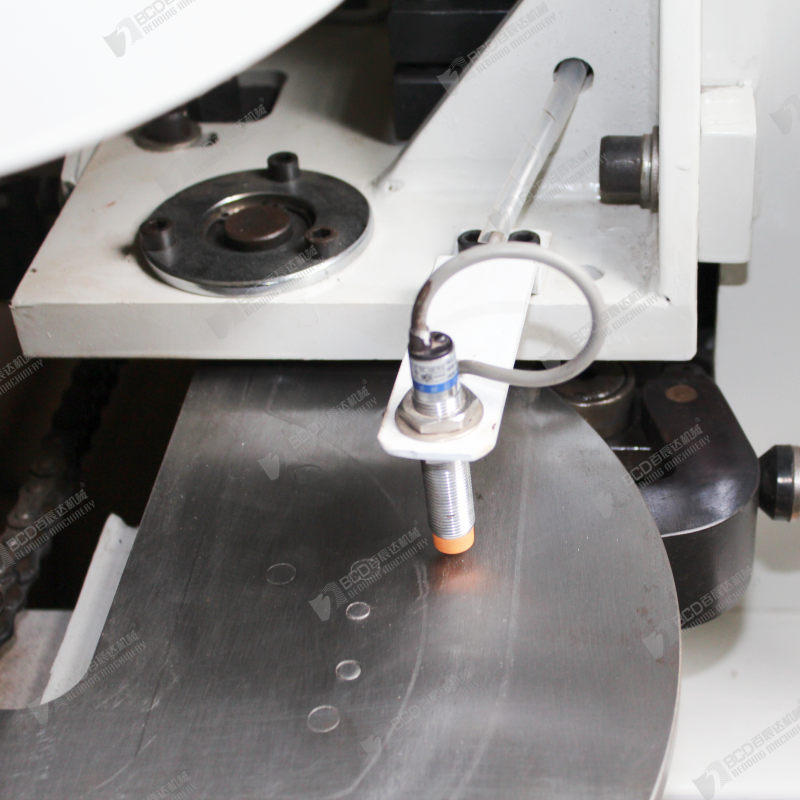

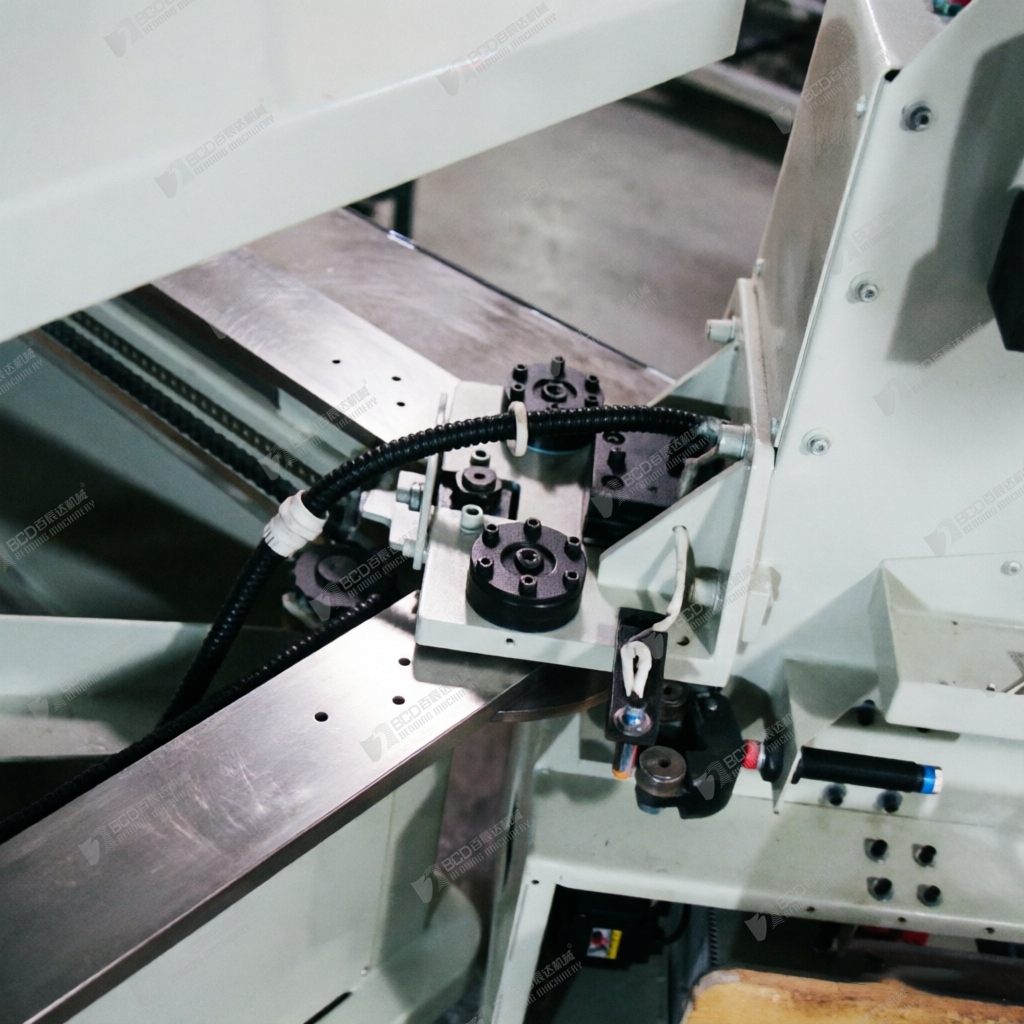

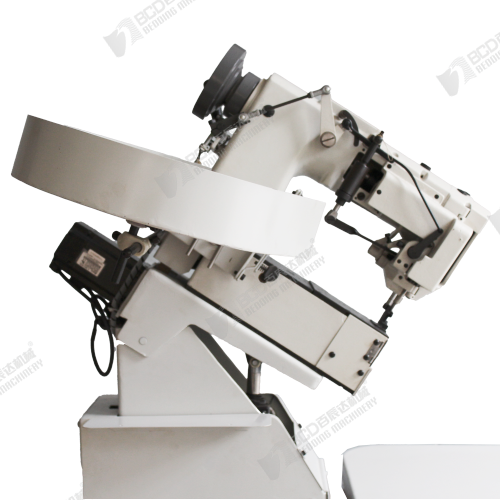

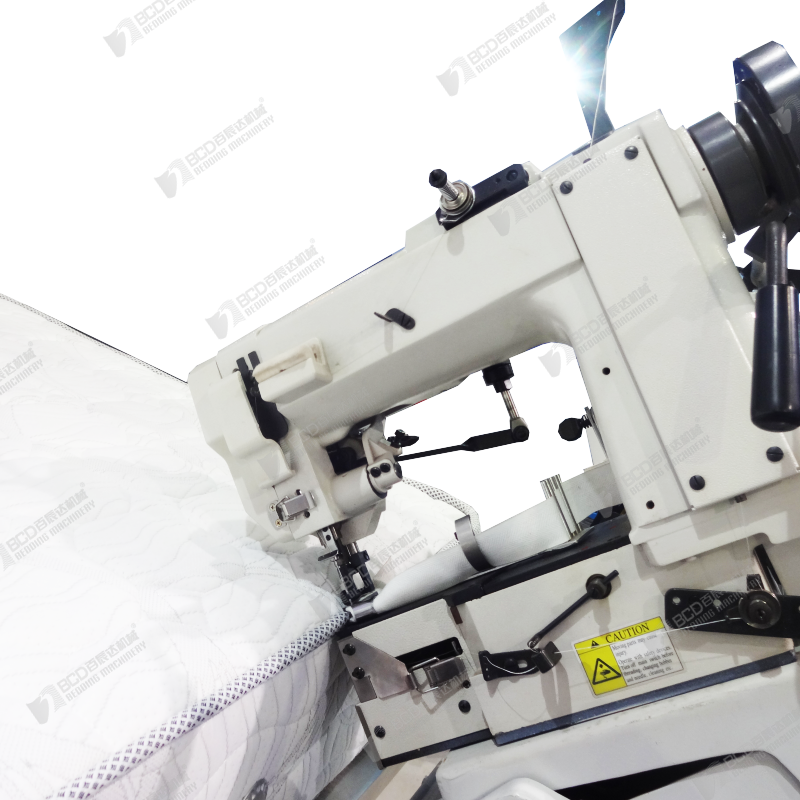

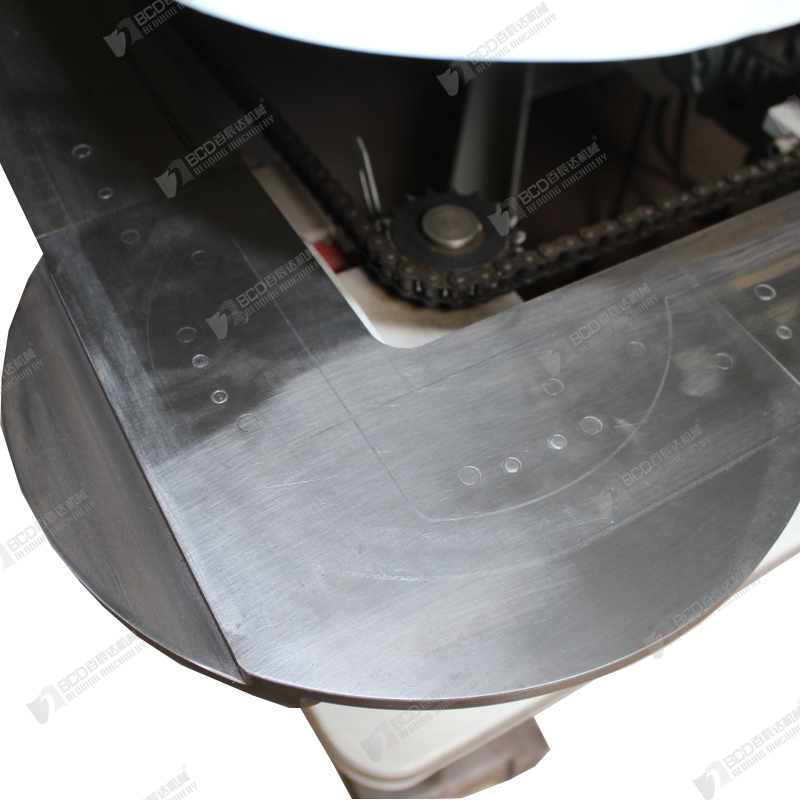

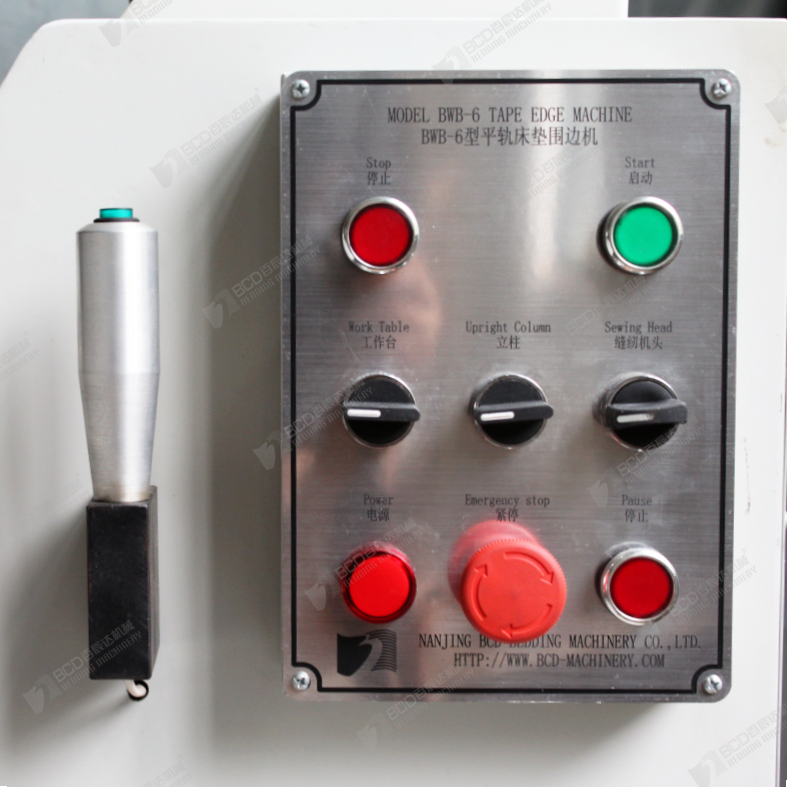

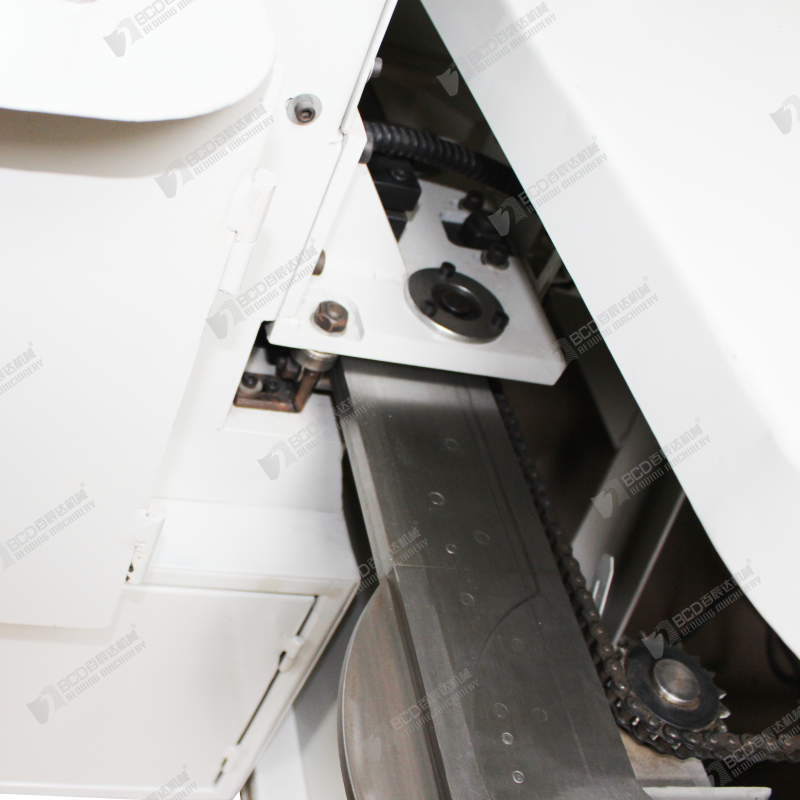

 PROFESSIONAL BORDER SEWING Unchain stitch. Vertical head lift, auto needle positioning and corner deceleration. Designed for extra-thick, double-layer and high-end mattress border sewing. |  INTELLIGENT CONTROL PLC control system with clear panel. Emergency stop and multiple safety protections. Fast response and precise positioning. |  PRECISION GUIDE RAILS Custom precision-machined frame rails ensure zero-deviation movement and uniform stitches. |  HIGH-PRECISION SENSING Equipped with high-precision sensors for auto needle positioning and corner deceleration, improving product qualification rate and appearance. |
▎FINISHED PRODUCT DISPLAY
 |  |  |  |
▎MODEL COMPARISON
WHICH ONE IS MORE SUITABLE FOR YOU ?
Differences Between BWB-5 and BWB-6 | ||
Model No. | BWB-5 | BWB-6 |
Application | Intermediate | High-end |
Sewing Machine Type | Singer 300u chain stitch needle | Singer 300u chain stitch needle |
Table Stand | High-precision flat orbit | High-precision flat orbit |
Reverse Feeding Mechanism | Automatic | Automatic |
Standard Table Size | 1600*2000mm | 1600*2000mm |
Max. Mattress Thickness | 50–500mm | 50–700mm |
Work Efficiency | 15–20 mattresses/H (Depends on operator skills) | 15–20 mattresses/H (Depends on operator skills) |
Head Inclination | (Electric) Rotation Inclination | Rotation and Elevation Inclination |
Motor Type | Clutch motor with inverter | 2 SERVO MOTORS (quieter, more stable) |
Motor Power | 1.30KW | 2.05KW |
Foot Pedal Speed | 5.5–13.8M/min | 7–13.8M/min |
Clutch Type | Electronic actuation | Electronic actuation |
Stainless Steel Worktable | Included | Included |
▎FAQ
Q: What is the BWB-6 mainly used for?
A: It is mainly used for border sewing of extra-thick mattresses, especially suitable for various double-layer (euro pillow top) mattresses.
Q: What is the maximum mattress thickness the BWB-6 can process?
A: The applicable mattress thickness is 50-700mm (2-27.5 inches).
Q: What are the sewing speed and efficiency of the machine?
A: The maximum sewing speed is 3000r/min, and the work efficiency is 15-20 mattresses per hour (depending on operator skill).
Q: Can the stitch length and trimming stroke be adjusted?
A: Yes, the machine offers 3 adjustable stitch lengths and 3 trimming strokes.
Q: What worktable sizes are available?
A: The standard size is 1600×2000mm, and 1800×2000mm or 2000×2000mm are also available upon request.
Q: Is the stainless steel worktable a standard feature?
A: The stainless steel worktable is optional and requires an additional purchase.
Q: What control system does it use?
A: It uses an AC servo motor + PLC intelligent control system for stable operation and high precision.
Q: How long is the warranty period?
A: The standard warranty period is 1 year for the whole machine.
