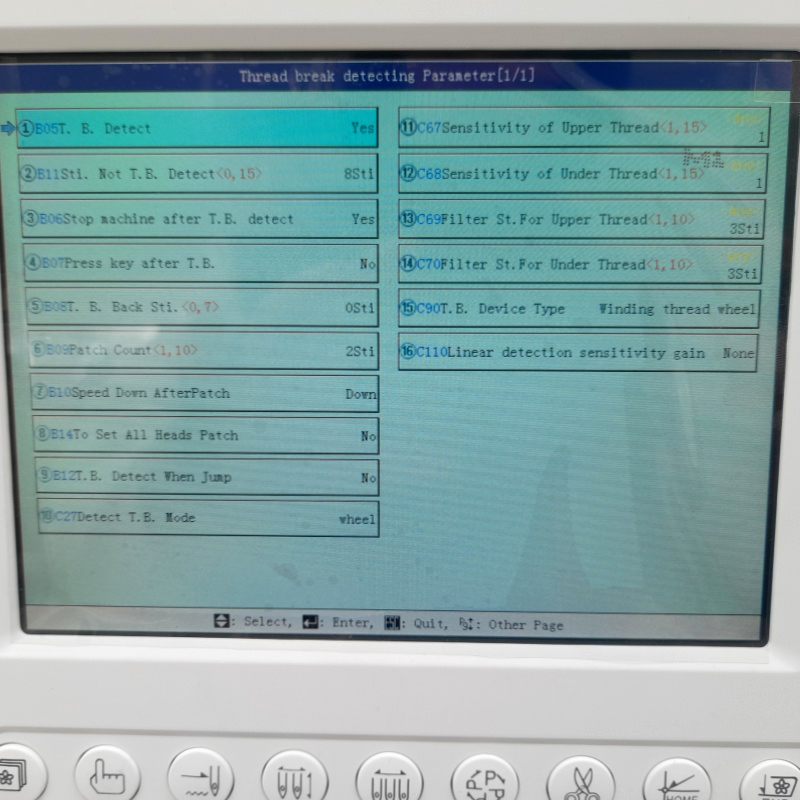

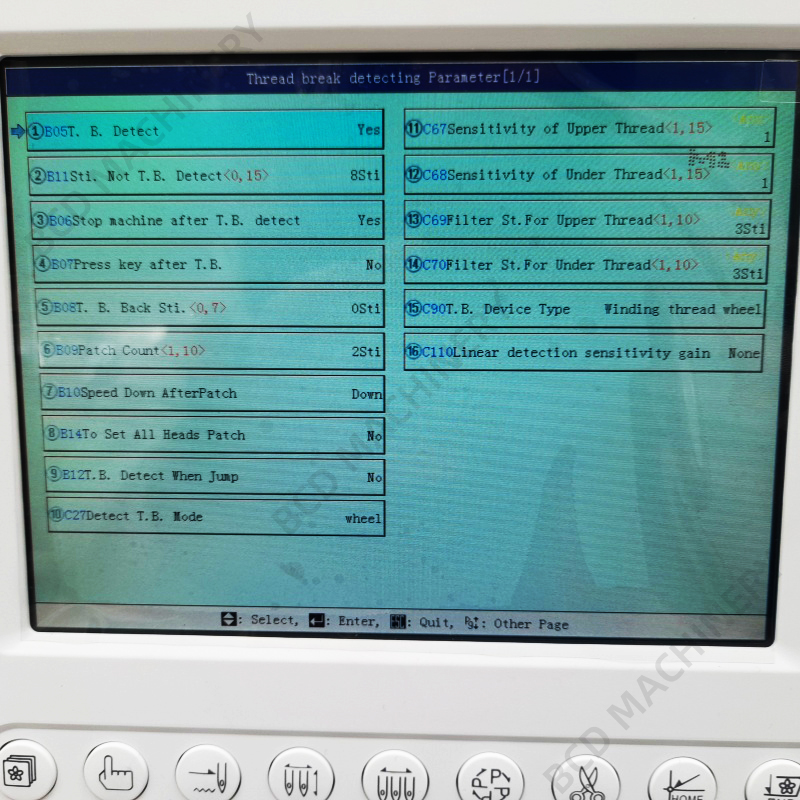

1.The integrated beam structure of the track is sturdy and reduces vibration. 2.Maximum speed 1200rpm, servo motor. 3.Automatic thread trimming, automatic color changing, and automatic thread breakage detection. 4.5-inch high-definition LCD screen, displaying real-time stitching status. 5.USB port enables efficient and reliable design transmission. 6.Pre-sewing design tracking is available. 7.Max.memory capacity: 4,000,000,000 stitches 8.Multiple languages are provided, such as Chinese, English, French, Spanish, Russian, etc. |

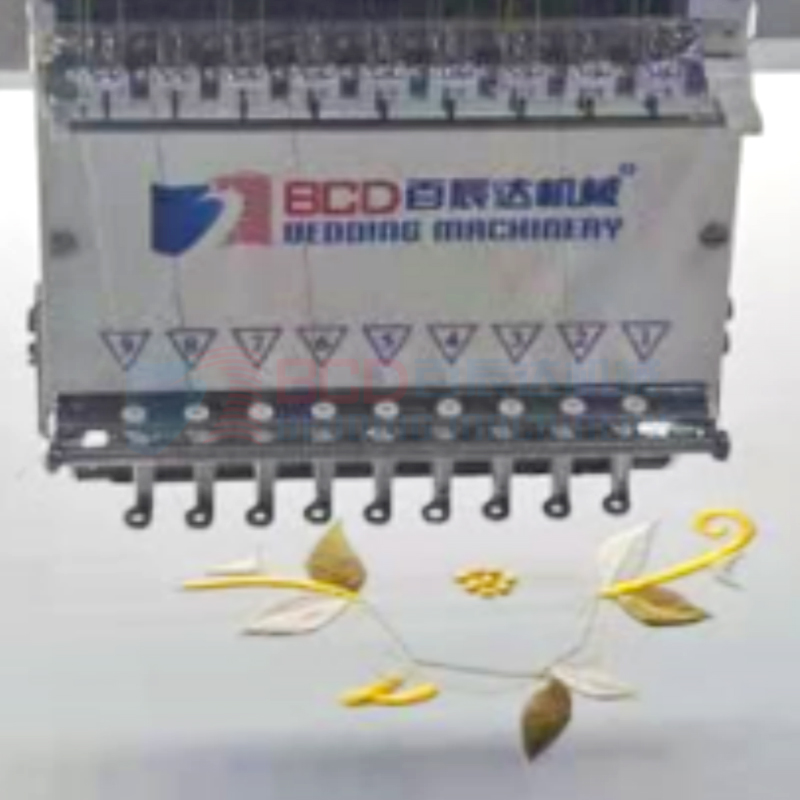

INDEPENDENT PRECISE THREAD CONTROL Each thread position has an independent tensioner + double thread guides. Adjustable per-thread tension fits silk/cotton threads, cutting breakage and ensuring even stitches. |  UPPER THREAD HOLDER Prevents upper thread from slipping out of the needle eye, eliminating thread-dropping issues. |
USER-FRIENDLY OPERATION Visual parameter interface + simple button operation, plus support for "one-click multi-head parameter synchronization", reducing setup complexity and boosting operational efficiency. |
MULTI-COLOR COMPATIBILITY AND LARGE WORKTABLE Supports complex multi-color embroidery and is equipped with a wide worktable to accommodate large-area fabrics, balancing embroidery quality and large-size processing needs. |
▎FINISHED PRODUCT DISPLAY
 |  |  |  |
▎MODEL COMPARISON
WHICH ONE IS MORE SUITABLE FOR YOU ?

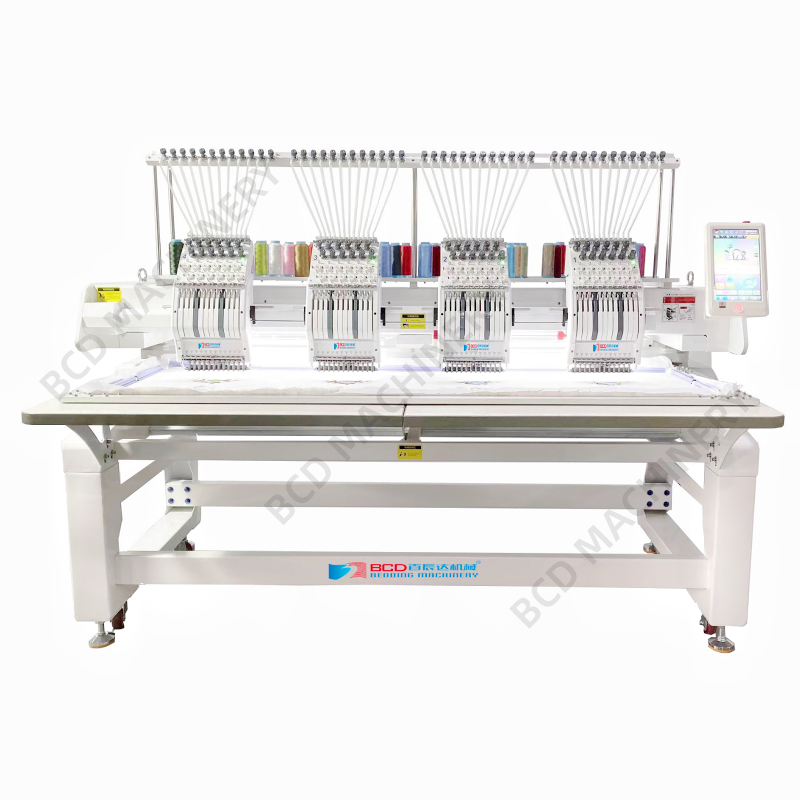

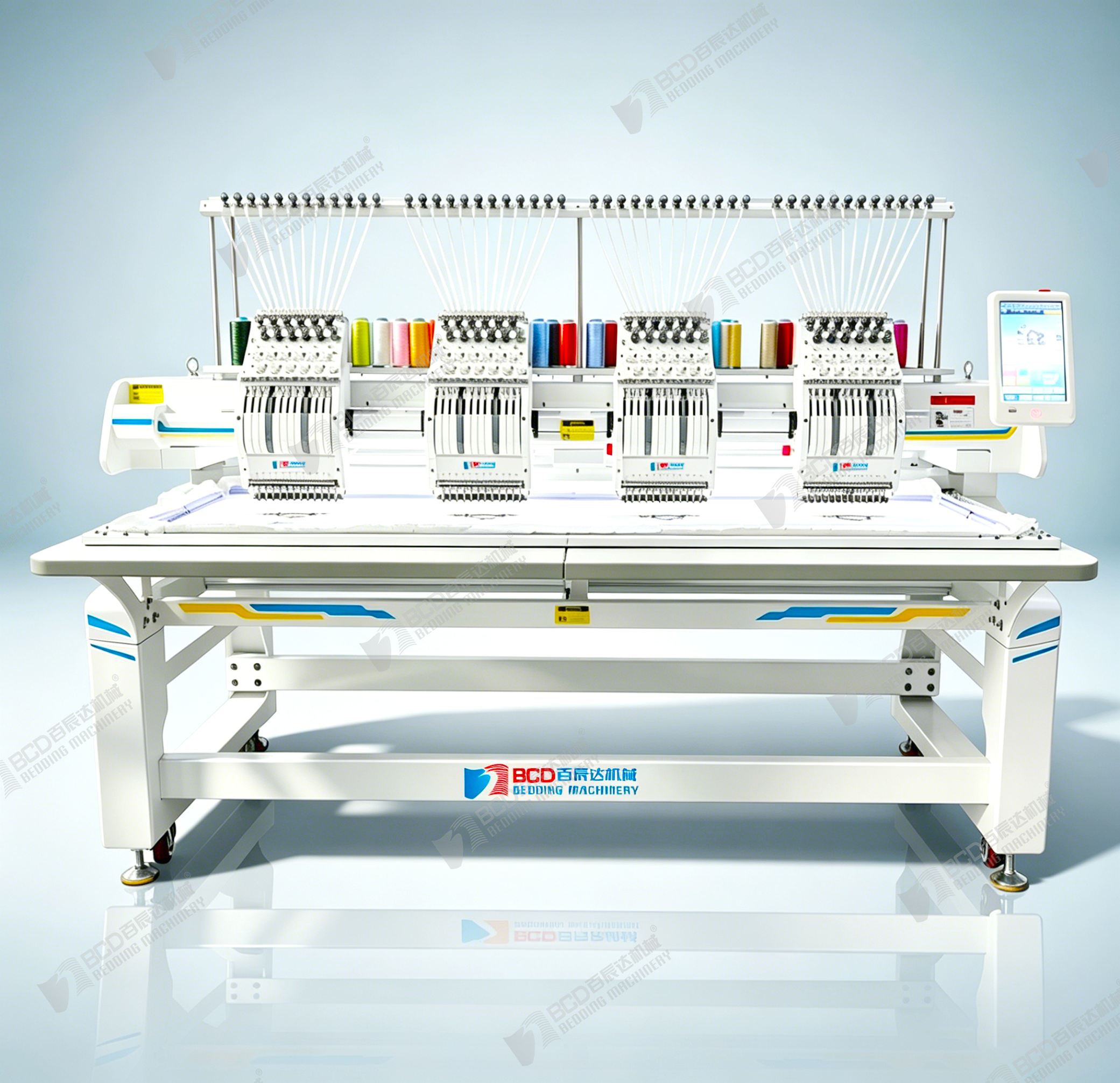

| BXB Mattress Logo Embroidery Machine | |||
| Model No. | BXB-6-9 | BXB-10-9 | BXB-23-9 |
| Max Sewing area | 400*750mm | 300*680mm | 900*1600mm |
| Max color quantity | 9 | ||
| Sewing head distance | 160mm | 350mm | 400mm |
| Needle space | 15mm | ||
| Max.sewing speed | 1000rpm | 1000rpm | 1200rpm |
| Storage capacity | 16,000,000 stitches. | 20,000,000 stitches | 4,000,000,000 stitches |
| Rotary hook origin | Japan | ||
| Thread break detection | Both bobbin and upper threads (Automatic) | ||
| Computer system | 5-inch display | DAHAO 528 SCREEN | |
| Main Motor type | Servo motor | ||
| USB port | YES | ||
| Total Motor power | 1.6kw | 2.0kw | 3.5kw |
| Power Supply | 1 phase,220V/50HZ | ||
| Multi-language support | Russian, English, Spanish, Chinese, French etc. | ||
▎FAQ
Q: What's the maximum number of colors these embroidery machines can support?
A: Each head of the three models is equipped with 9 needles, supporting up to 9 colors. Customization for machines that handle more than 9 colors is available.
Q: Does the embroidery machine support automatic thread break detection?
A: Yes, it can automatically detect thread breaks for both bobbin and upper threads.
Q: Does this embroidery machine support USB import of pattern files?
A: Yes, the device is equipped with a USB port, allowing direct import of external pattern files for more convenient operation.
Q: The 23-head model only has a storage capacity of 4 million stitches,will that be insufficient?
A: 4 million stitches can store most regular patterns. It also supports real-time reading of external files, which is sufficient for most daily production scenarios.
Q: What advantages does a servo motor have over a standard motor?
A: Servo motors operate more stably, produce less noise, and offer higher embroidery precision. They also have better energy efficiency, making them suitable for long-term mass production.
Q: Can the worktable be customized to fit our embroidery size?
A: Yes, but for large-scale customization, please communicate with the manufacturer in advance to confirm device compatibility.
Q: Is after-sales support available if the device malfunctions?
A: After-sales technical support is provided, and the machine comes with a 1-year after-sales warranty.
Q: What is the average manufacturing lead time on products?
A：within about 30 days after receipt of deposit.
