1.Supports custom widths (2.05m/2.4m/2.8m/3.2m, default 1.75m), fits small-batch to mass production. 2.Speed adjustable, matches light/stretchable or heavy/wear-resistant fabrics. 3.Roll diameter 50-280mm adjustable, no extra equipment cost, fits various processes. 4.Accurately record fabric winding length, ensuring each roll meets order standards and reducing raw material waste. 5.Equipped with automatic correction function, ensuring flatness and neatness during fabric winding 6.Equipment adopts 220V single-phase 50Hz power ，complying with conventional power supply standards of most factories. |
▎PRODUCT FEATURES

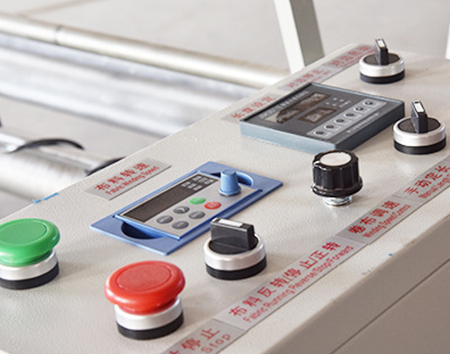

INTELLIGENT CONTROL Precise speed control, support for manual/auto dual modes, flexible response to diverse production requirements. |

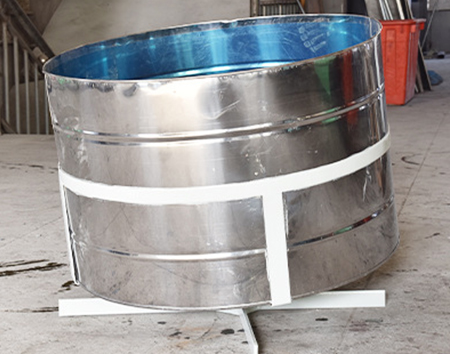

CORROSION-RESISTANT FABRIC ROLLER Thickened stainless steel fabric roller, corrosion and rust resistant; large-diameter roller design, easily bear extra-wide fabrics, smooth and non-slip winding. |

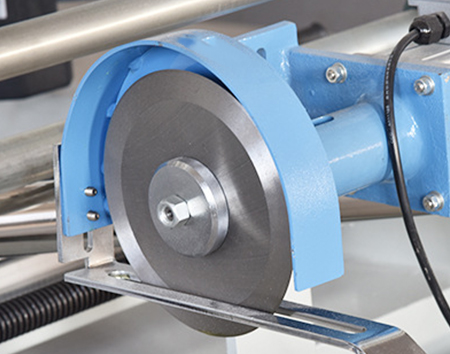

HIGH-SPEED CUTTING Equipped with high-speed wear-resistant alloy blade, smooth and burr-free cutting edge; rolling and cutting completed synchronously, effectively improve production efficiency. |

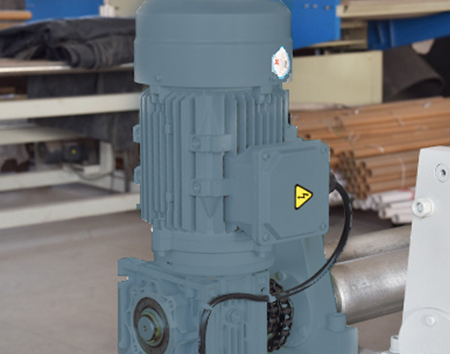

HEAVY-DUTY MOTOR Industrial-grade geared motor, delivers powerful and stable power output, ensures 24-hour uninterrupted and efficient operation of the equipment. |
▎MODEL COMPARISON
WHICH ONE IS MORE SUITABLE FOR YOU ?

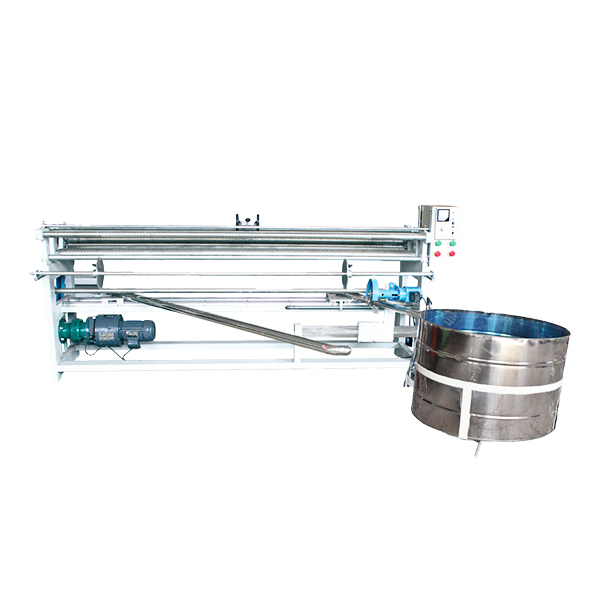

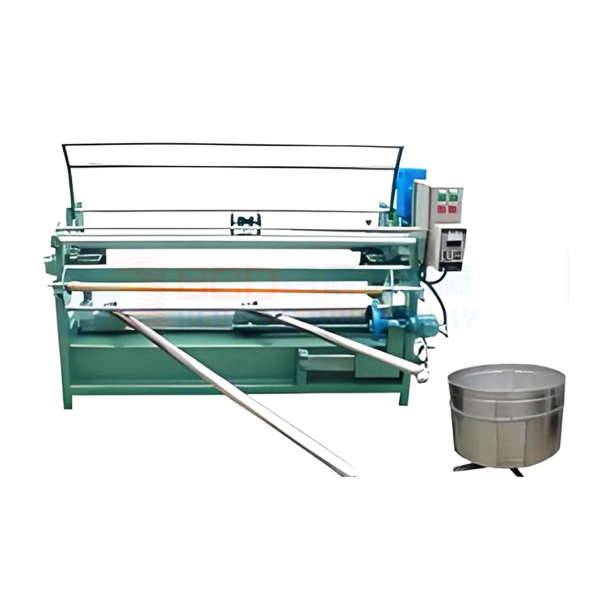

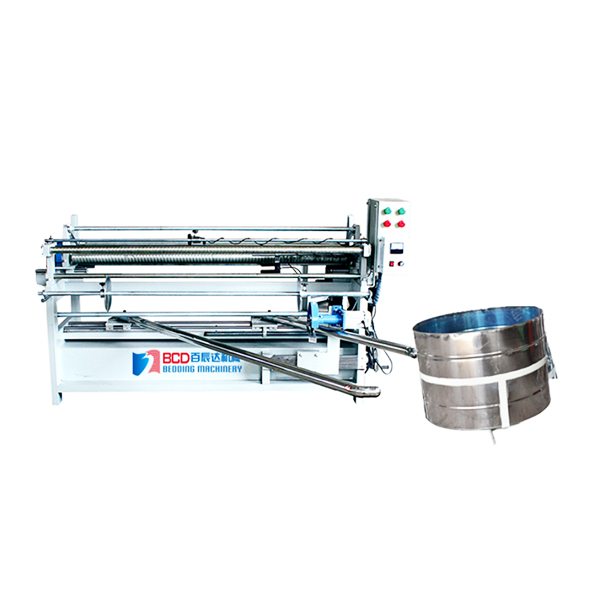

| BXJB Fabric Bias Rolling Machine | |||
| Model no. | BXJB-170 | BXJB-180 | BXJB-175 |
| Max. Cloth width | 1.75m (default; 2.05m/2.4m/2.8m/3.2m optional) | 1.8m (default; up to 3.2m optional) | 1.75m (default; up to 3.0m optional) |
| Rolling Speed | 80M/min (adjustable) | 0-100m/min | 60-90m/min |
| Diameter of Fabric Roll | 50-280mm | 70-300mm | 60-290mm |
| Automatic Length Counter | Yes | Yes | Yes |
| Infrared Automatic Correction | Yes | Yes (laser + infrared) | Yes (infrared) |
| Total Motor Power | 1.5kw | 1.8kw | 1.5kw |
| Electric Power Supply | 220V, Single Phase, 50Hz (others optional) | 220V/380V optional | 220V/380V optional |
| Machine Weight | 380Kg | 450Kg | 420Kg |
| Machine Dimensions | L2550W1050H1300MM | L2700W1100H1400MM | L2600W1080H1350MM |
▎FAQ
Q: Can the equipment meet our daily fabric winding demand of 5,000 meters?
A: Yes. Default winding speed is 80m/min, with a daily capacity of 38,400 meters (80m/min×60min×8h) based on 8 hours of effective operation.
Q: How to ensure each fabric roll meets the order length standard?
A: Equipped with an automatic length counter to accurately record length and avoid manual counting errors.
Q: Does the equipment include auto-correction and length counting functions? Is additional payment required for installation?
A: Both infrared auto-correction and automatic length counting are standard configurations, no extra charge.
Q: Is the fabric winding speed fixed?
A: No, the speed is flexibly adjustable.
Q: Are there other customizable parameters besides fabric width and power supply specifications?
A: Custom solutions are available for special needs (e.g., winding pressure adjustment for special fabrics, custom roll core size, etc.) upon prior communication.
Q: Is the equipment noisy during operation?
A: Low noise, no impact on normal workshop operations. Adopts low-noise motor and optimized transmission structure, with noise controlled within 70dB (meets industrial workshop standards).
Q: What is the after-sales warranty period of the product?
A: The standard warranty period is one year.
