1.It can cut up to 8 foam blocks per single cycle (depending on the model), enabling continuous horizontal cutting of multiple foam blocks and sharply increasing the processing volume per batch. 2.It's cutting thickness (digitally controlled with precision) ranges from 2mm to 150mm, satisfying diverse thickness requirements. 3.The Max worktable diameter of the machine reaches 10.5M (for the BYPQ-100 model), supporting the processing of large-sized foam blocks. 4.It's worktable rotation speed is adjustable (e.g., 0-3.5r/min), adapting to different cutting rhythms. 5.It supports Max cutting density of 150D, making it suitable for processing high-density foam. 6.It features a solid body structure (with a weight of 3300-3800Kg), ensuring stable operation during use. |
▎PRODUCT FEATURES

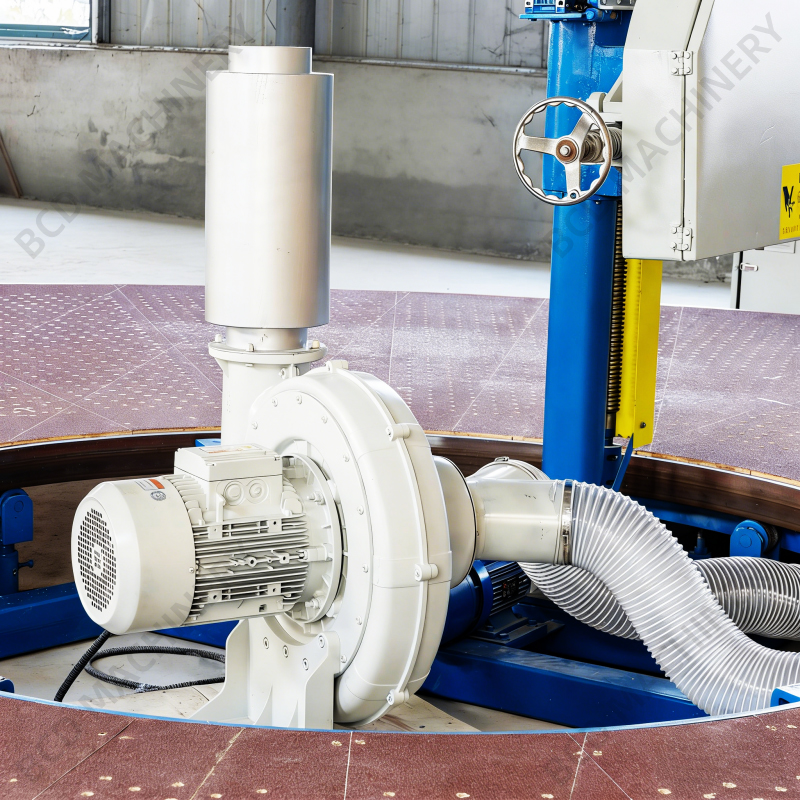

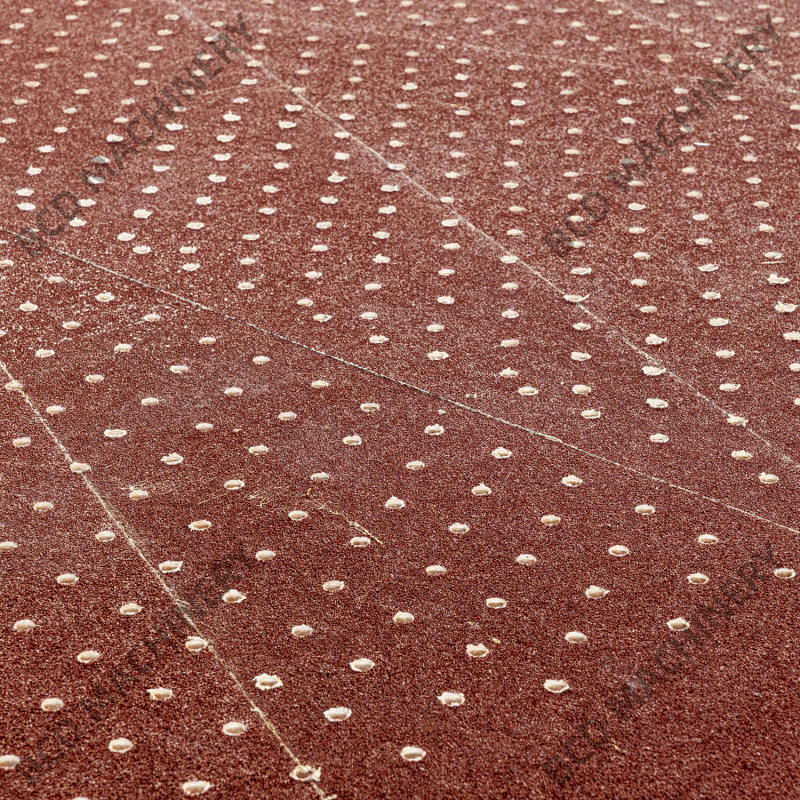

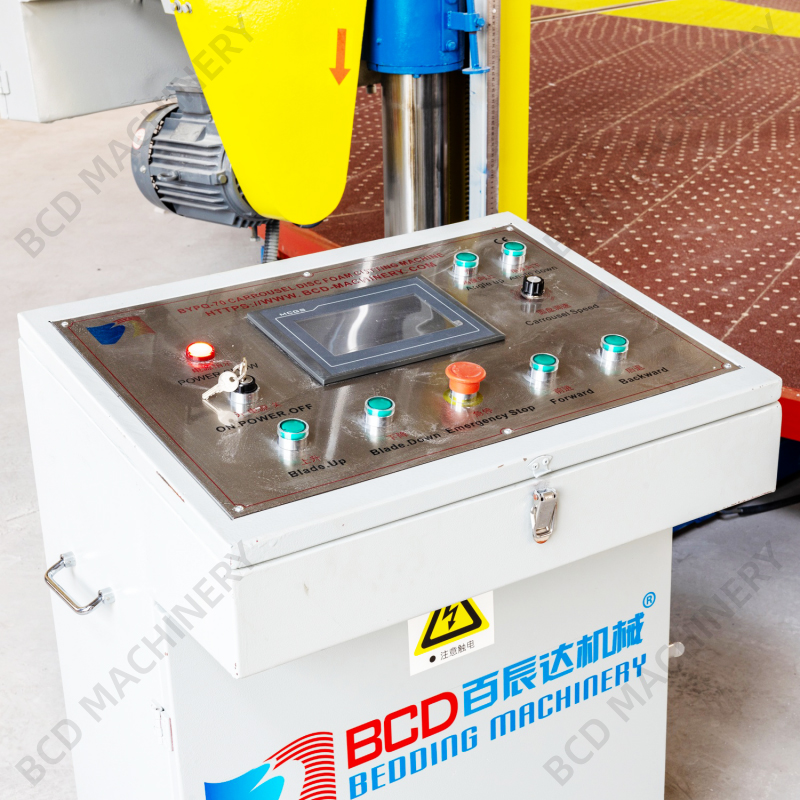

DIGITAL CONTROL PANEL Equipped with touch screen + independent function buttons; flexible speed adjustment, user-friendly operation. |  VACUUM WORKTABLE Frosted-surfaced, it delivers strong grip to firmly secure foam and avoid shifting during cutting, boosting precision. |

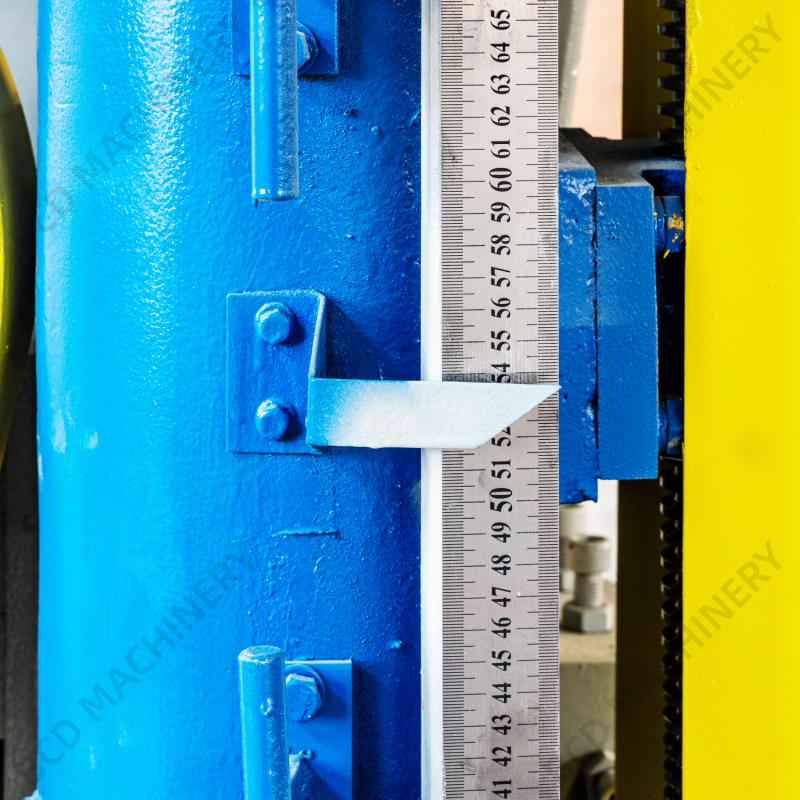

PRECISION SCALE POSITIONING Built-in high-precision scale aids cutting stroke adjustment, cutting manual errors for consistent batch dimensions. |

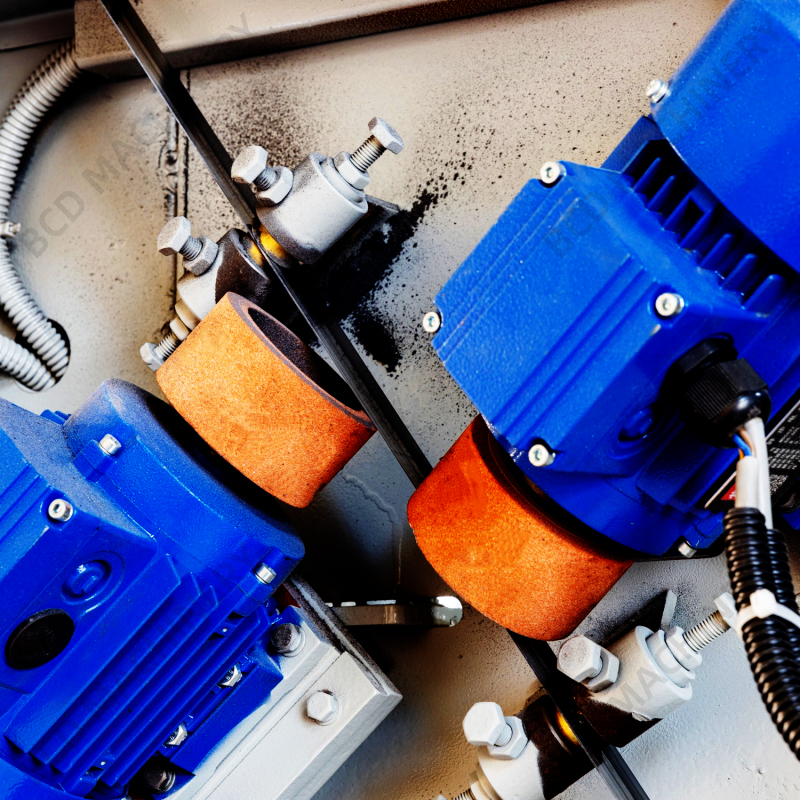

EFFICIENT PROCESSING CONFIGURATION Dual-motor sanding belt enables simultaneous cutting and polishing, minimizing procedures and improving finished product precision. |

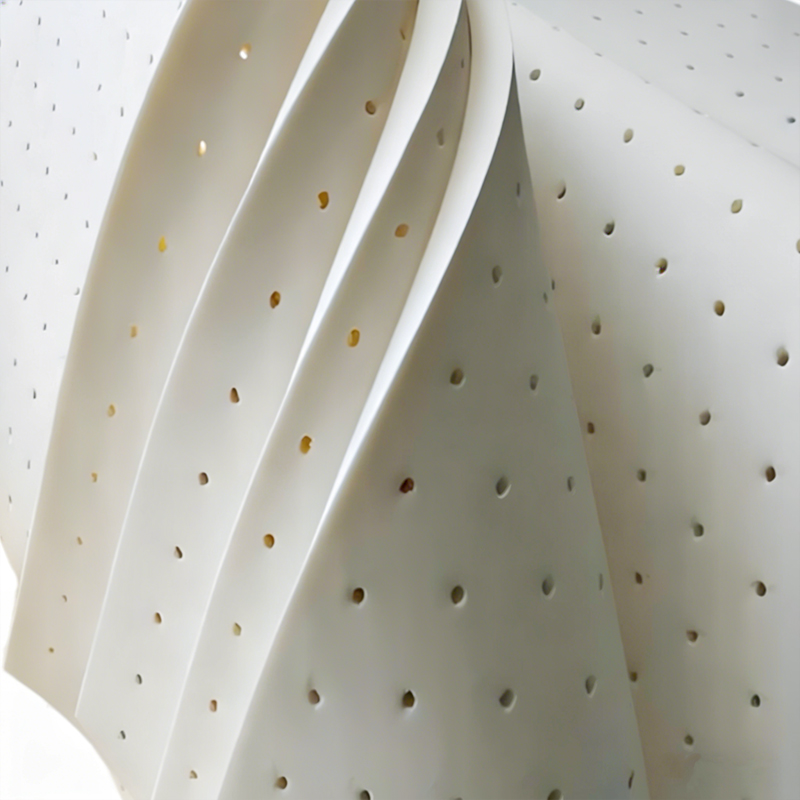

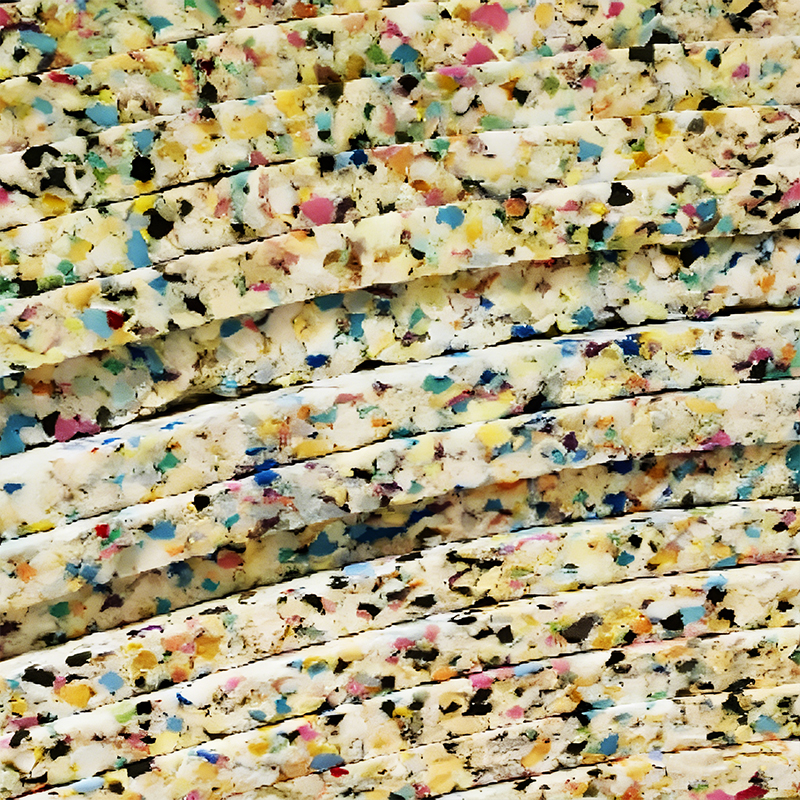

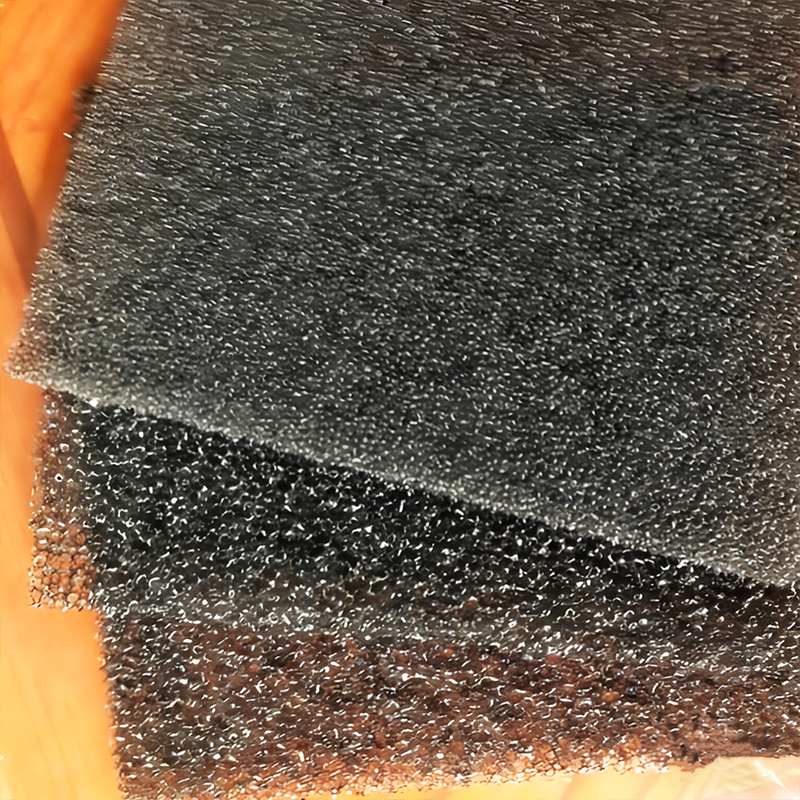

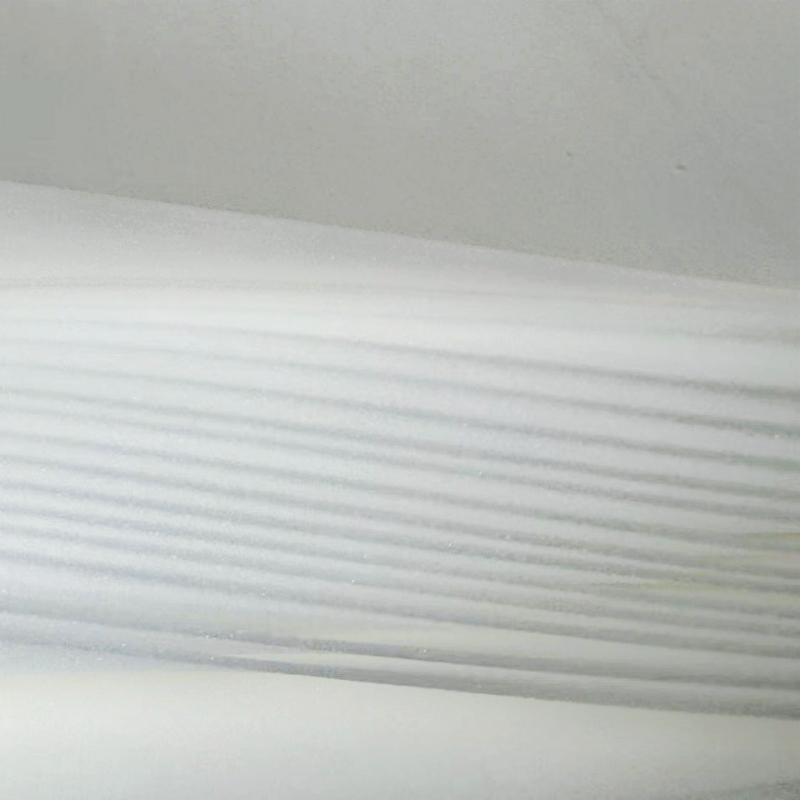

▎FINISHED PRODUCT DISPLAY
 |  |  |  |
▎MODEL COMPARISON
WHICH ONE IS MORE SUITABLE FOR YOU ?

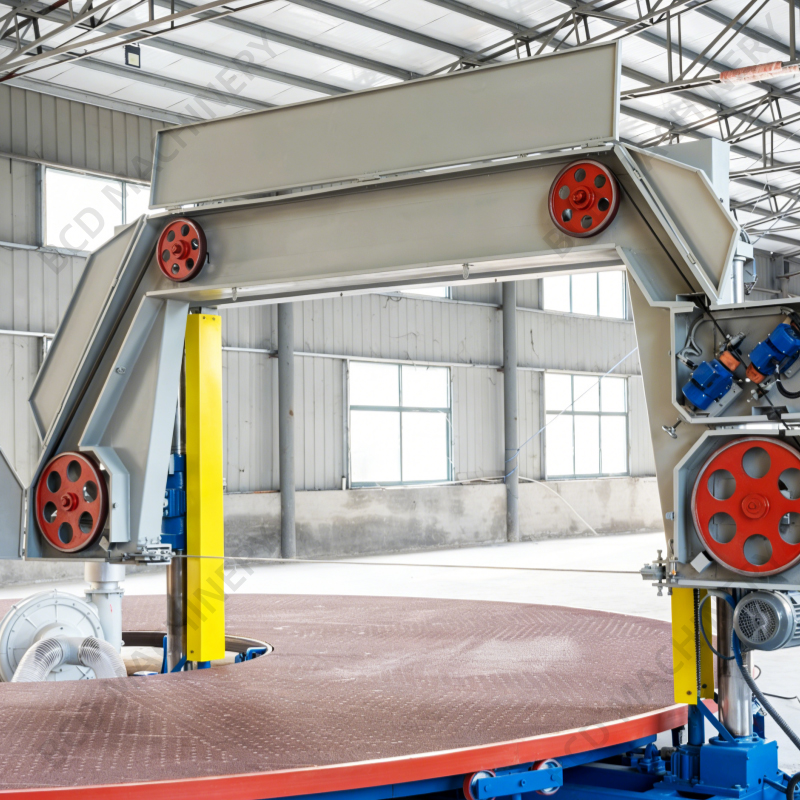

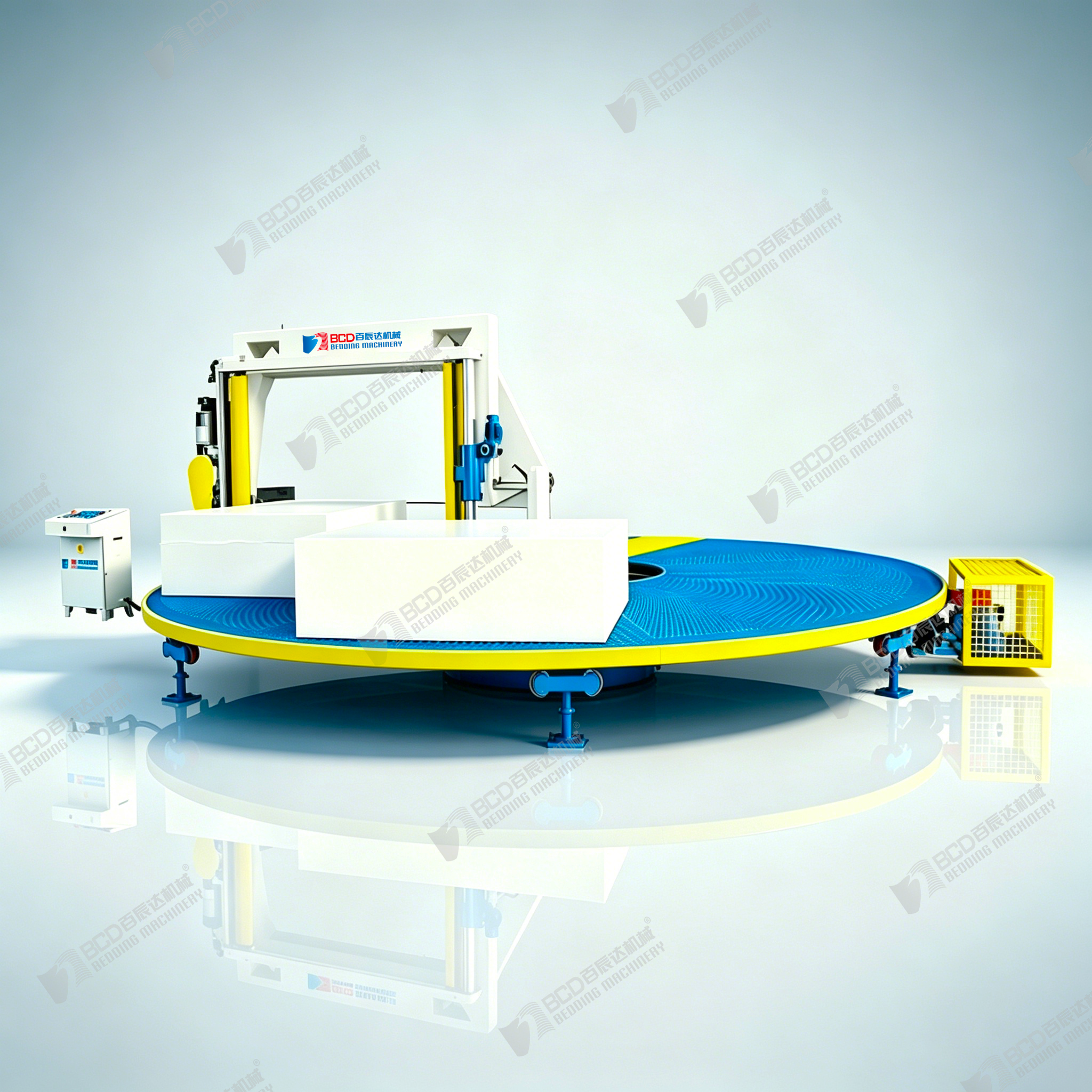

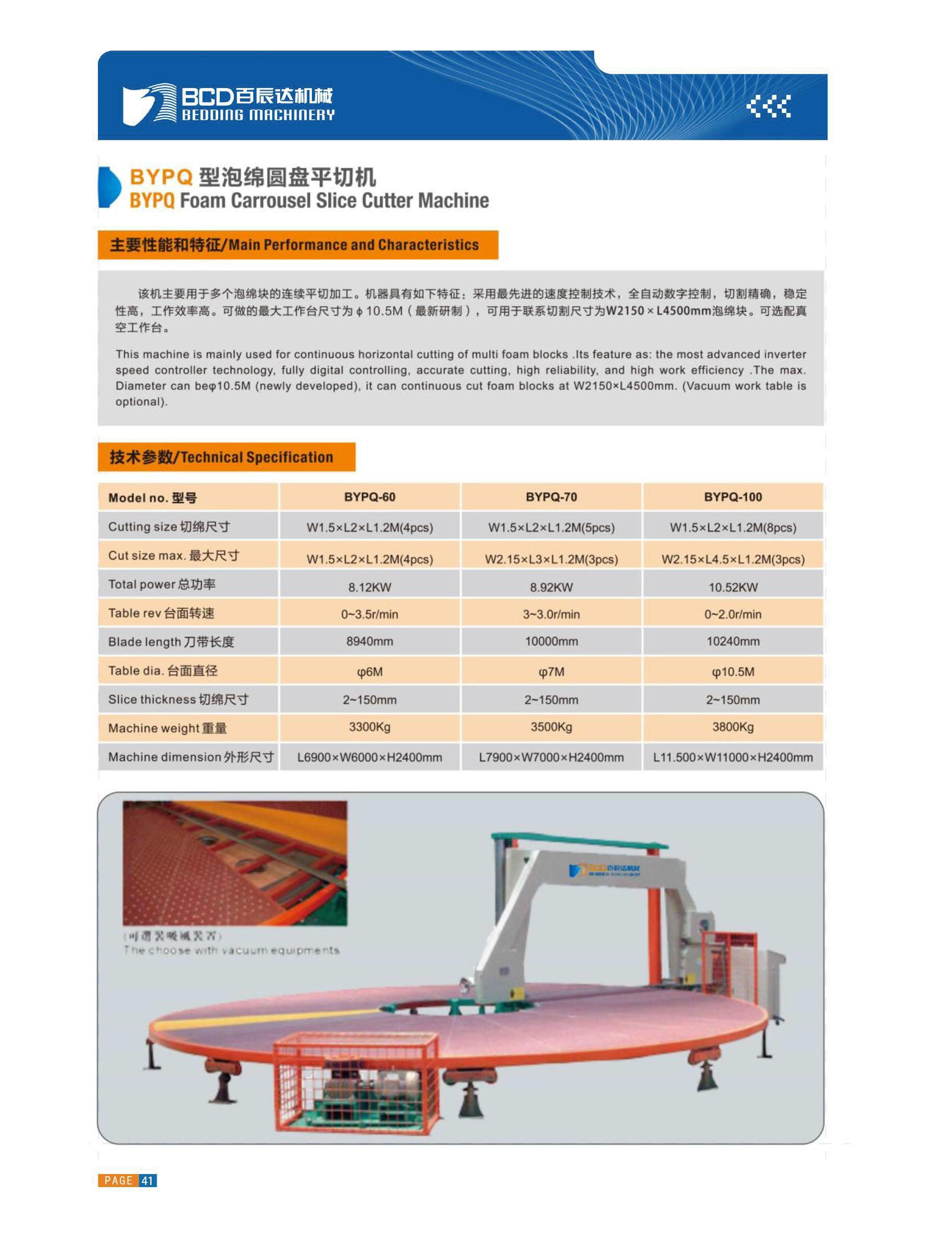

| BYPQ Carrousel Disc Foam Cutting Machine | |||
| Model no. | BYPQ-60 | BYPQ-70 | BYPQ-100 |
| Cutting size | W1.5×L2×L1.2M(4pcs) | W1.5×L2×L1.2M(5pcs) | W1.5×L2×L1.2M(8pcs) |
| Cut size max. | W1.5×L2×L1.2M(4pcs) | W2.15×L3×L1.2M(3pcs) | W2.15×L4.5×L1.2M(3pcs) |
| Total power | 8.12KW | 8.92KW | 10.52KW |
| Table rev | 0-3.5r/min | 3-3.0r/min | 0-2.0r/min |
| Blade length | 8940mm | 10000mm | 10240mm |
| Table dia. | φ6M | φ7M | φ10.5M |
| Slice thickness | 2-150mm | 2-150mm | 2-150mm |
| Machine weight | 3500Kg | 3800Kg | 5800Kg |
| Machine dimension | L6900×W6000×H2400mm | L7900×W7000×H2400mm | L11500×W11000×H2400mm |
▎FAQ
Q: The worktable speed is adjustable between 0–3.5r/min—does it adopt automatic or manual control?
A: It supports both automatic adjustment via the numerical control system
Q: What is the precision of the digitally controlled cutting thickness (2–150mm)? Will there be any deviations?
A: The cutting thickness precision is ±0.1mm, which can guarantee the uniformity of the processed foam dimensions.
Q: What is the machine’s specific cutting efficiency? E.g., how many foam blocks can it cut per hour?
A: For the BYPQ-100 model, cutting standard W1.5m × L2m × T1.2m foam blocks, it can cut 12–15 blocks per hour (varies by thickness), over 1.5 times the efficiency of traditional models.
Q: I need to cut foam to 3mm thickness. Can this machine do it?
A: Yes. The machine’s minimum cutting thickness is 2mm.
Q: How does this machine boost efficiency?
A: Rotating carousel enables multi-block simultaneous/continuous cutting; adjustable table speed — far more efficient than single-block methods.
Q: Does the worktable secure foam during cutting?
A: Yes — vacuum system + special coating (strong grip at high speeds).
Q: How many foam blocks can the machine cut at once?
A: Model-dependent: BYPQ-60 (4 blocks/cycle),BYPQ-70 (5 blocks/cycle), BYPQ-100(up to 8 blocks/cycle).
Q: What is the after-sales warranty period of the product?
A: The standard warranty period is one year
