1. Minimal manual trimming ensures high consistency of product output 2. Equipped with an automatic glue spraying function, featuring uniform and firm gluing 3. Excellent production efficiency with a max capacity of 8 rows/min 4. Supports continuous/intermittent glue dispensing modes to reduce hot melt adhesive costs 5. Built-in movable spring fixing block push slot ensures a flatter bonding surface for pocket spring bed nets 6. Equipped with CE certificate |

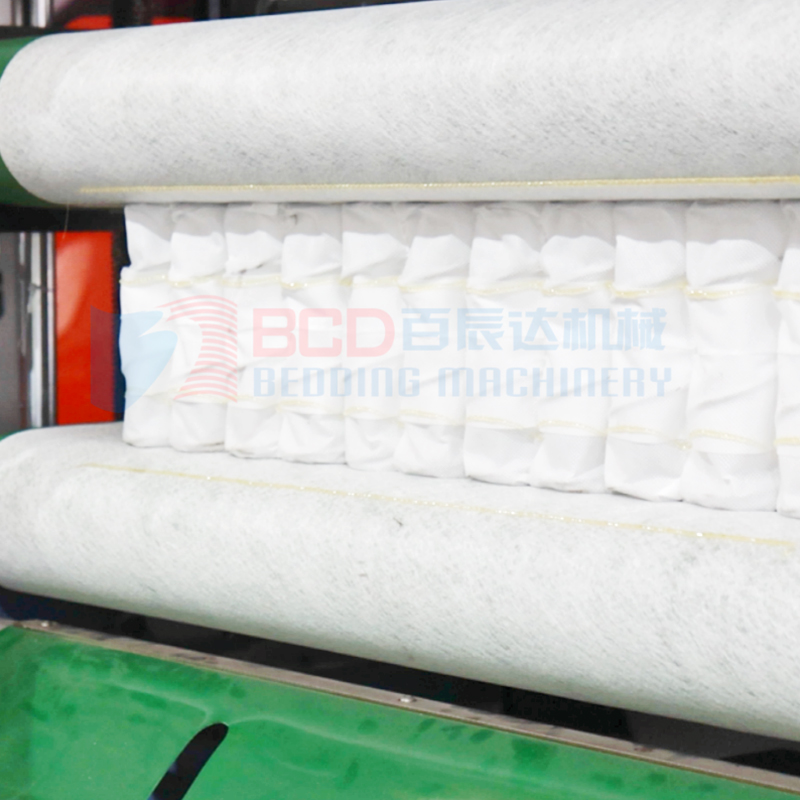

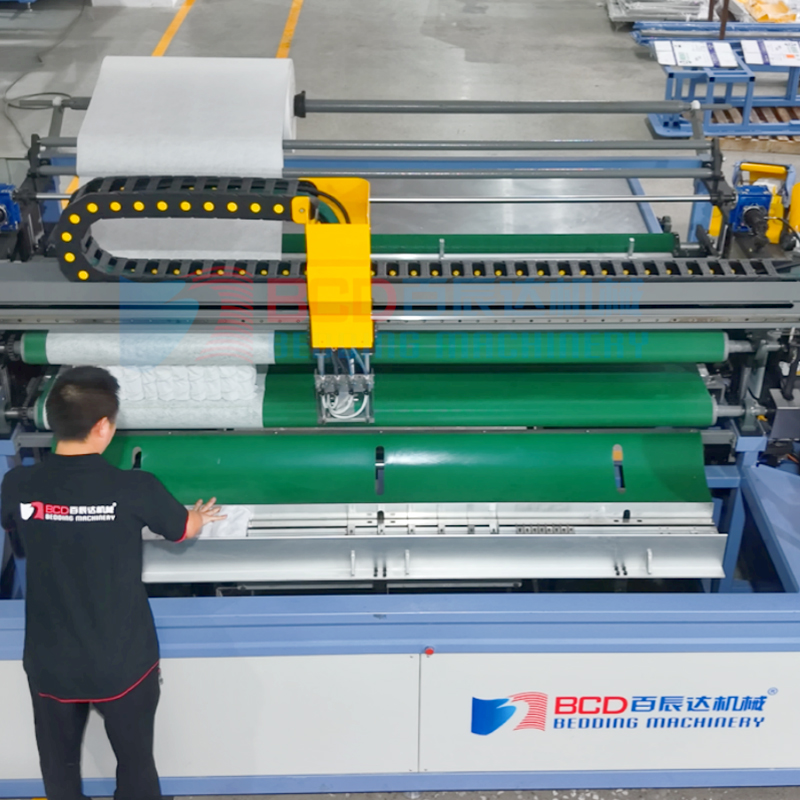

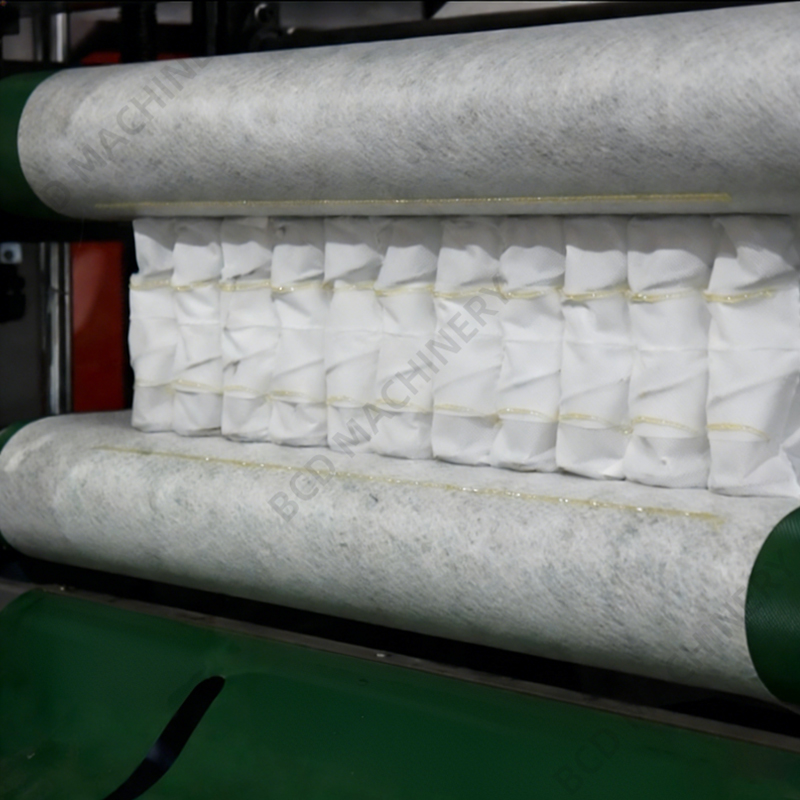

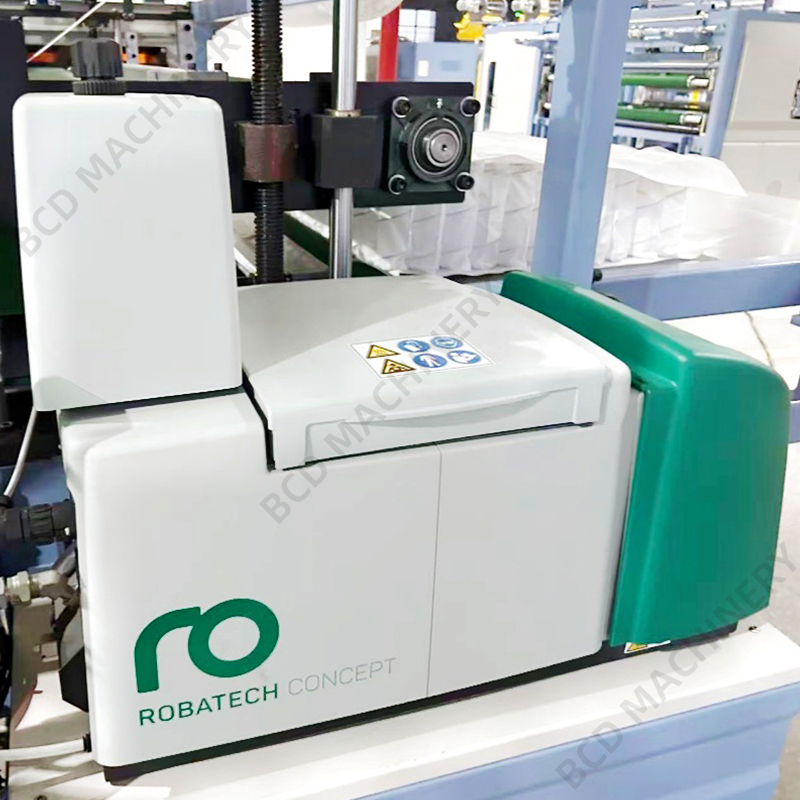

PRECISE & UNIFORM GLUING Delivers intermittent gluing functionality, ensuring even adhesive application while minimizing glue waste. |  AUTOMATED GLUING Automatically completes the gluing process; spring arrangement and gluing positions are consistent, resulting in highly neat finished products. |

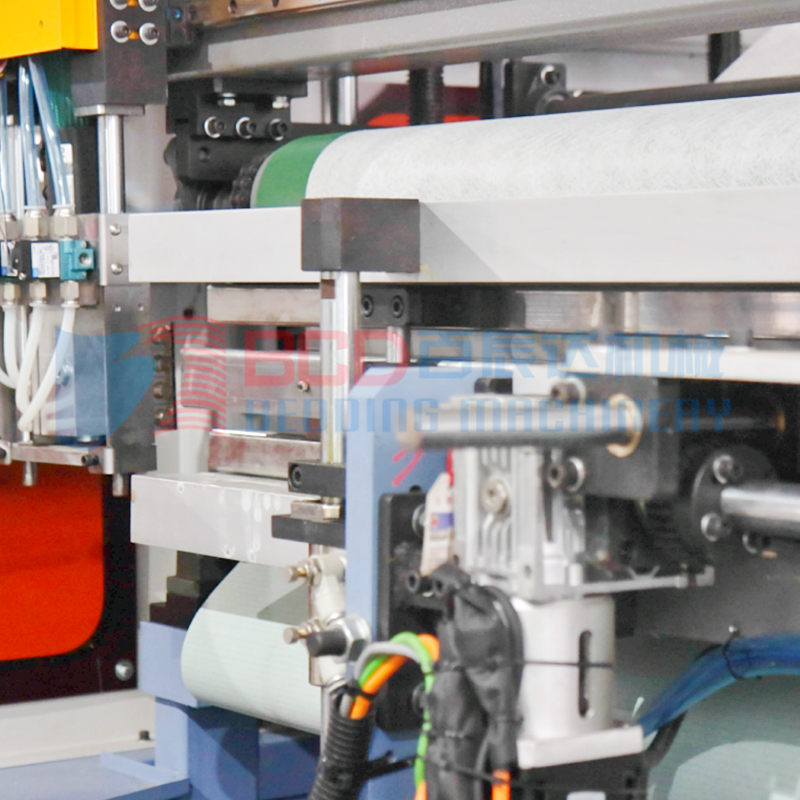

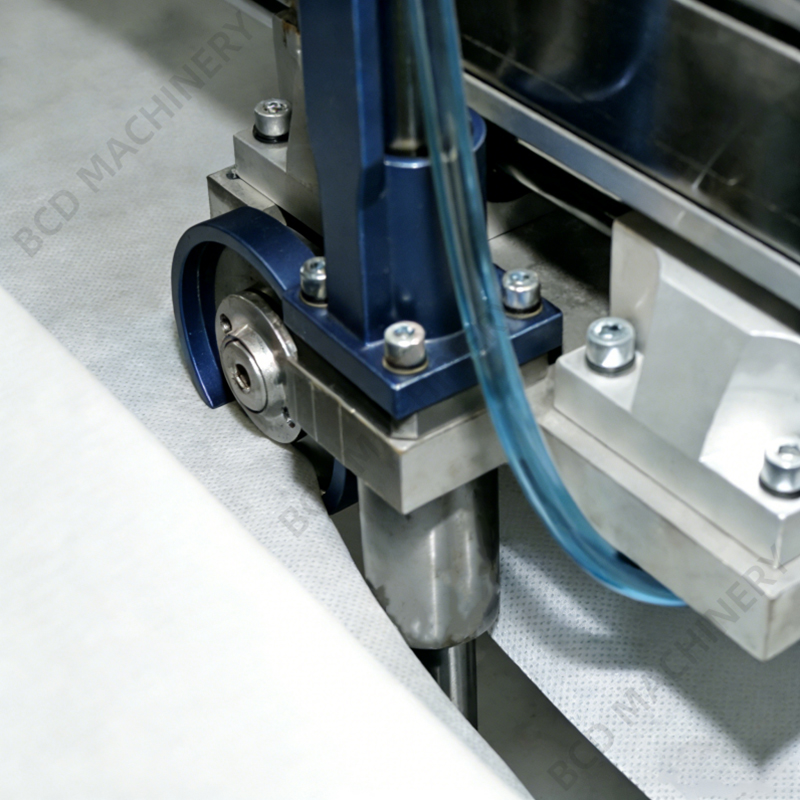

INTELLIGENT ELECTRIC CUTTING DEVICE Equipped with a synchronous and neat cutting module for upper and lower layers, it can complete precise cutting without manual intervention, significantly reducing product scrapping caused by human operation. |

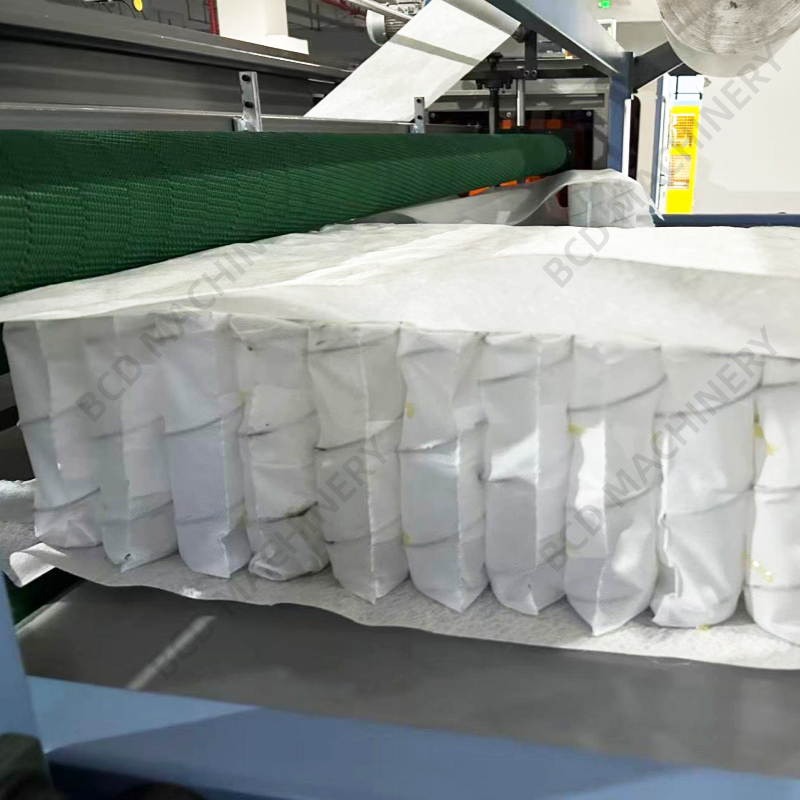

EFFICIENT & STABLE OUTPUT Batch-produced pocket springs feature uniform size and bonding strength, free from loosening or misalignment issues. |

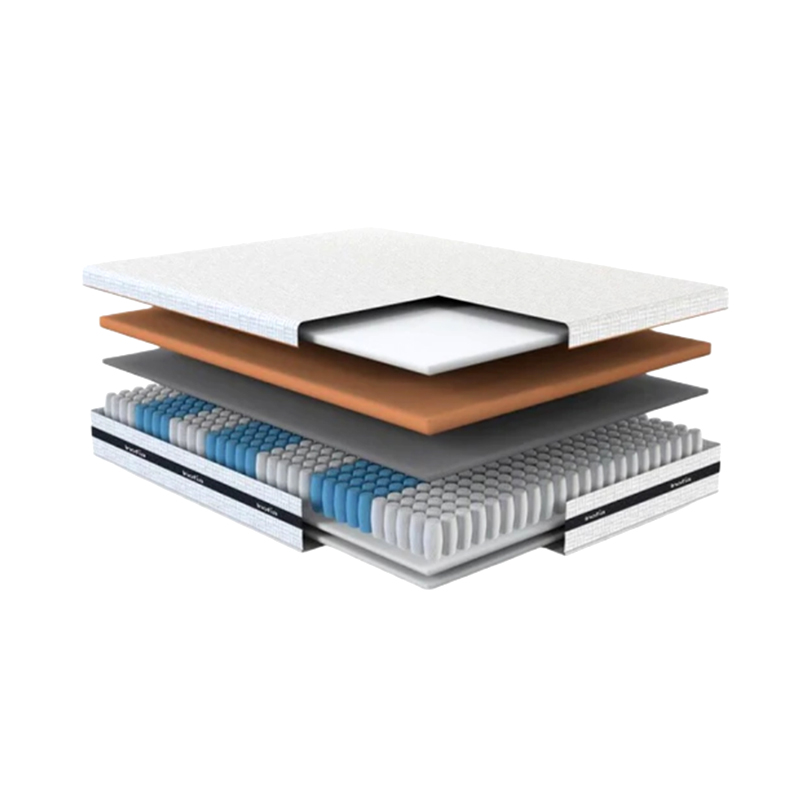

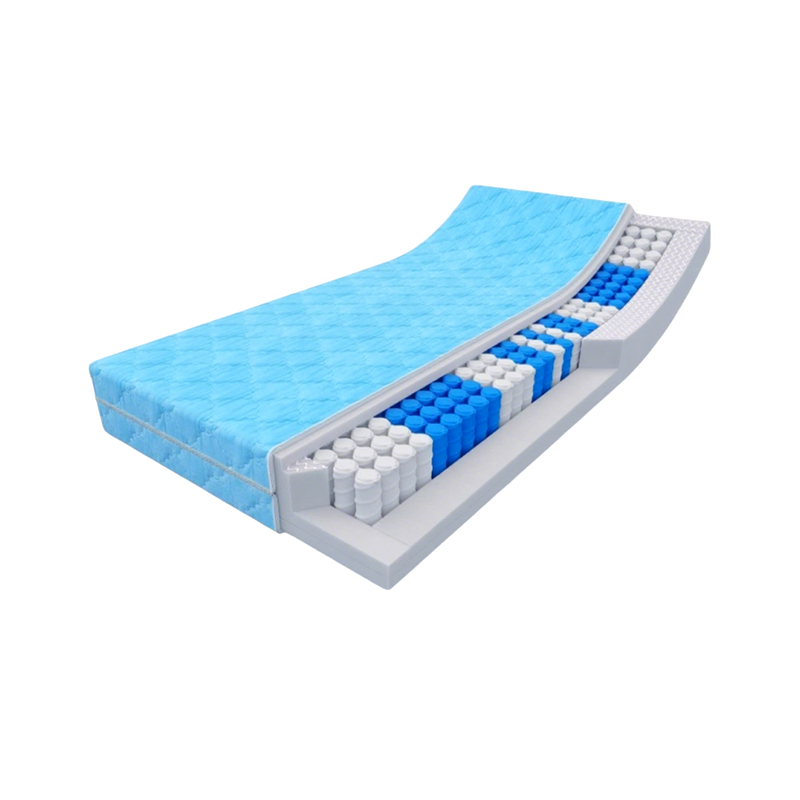

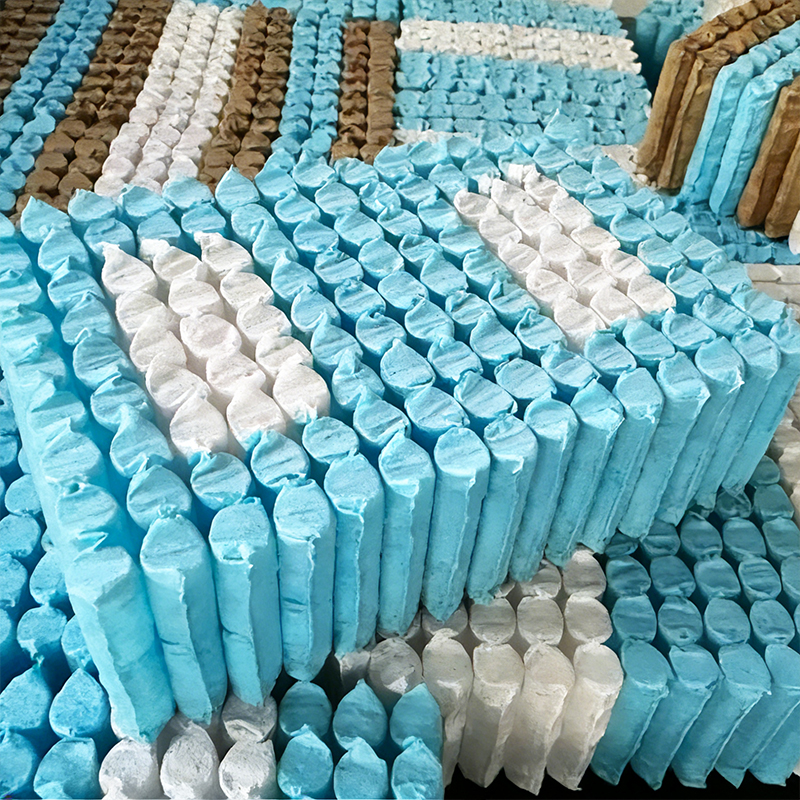

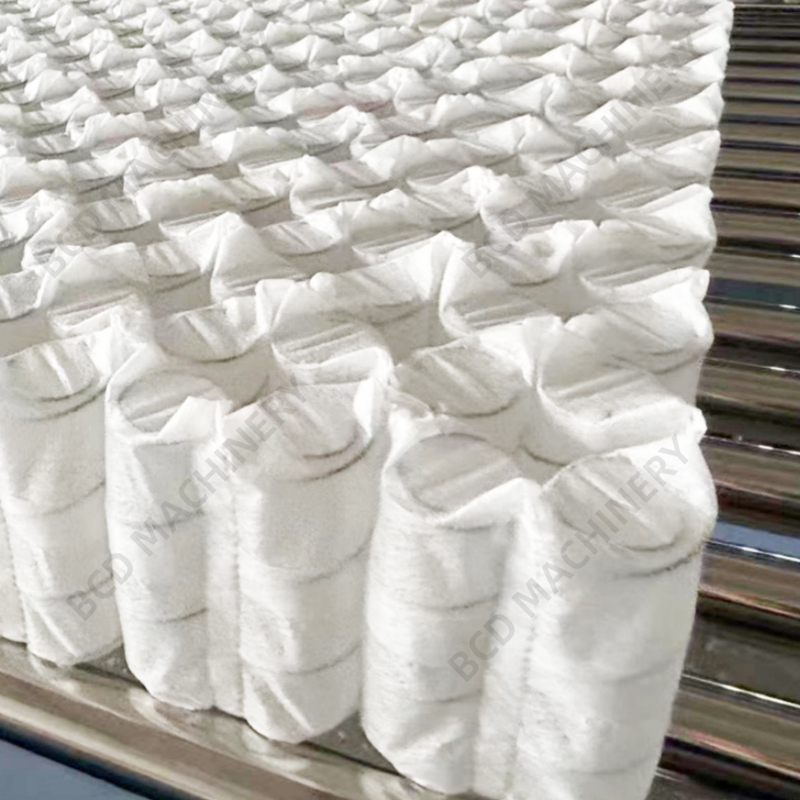

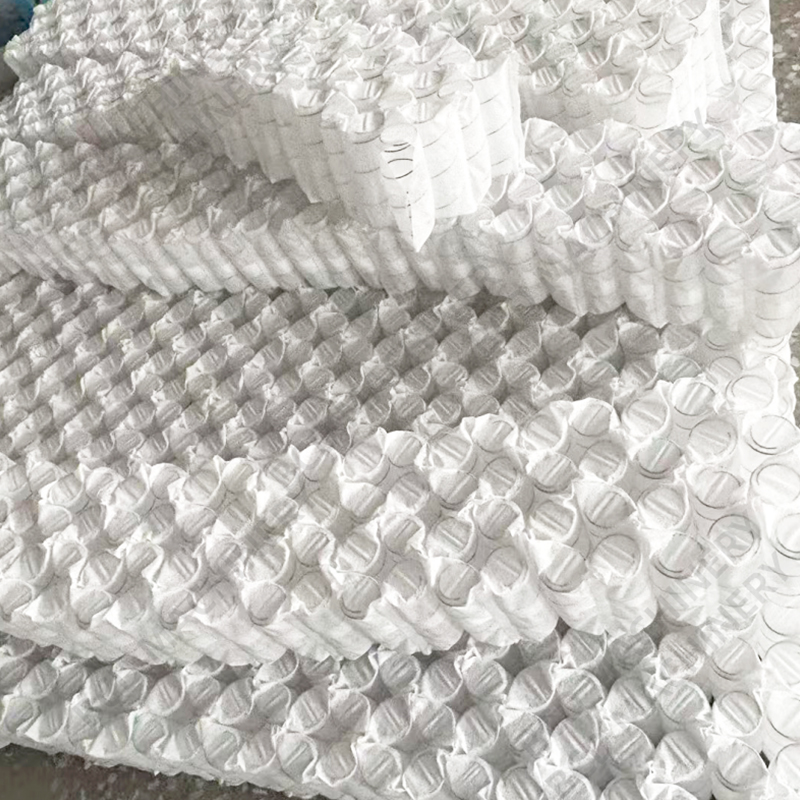

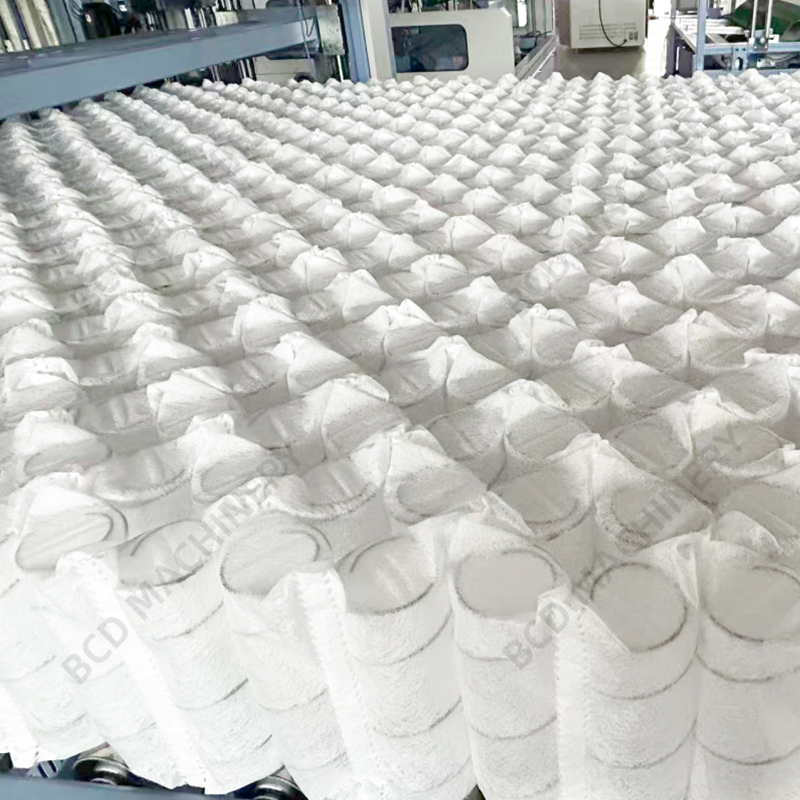

▎FINISHED PRODUCT DISPLAY
 |  |  |  |
▎MODEL COMPARISON
WHICH ONE IS MORE SUITABLE FOR YOU ?

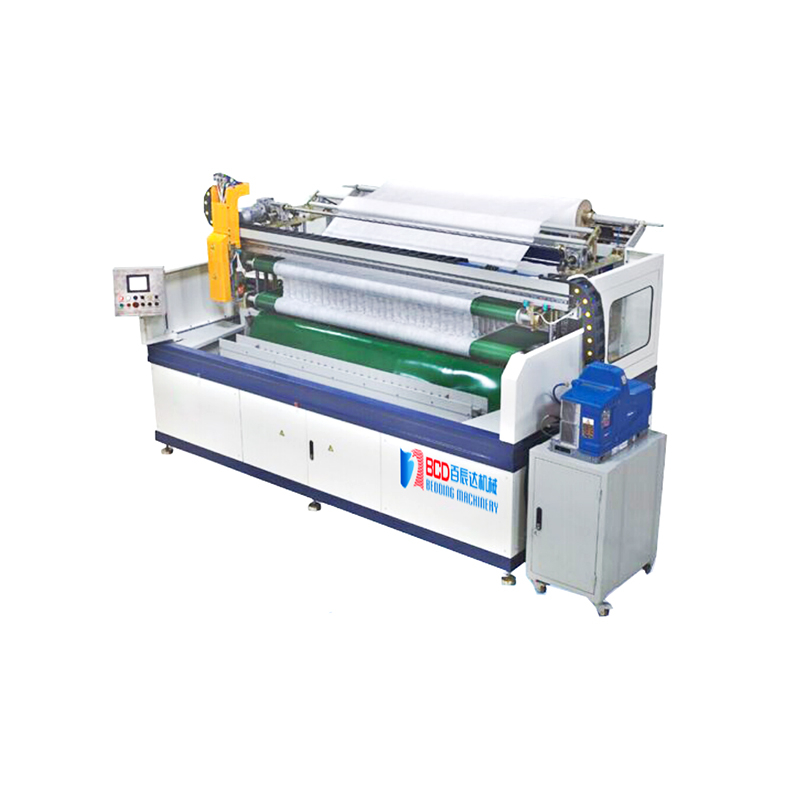

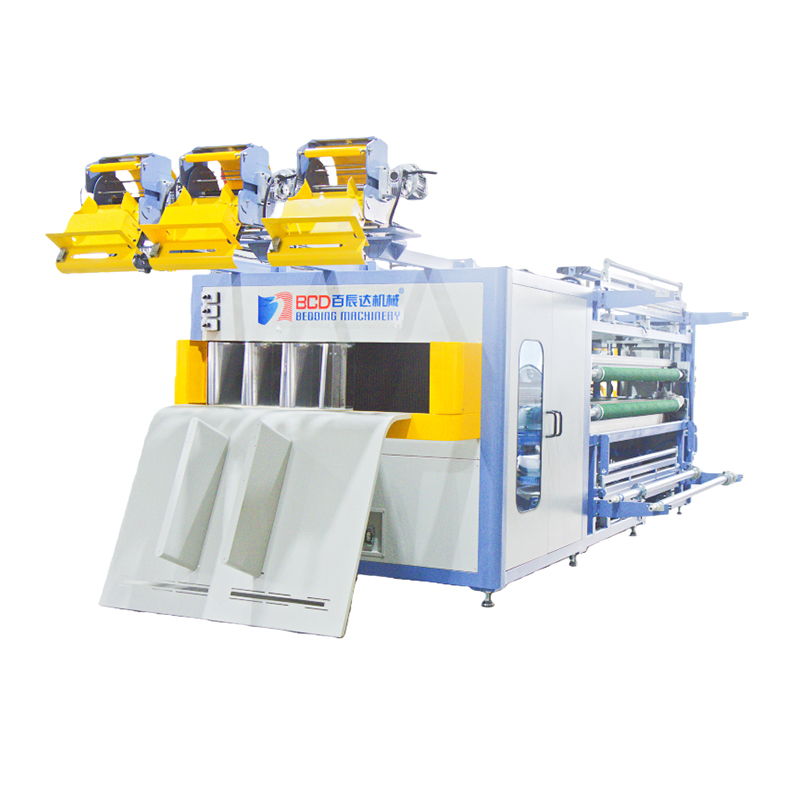

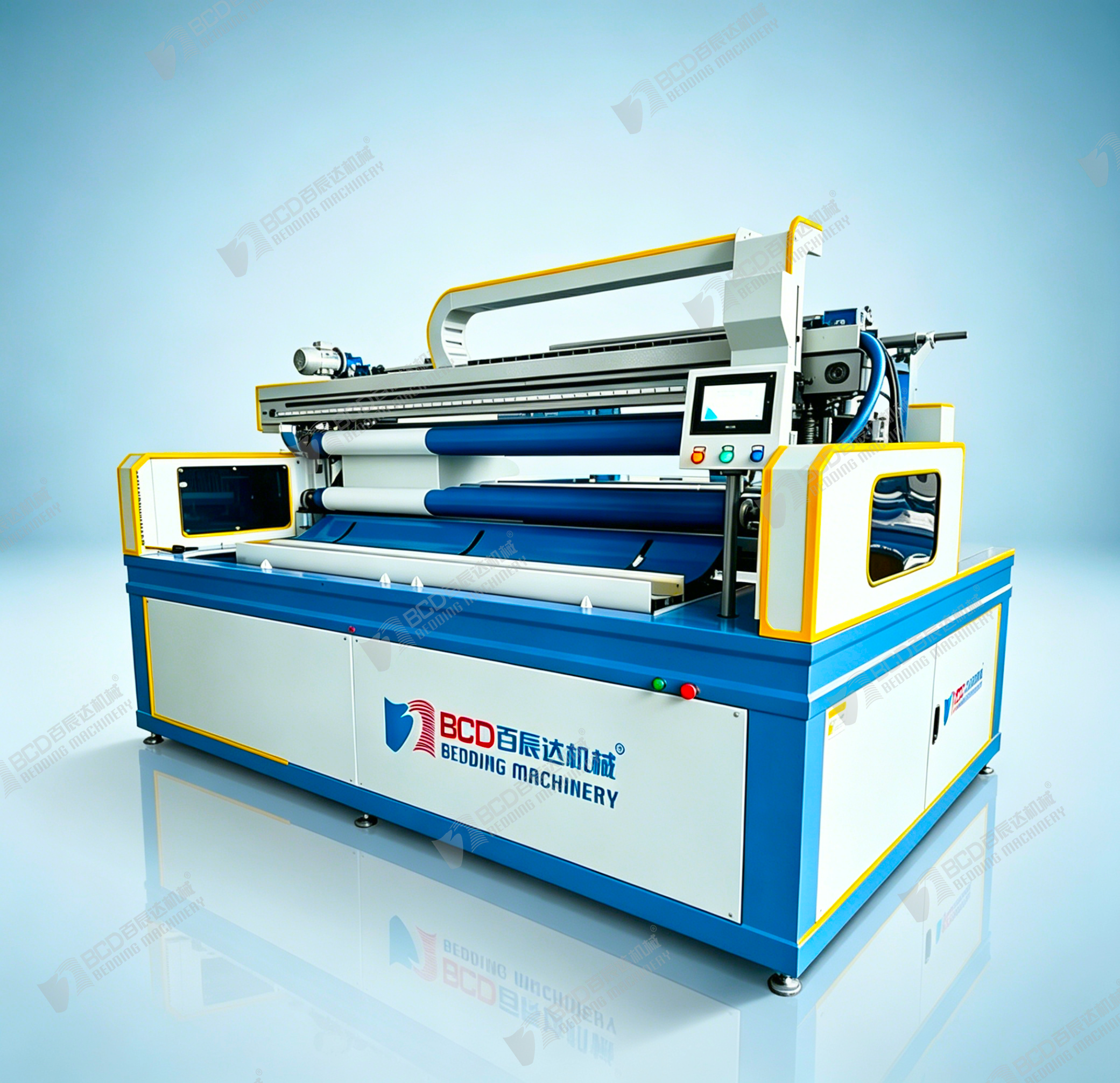

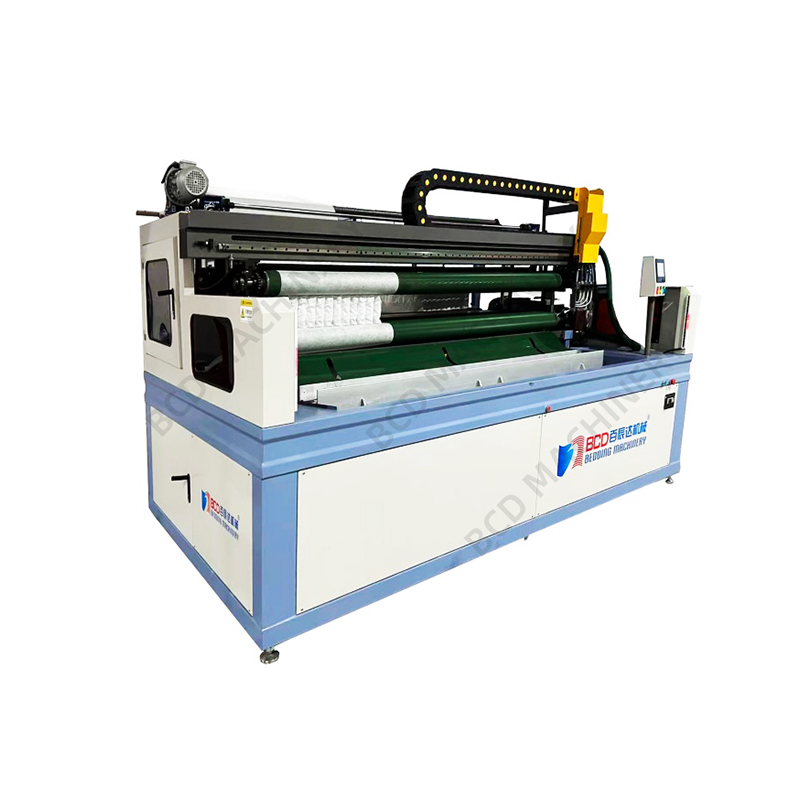

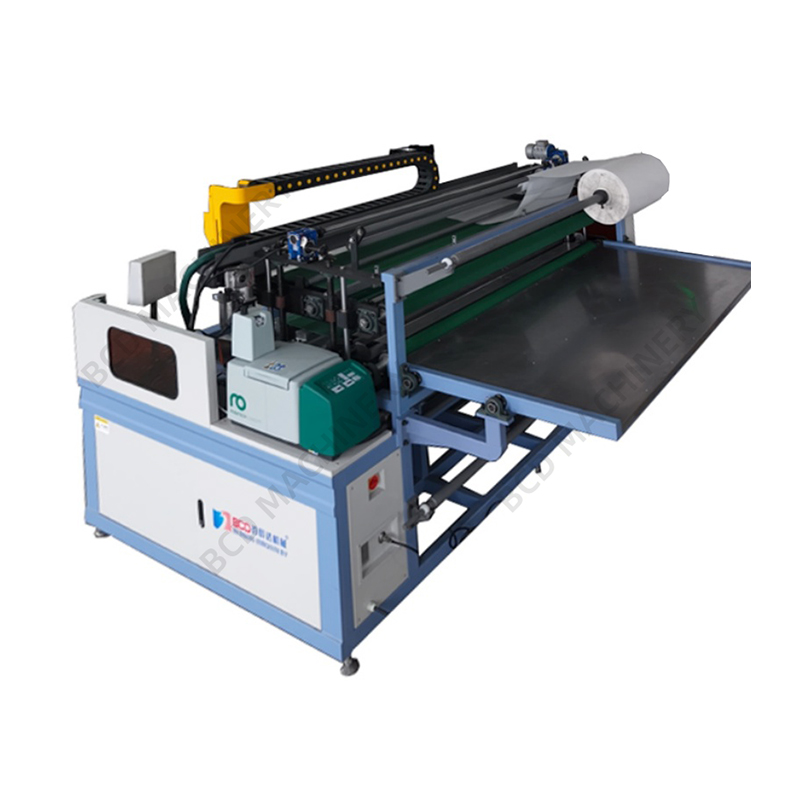

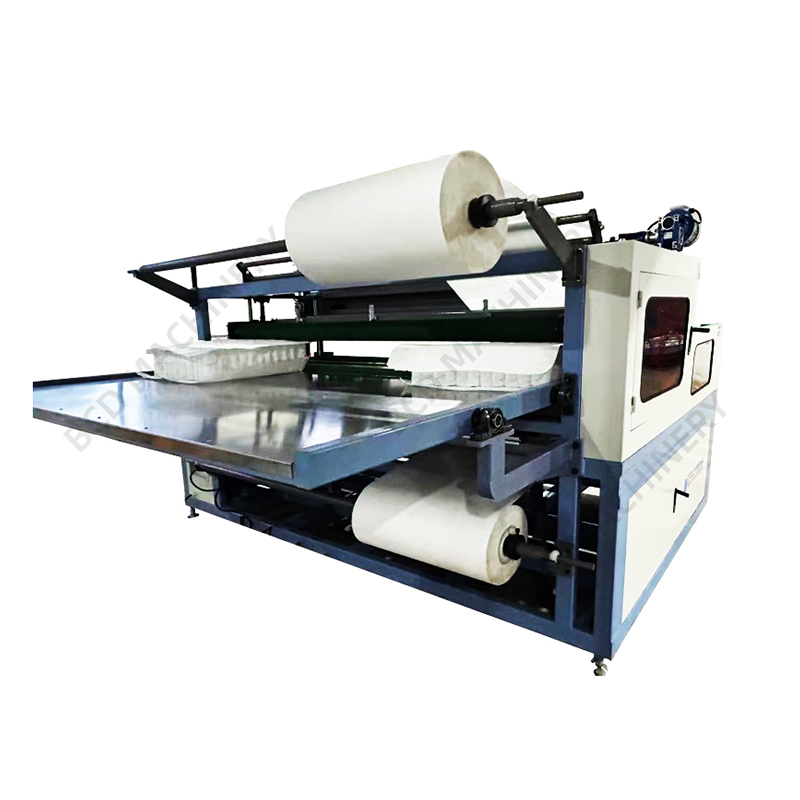

| BZBH Pocket Spring Glue Assembling Machine | |||
| Model No. | BZBH-400 | BZBH-300 | BZBH-8 |
| Available spring dia | φ45-80mm | φ45-80mm | φ55-72mm |
| Spring height | 100-400mm | 100-300mm | 60-220mm or 120-300mm |
| Fabric width | 450-2200mm | 450-2200mm | 300-22000mm |
| Non-woven thickness | 70-100g/m^2 | 70-100g/m^2 | 50-150g/m^2 |
| Work efficency | 3min/net | 2min/net | 8rows/min |
| Machine power | 20kw | 20kw | 4.0KW |
| Air source | 0.6MPa,0.4M^3/min | 0.6MPa,0.4M^3/min | 0.8MPa,1.5M^3/min |
| Machine weight | 5200kg | 8000kg | 2200kg |
| Machine size(L*W*H) | 7800*3730*2600mm | 9650*3500*2450mm | 3300*1650*1800mm |
▎FAQ
Q: What control system does the BZBH use?

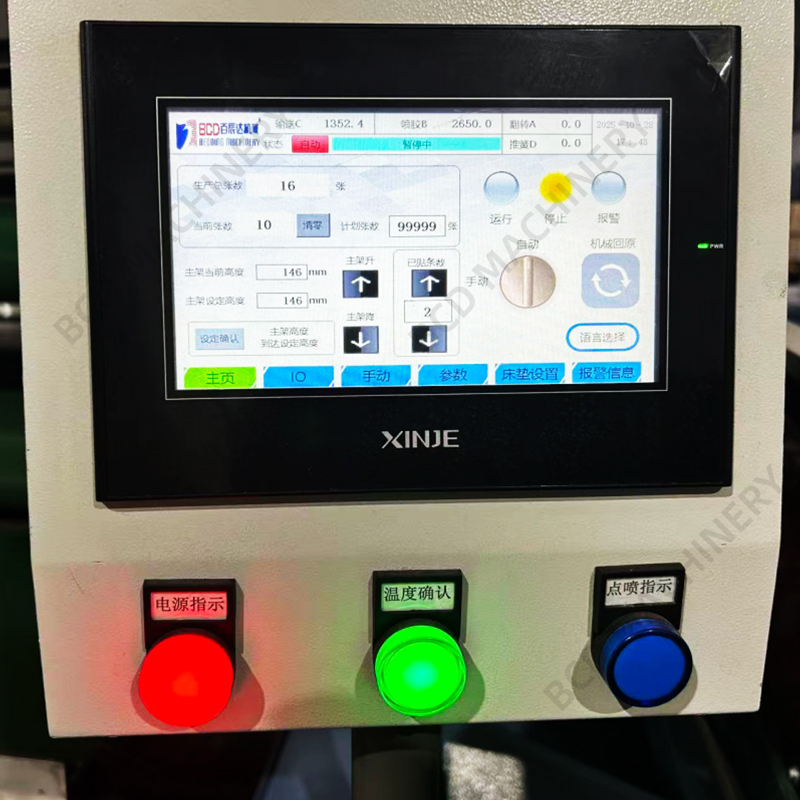

A: The machine adopts PLC system with servo control for the glue-spraving point,providing high automation.
Q: What spring and fabric specs does this machine support?
A: It works with springs (dia: 55-72mm; height: 60-220mm or 120-300mm), fabrics (width: 300-22000mm), and non-wovens (50-150g/m²) — fits most mattress/soft furniture spring gluing needs.
Q: What setup (power, air, etc.) does it need?
A: Requires 4.0KW power, 0.8MPa air (1.5m³/min flow). Machine size: L3300×W1650×H1800mm — reserve space.
Q: Which model can make springs with a height of 400mm?
A: The BZBH-400 model supports this, with a spring height range of 100-400mm.
Q: What is the applicable fabric width range for BZBH-400 and BZBH-300?
A: Both support a fabric width range of 450-2200mm, covering regular mattress sizes.
Q: Is maintenance costly? What daily care is needed?
A: Low maintenance. Key tasks: ① Lubricate linear sliders monthly; ② Drain water from air pipes/cylinders regularly; ③ Replace cutters/nozzles as needed. Core parts last ≥2 years with proper care.
Q: What is the average manufacturing lead time on products?
A: Within 30 days after receipt of deposit.
Q: What is the after-sales warranty period of the product?
A: The standard warranty period is one year
