1.0.6-0.8MPa adjustable air pressure, stable output for firm, leak-proof and non-loose pillow sealing 2.1200*800mm spacious worktable for easy operation; 1.2kW low-power motor saves energy 3.Designed for pillows, adapts to all sizes and thicknesses, meets diverse textile production needs 4.Rated capacity 180pcs/h, stable output maintained during continuous operation 5.Integrated control design, no professional training required, lowers labor costs 6.Regular overall dimensions, flexible workshop layout for production lines or standalone workstations |
▎PRODUCT FEATURES

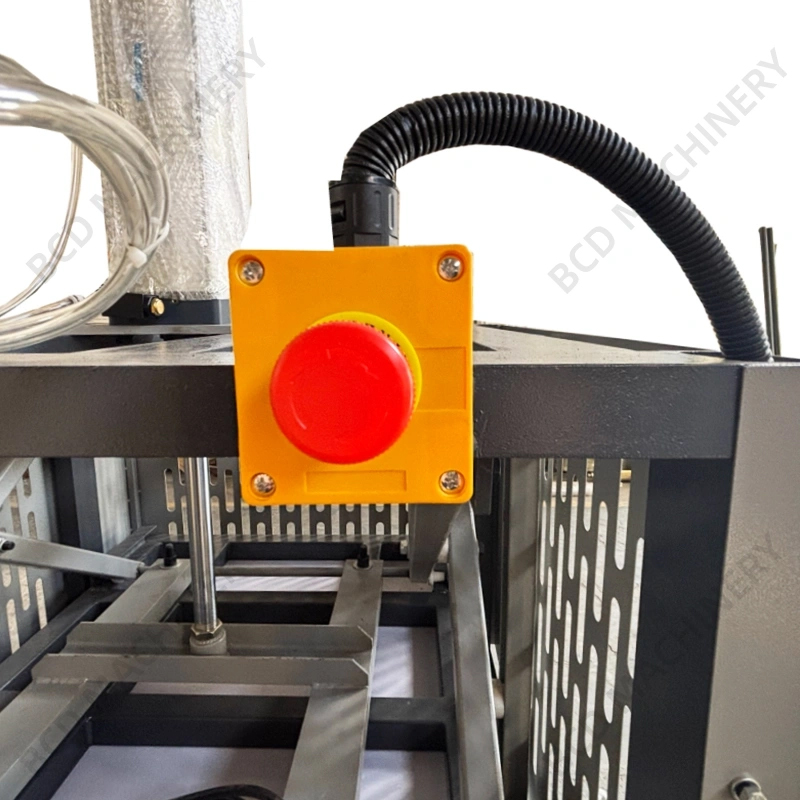

SAFE & RELIABLE Features a prominent red emergency stop button for immediate shutdown, effectively preventing operational risks. |

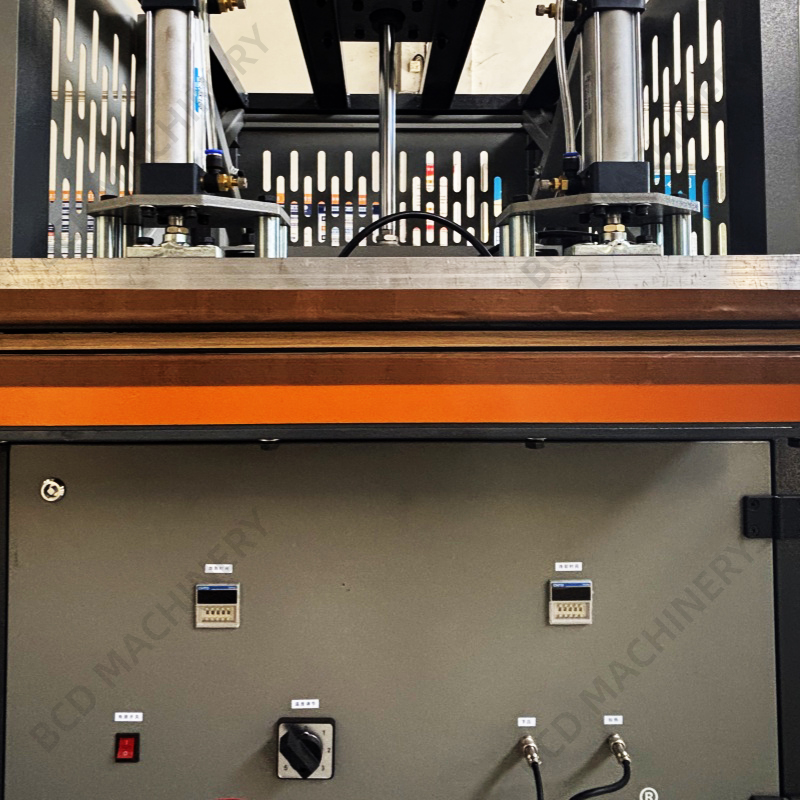

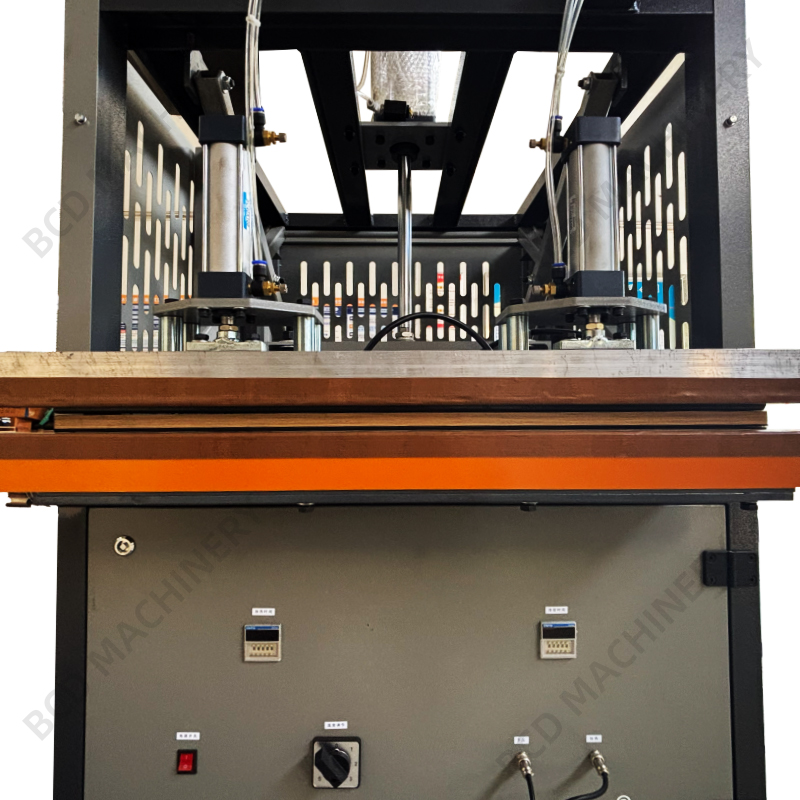

PRECISE COMPRESSION Utilizes a dual-cylinder synchronous compression system, delivering even pressure for tight, smooth sealing. |

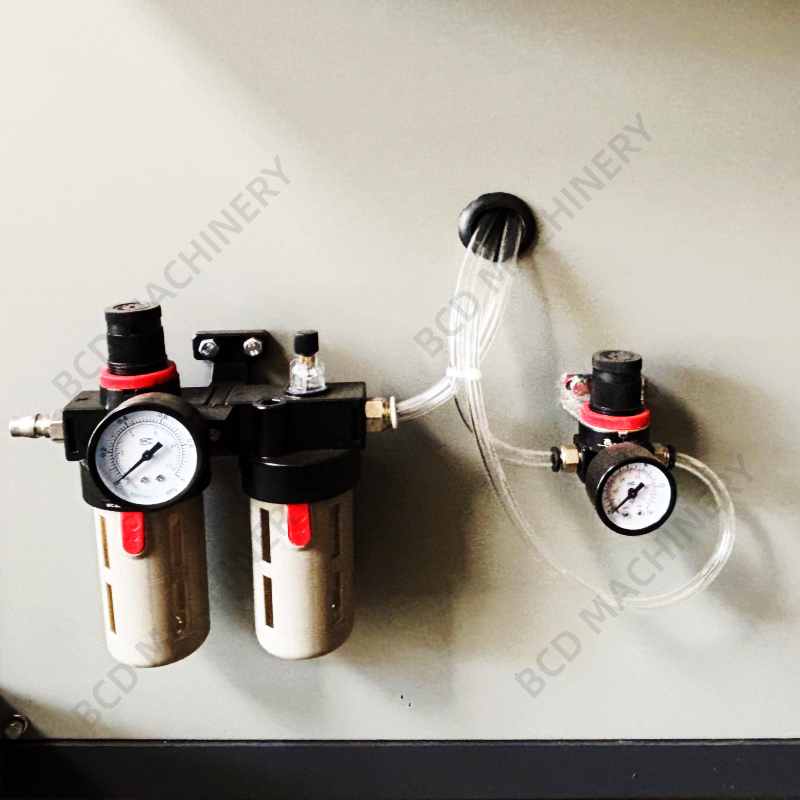

STABLE & CONTROLLABLE Equipped with dual pressure gauges for real-time monitoring, adjustable between 0.6–0.8 MPa to suit pillow packaging of varying thicknesses. |

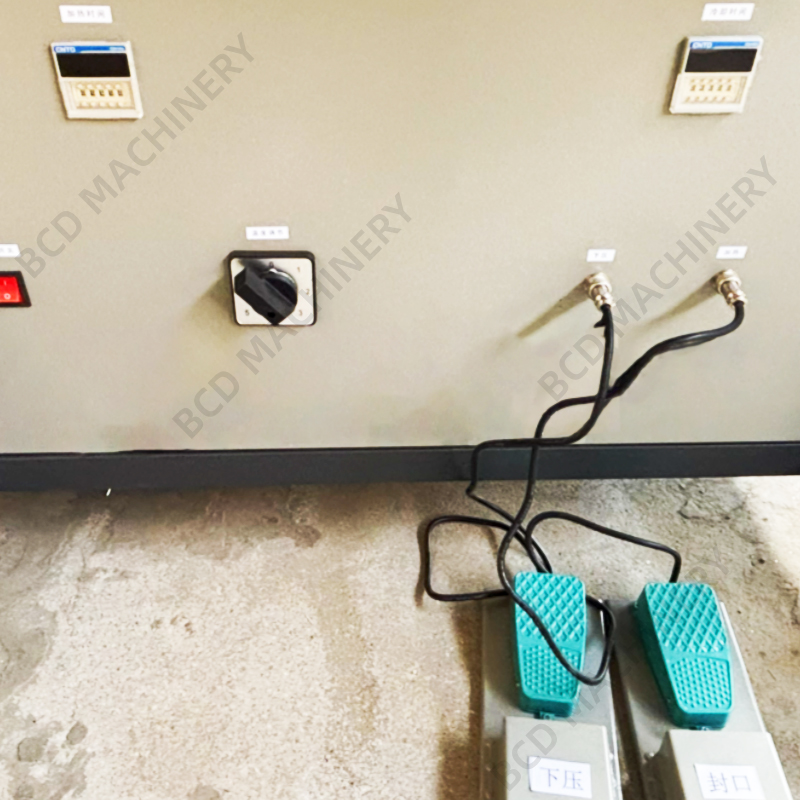

FOOT PEDAL CONTROL Dual foot switches for "compression" and "sealing" allow one operator to smoothly complete the entire process, improving packaging efficiency. |

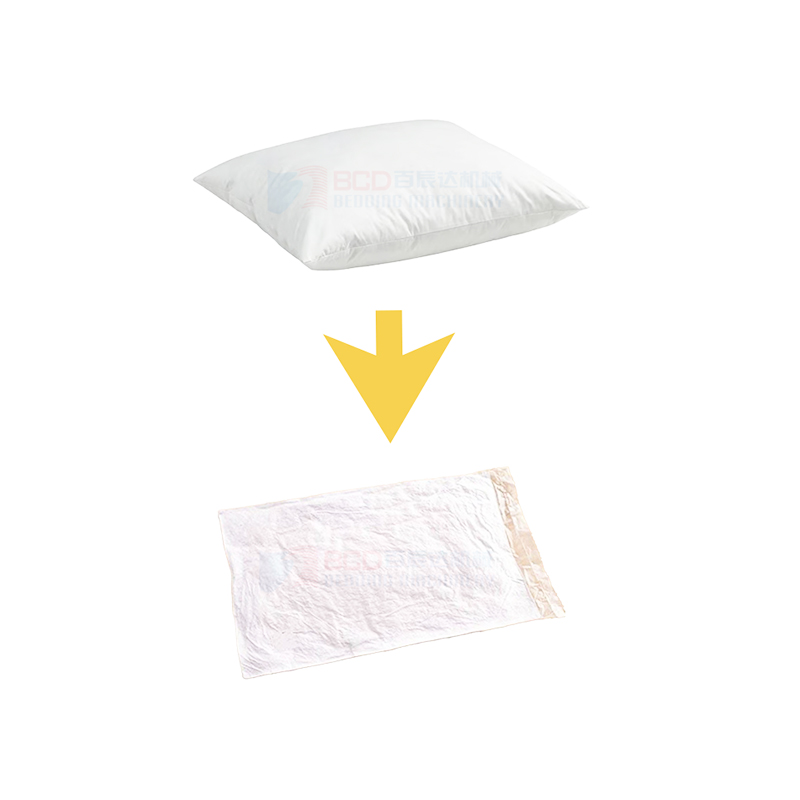

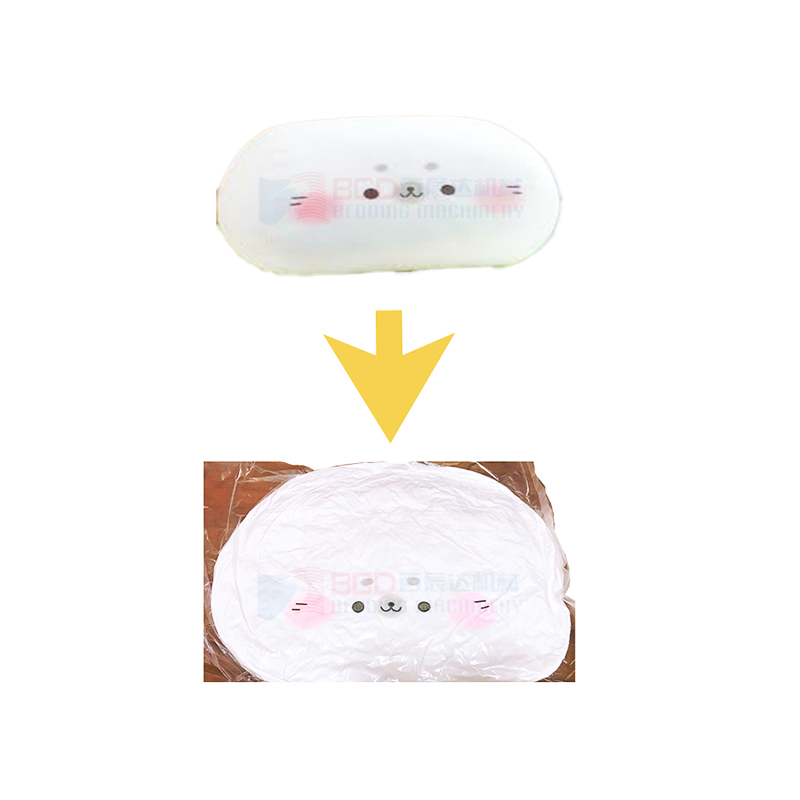

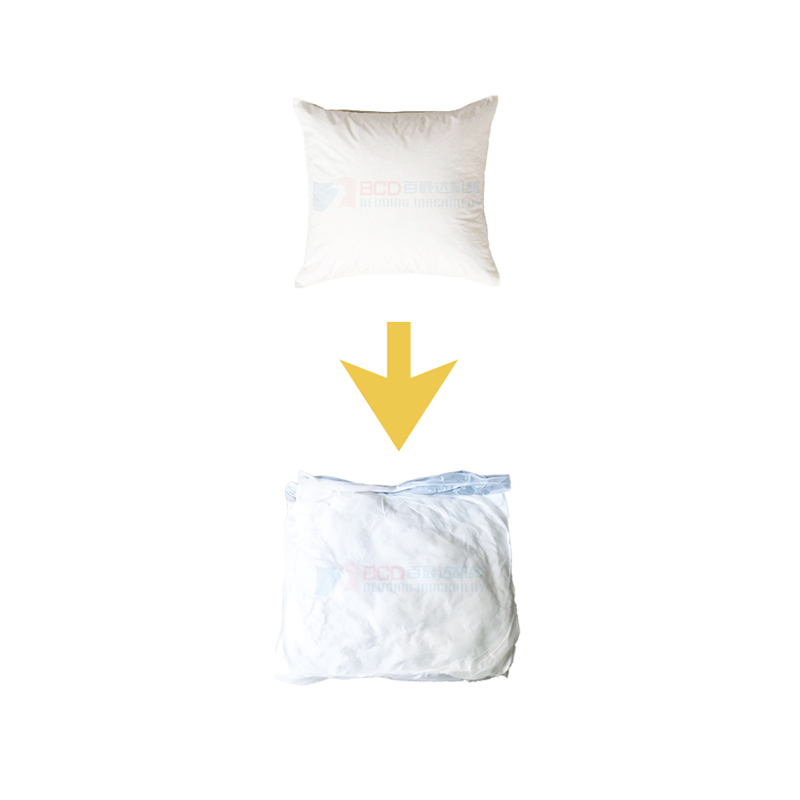

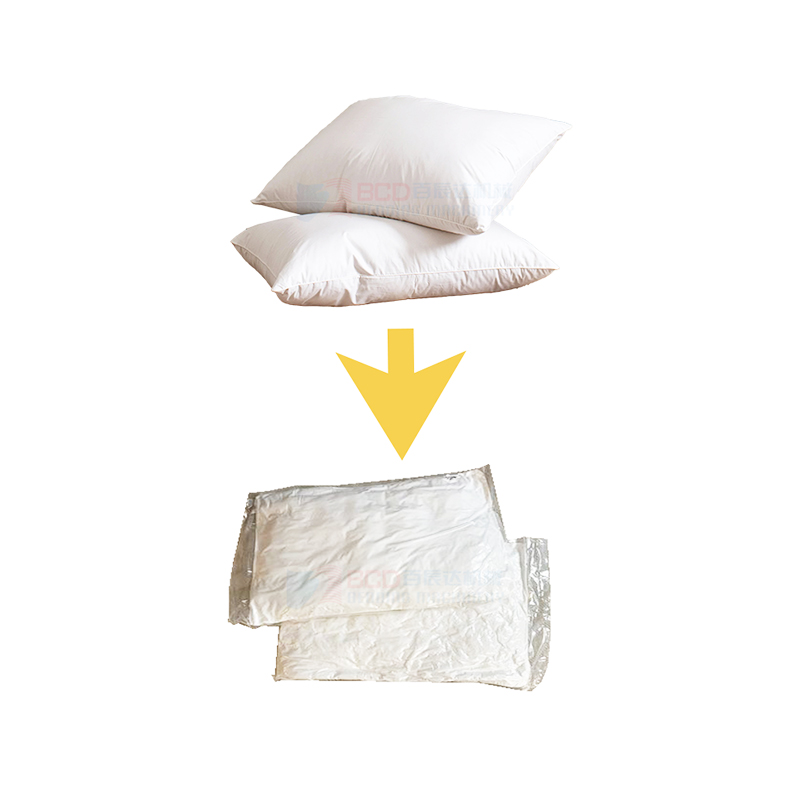

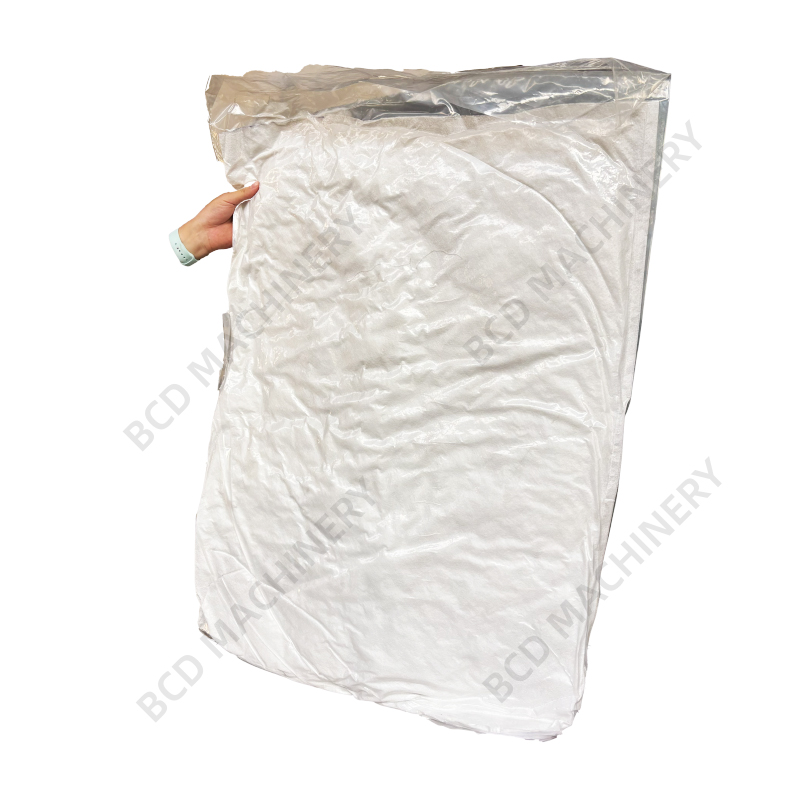

▎FINISHED PRODUCT DISPLAY
 |  |  |  |
▎MODEL COMPARISON
WHICH ONE IS MORE SUITABLE FOR YOU ?

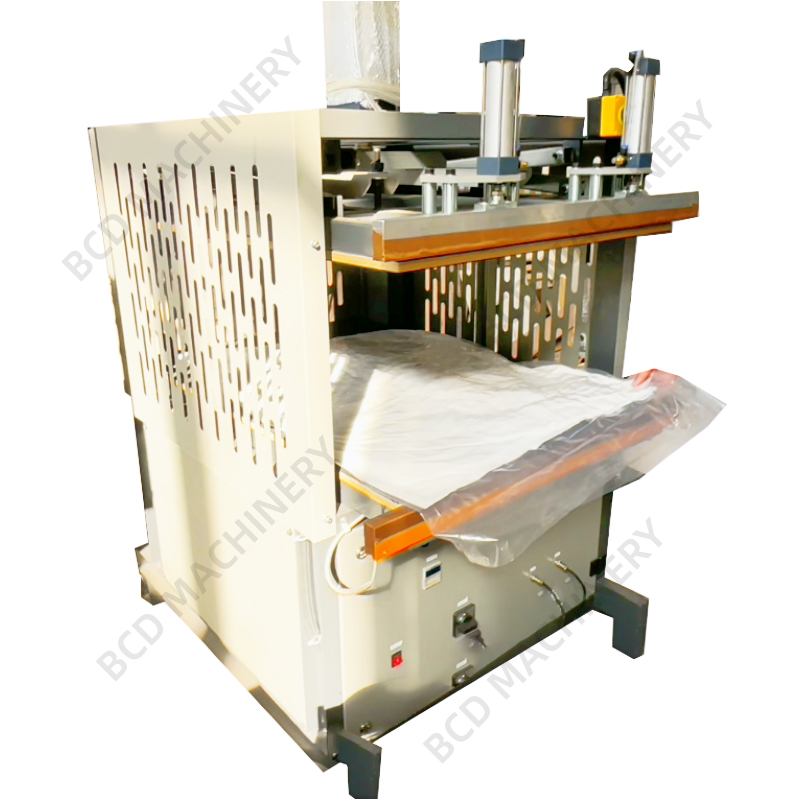

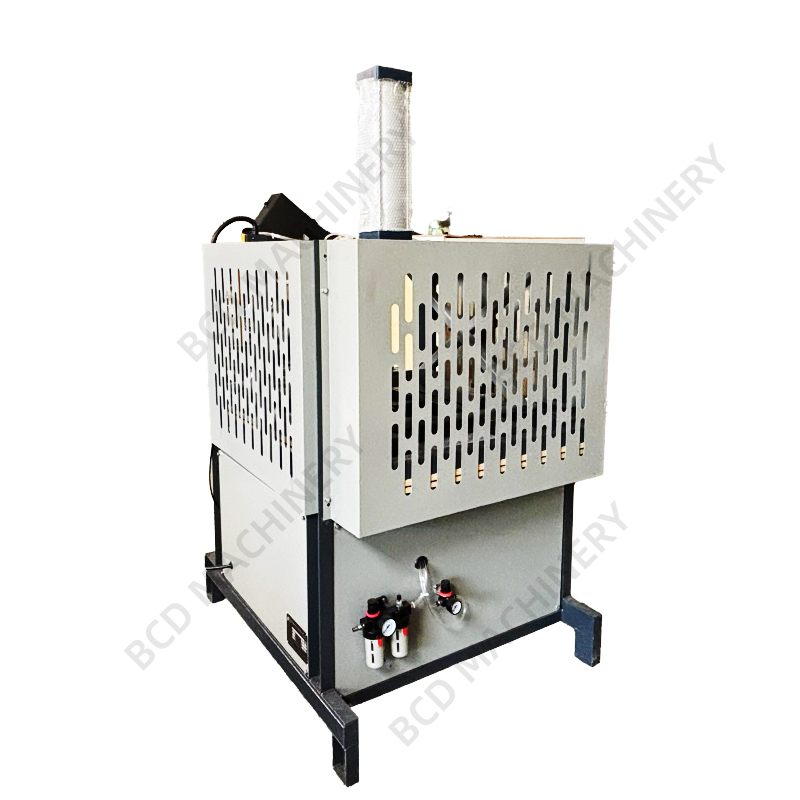

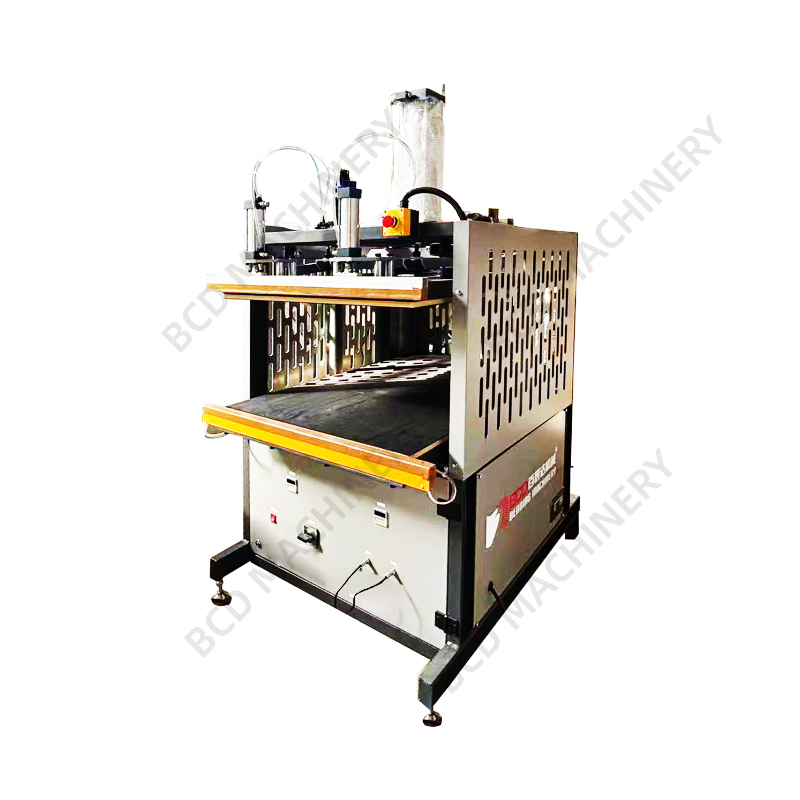

| BZBJ Pillow Packing & Sealing machine | |||
| Model no. | BZBJ-1 | BZBJ-2 | BZBJ -3 |
| Working Voltage | 220V/50Hz | 380V/50Hz or 220V/50Hz | 380V/50Hz |
| Motor Power | 0.8KW | 1.2KW | 5.5KW |
| Capacity | 120pcs/hr | 180pcs/hr | 5000pcs/hr |
| Air Pressure | 0.4-0.6MPa | 0.6-0.8MPa | 0.6-0.8MPa |
| Operating Dimension | 800*600mm | 1200*800mm | 1500*1000mm |
| Machine Dimension | 850*950*1700mm | 990*1200*2000mm | 5200*1200*1600mm |
| Net Weight | 260KG | 380KG | 820KG |
▎FAQ
Q: For which pillow core specification is the rated capacity of 180pcs/h designed?
A: Calibrated for 40*60cm regular pillow cores; capacity for thick pillows (＞15cm) is about 150-170pcs/h
Q: What voltage specifications does the machine support?
A: Standard with 380V/50HZ and 220V/50HZ
Q: The air pressure is adjustable from 0.6-0.8MPa. Is there a recommended air pressure for different pillow cores/packaging films?
A: Regular non-woven/PE film with standard pillows: 0.7MPa; thick pillows/coated packaging: 0.75-0.8MPa; thin pillows/thin film: 0.6-0.65MPa.
Q: What materials of packaging films is the machine compatible with? Is there a thickness limit?
A: Compatible with non-woven fabric, PE film and composite film, film thickness suitable for 0.02-0.1mm, meeting the conventional packaging needs of textile pillow cores.
Q: For the 1200*800mm worktable, can multiple pillow cores be placed and operated at the same time?
A: The worktable can hold 2 40*60cm regular pillow cores at the same time, supporting dual-station alternate operation to further improve work efficiency.
Q: What is the after-sales warranty period of the product?
A: The standard warranty period is one year.

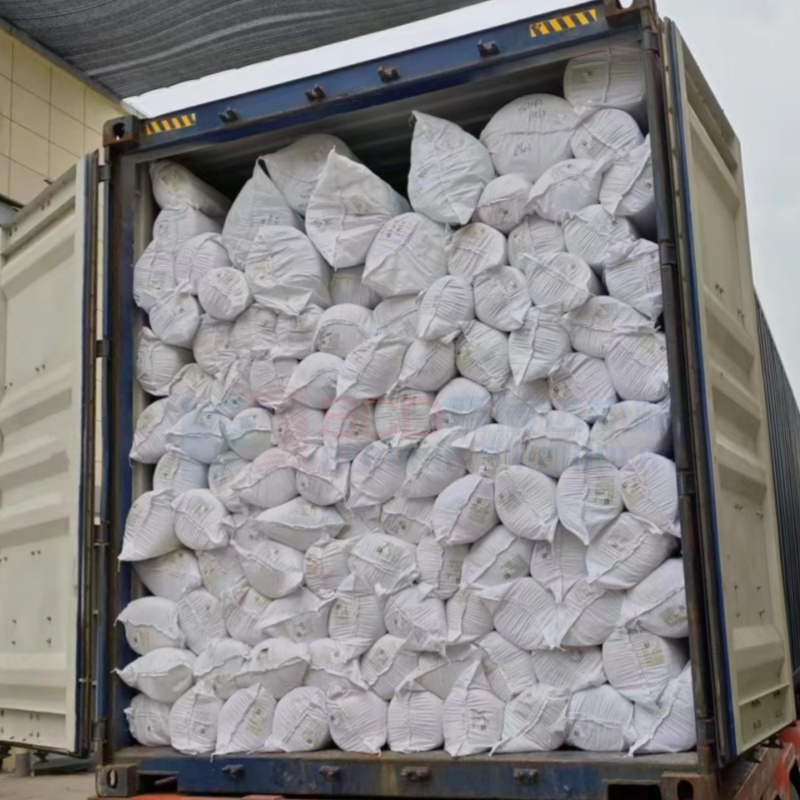

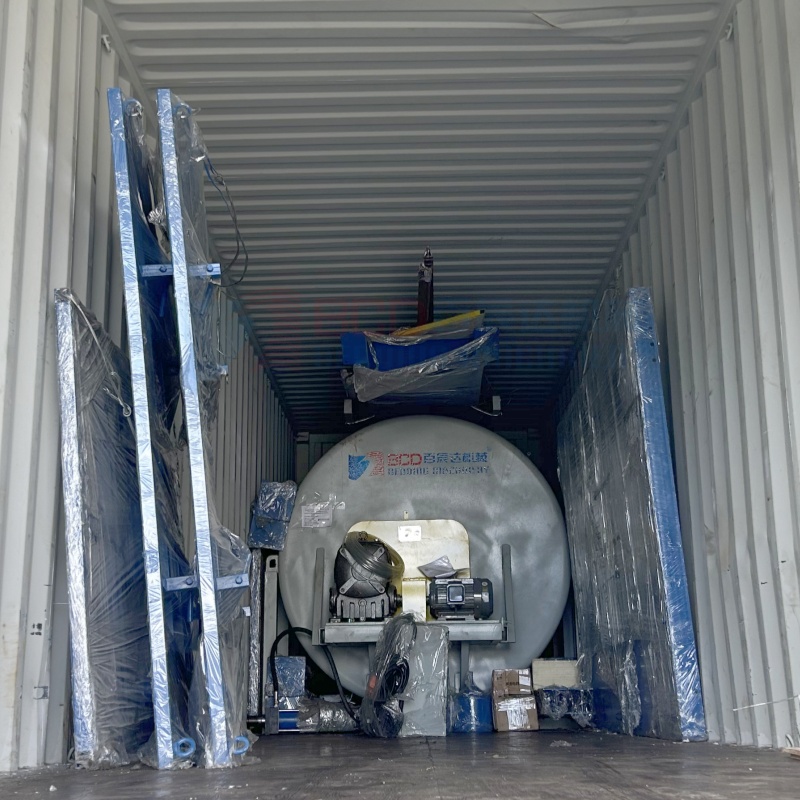

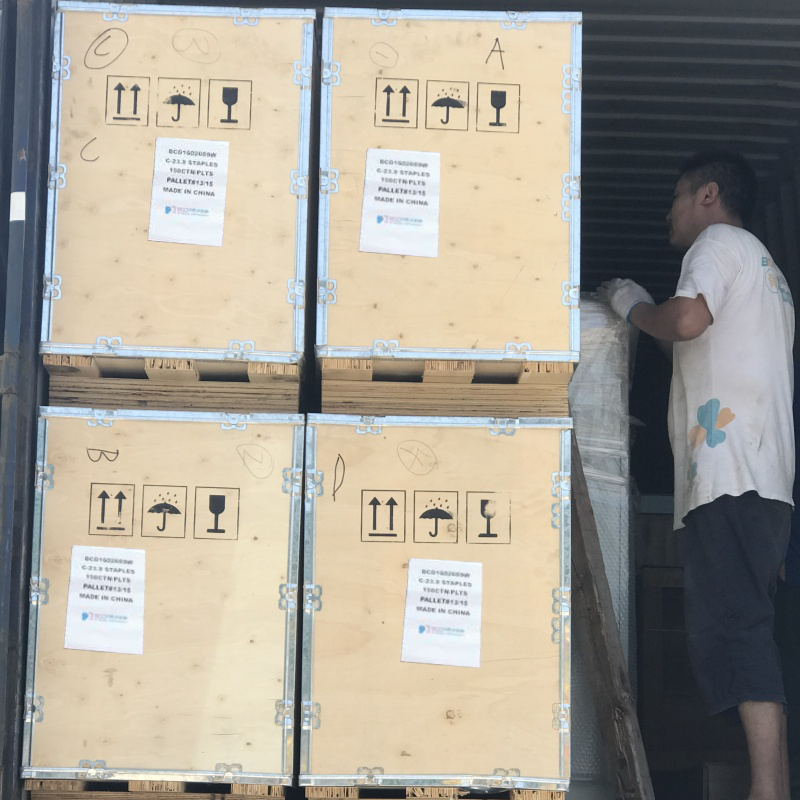

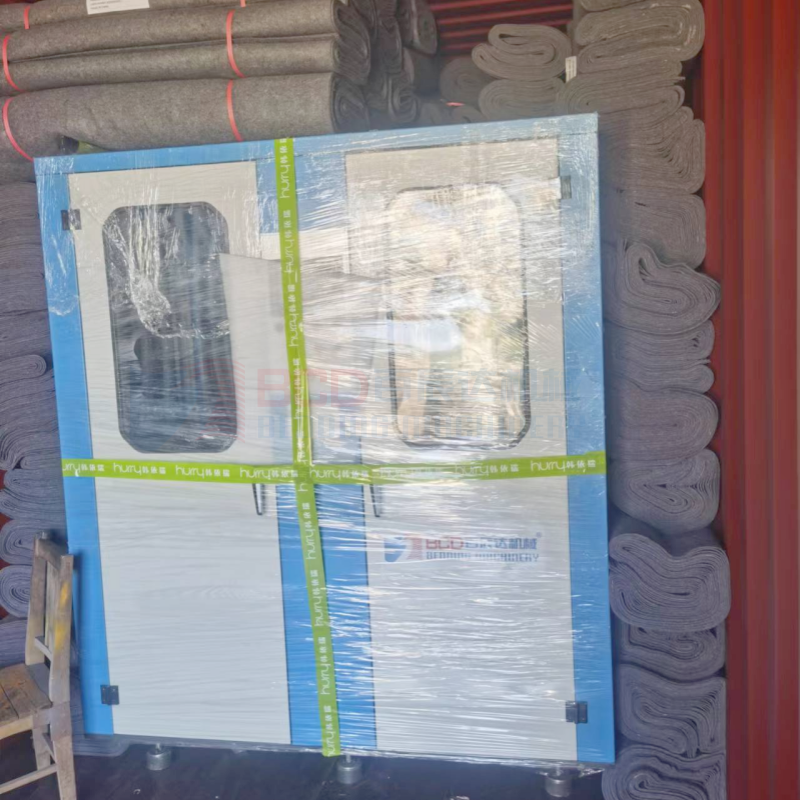

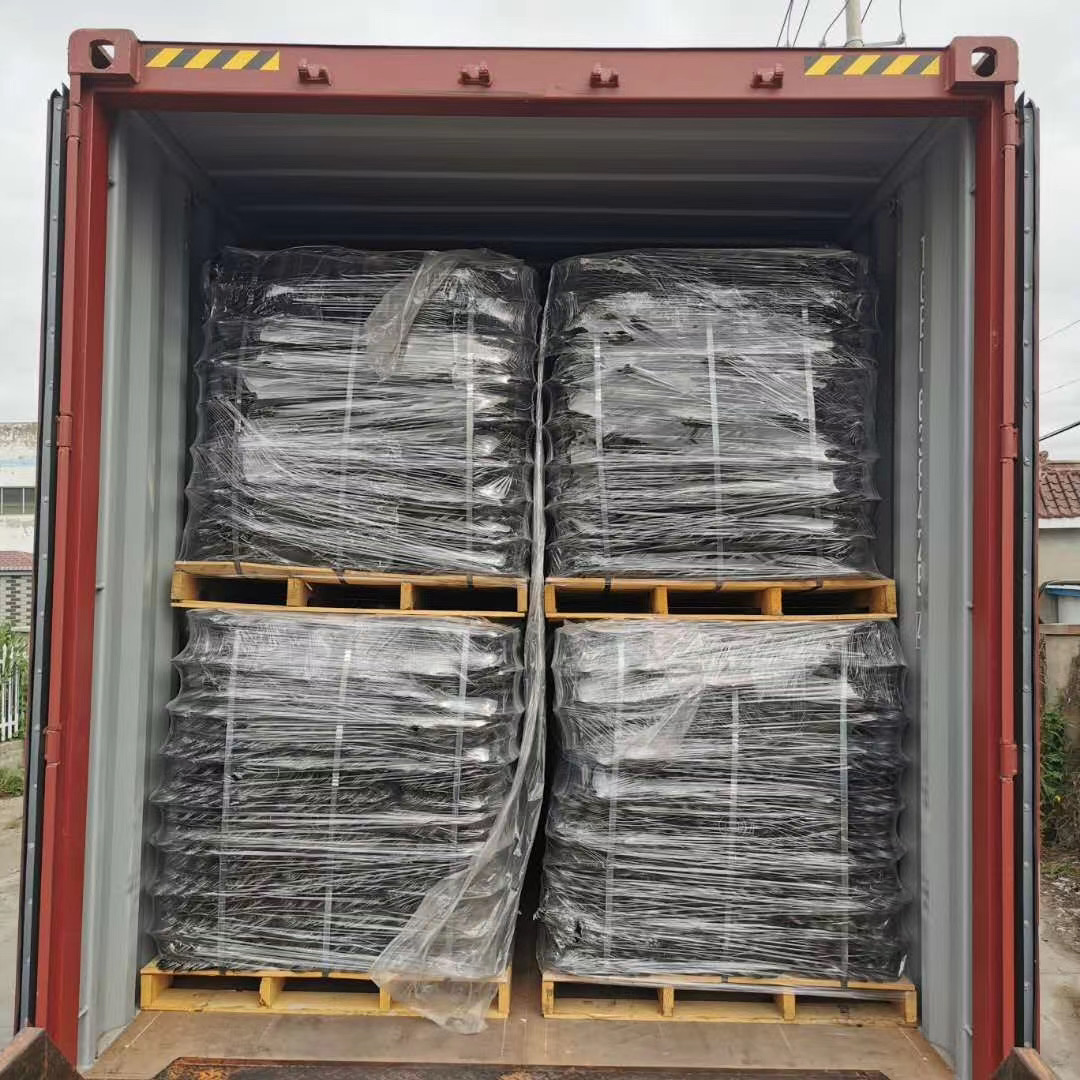

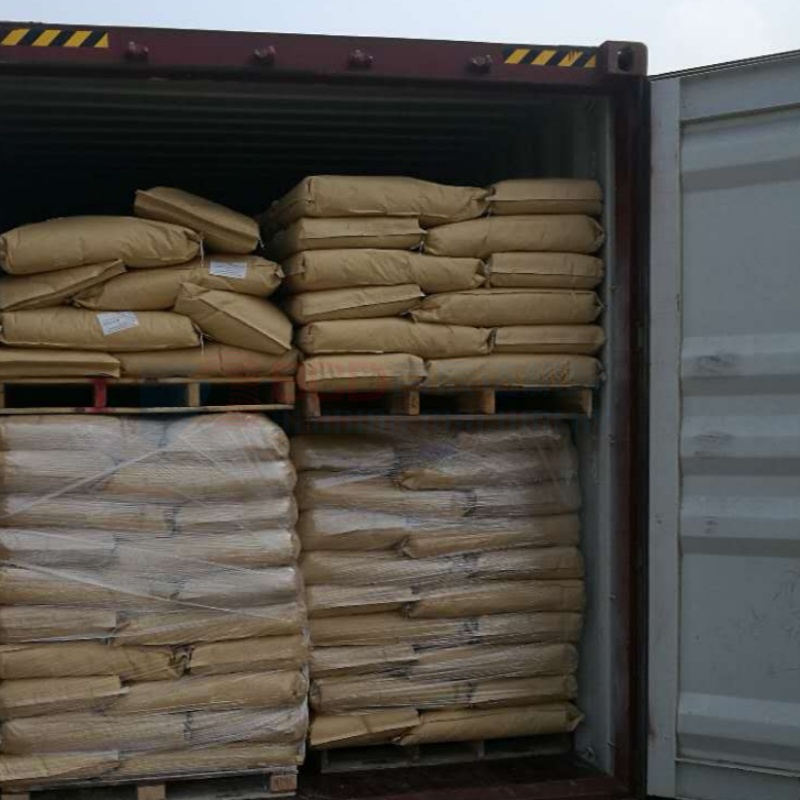

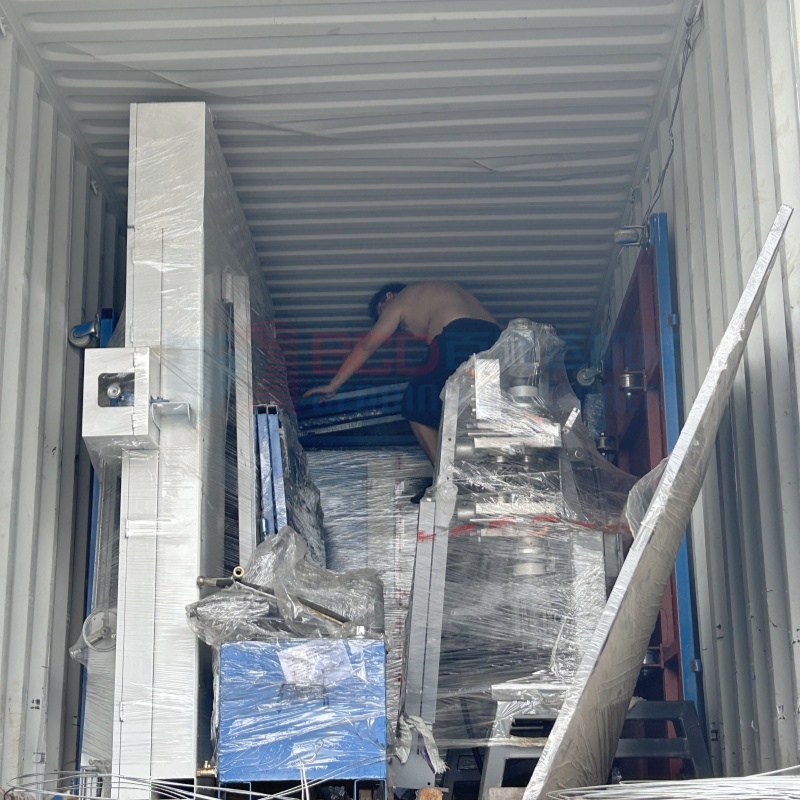

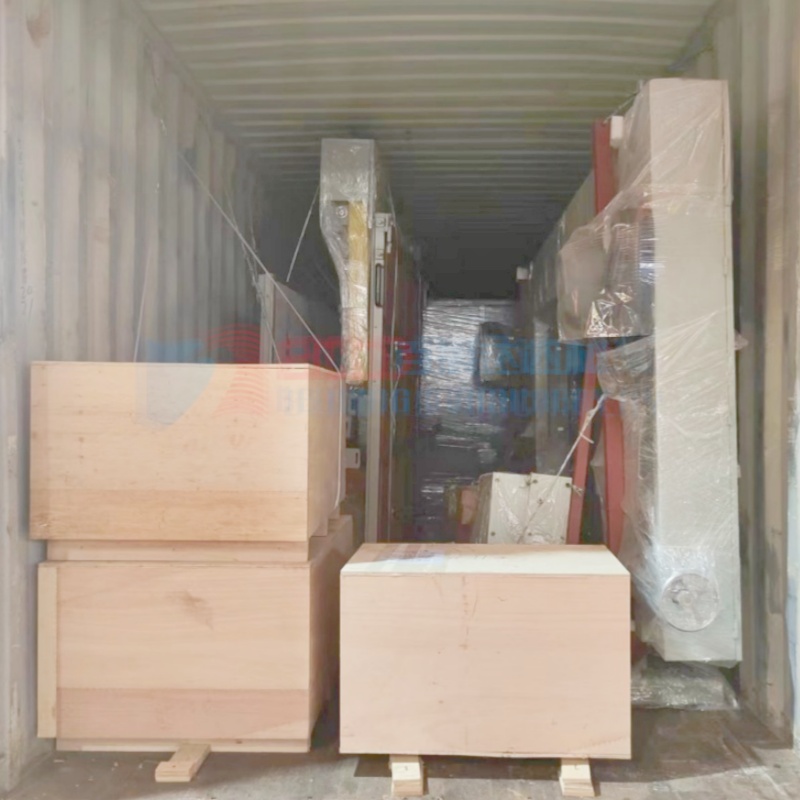

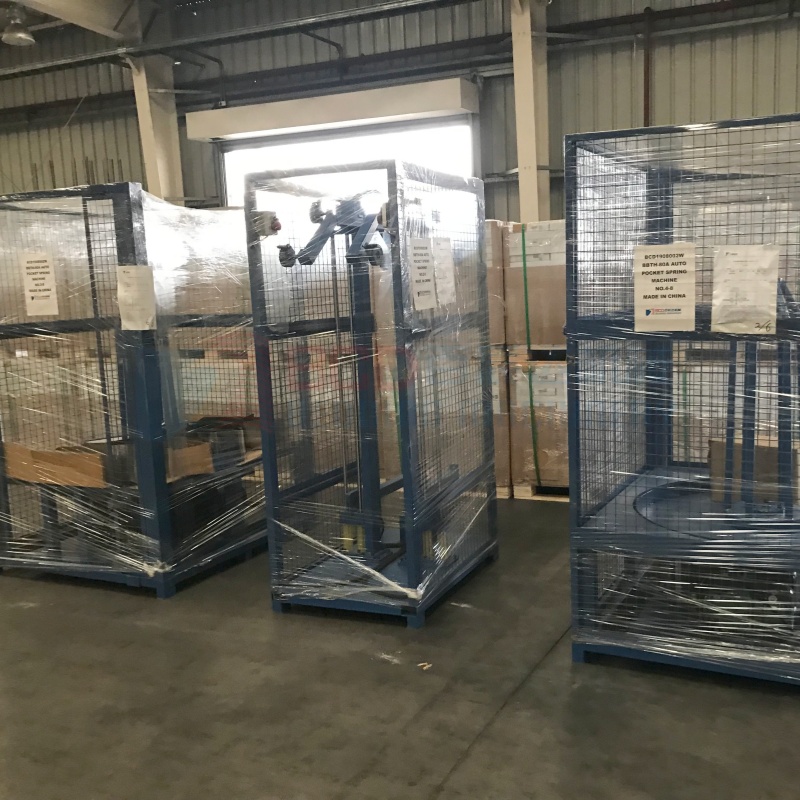

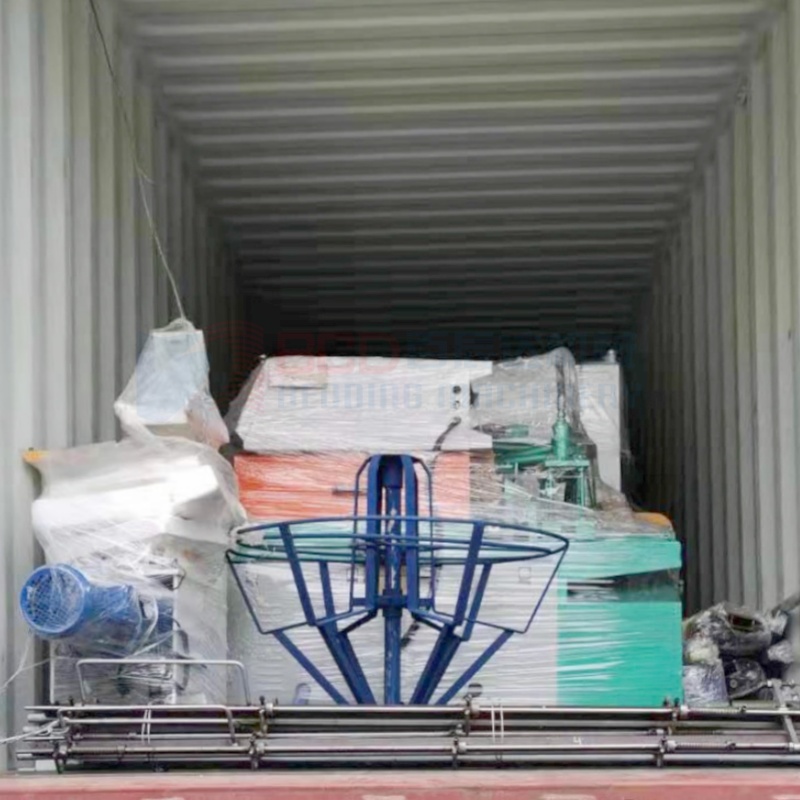

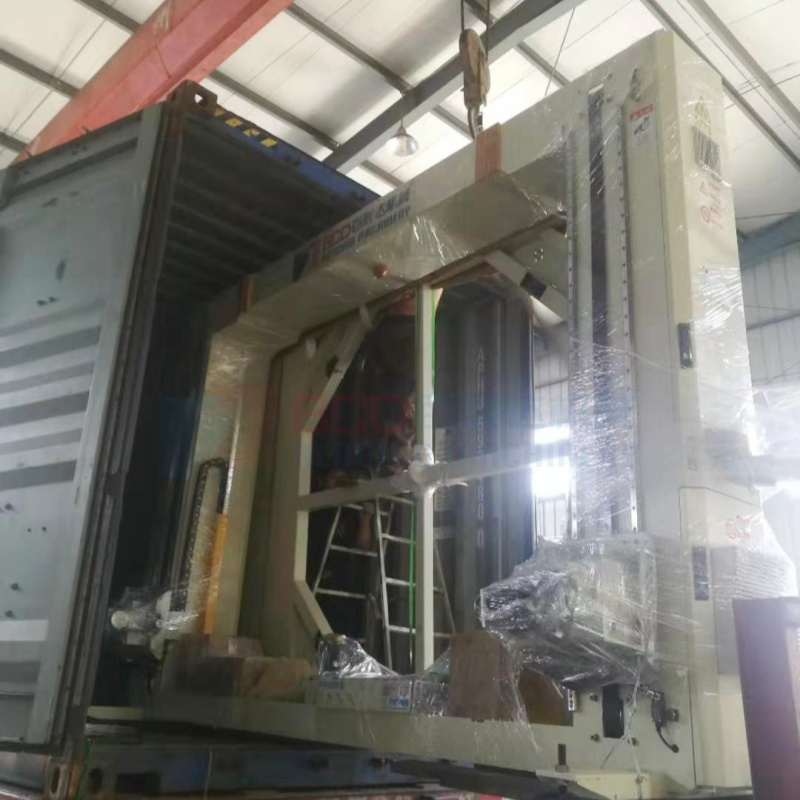

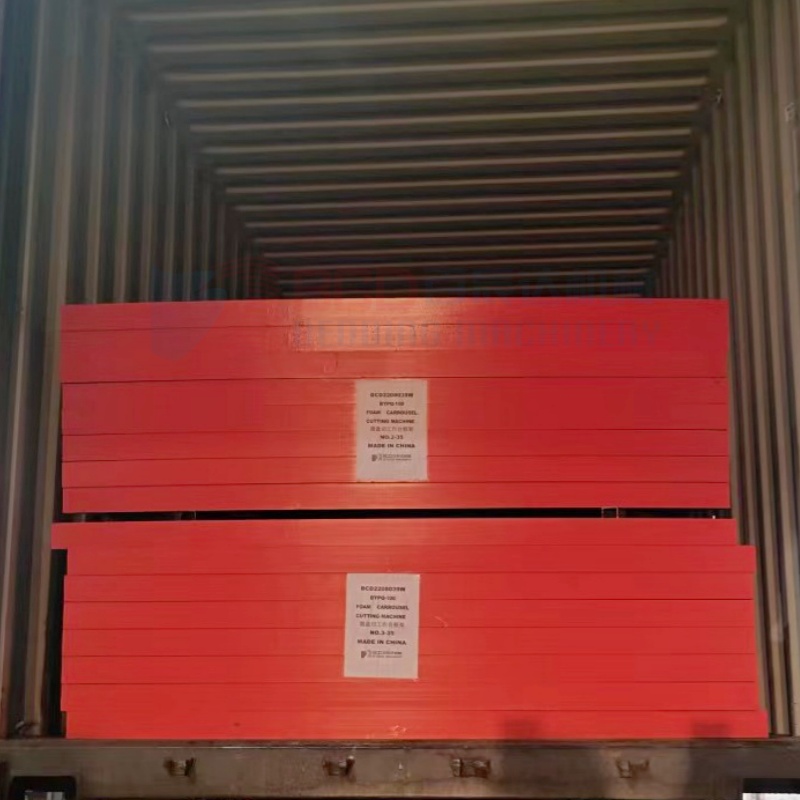

▎PACKAGING
 |  |  |  |
 |  |  |  |
 |  |  |  |
 |  |  |  |
