1.Automatically calibrates the mattress position precisely to prevent packaging misalignment or incomplete wrapping. 2.Equipped with pressure rollers to smooth the film wrapping the mattress evenly, avoiding wrinkles or bubbles for a neater, tighter, and more attractive package. 3.Features an automatic cutting device that trims the film neatly right after wrapping. 4.Accommodates mattresses up to 2300×2100×400mm, covering most large-sized home and hotel mattress packaging needs. 5.Achieves a packaging speed of 30 seconds per unit; around 960 units can be packed daily (based on working hours), greatly boosting mattress factory efficiency. 6.The entire process runs fully automatically without manual assistance, cutting labor costs and operational risks. |
▎PRODUCT FEATURES

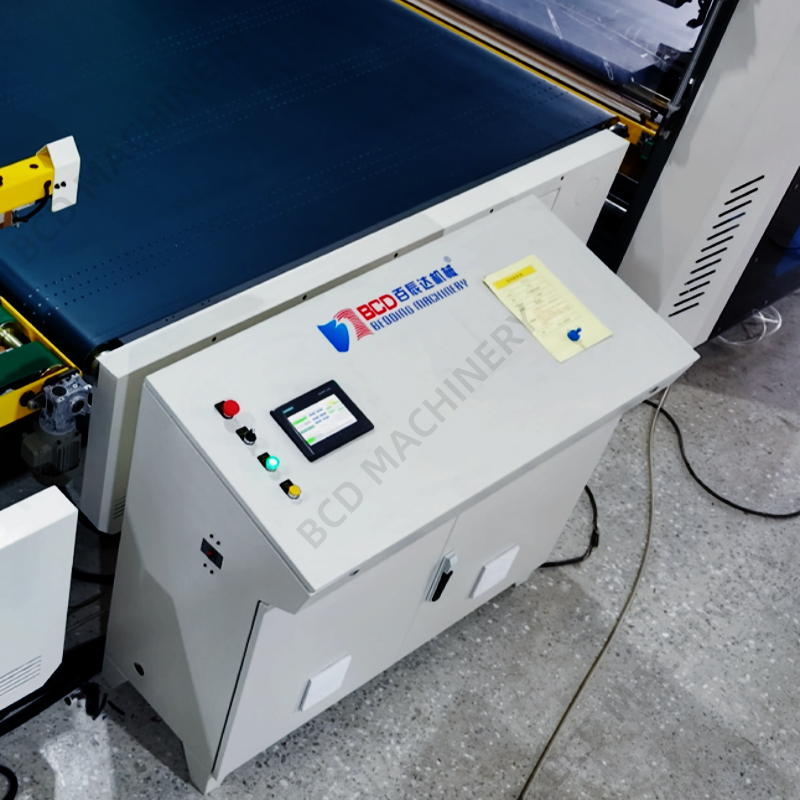

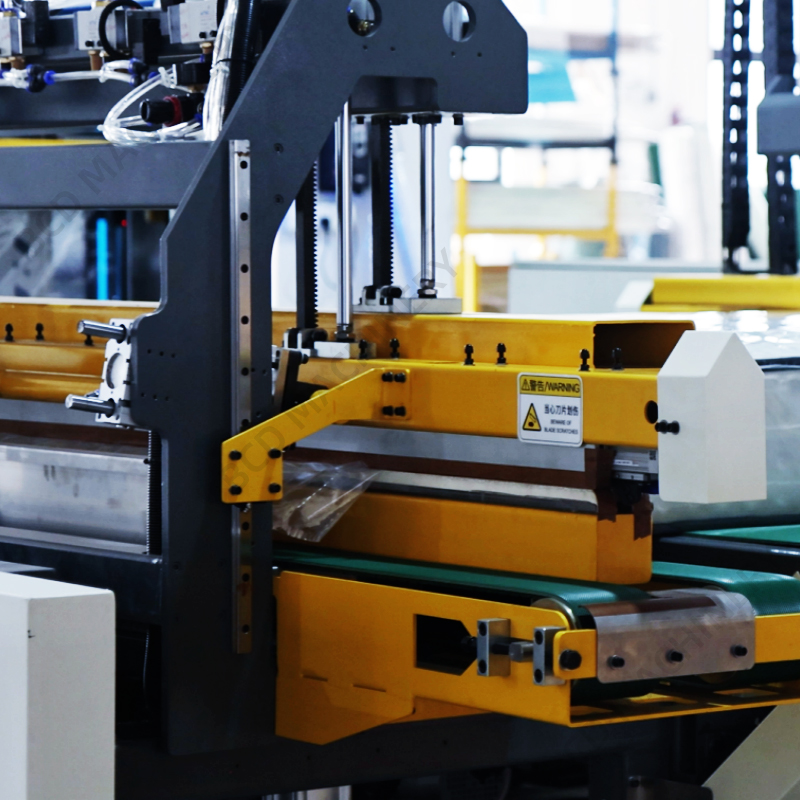

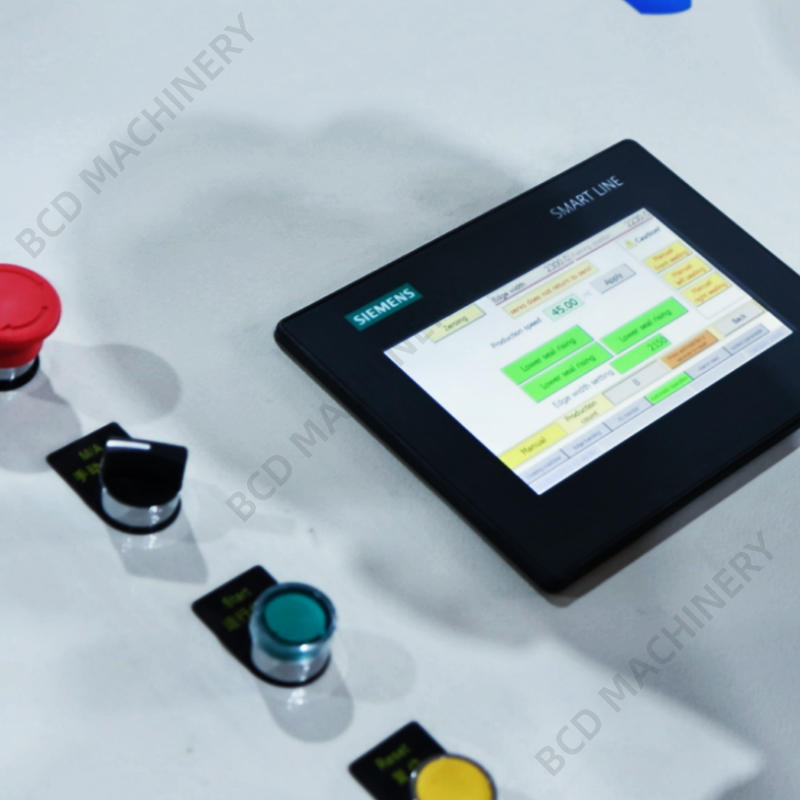

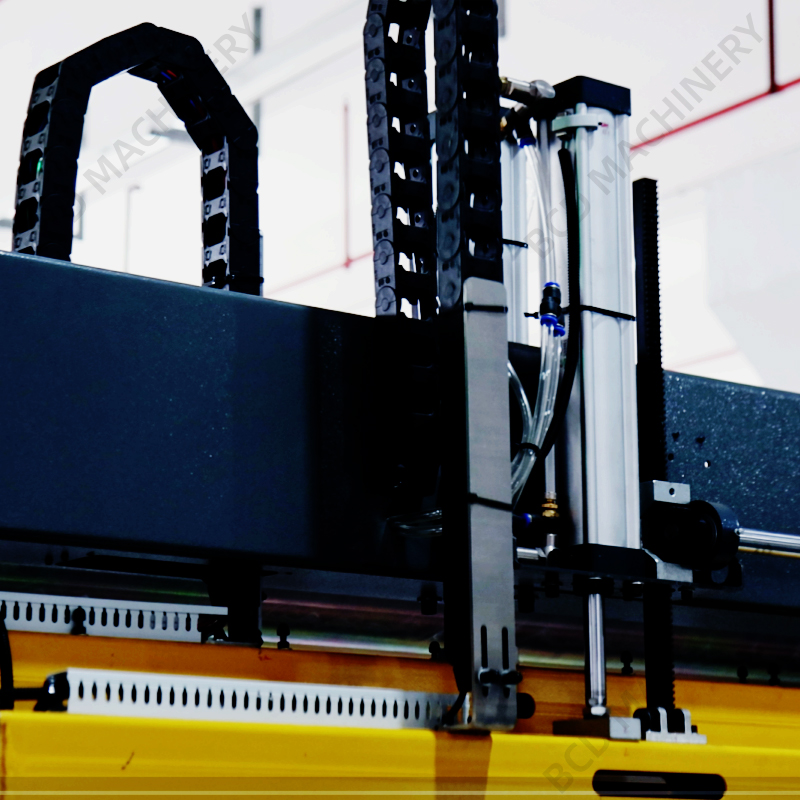

PRECISION TRANSMISSION Adopts a screw + guide rail + hydraulic dual-drive structure, combined with a heavy-duty steel bracket. It ensures high positioning accuracy, uniform load distribution, prevents mattress edge warping. |  INTELLIGENT FULLY AUTOMATIC CONTROL Equipped with a PLC + touch screen control system, supporting visual parameter setting and fault self-diagnosis. The operation interface is intuitive and easy to use. |

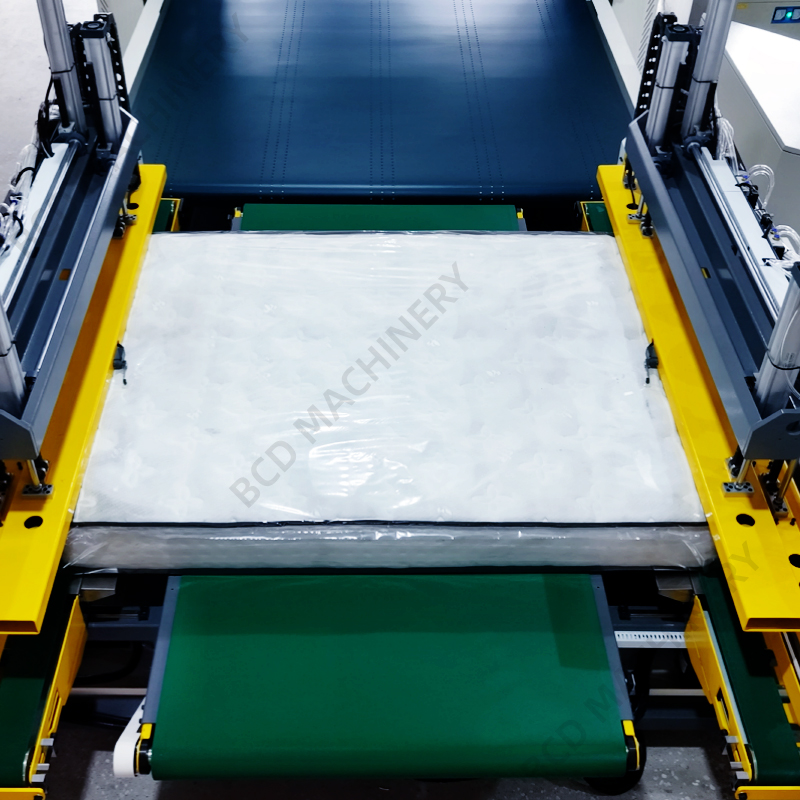

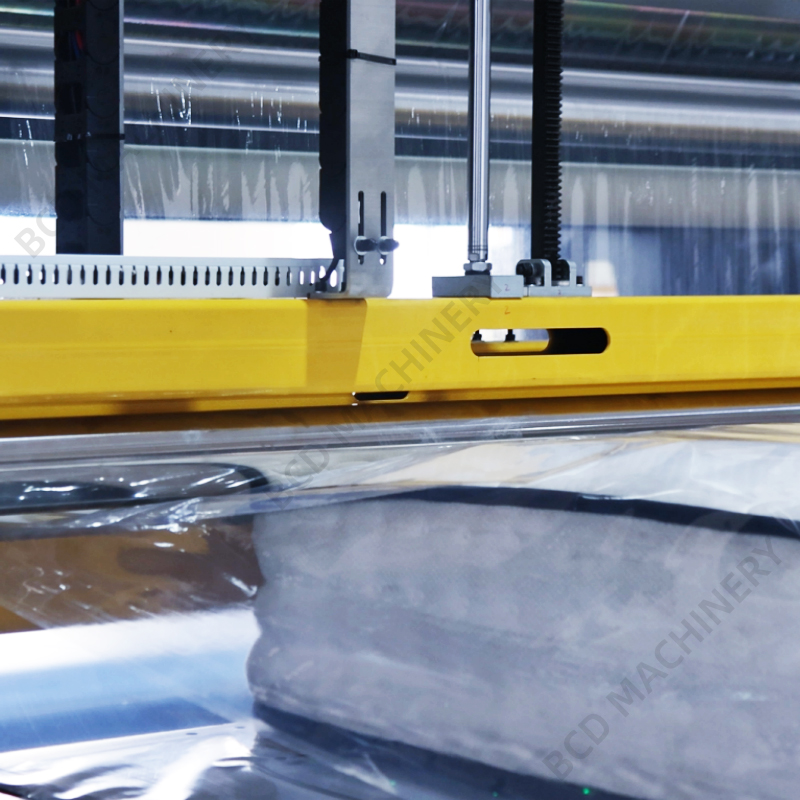

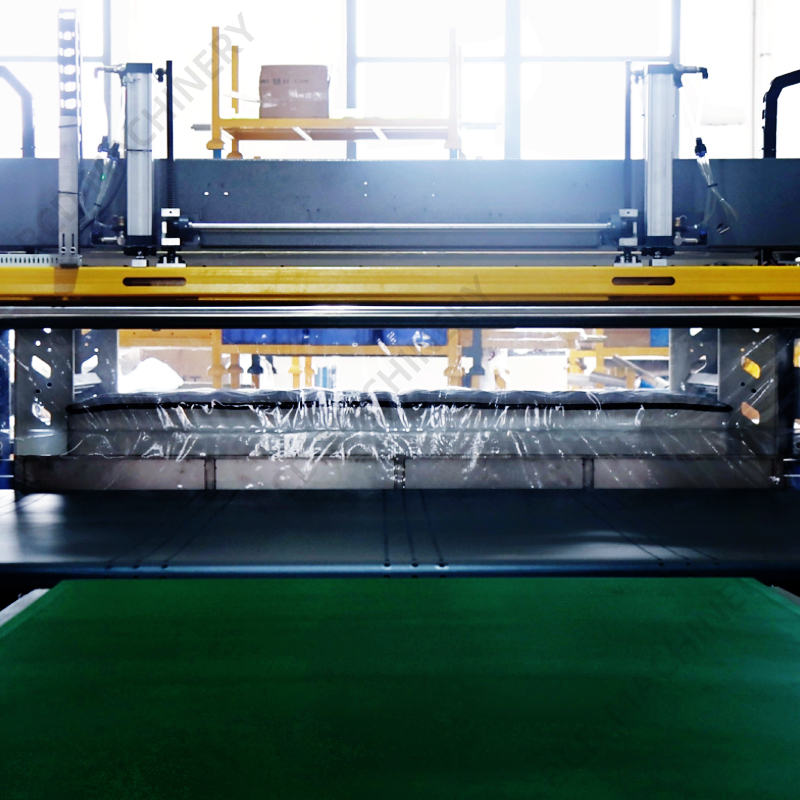

AUTOMATIC FILM SLEEVING AND SEALING-CUTTING Automatically completes film sleeving, film bag smoothing, heat sealing, and film bag cutting. It ensures flat and leak-proof film opening, with strong packaging tightness. |

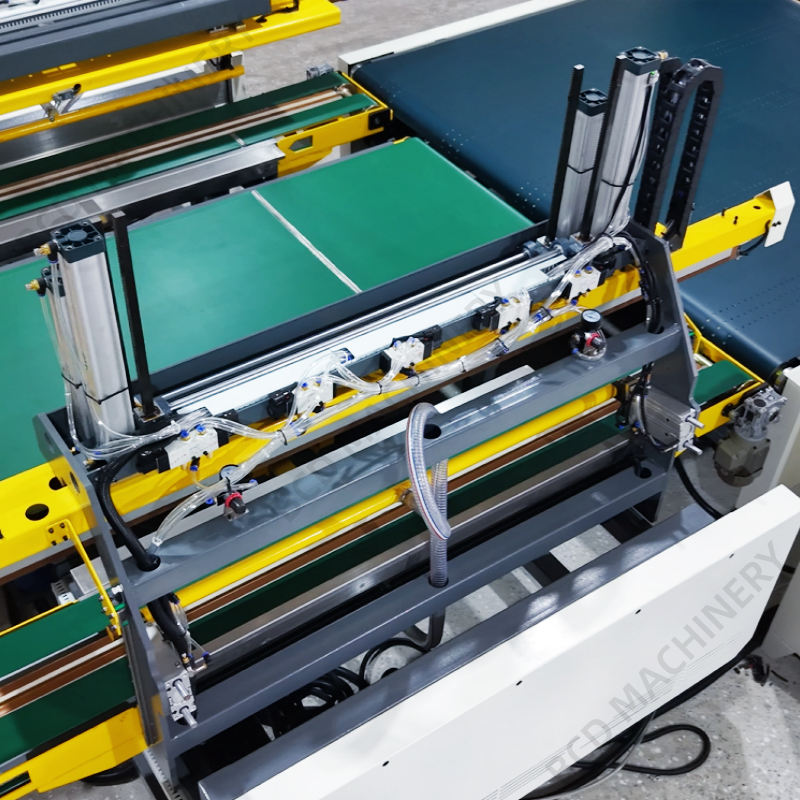

WIDE WIDTH ADAPTIVE SEALING-CUTTING Side-mounted adjustable unit,adaptable to mattresses of different widths (supports 0.8m-2.3m width). synchronous film stretching, positioning & sealing-cutting. |

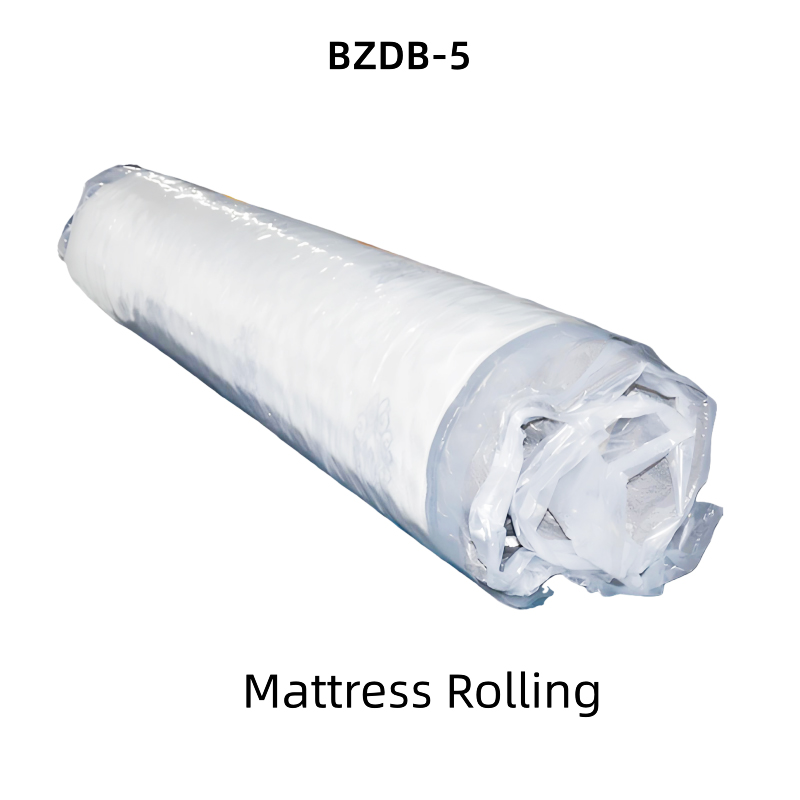

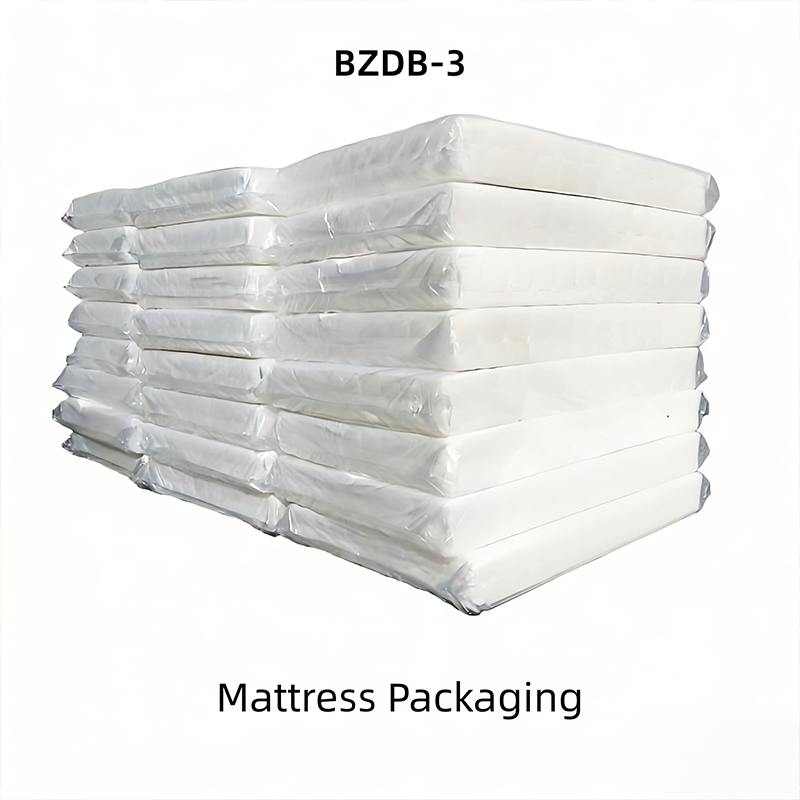

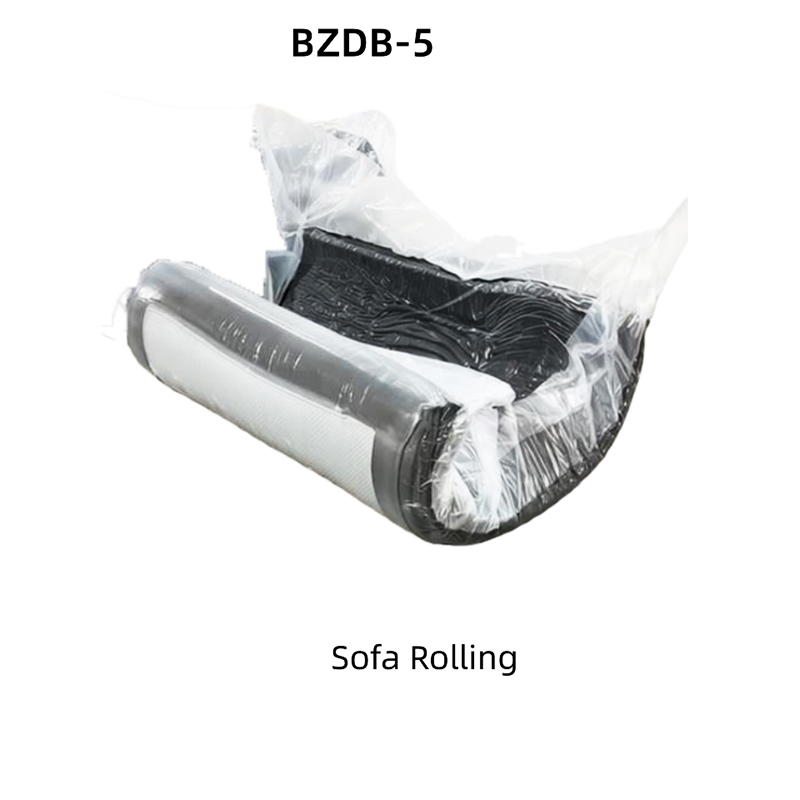

▎FINISHED PRODUCT DISPLAY
 |  |  |  |
▎MODEL COMPARISON
WHICH ONE IS MORE SUITABLE FOR YOU ?

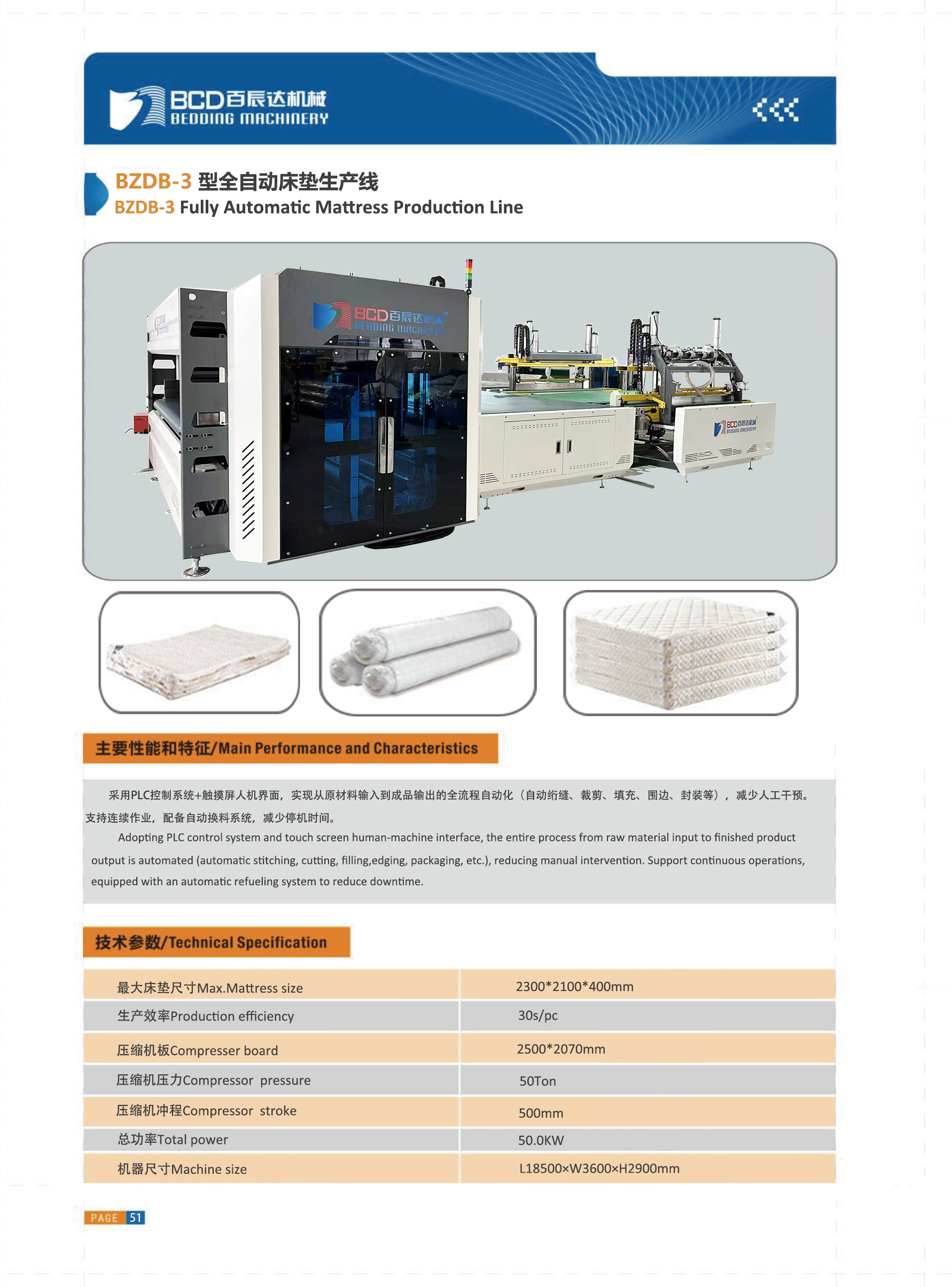

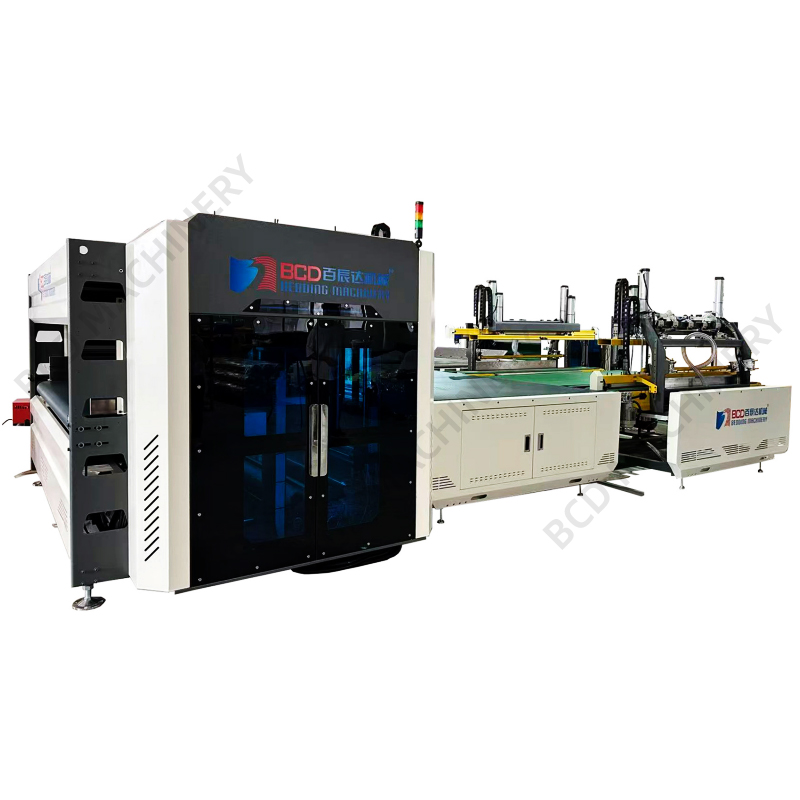

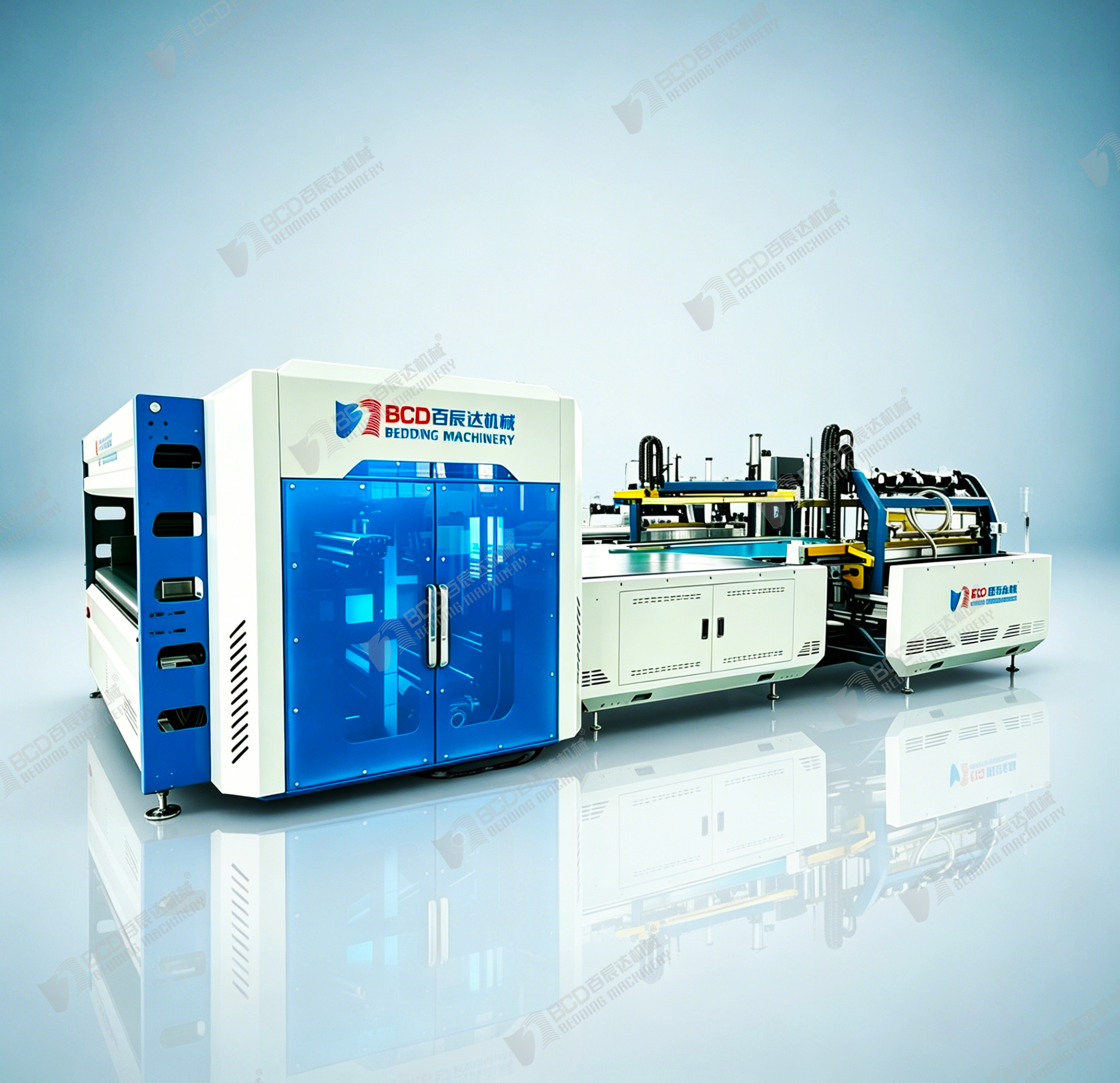

| BZDB Mattress Plastic Packing Machine | |
| Model no. | BZDB-3 |
| Max. Mattress Size | 2300*2100*400mm |
| Production Efficiency | 30s/pc |
| Compressor Board Size | 2500×2070mm |
| Compressor Pressure | 50T |
| Compressor Stroke | 500mm |
| Total Power | 22KW |

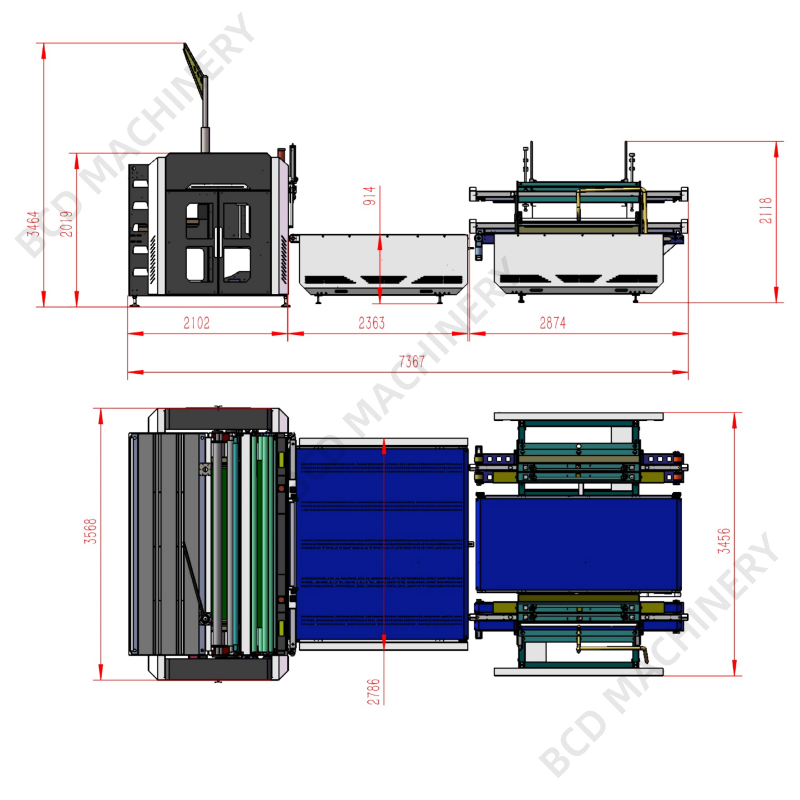

| Machine Size | L18500×W3600×H2900mm |
▎FAQ
Q: What mattress sizes is the machine compatible with? What's the Max size?
A: Specialized in large-size mattress packaging, compatible with standard market sizes, max. 2300×2100×400mm, meeting most home and hotel mattress packaging needs.
Q: What packaging film is suitable? Any requirements for thickness and width?
A: Standard PE stretch film for mattress packaging; recommended thickness 0.015-0.03mm, width matched to max. mattress size, compatible with general-purpose films.
Q: What's the machine's floor area? How much factory space is required for installation?
A: Overall dimensions 18500×3600×2900mm (LWH); recommended installation space 20m×5m×3.5m (LWH) (considering feeding, discharging, operation and maintenance).
Q: Is the operation complicated?
A: Fully automatic, easy to operate. Workers only need to perform basic feeding and startup. Online training support is provided.
Q: Is manual handling needed for mattress feeding? Can it connect to production lines?
A: Two feeding methods available: manual assisted feeding for small batches; direct connection to existing production lines for large-scale production, realizing automatic feeding and reducing manual handling.
Q: How to debug poor film flattening with wrinkles?
A: 1. Check pressure roller values and adjust via the operation panel; 2. Calibrate film unwinding speed/tension to match machine operation. 24/7 online after-sales service is available.
Q: Has the machine passed quality certifications? Does it comply with industry safety standards?
A: The machine is CE certified, safe for workshop operation.
Q: What's the overall warranty period?
A: 1-year overall warranty.
