1.Auto needle upper positioner and auto winder system simplify operation. 2.Thread break auto-stop reduces fabric scrap and rework. 3.Servo motor drive delivers uniform stitches and precise feeding for neat, high-quality tape sewing. 4.Max fabric thickness of 15mm handles logo tape, contrasting tape and 3D mesh tape. 5.Adjustable production speed (1.5–14.8m/min) meets both mass production and precision processing needs. 6.Low operating costs with 0.55kW total power and 0.8MPa air supply. |

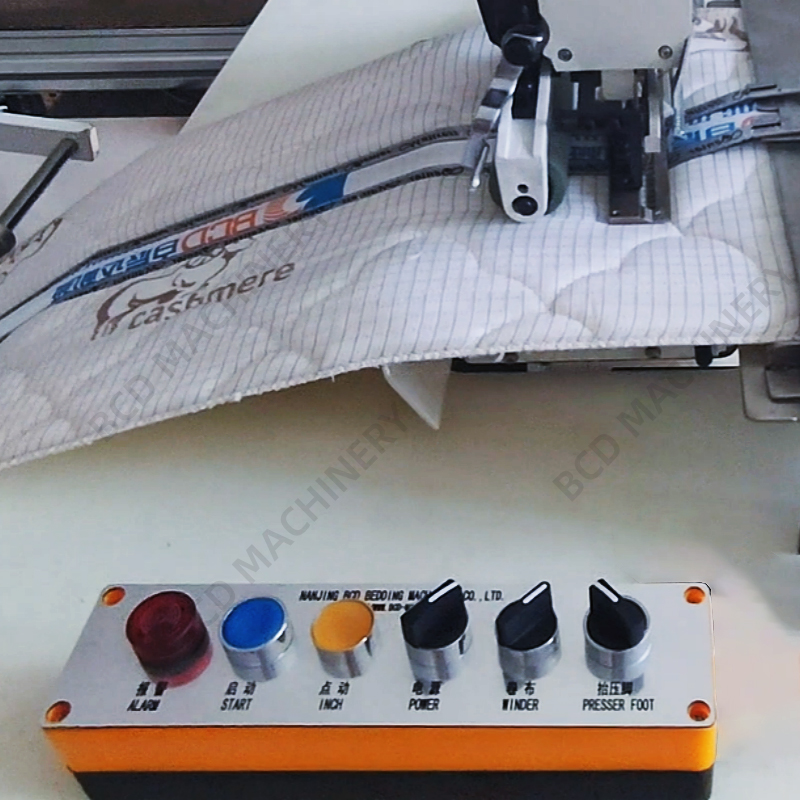

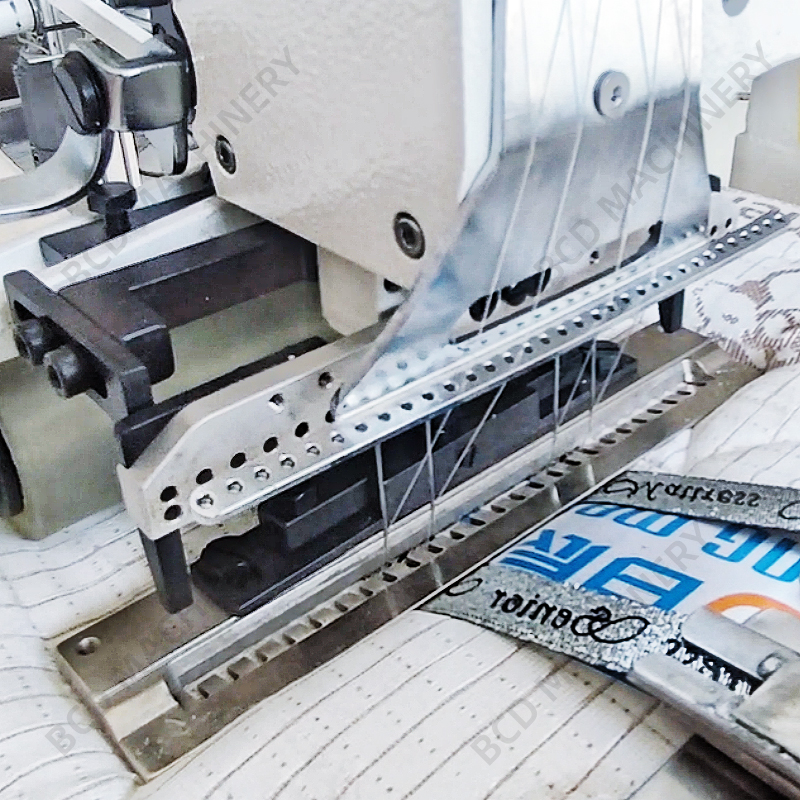

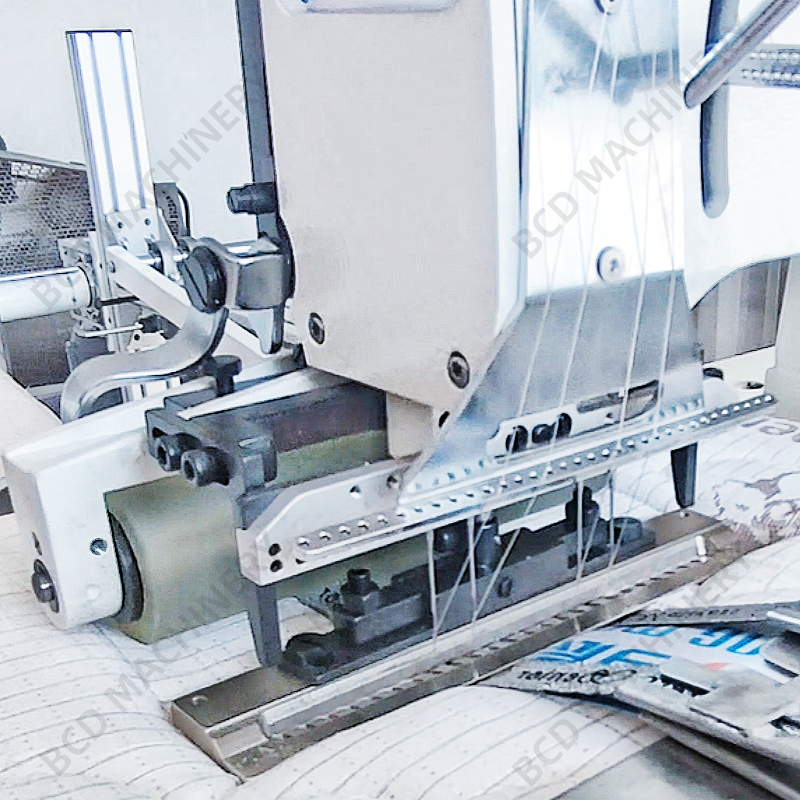

EASY OPERATION Independent control panel with clear buttons for intuitive operation, enabling integrated feeding, sewing, and winding. |  MULTI-THREAD SEWING Multi-needle structure delivers multiple stitches simultaneously, ensuring firm, uniform sewing. |
PRECISE ADAPTATION Handles logo tapes, 3D mesh tapes, and other materials, adapting to various thicknesses for personalized designs. |

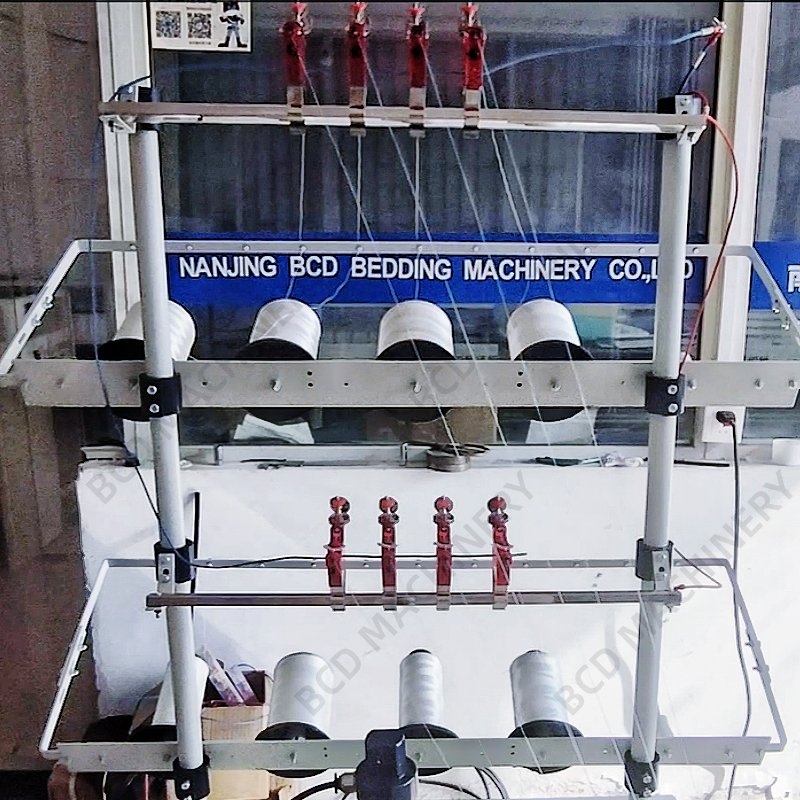

EFFICIENT THREAD SUPPLY Double-layer thread stand holds multiple spools, reducing thread changes and boosting production continuity. |

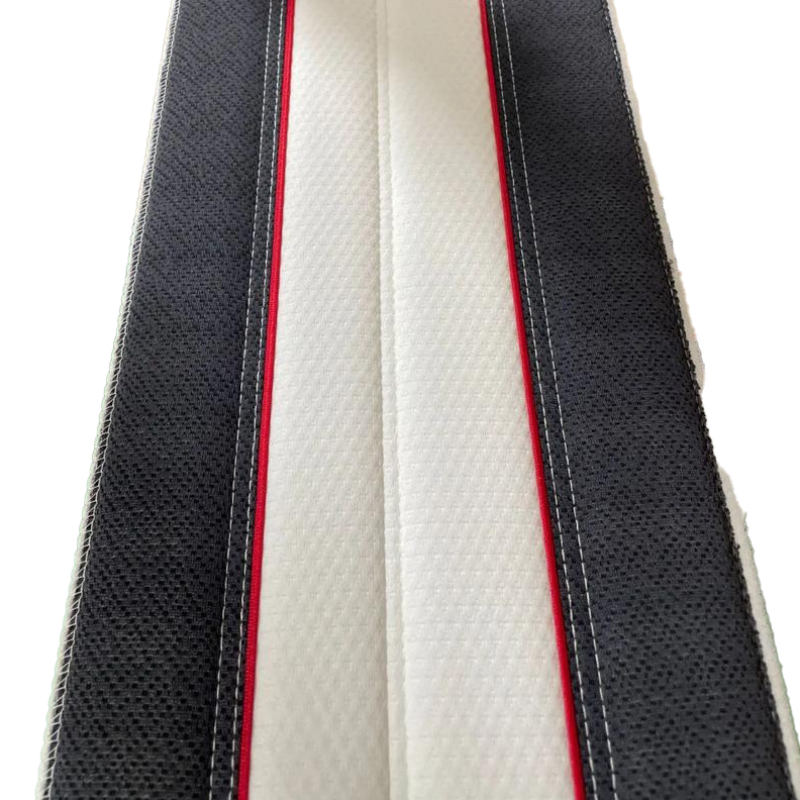

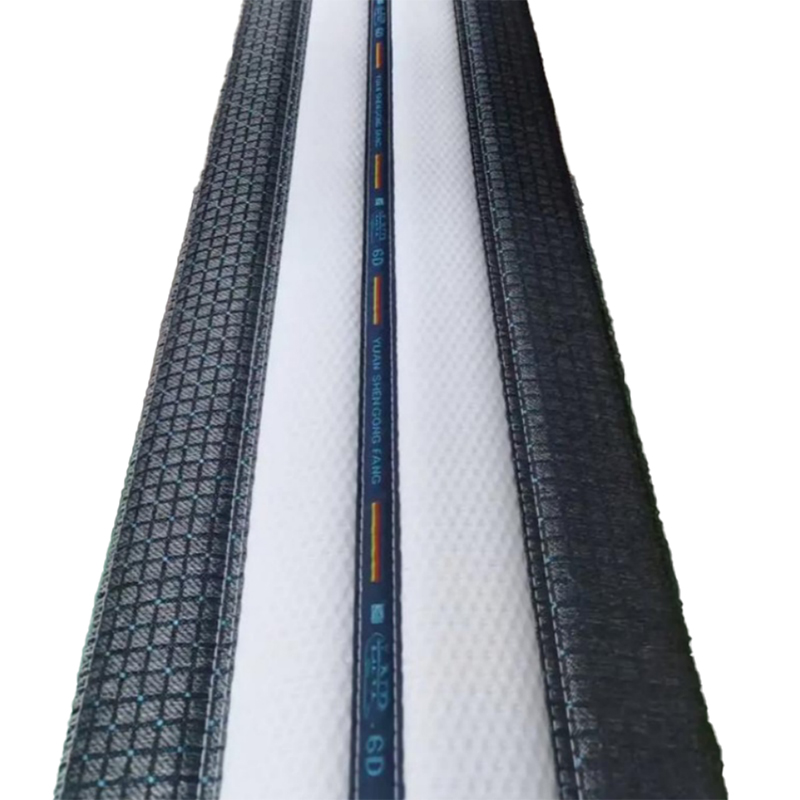

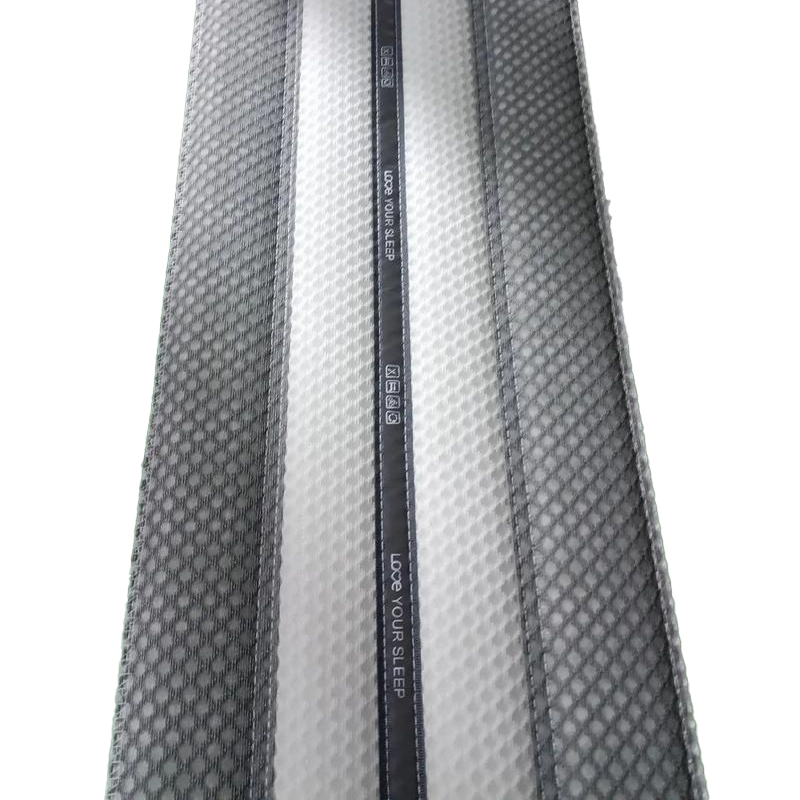

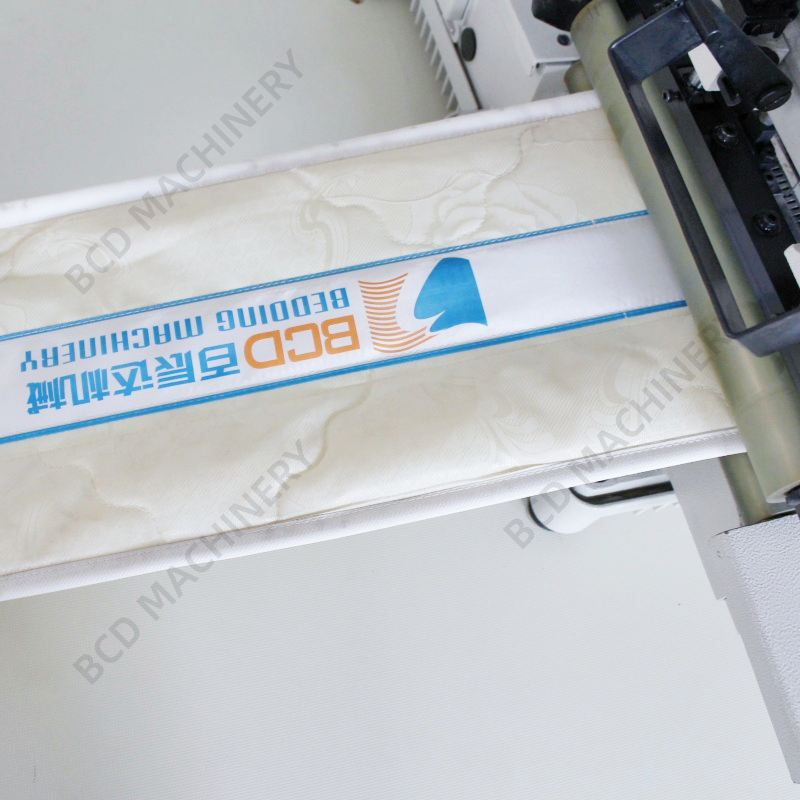

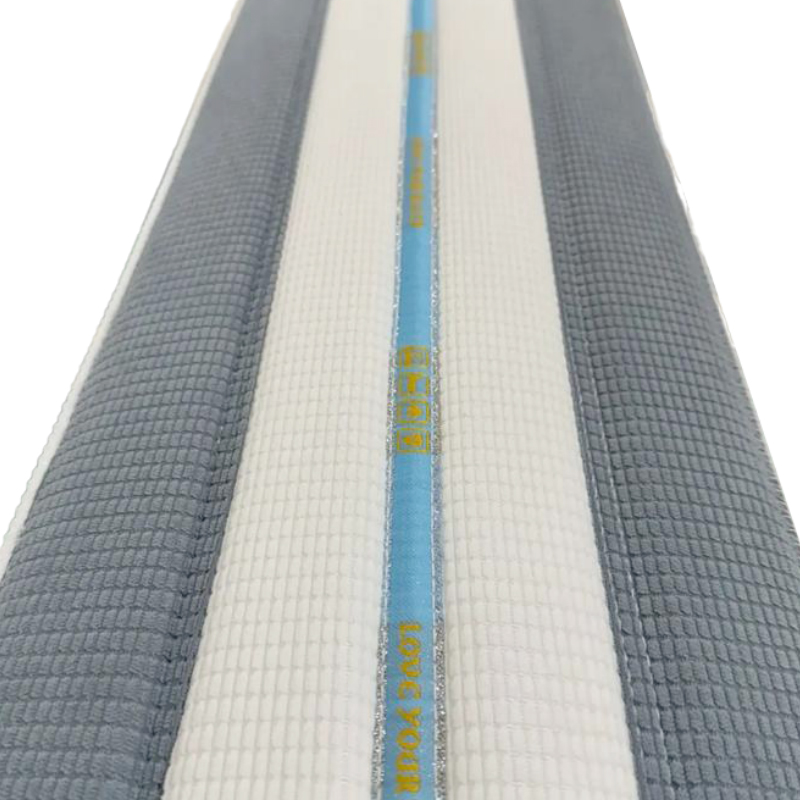

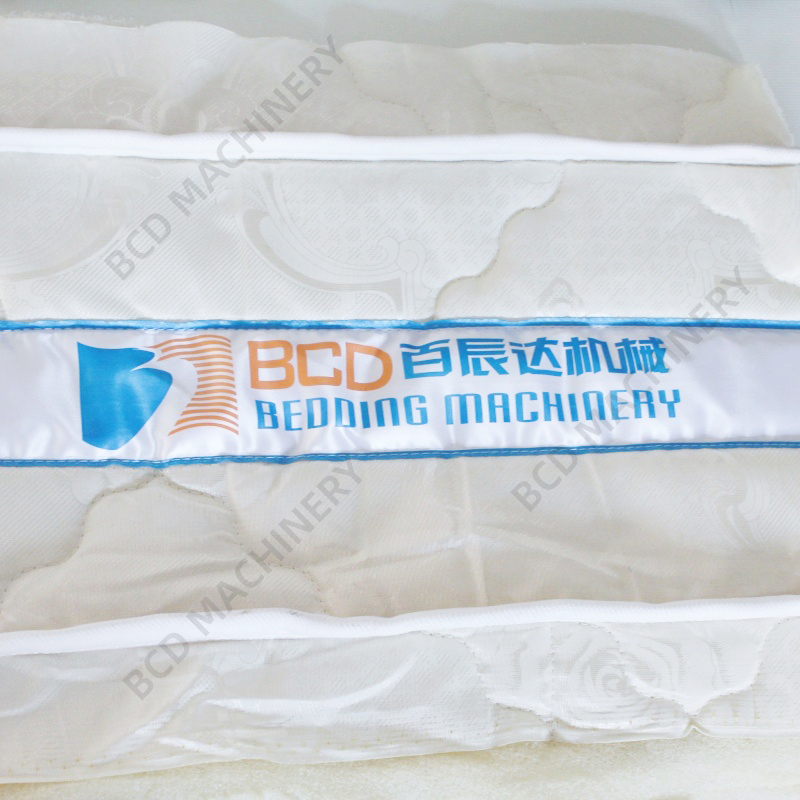

▎FINISHED PRODUCT DISPLAY
 |  |  |  |
▎MODEL COMPARISON
WHICH ONE IS MORE SUITABLE FOR YOU ?

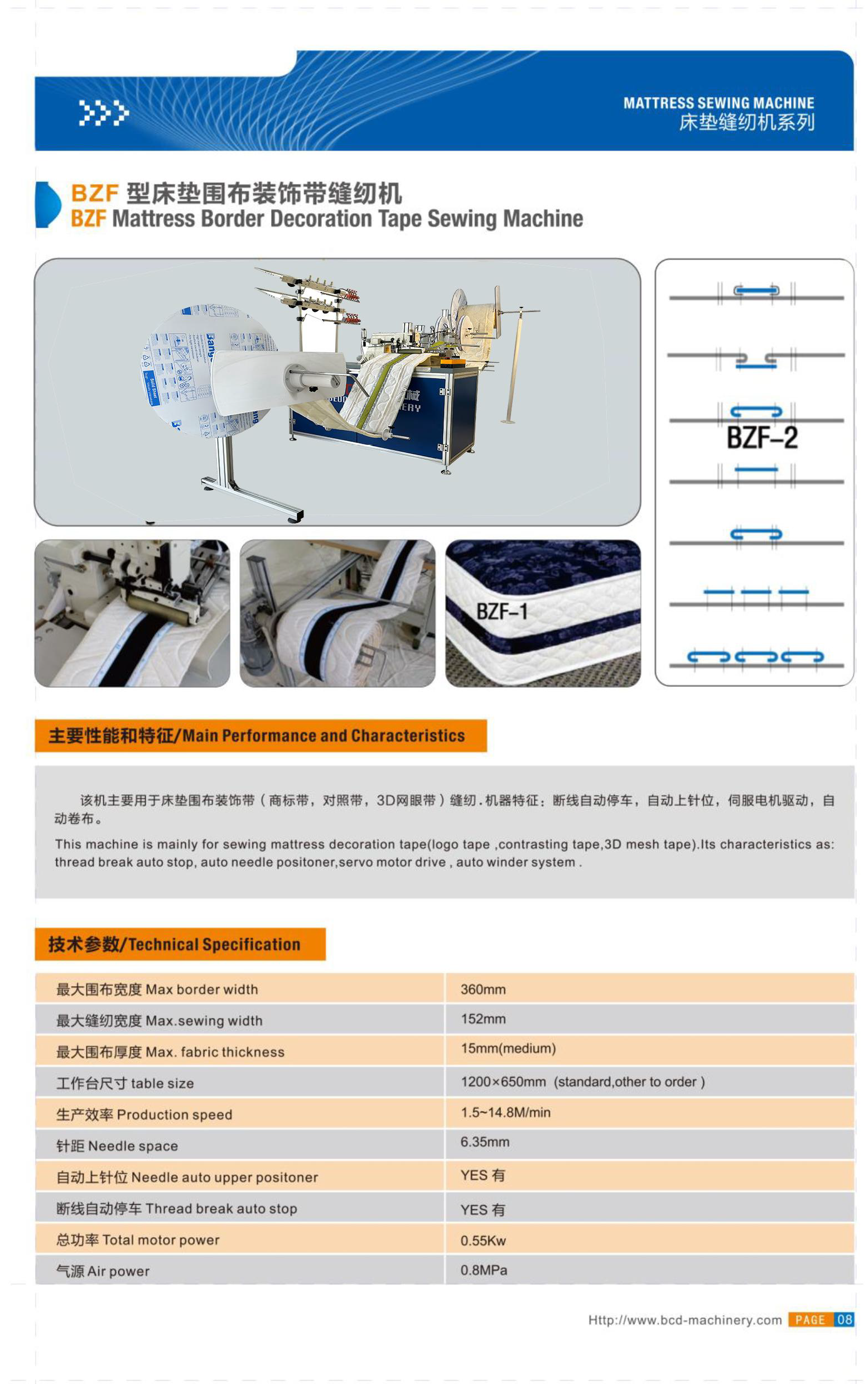

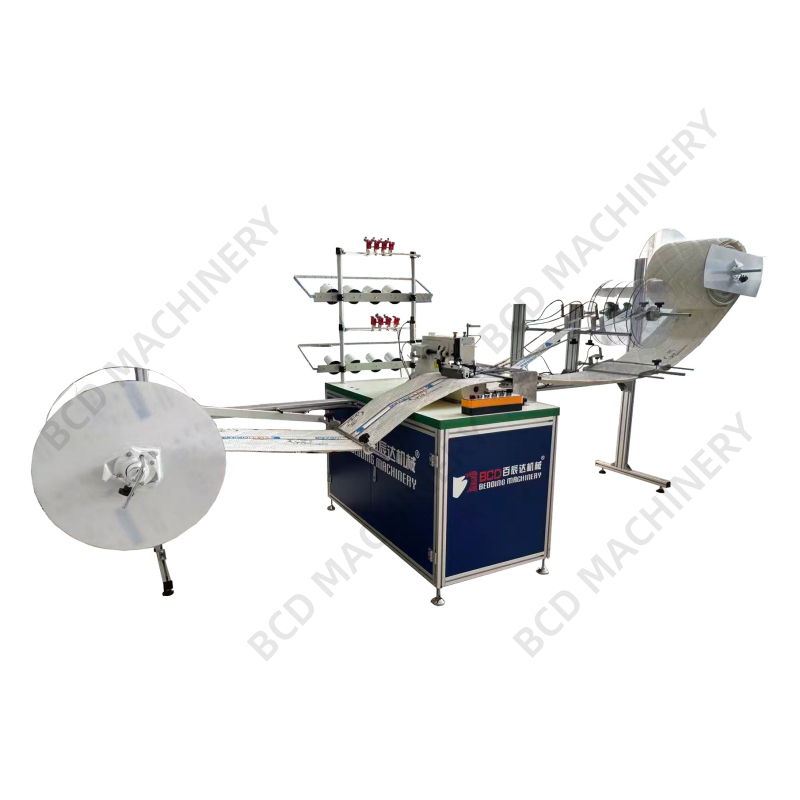

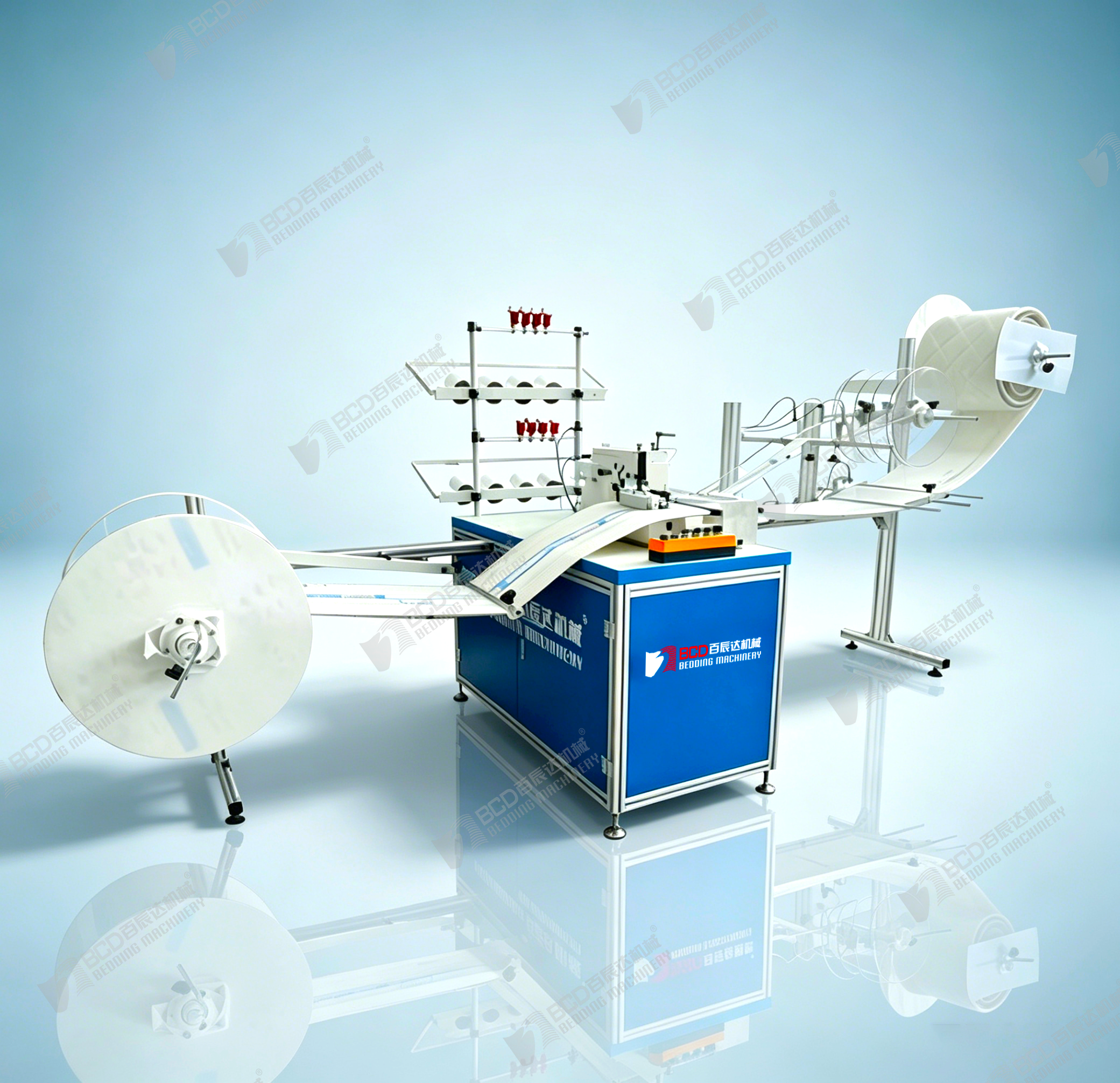

| BZF Mattress Border Decoration Tape Sewing Machine | |||
| Model No. | BZF-1 | BZF-2 | BZF-3 |
| Max border width | 360mm | 360mm | 406mm |
| Max. sewing width | 152mm | 152mm | 150mm |
| Max. fabric thickness | 15mm(medium) | 24mm | ≤35mm According to material density |
| table size | 1200×650mm (standard,other to order ) | 1200×650mm (standard,other to order ) | 1200×600mm |
| Production speed | 1.5~14.8M/min | 10-16m/min | 2-14m/min |
| Needle space | 6.35mm | 6mm | 5mm |
| Needle auto upper positoner | YES | YES | YES |
| Thread break auto stop | YES | YES | YES |
| Total motor power | 0.55Kw | 1.88kW | 2kW |
| Air power | 0.8MPa | 0.8MPa | 0.6-0.8MPa |
▎FAQ
Q: What types of decoration tapes can this machine handle?
A: It can handle logo tapes, contrasting tapes, 3D mesh tapes, as well as tapes with brand logos and patterns, and is compatible with various thicknesses and materials.
Q: What is the maximum width of the border fabric it can handle?
A: The max border width is 360mm, the max sewing width is 152mm, and the max fabric thickness is 15mm (medium), which can meet most mattress specifications.
Q: What is the production efficiency?
A: The production speed is 1.5–14.8 meters per minute, which can be flexibly adjusted according to the process. The efficiency in mass production is significantly higher than manual work or ordinary sewing machines.
Q: How much labor can be saved with the auto winder and auto needle upper positioner?
A: It can reduce manual steps such as feeding, winding, and resetting, shortening the sewing time of decoration tape for a single mattress by about 30%.
Q: What if the thread breaks or the needle breaks?
A: It is equipped with a thread break auto-stop function, which can stop in time to avoid fabric scrap.
Q: Will the machine overheat or jam during continuous production?
A: The whole machine is designed for industrial continuous operation, with good heat dissipation of key components and stable operation of the servo motor, enabling long-term high-load work.
Q: What are the total power consumption and air power requirement of the machine?
A: The total motor power is only 0.55kW, and the air power requirement is 0.8MPa.
Q: What is the after-sales warranty period of the product?
A: The standard warranty period is one year
