| Quantity: | |
|---|---|
1.Compatible with steel wires, spring end rings and spring heights of specific specifications (within limited range) for spring unit production 2.Automatically and synchronously coils upper and lower layers of springs 3.Spring row quantity is set via computer; spring units are automatically ejected when the set quantity is reached 4.Automatic lubrication system extends equipment service life, with low maintenance and spare part replacement costs 5.Automatic knotting stop when spring string is blocked 6.Single-person operation enables high-efficiency workflow 7.Equipped with CE certificate |

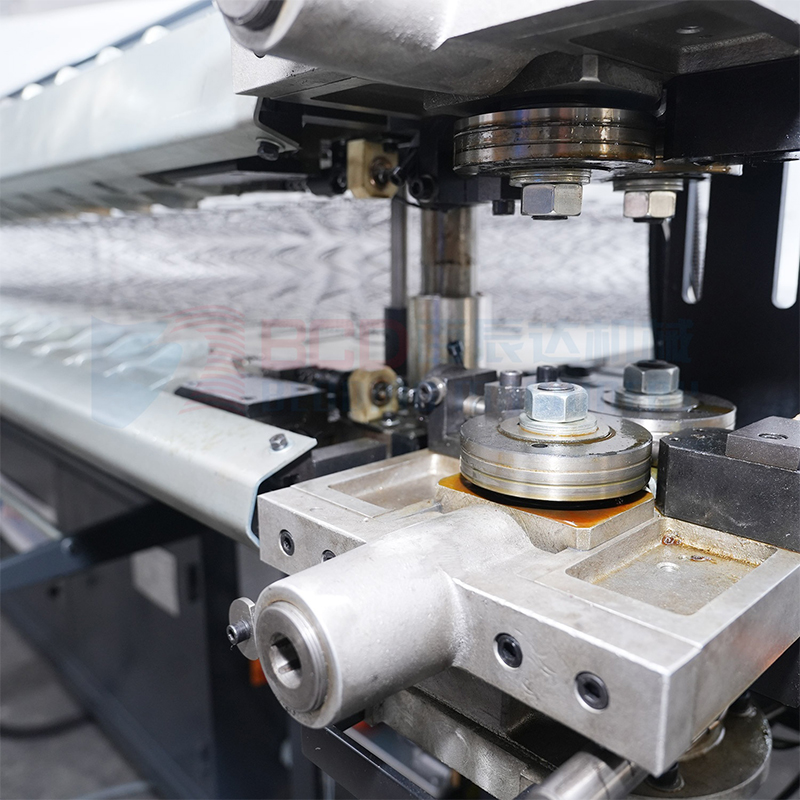

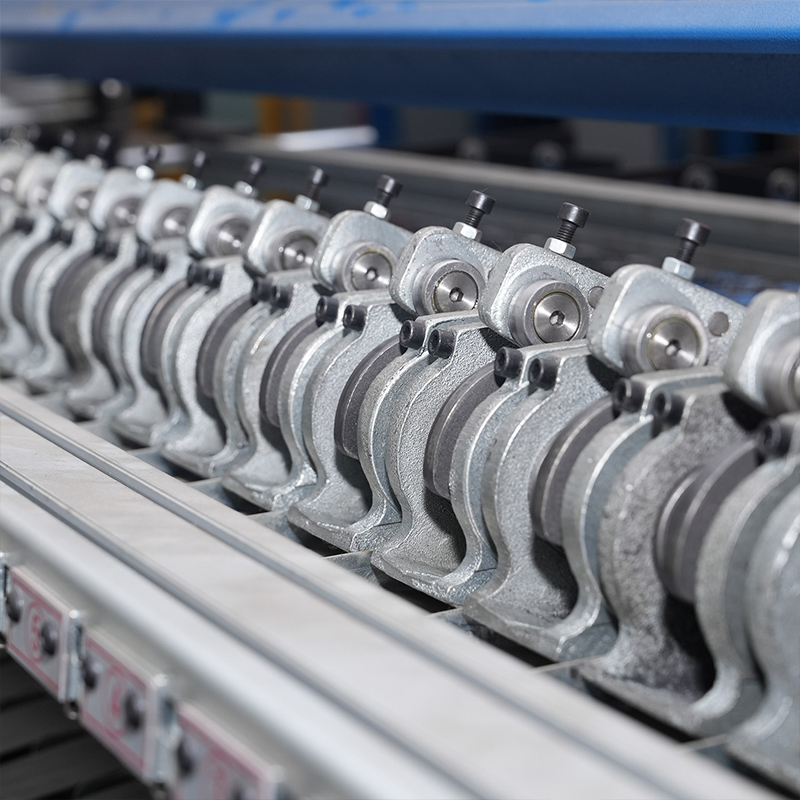

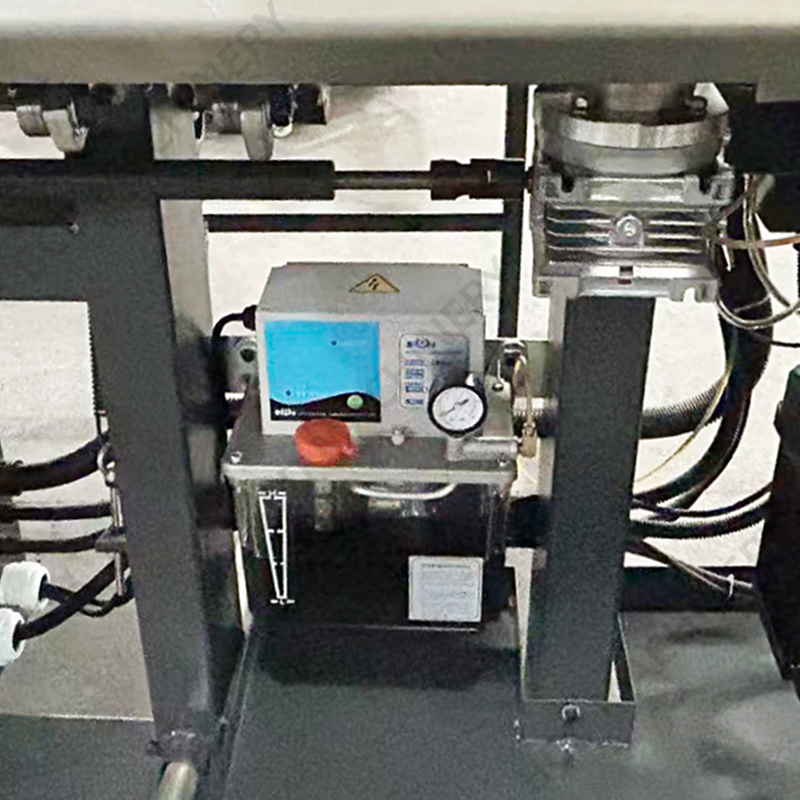

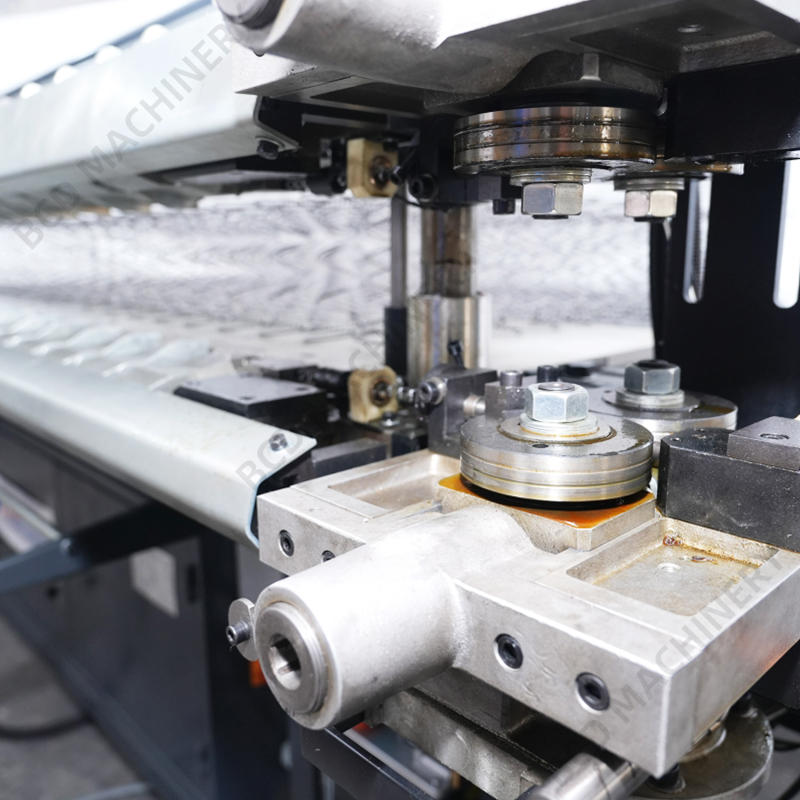

PRECISION POSITIONING DESIGN The component adopts a modular fixture + adjustable roller structure, which can accurately align the center of each Bonnell spring,improving the uniform support of the mattress. |  RELIABLE AND DURABLE Equipped with industrial-grade metal components and lubrication protection design, the equipment’s wear resistance is enhanced, making it suitable for high-load production scenarios. |

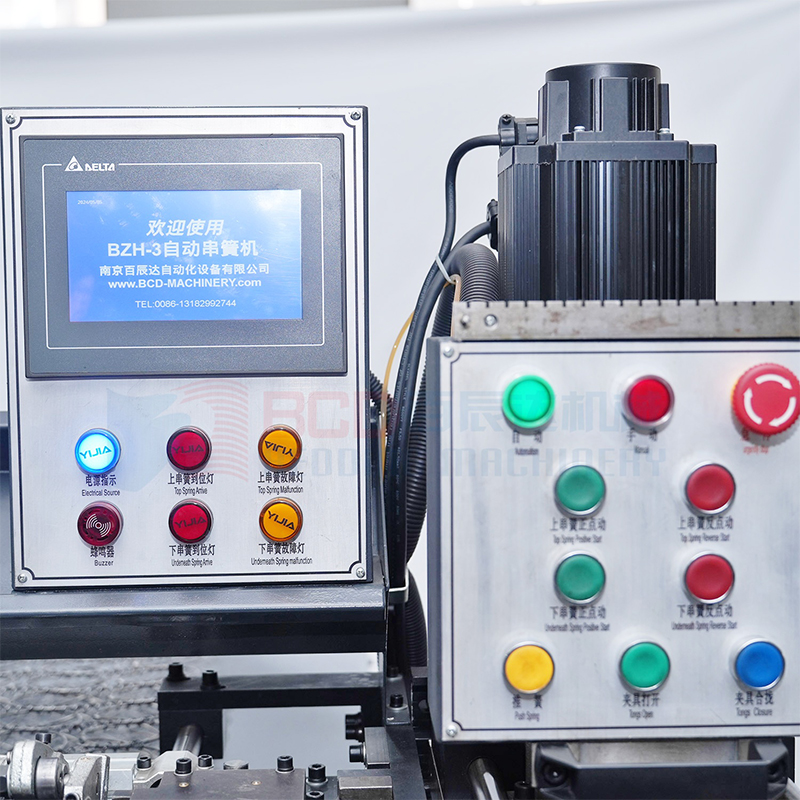

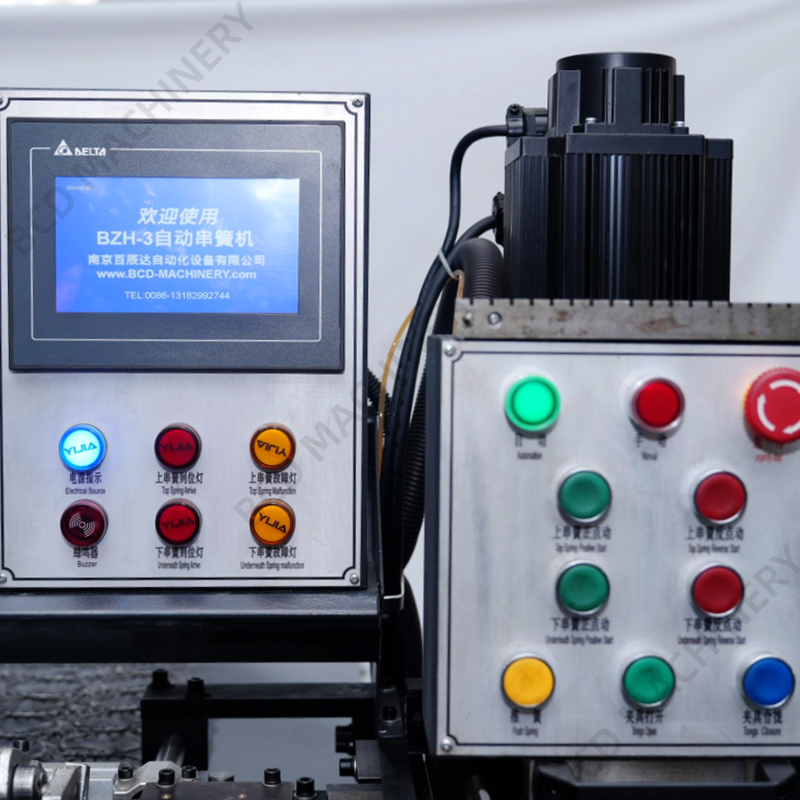

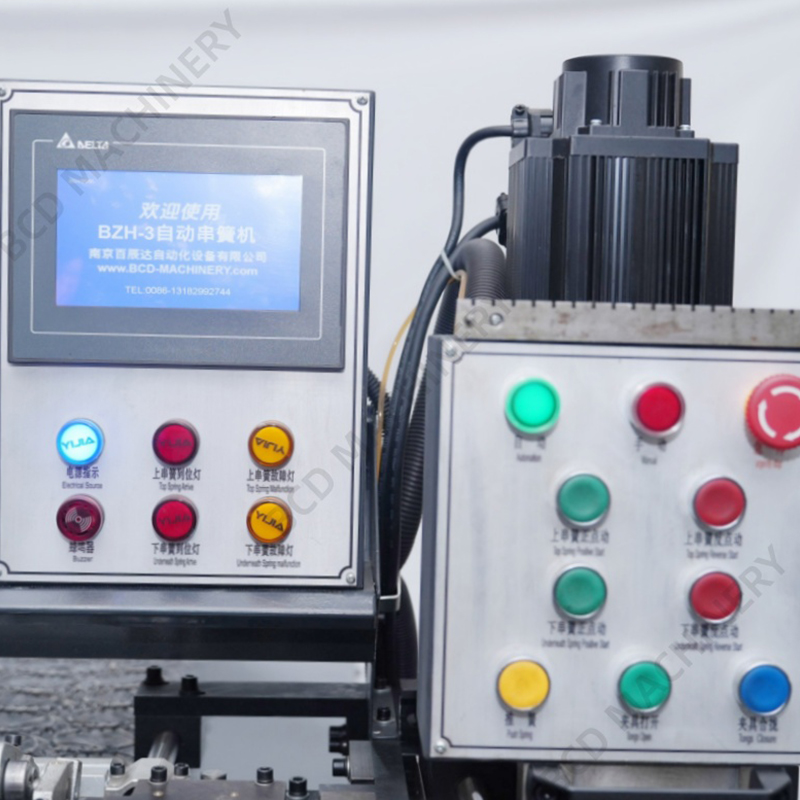

EASY TO OPERATE One-button global control with intuitive function buttons ensures low operation threshold and high efficiency. |

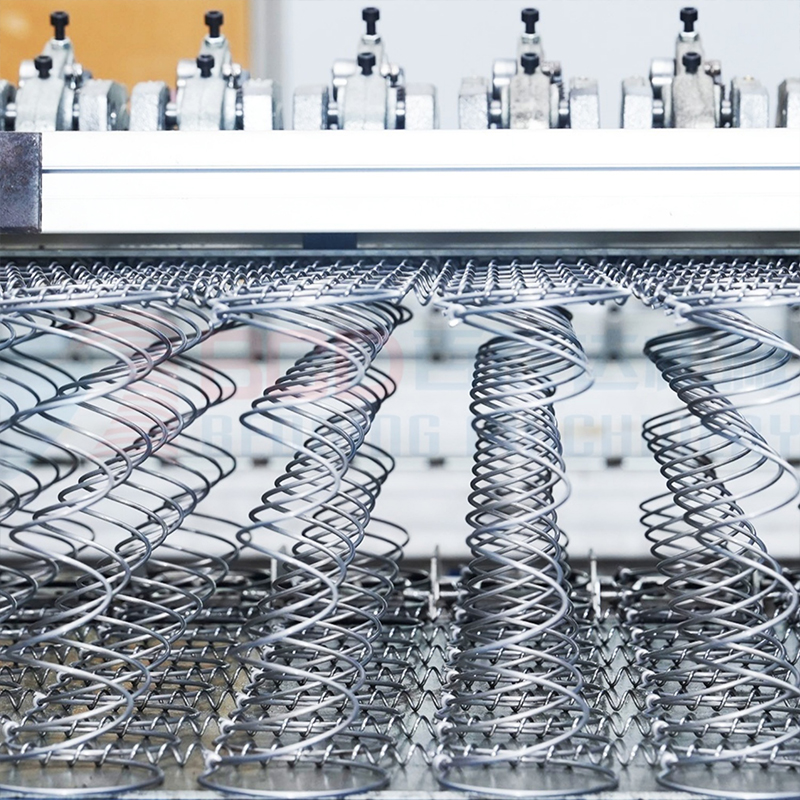

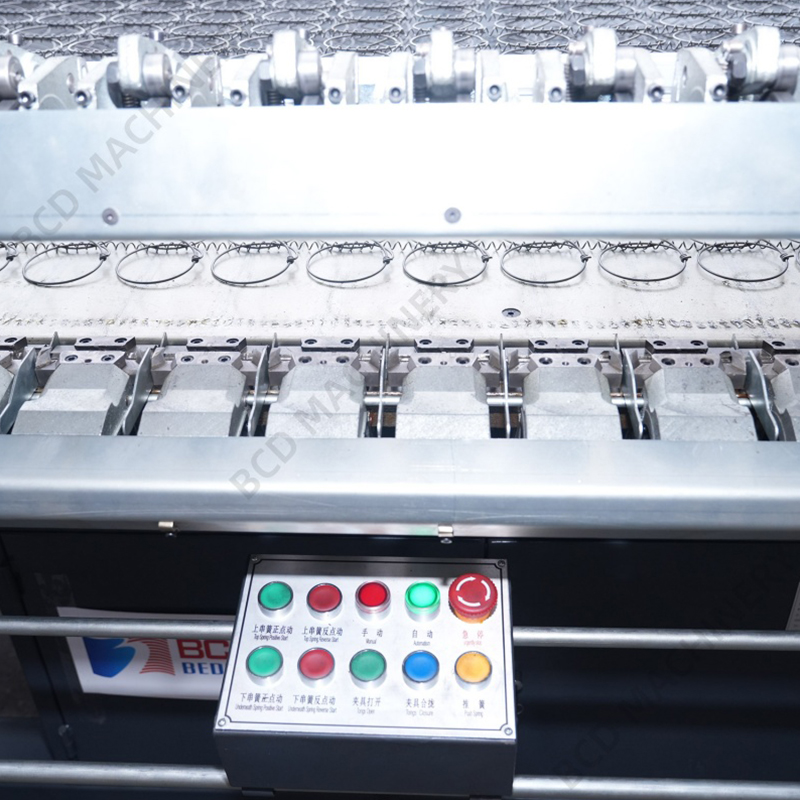

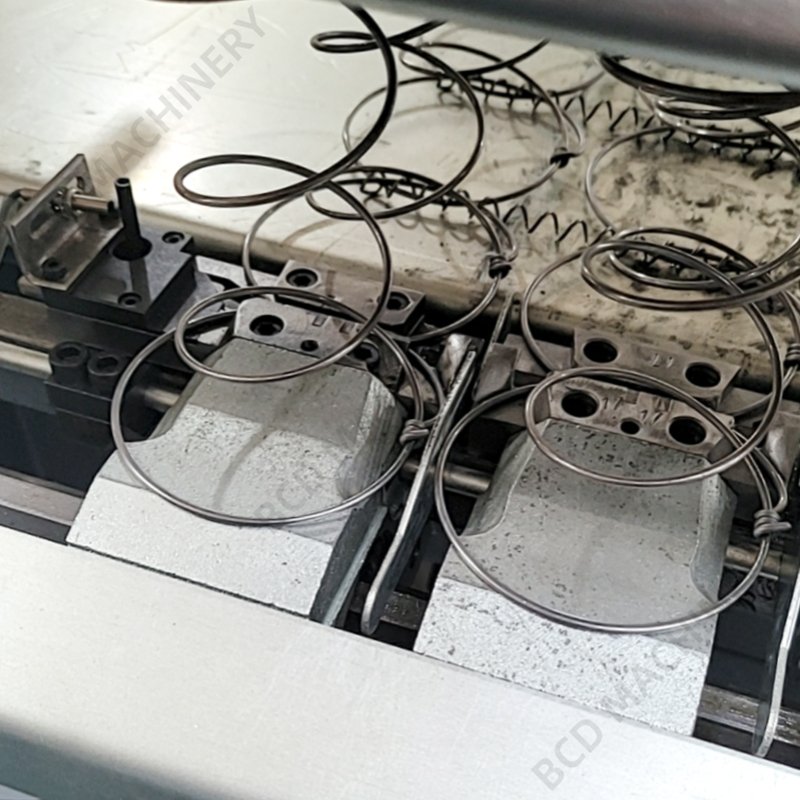

SYNCHRONIZED UPPER & LOWER SPRING ASSEMBLY Simultaneously performs positioning for upper and lower spring layers, ensuring precise alignment between layers while boosting production efficiency. |

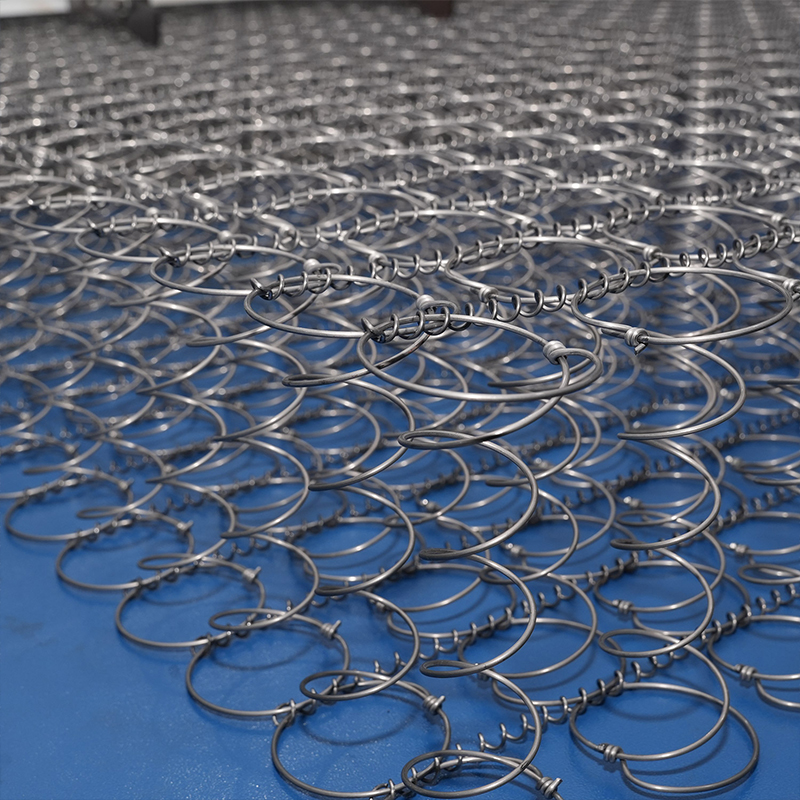

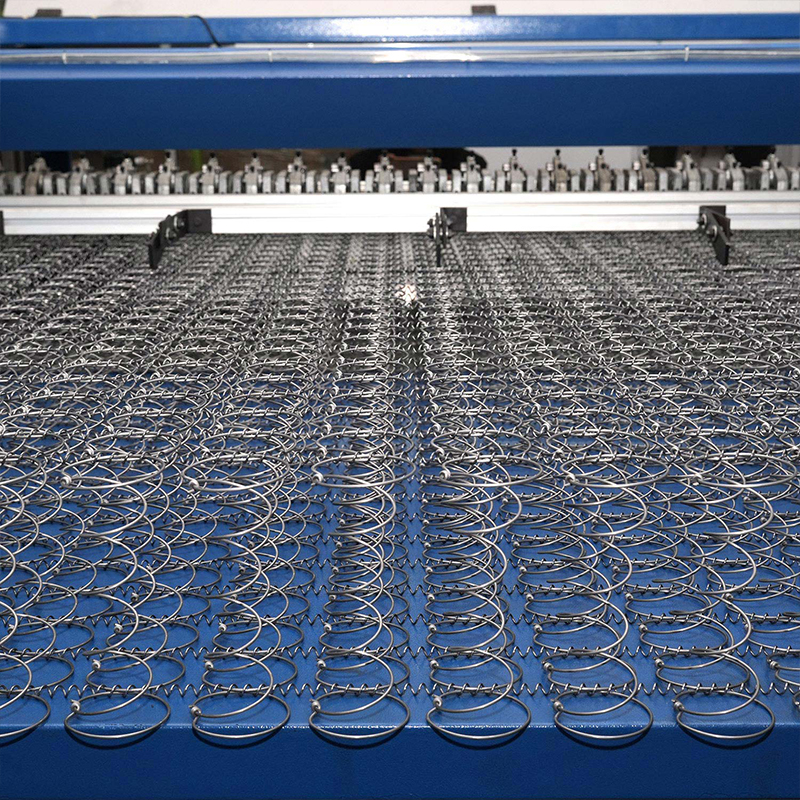

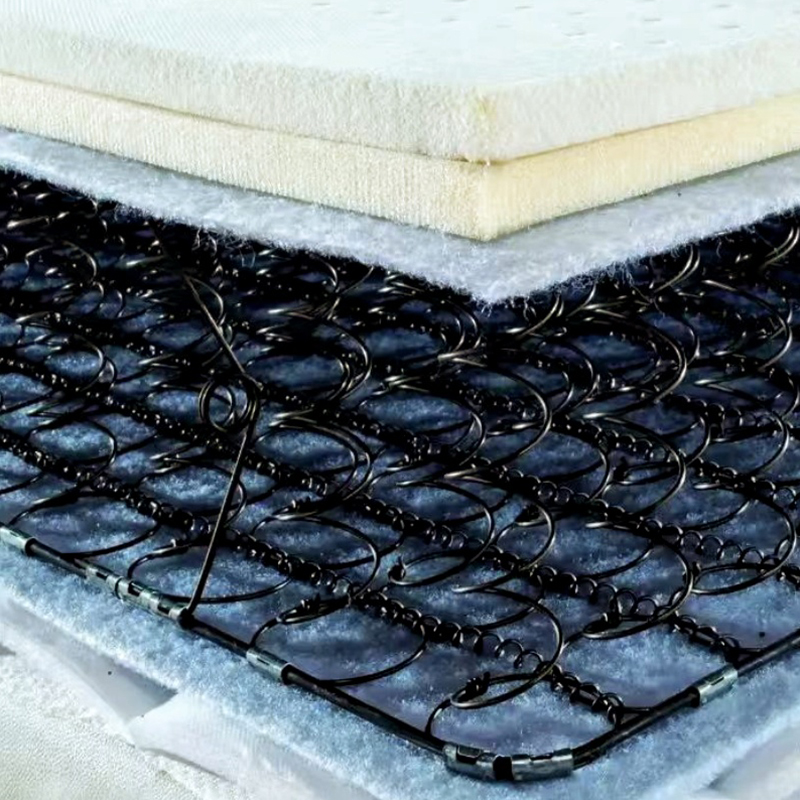

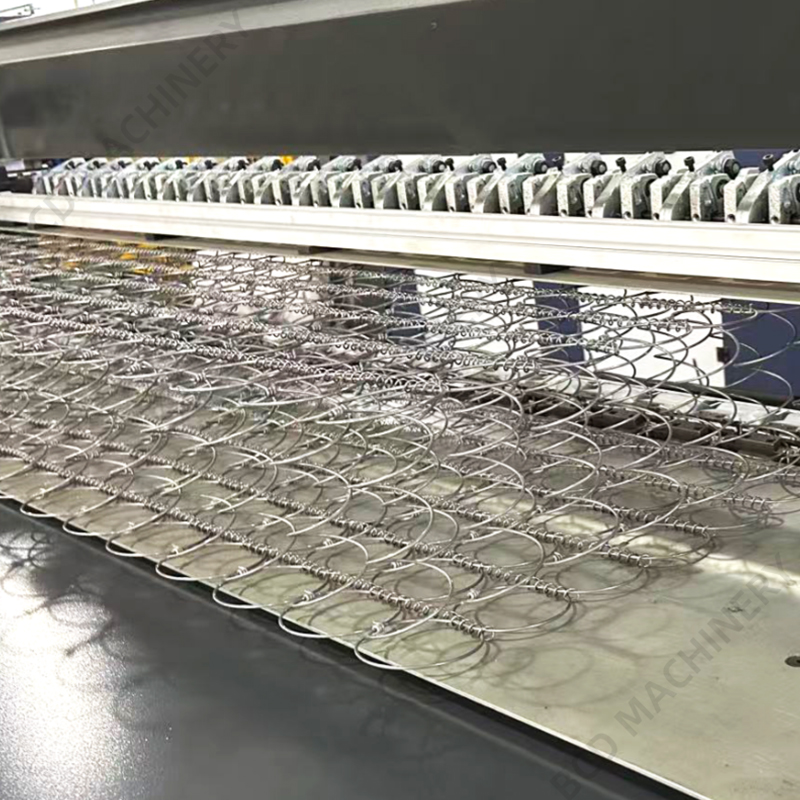

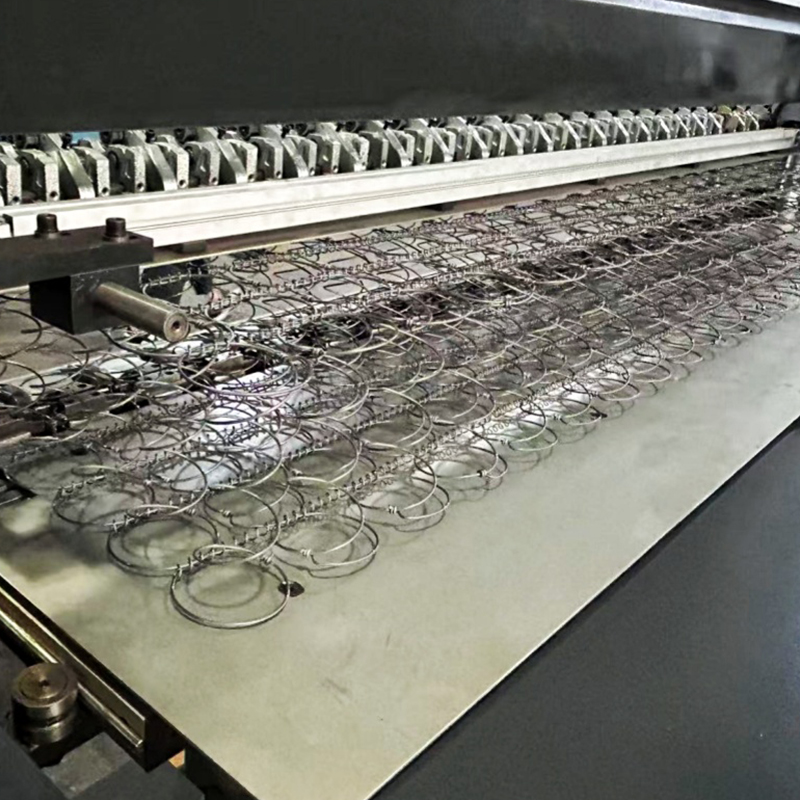

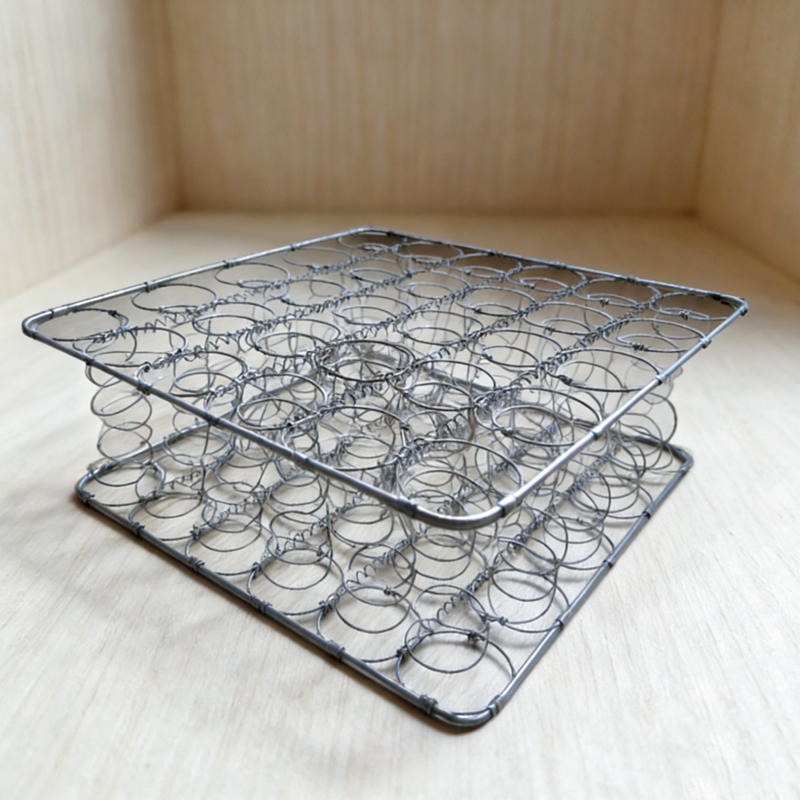

▎FINISHED PRODUCT DISPLAY
 |  |  |  |
▎MODEL COMPARISON
WHICH ONE IS MORE SUITABLE FOR YOU ?

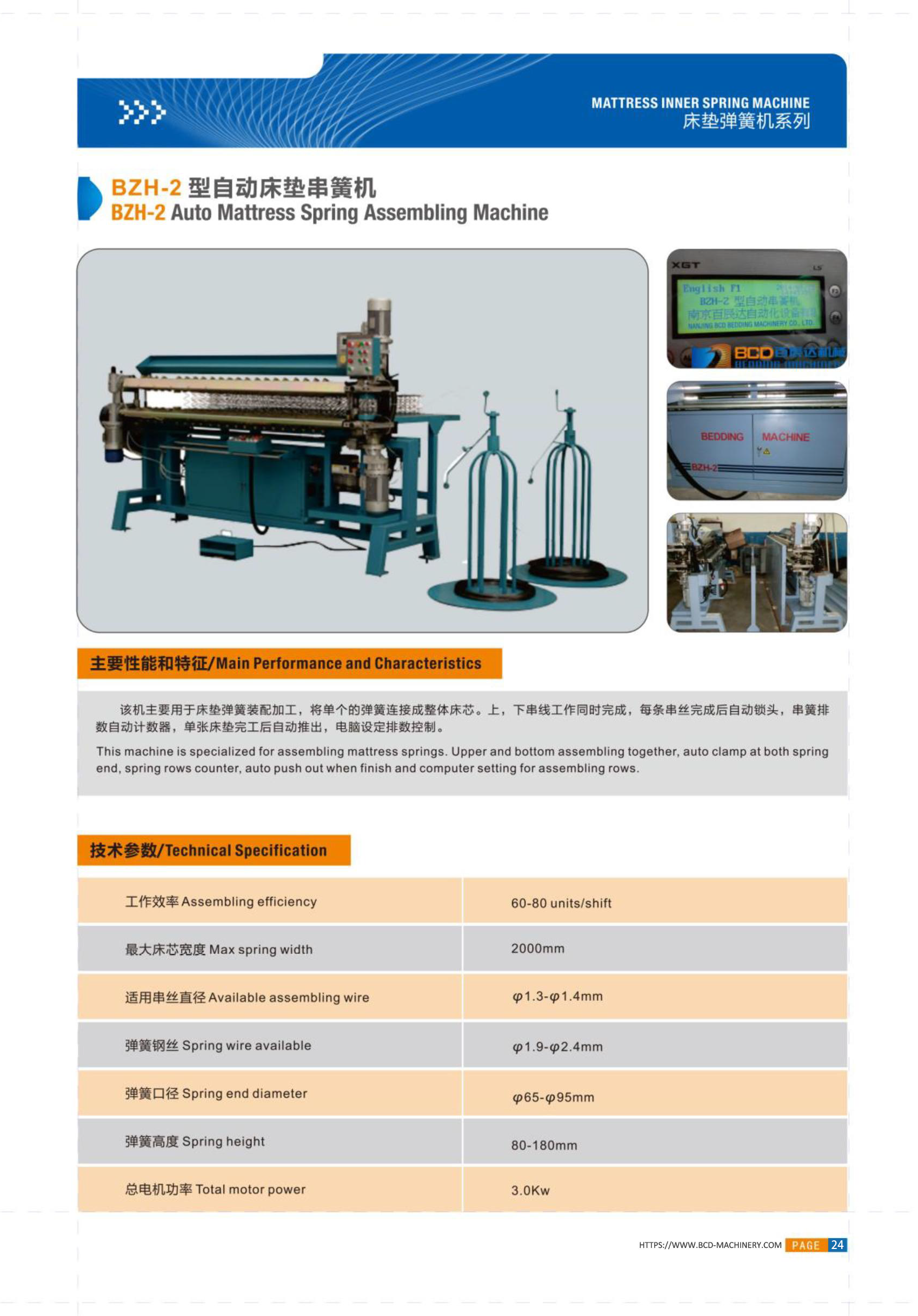

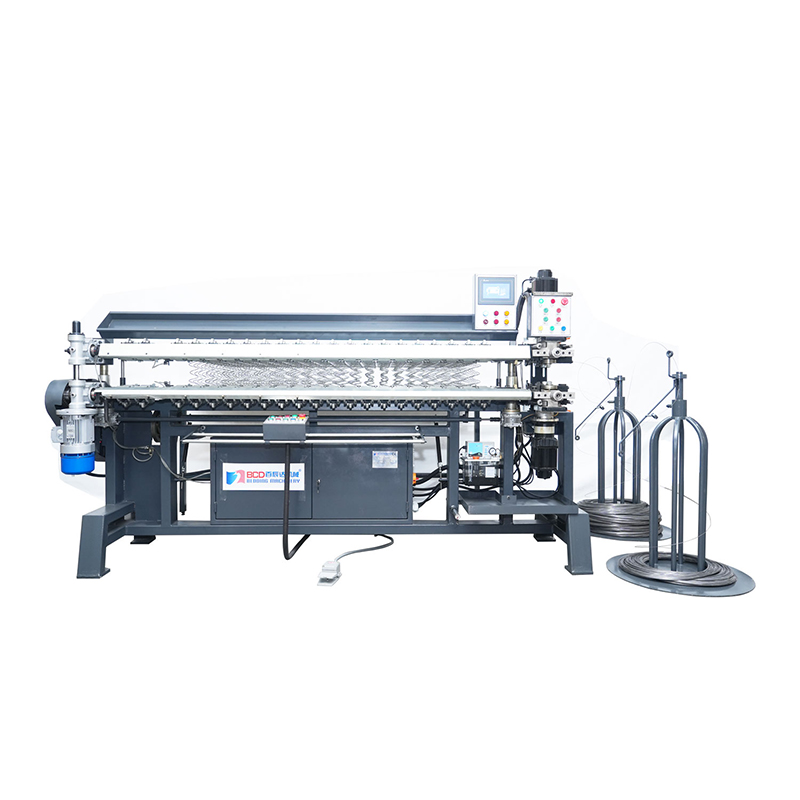

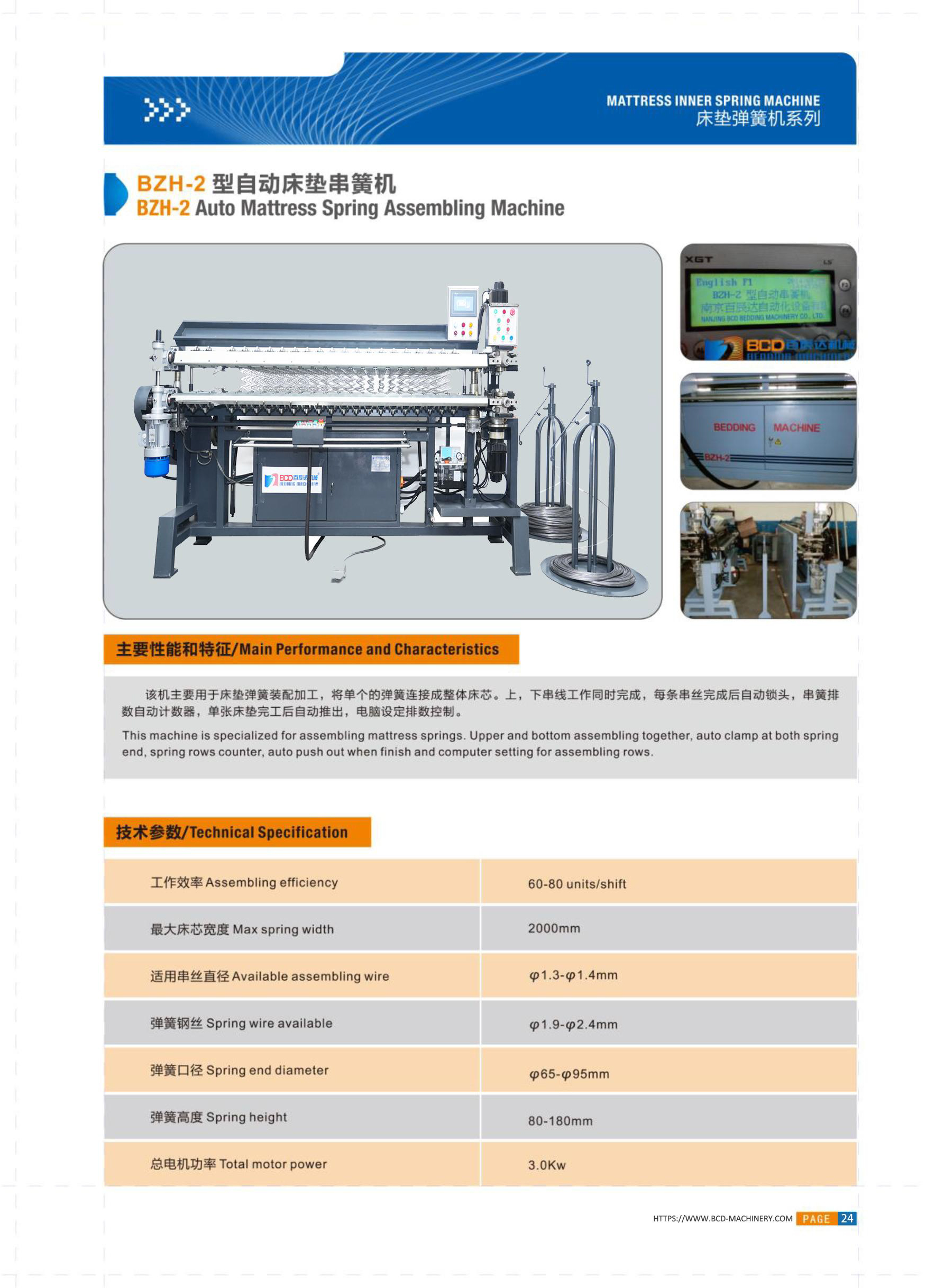

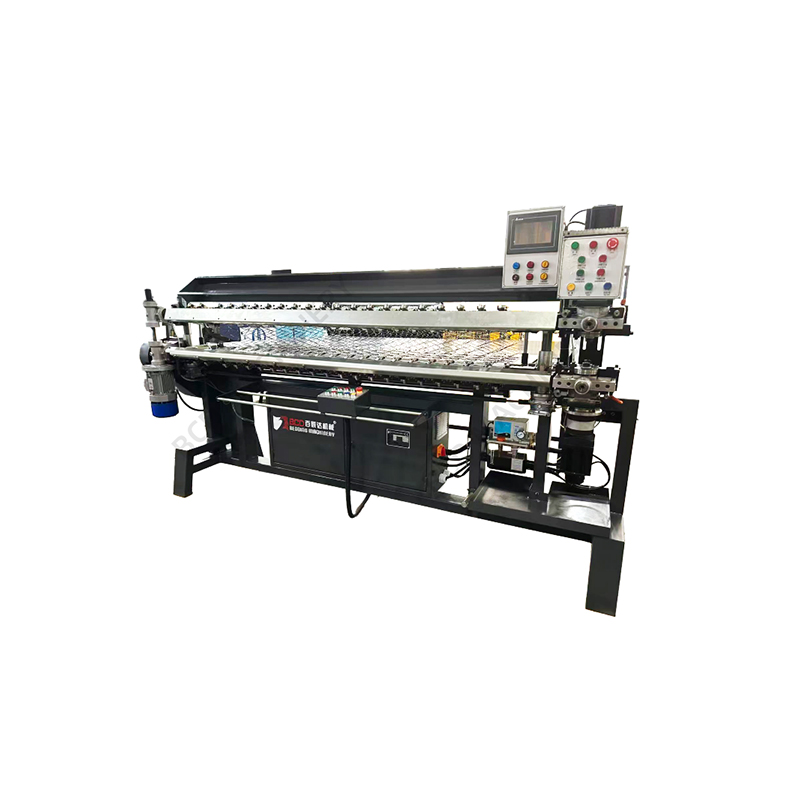

| BZH Mattress Spring Assembling Machine | |||
| Model No. | BZH-2 | BZH-90E | BZH-18E |
| Assembling efficiency | 60-80 units/shift | 80 sheets/shift | 160 pcs/shift |
| Max spring width | 2000mm | 1500mm | |
| Available assembling wire | φ1.3-1.4mm | φ1.3-1.7mm | |
| Spring wire available | φ1.9-2.4mm | φ1.85-2.2mm | |
| Spring end diameter | φ65-95mm | φ80-90mm | |
| Spring height | 80-180mm | 100-200mm | 100-180mm |
| Total motor power | 3.0kw | 4.0kw | 6.0kw |
▎FAQ
Q: How is the BZH machine controlled?
A: The machine is equipped with computer control functions, allowing operators to preset row counts, manage assembly processes, and automate production cycles.
Q: Can the BZH machine handle different mattress sizes?
A: Yes, this machine can produce standard and custom-sized mattress springs, providing flexibility for different product lines.
Q: What's the maximum width of mattress springs it can handle?
A: It supports a maximum spring width of 2000mm, covering regular mattress sizes.
Q: Can it assemble springs of different heights?
A: Yes, it supports spring heights from 80mm to 180mm, suitable for both thin and thick mattress needs.
Q: How does the BZH machine help increase production speed?
A: By synchronizing the automation of multiple processes and reducing manual intervention, this machine significantly improves the production efficiency of spring units.
Q: Does the product support customization?
A: Yes, we offer both OEM and ODM customization services.
Q: What is the after-sales warranty period of the product?
A: The standard warranty period is one year
Q: Can you provide a detailed operation manual?
A: Yes. Contact us for one-on-one guidance.
▎PACKAGING
 |  |  |  |
 |  |  |  |
  |   |   |   |
▎CUSTOMER REVIEWS
