1.Fully automated process, from raw materials to finished packaged products, lower labor costs 2.Standardized process with pre-weighing system for consistent product quality 3.Adaptable to various pillow types, meeting mass production needs 4.Seamless process connection, improved production efficiency 5.PLC system equipped, less manual intervention, low material loss 6.Simple operation, quick commissioning and easy startup |
▎PRODUCT FEATURES

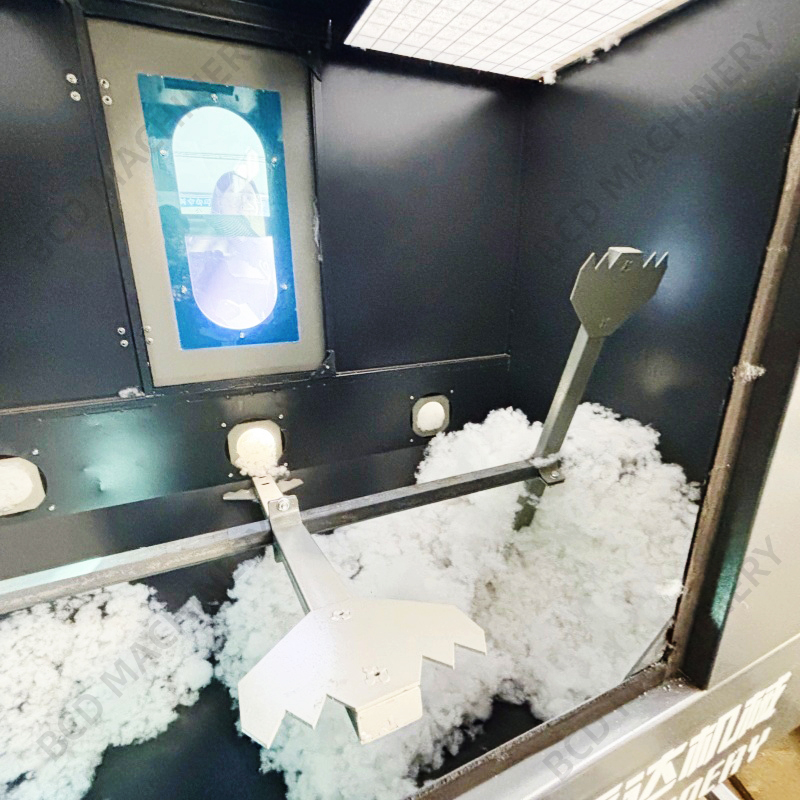

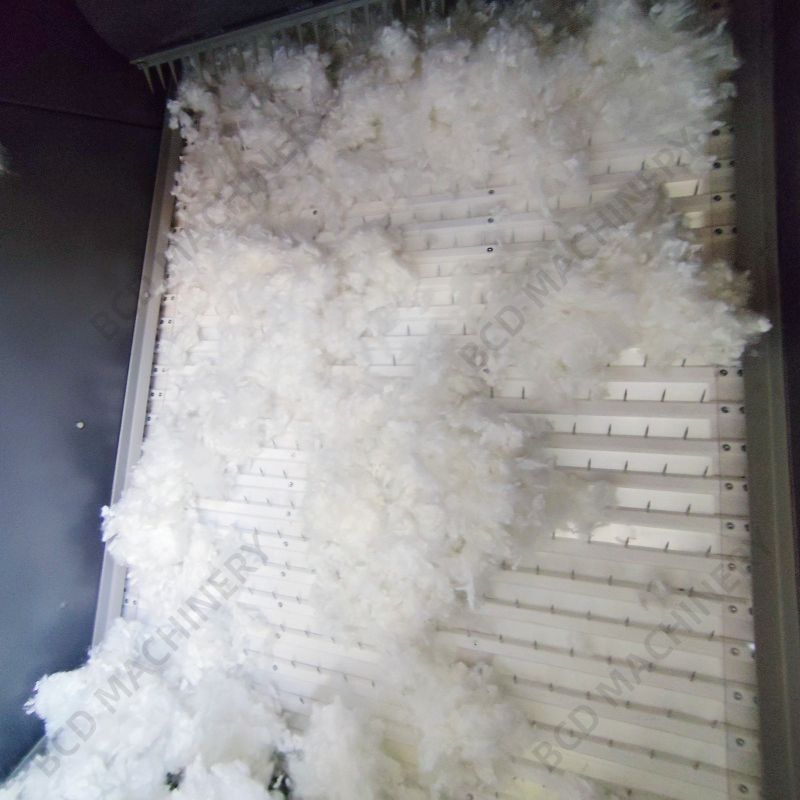

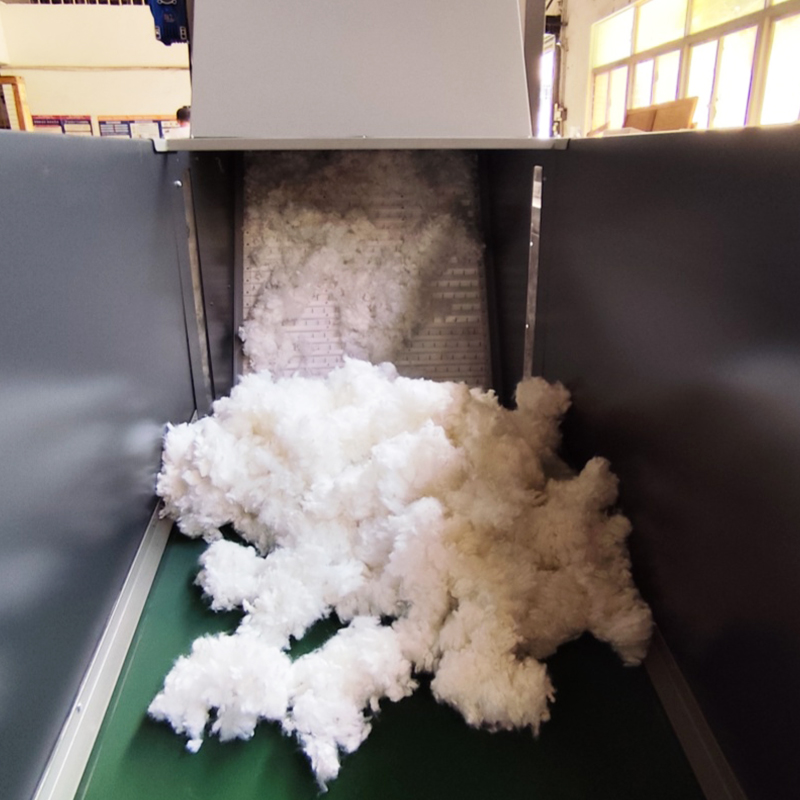

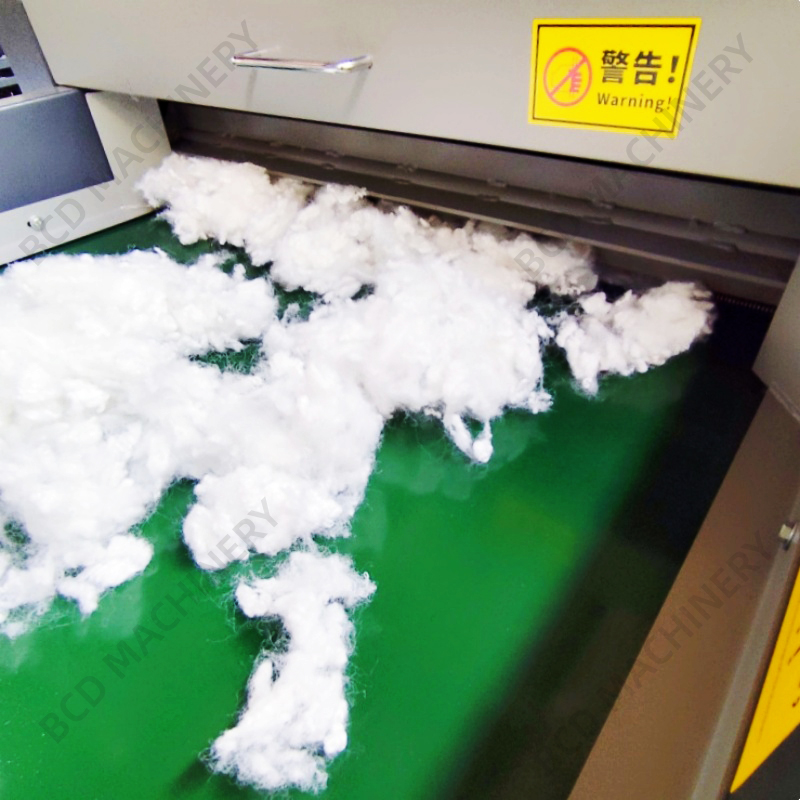

RAW MATERIAL STORAGE Large-capacity storage, ensures uniform feeding of cotton core materials for stable downstream supply. |  AUTOMATIC FIBER OPENING & LOOSENING High-speed processing, delivers evenly fluffy, lump-free cotton core materials for quality filling. |
MULTI-HEAD SYNCHRONOUS FEEDING SYSTEM 3-station discharge ports, connects 3 filling machines simultaneously for doubled production efficiency. |

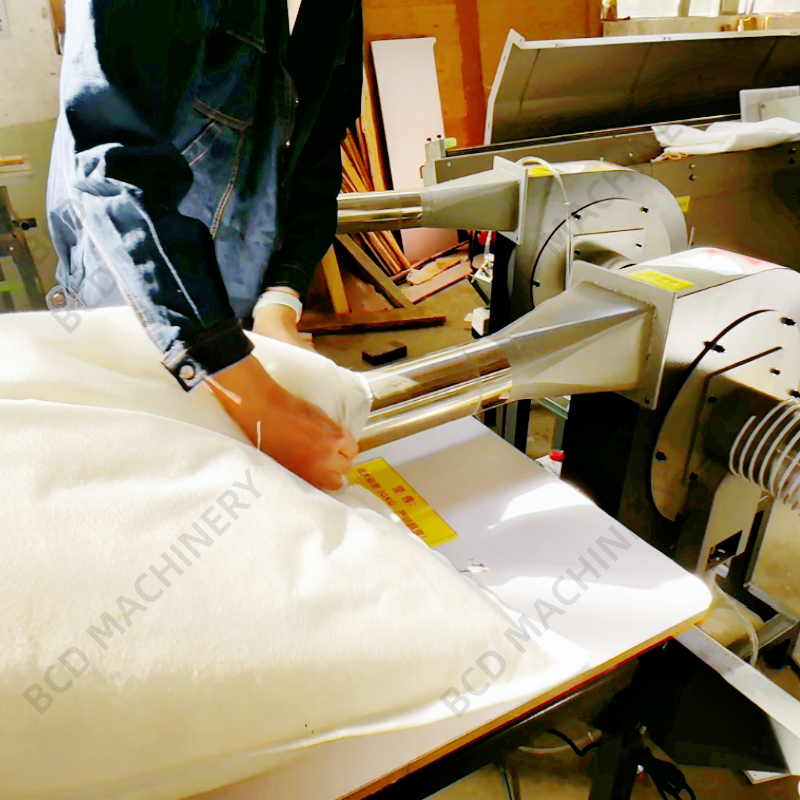

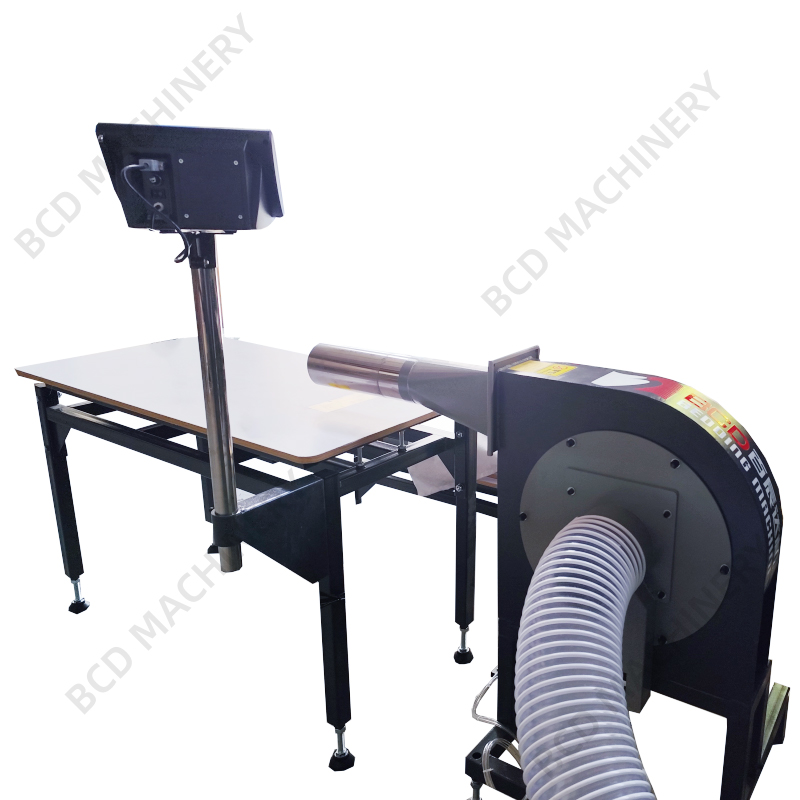

PRECISION QUANTITATIVE FILLING Equipped with digital high-precision scale, real-time weight display, ensures accurate weight and consistent fullness per pillow. |
▎FINISHED PRODUCT DISPLAY
 |  |  |  |
▎MODEL COMPARISON
WHICH ONE IS MORE SUITABLE FOR YOU ?

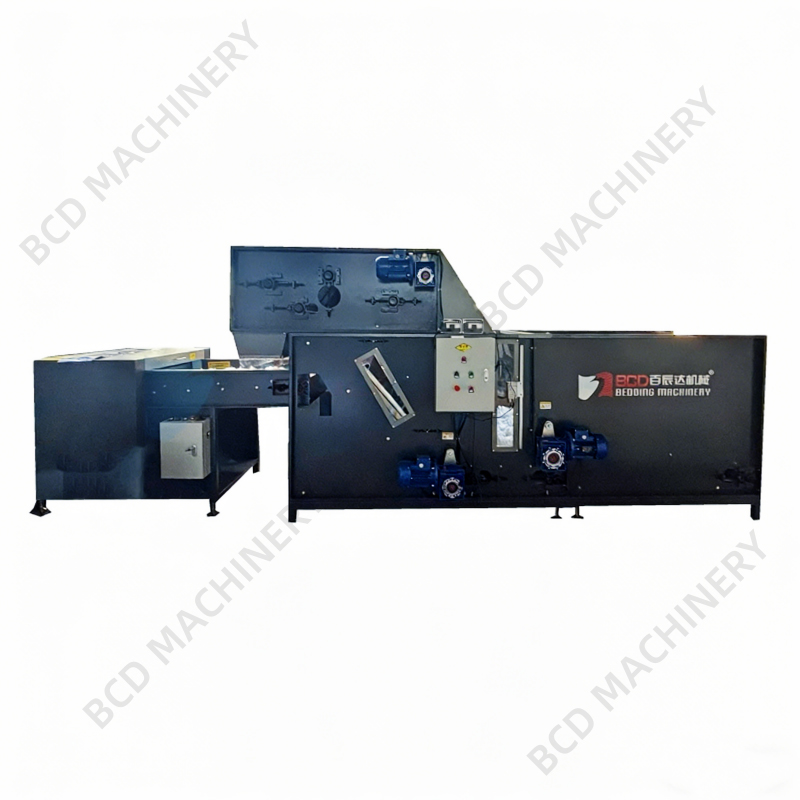

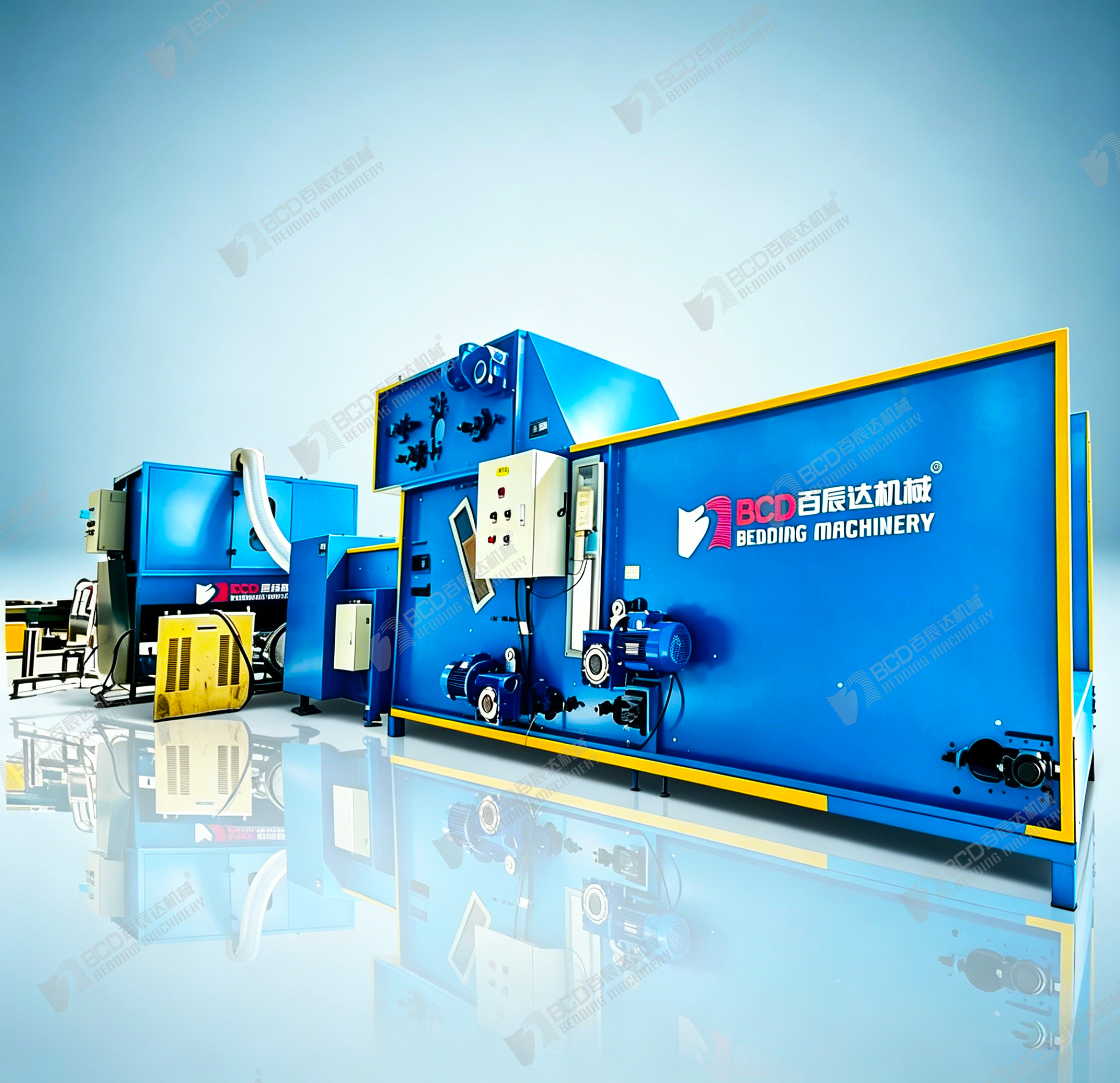

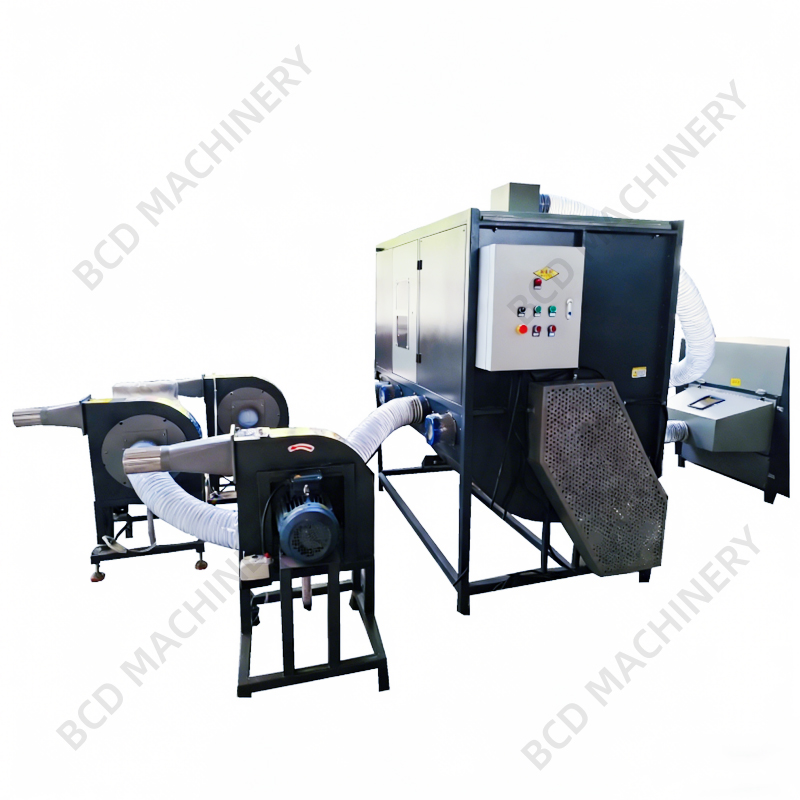

| BZTX Pillow Production Line | ||||||
| Description | Fiber feeding machine | Fiber | Mixing | Blowing | Filling mc | Scale with |
| Model | BSL | BSM | BHH | BSFJ | BCM | BCZT |
| Power | 3.3KW | 8.25KW | 2.2kw | 3.0kw | 3.0kw | 0 |
| Overall Dimension | L3800*W1300*H210 | L2200*W1300*H108 | L1400*W1100*H1800 | L700*W600*H900 | L750*W830*H900 | L1200*W700*H700 |
| Weight | 1000KG | 650KG | 270KG | 80KG | 90KG | 50KG |
| Production | 300~350KG/H | 300~350KG/H | 2.3M3 Capacity | - | 150~200KG/H | - |
| Total Power | 22.75KW | |||||
▎FAQ
Q: What is the actual processing capacity of the fiber opening machine?
A: BSM-350 has a processing capacity of 300-350kg/h, enabling stable continuous discharging and fully meeting the material demand of multiple filling machines operating simultaneously.
Q: What is the processing efficiency of the fiber filling machine and its air pressure requirement?
A: BCM-35 has a processing capacity of 150kg/h, with a stable working air pressure of 0.4-0.6mpa required.

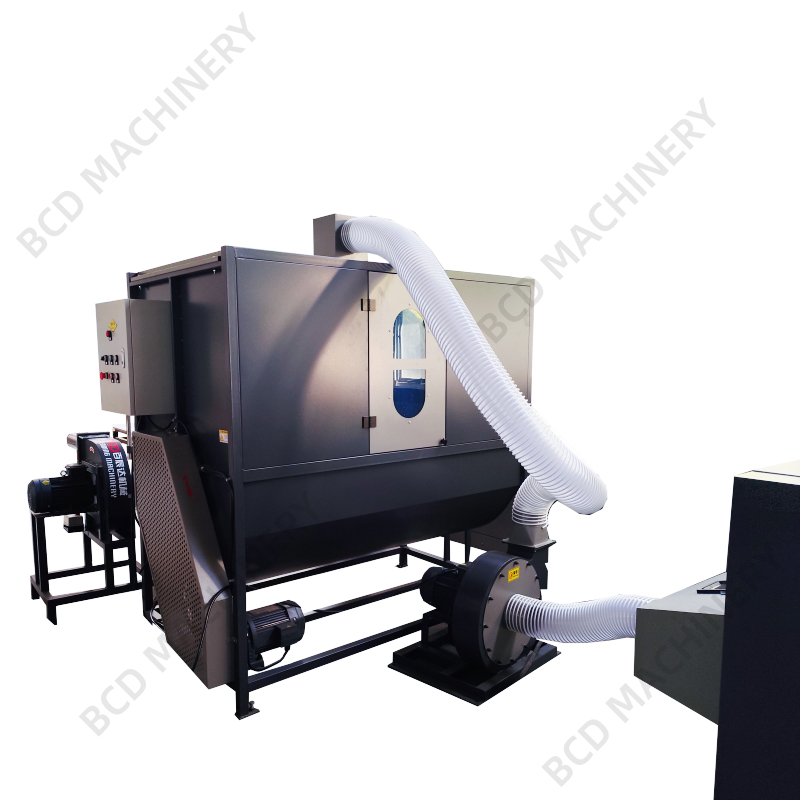

Q: What is the effective volume of the mixing container and the applicable production line capacity?
A: BHH-2.3 has an effective volume of 2.3cbm, for temporary storage and uniform distribution of raw materials, applicable to production lines with a raw material processing capacity of ≤500kg/h.
Q: What are the dimensions of the automatic feeding machine BSL-990 and the required operating space?
A: Dimensions: 3900*1500*1950mm. It is recommended to reserve over 500mm of operating space around the machine for easy feeding and maintenance.
Q: Are these devices priced individually or as a complete line?
A: Individual and complete line pricing are both available. Complete line purchase includes all feeding pipelines, power supply accessories and fixed connectors between devices, no extra purchase needed.
Q: Is a separate air compressor required for the fiber filling machine, and what are the parameter requirements?
A: A separate air compressor is required. It is recommended to use one with an air displacement ≥0.8m³/min and a rated pressure of 0.8mpa to ensure stable air supply.
Q: Can the automatic feeding machine adapt to our existing raw material storage method in the factory?
A: Yes. It is suitable for conventional bagged and boxed cotton storage, with a flexible adjustable feeding port, no need to modify the existing storage layout.
Q: What is the after-sales warranty period of the product?
A: The standard warranty period is one year.
