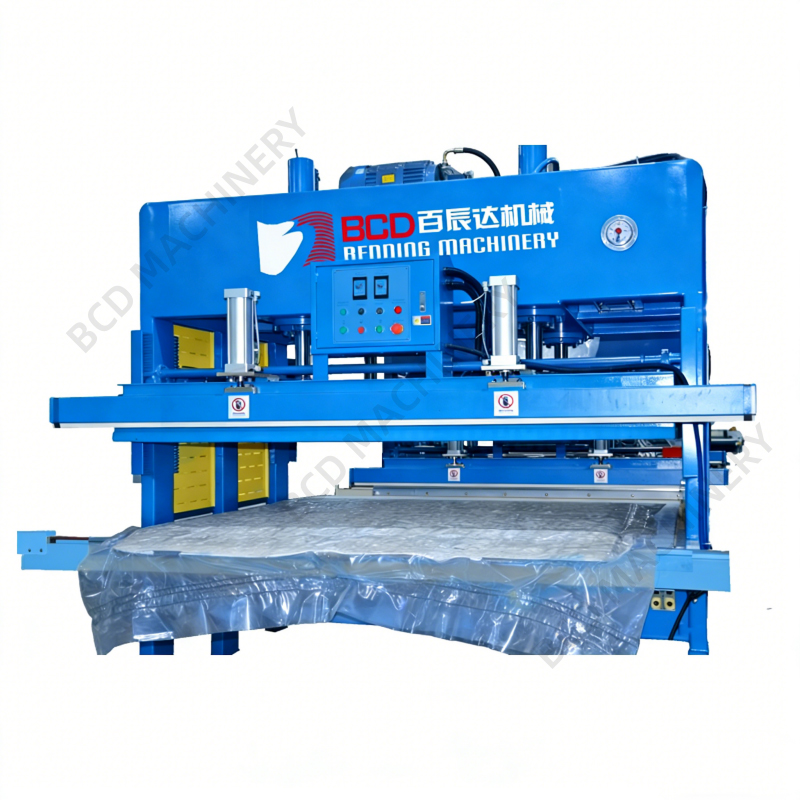

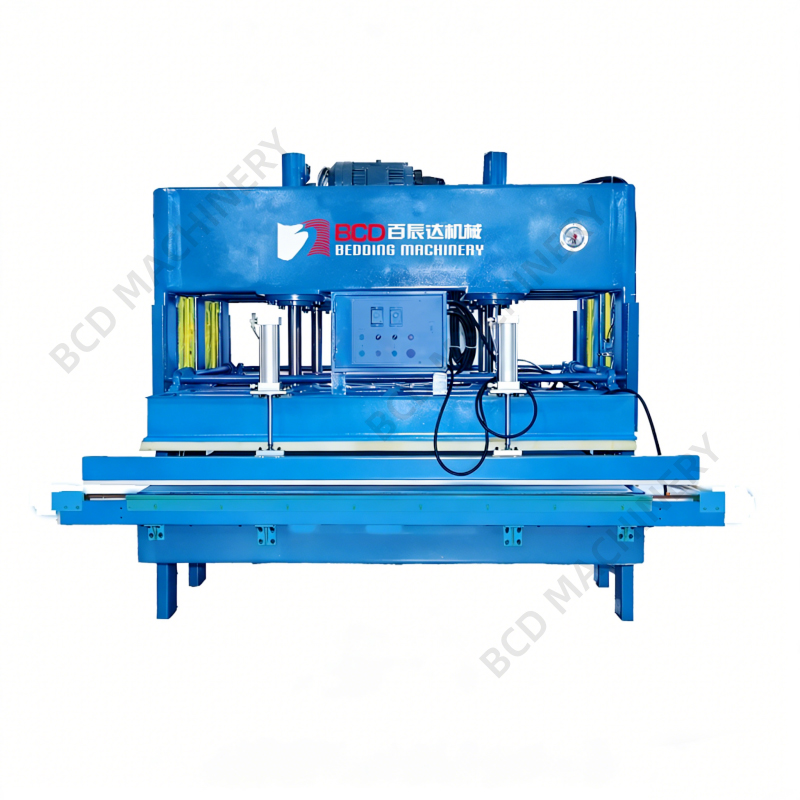

1.Machine capacity: 20-30 mattresses/hour 2.Integrates multiple packaging processes in one machine; no additional auxiliary equipment required, saving workshop investment and layout space 3.Supports mattresses W1800*L2000mm in size and 10-400mm in thickness, covering most household mattress dimensions 4.Mattress-specific designed equipment, compatible with the shapes and materials of mainstream mattresses 5.Delivers 30-40T hydraulic pressure, enabling even compression of thick mattresses for neat packaging appearance 6.Stable machine body, suitable for industrial-grade continuous operation |
▎PRODUCT FEATURES

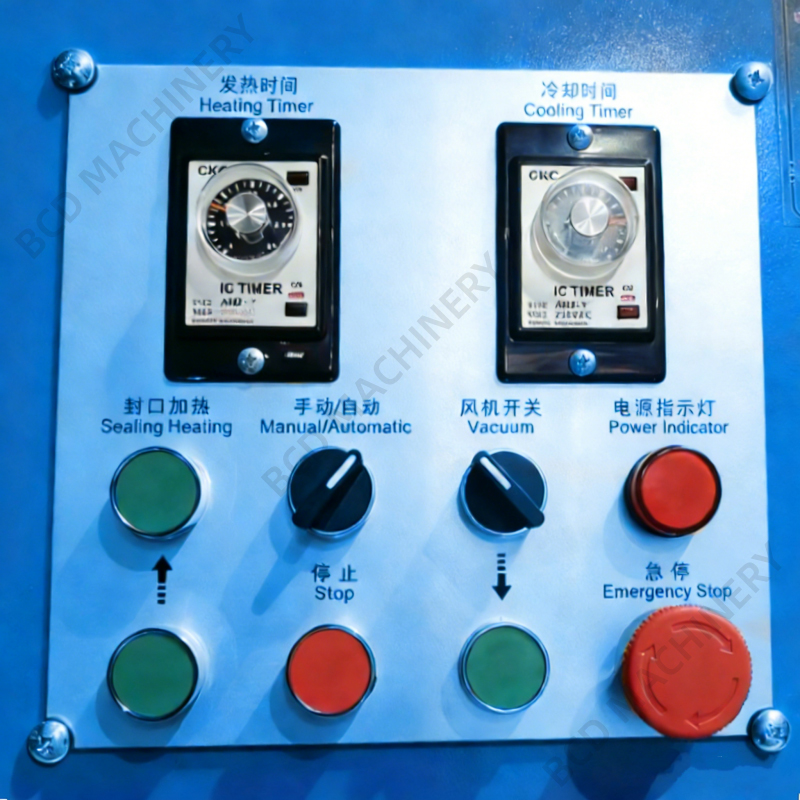

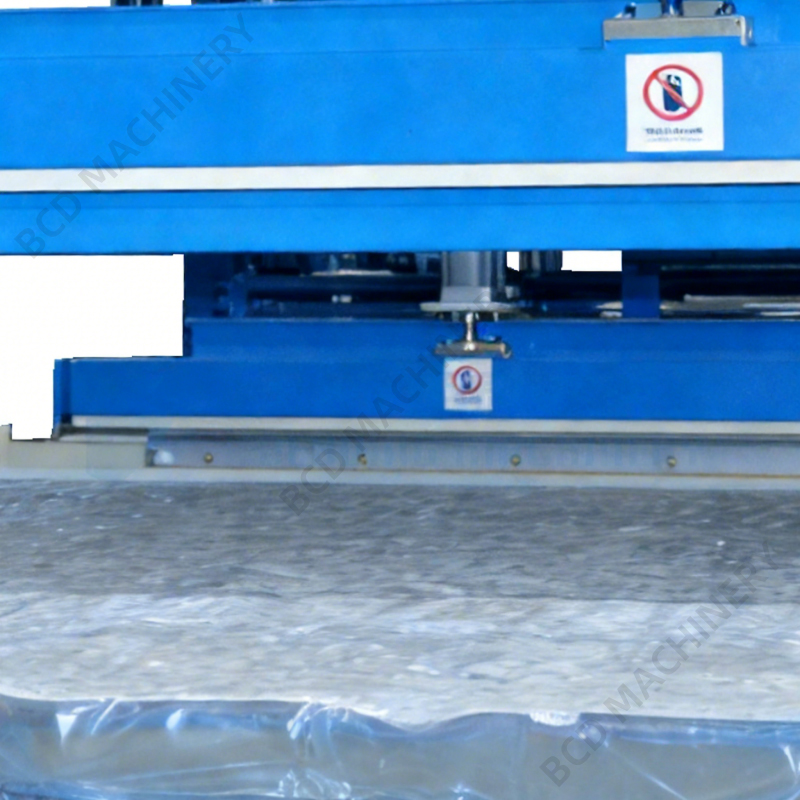

ONE-CLICK FULLY AUTOMATIC OPERATION Operable by a single person; automatically completes the full process of compression, vacuuming, film wrapping, heat sealing and cutting. |  VACUUM COMPRESSION TECHNOLOGY Greatly reduces mattress volume via interlocking compression (saves storage/transport space, cuts logistics costs); tight film sealing ensures moisture/dust resistance and keeps mattresses clean. |

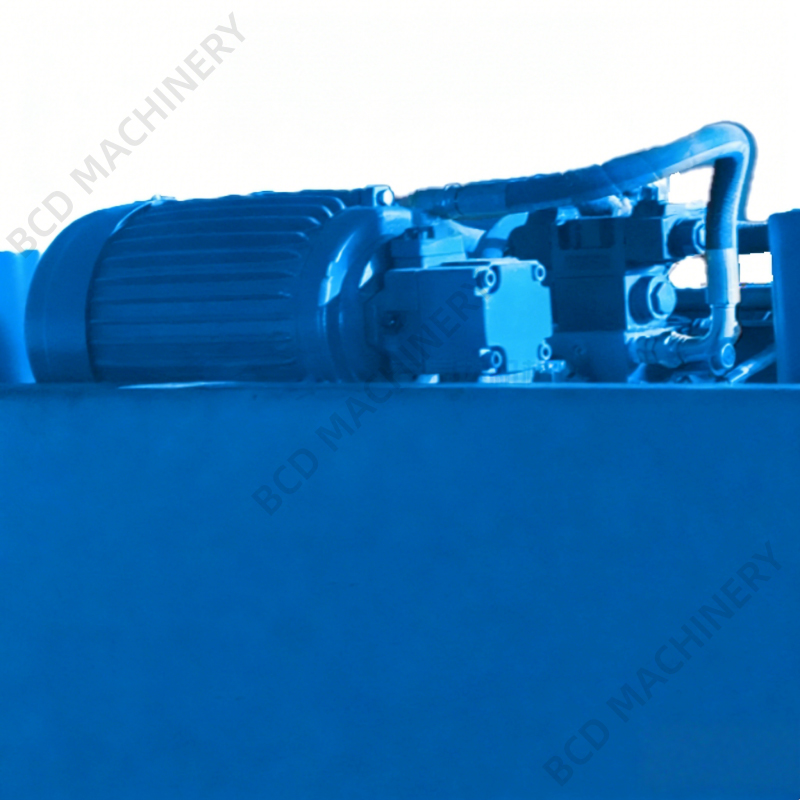

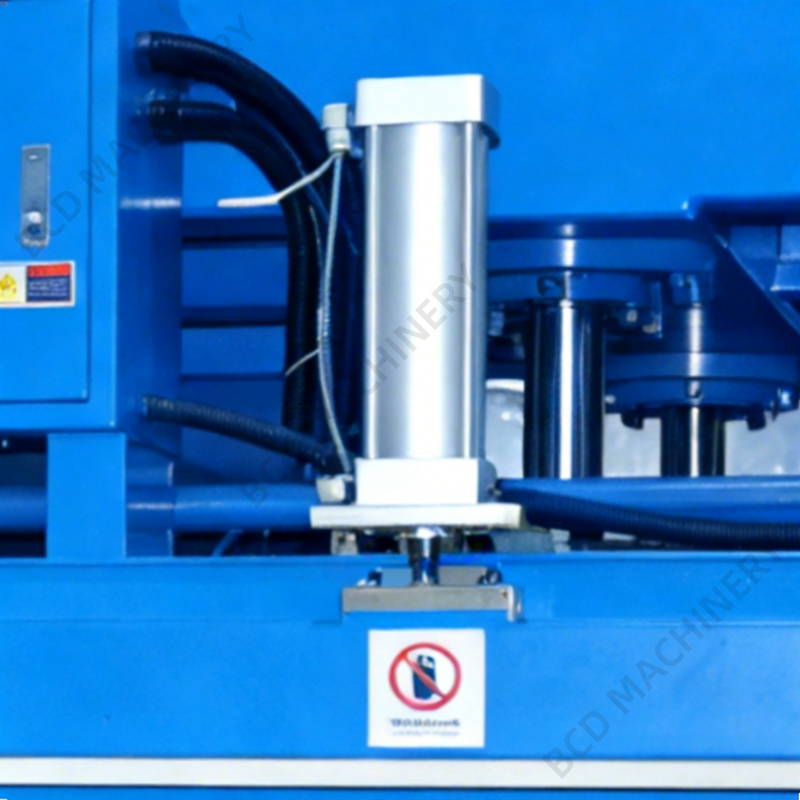

STABLE POWER CONFIGURATION 7.0KW motor + 4 cylinders deliver 30-40T hydraulic pressure, ensuring even compression of thick mattresses for neat packaging. |
SPACIOUS WORKTABLE 2300*2100mm work surface enables easier mattress placement/retrieval, reducing handling labor intensity. |

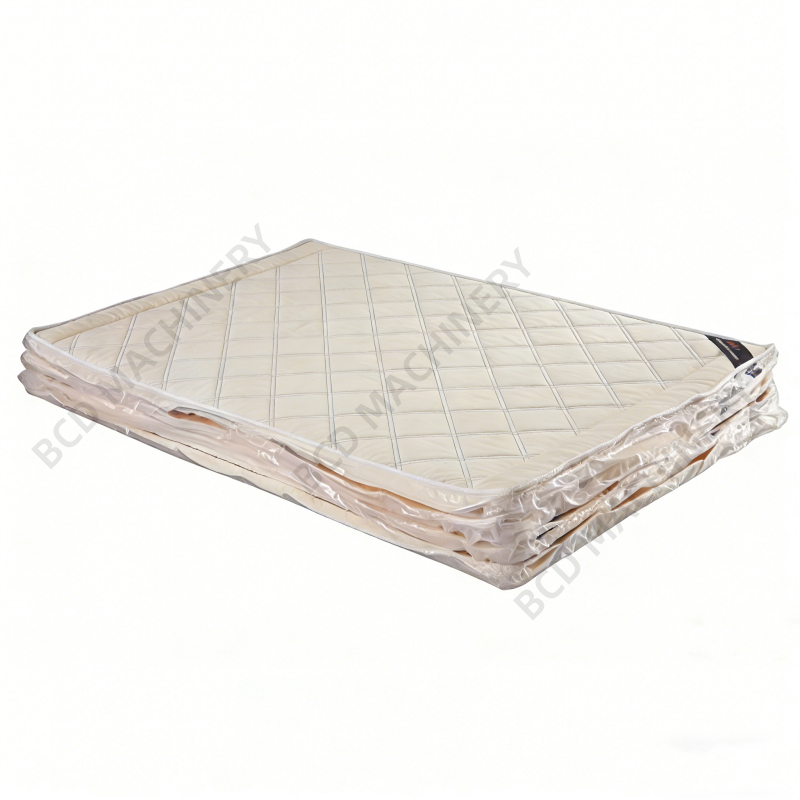

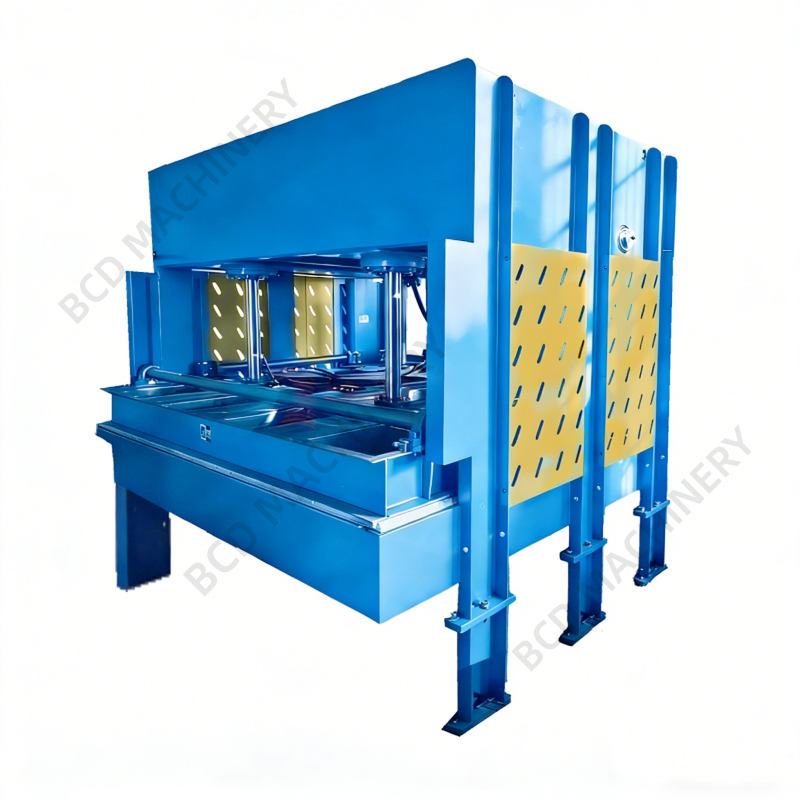

▎FINISHED PRODUCT DISPLAY
 |  |  |  |
▎MODEL COMPARISON
WHICH ONE IS MORE SUITABLE FOR YOU ?

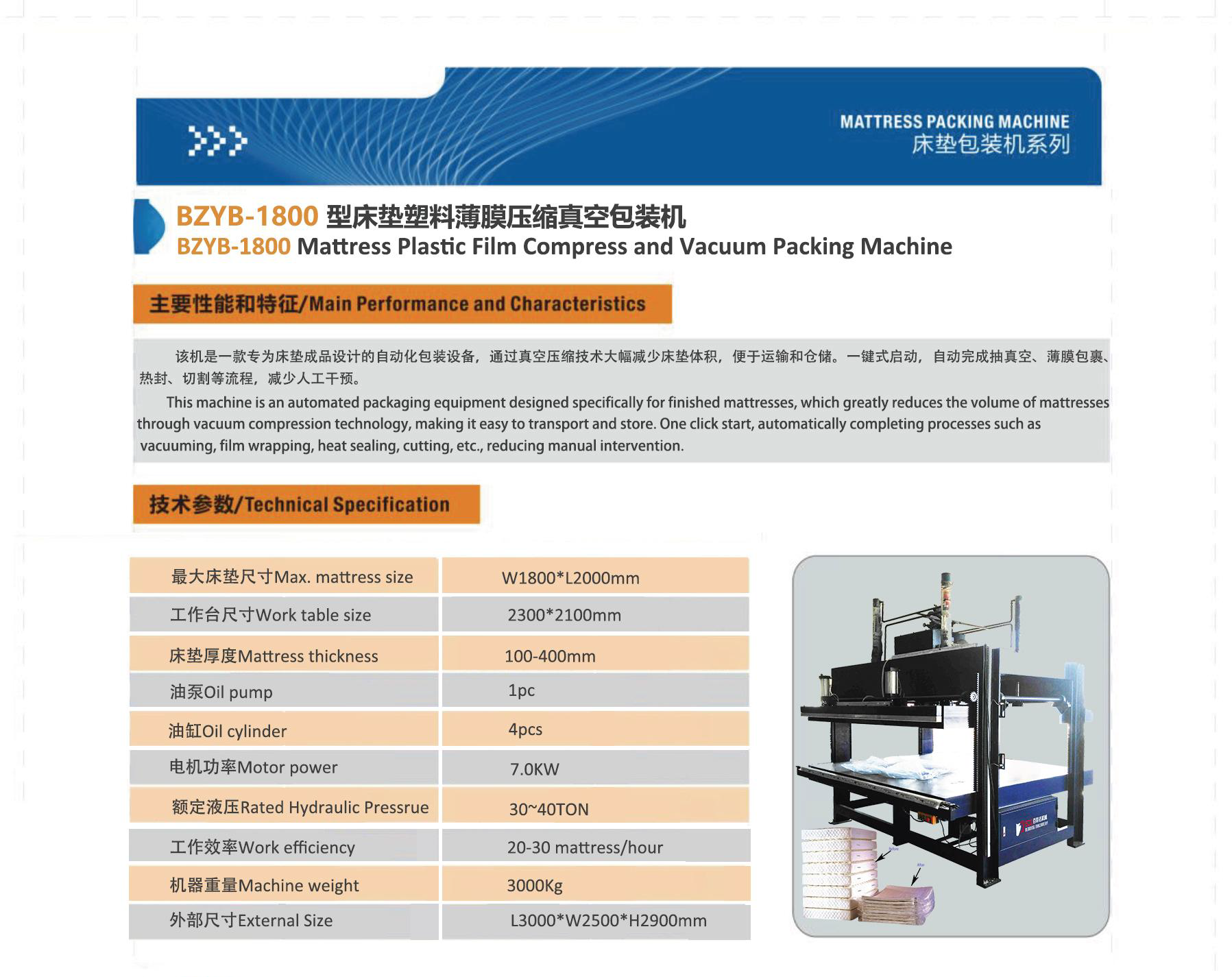

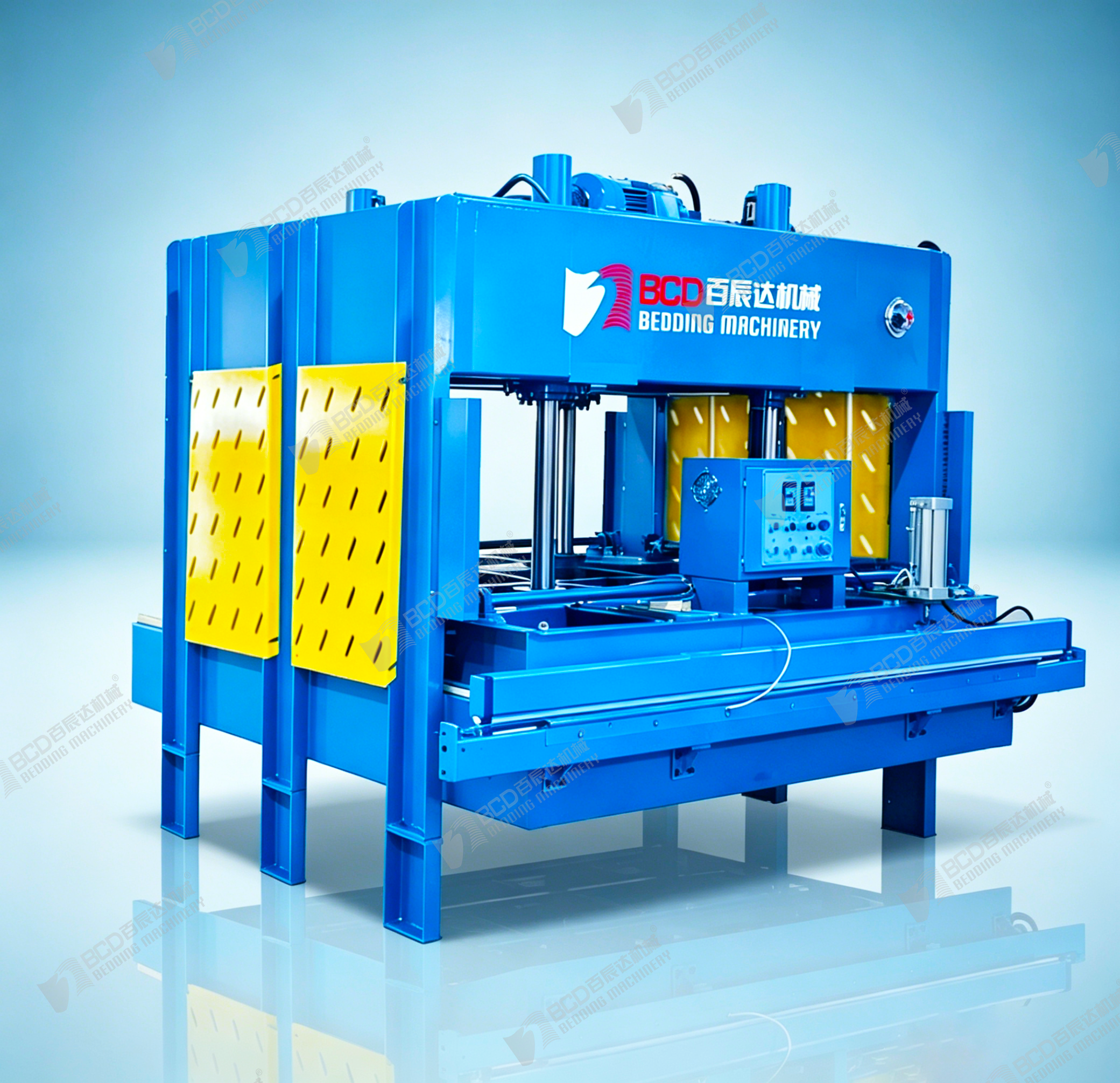

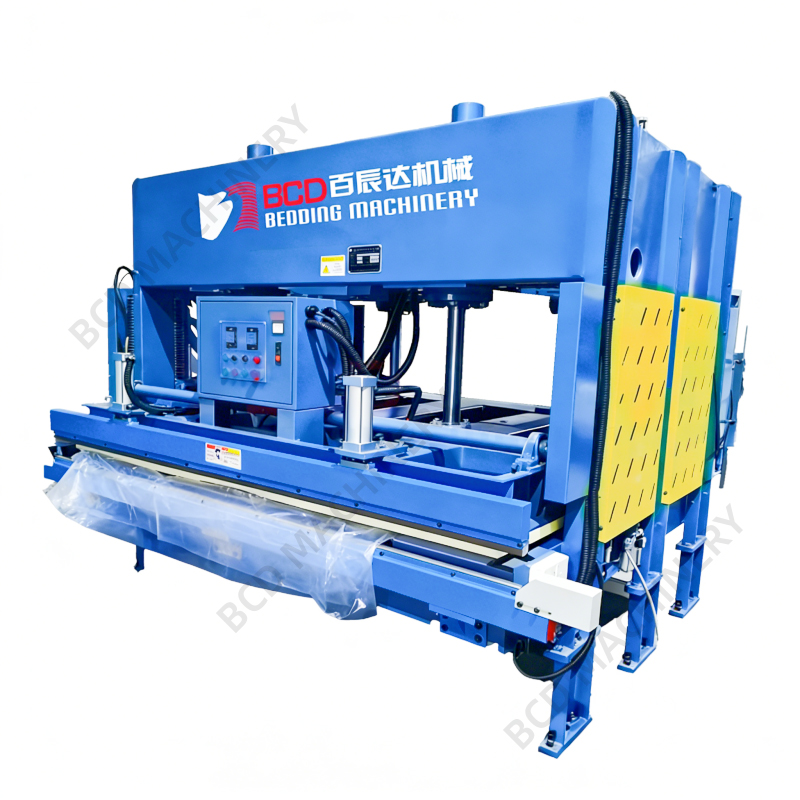

| BZYB Mattress Compress Packing Machine | |||
| Model no. | BZYB-1500 | BZYB-1800 | BZYB-2200 |
| Max. mattress size | W1500*L2000mm | W1800*L2000mm | W2200*L2000mm |
| Work table size | 1800*2100mm | 2300*2100mm | 2500*2100mm |
| Mattress thickness | 100-400mm | 100-400mm | 500mm |
| Oil pump | 1pc | 1pc | |
| Cylinder | 4pcs | 4pcs | |
| Motor power | 5.0KW | 7.0KW | |
| Hydraulic Pressure | 30-40TON | 30-40TON | 80TON |
| Work efficiency | 20-30 mattresses/hour | 20-30 mattresses/hour | |
| Machine weight | 3000kg | 3000kg | |
| External Size | L3000*W2200*H2900mm | L3000*W2500*H2900mm | L3100*W3000*H3100mm |
▎FAQ
Q: Can this machine package all mattress types, e.g., memory foam or 400mm-thick ones?
A: It supports memory foam, latex and composite mattresses, but mattress thickness must be 10-400mm. For mattresses over 400mm, contact us for a customized solution.
Q: My factory makes mattresses of different sizes—does the machine need frequent parameter adjustments?
A: No frequent or complex parameter adjustments are needed.
Q: Can the machine connect to a production line, or is it only for standalone use?
A: It supports connection to automated production lines; contact us for a production line layout design.
Q: What is the machine’s power consumption?
A: Rated power is 7.0KW.
Q: How many operators does the machine need?
A: Only one person. New operators can work independently after 1 hour of training, no professional background required.
Q: What is the after-sales warranty period of the product?
A: The standard warranty period is one year.
