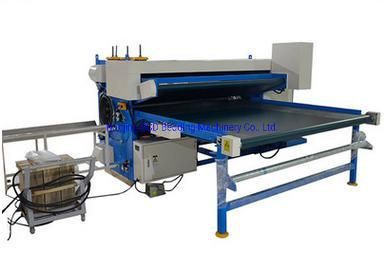

Bjbj-1 Semi-Automatic Mattress Rolling Machine

Main application and performance This machine is mainly used for mattress plastic film packing, its work steps as: vacuum ,hot-melt sealing , so that to save transportation charge. Its feature as: floating structure work table may enter or exit from main machine smoothly , as well as lift with hydraulic table .
Availability:
Quantity:
  • BJBJ-1

  • BCD MACHINERY

BJBJ foam mattress roll pack machine
The working table of this machine is a floating structure, which can enter or exit the main machine, and is pneumatically lifted and lowered. It is suitable for compressing and vacuuming plastic packaging mattresses, automatic mattress wrapping machines, heat sealing, and saving storage and transportation space. It is used for compressing and packaging large sponge mattresses, duvet clothes, space quilts, cushions, and other fluffy items. It can reduce packaging space and prevent moisture, and adopts a PLC control system with a touch screen. Its main feature is that the winding diameter can be adjusted, with a high degree of automation. One machine can have multiple traditional fixed diameter winding machines, saving cost and floor space. It is suitable for bagged spring mattresses and sponge mattresses, with a wide range of applications and simple and convenient operation. The corresponding caliber is automatically adjusted and selected according to different specifications of mattresses. The price of the automatic mattress wrapping machine automatically fixes the mattress during the wrapping process, saving transportation and inventory costs after wrapping.

Mattress size2000*2200*(100-360)mm
Work table width2000mm
Output outer ring diameter290mm,or 320mm, or 340mm,or 370mm,or 400mm,or 420mm(standard:290mm,customer select)
Max. foam density30Kg/M3
Production efficiency60pcs/hour
Machine weight3200Kg
Total power8.15KW
Machine sizeL3930×W2150×H1375mm
