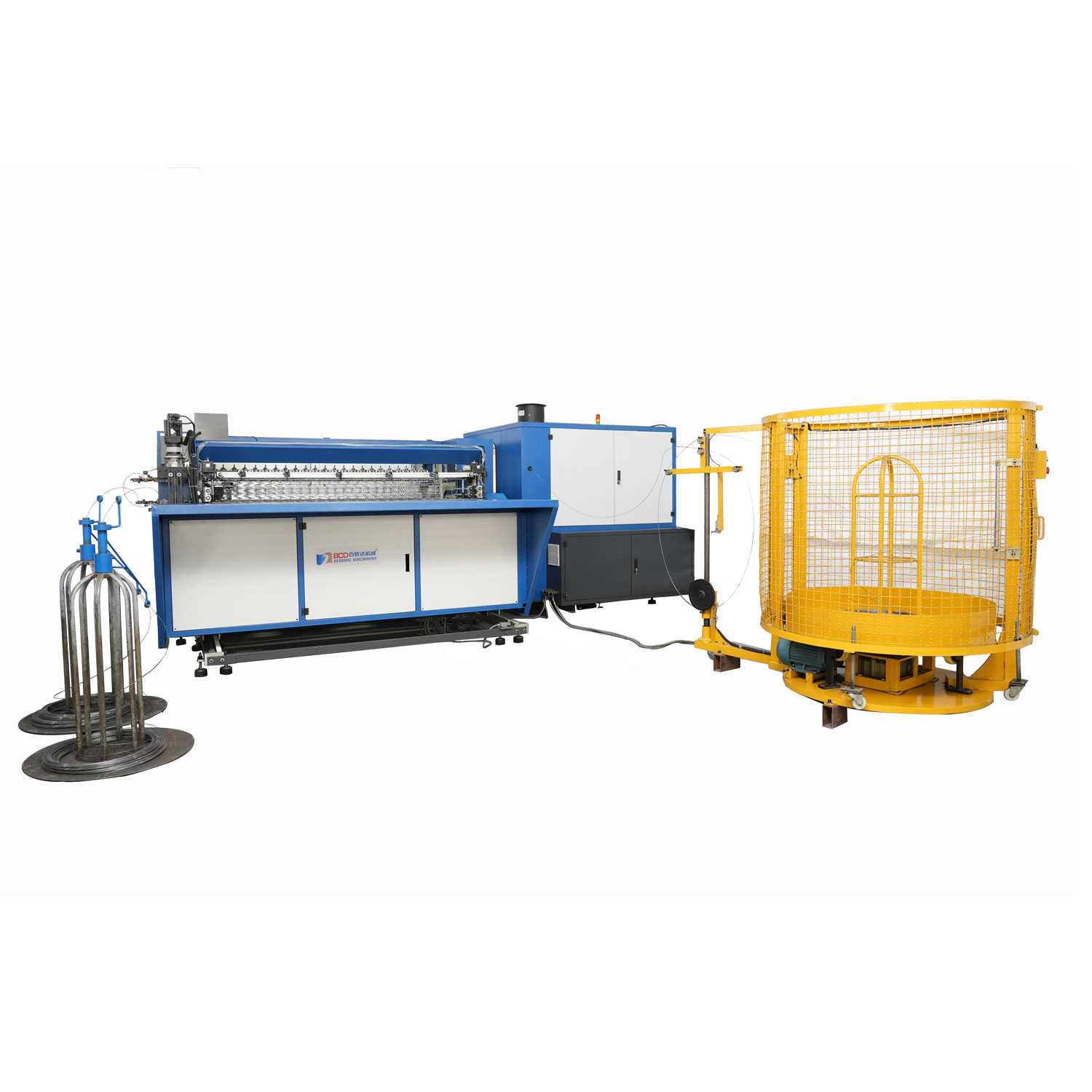

High Speed Automatic Mattress Spring Machine

This automatic mattress Spring Machine is an automatic equipment in making bonnel mattress springs. It combines coiling, knotting, heat treatment and put out total four procedures. Firstly, the steel wire is coiled to a spring, and then transferred and inserted to the assembler by the automatic feeding system. After this, the upper and lower springs are coiled together at the same time and helical wire is coiled, cut and clamped at both ends automatically. When a unit is finished, it could be ejected automatically. It adopts mechatronics design, worm and gear decelerator, regulation of speed can be controlled by frequency transformer, lubricating system can be controlled by computer. It is characterized with nice structure, easy adjusting, stable performance, high productivity.
Availability:
Quantity:
  • BYTJ-80

  • NANJING BCD

BYTJ-80 Auto Mattress Spring unit Automatic production line(Servo motor, spring coiling & assembling 2 IN 1)

This automatic mattress Spring Machine is an automatic equipment in making bonnel mattress springs. It combines coiling, knotting, heat treatment and put out total four procedures. Firstly, the steel wire is coiled to a spring, and then transferred and inserted to the assembler by the automatic feeding system. After this, the upper and lower springs are coiled together at the same time and helical wire is coiled, cut and clamped at both ends automatically. When a unit is finished, it could be ejected automatically. It adopts mechatronics design, worm and gear decelerator, regulation of speed can be controlled by frequency transformer, lubricating system can be controlled by computer. It is characterized with nice structure, easy adjusting, stable performance, high productivity.


High Speed Automatic Mattress Spring Machine


High Speed Automatic Mattress Spring Machine

High Speed Automatic Mattress Spring Machine
High Speed Automatic Mattress Spring Machine
High Speed Automatic Mattress Spring Machine
High Speed Automatic Mattress Spring Machine
High Speed Automatic Mattress Spring Machine
High Speed Automatic Mattress Spring Machine


Assembling efficiency 60-80 units/shift
Max spring width 2000mm
Available assembling wire φ1.3-φ1.4mm
Spring wire available φ1.9-φ2.4mm
Spring end diameter φ65-φ95mm
Spring height  80-180mm
Total motor power 3.0Kw
